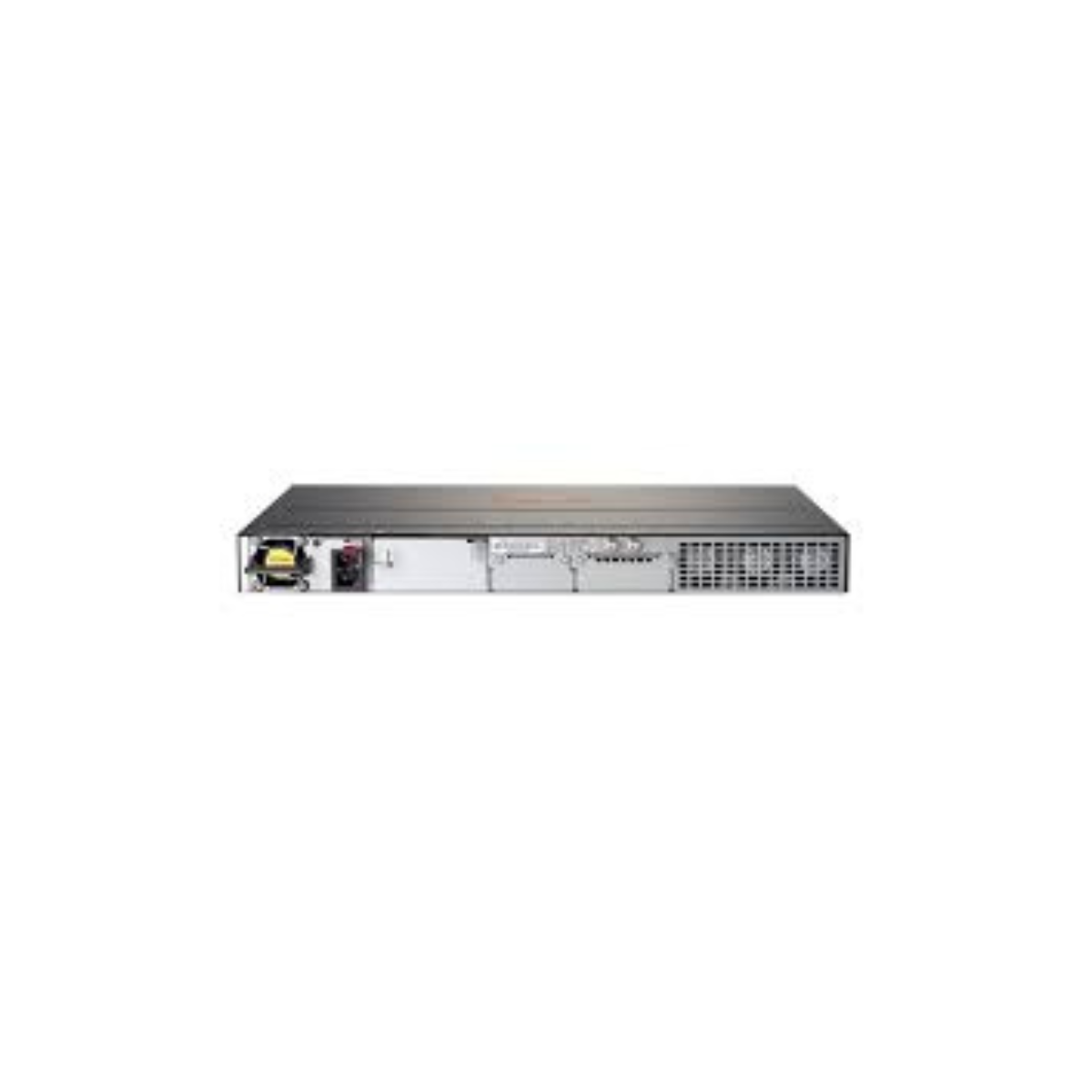

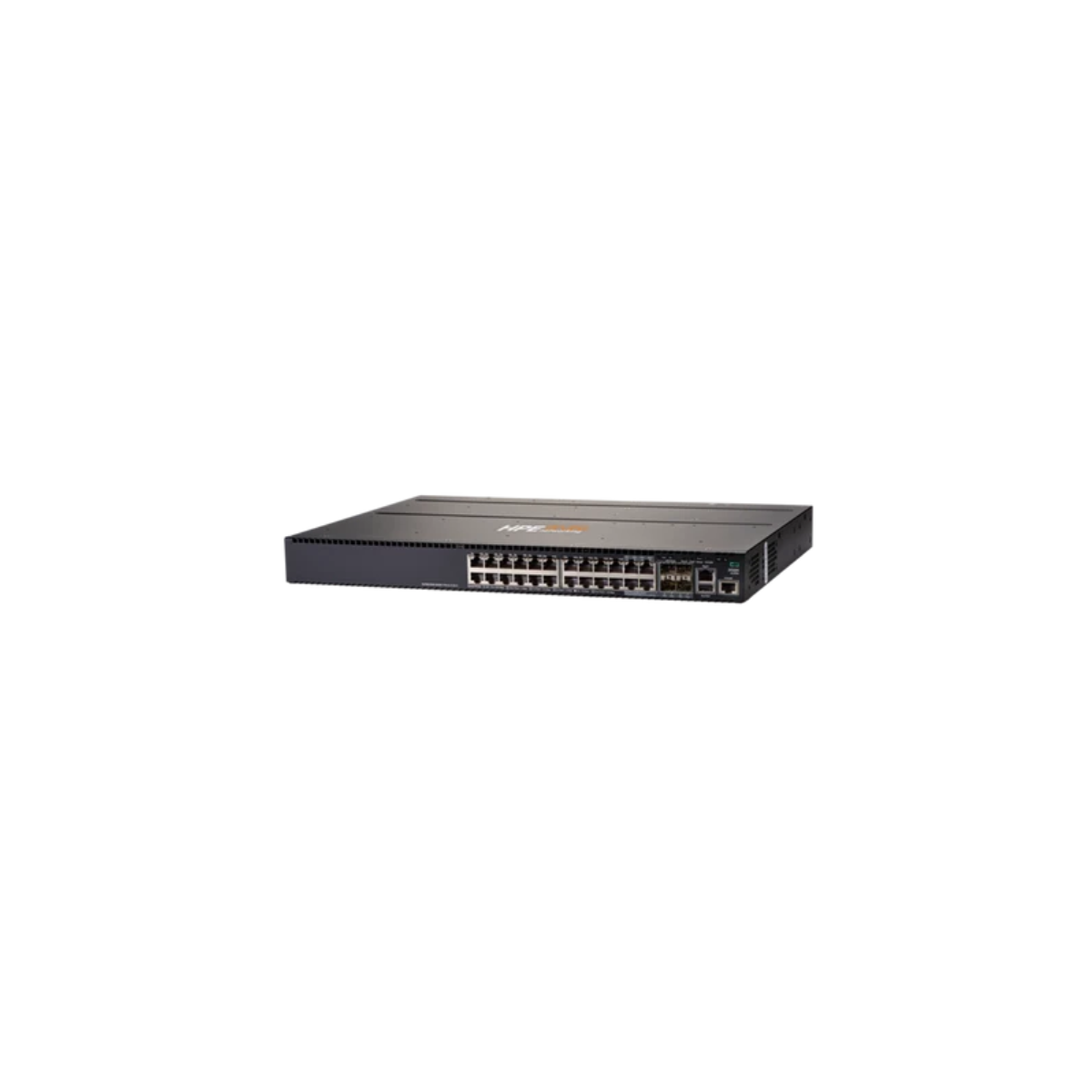

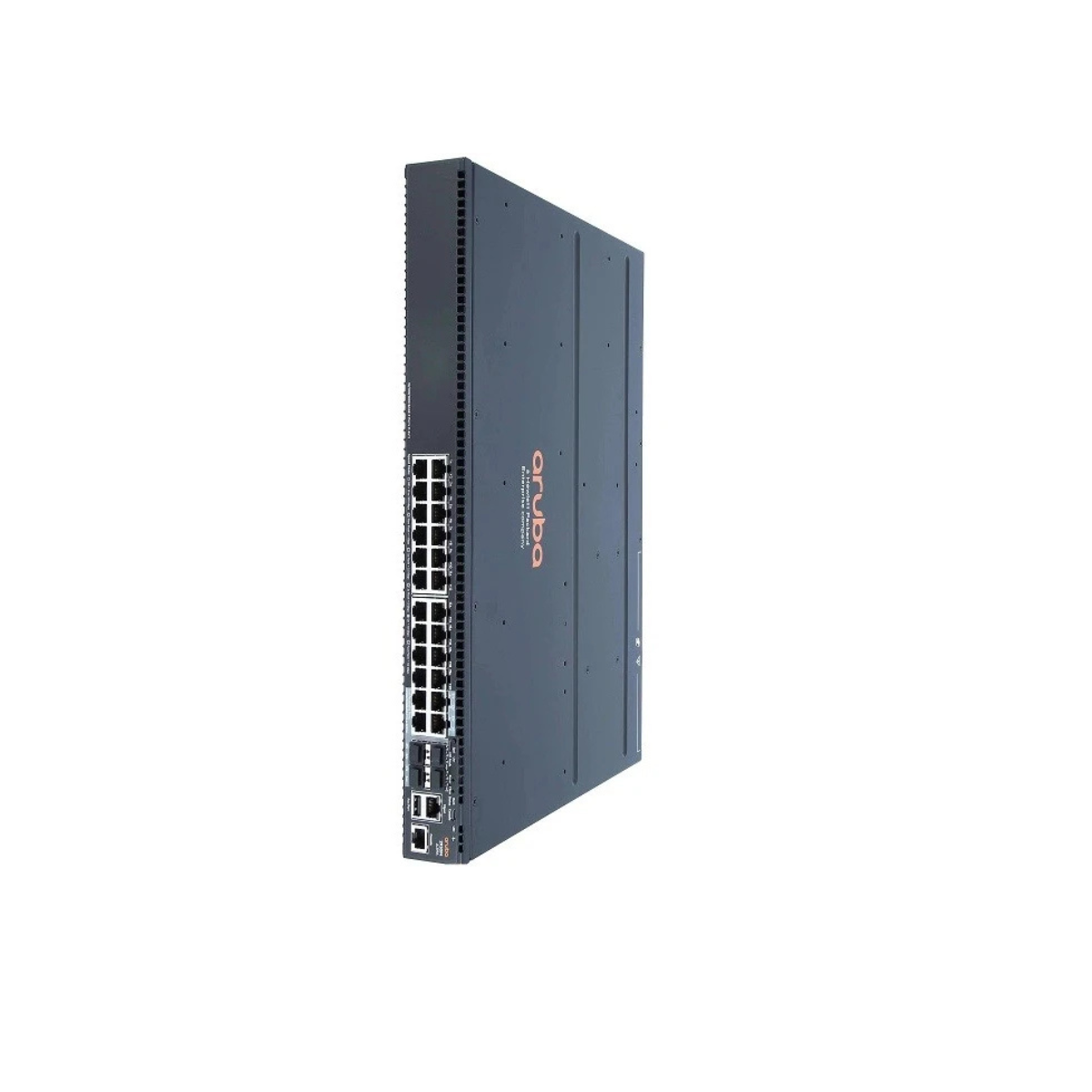

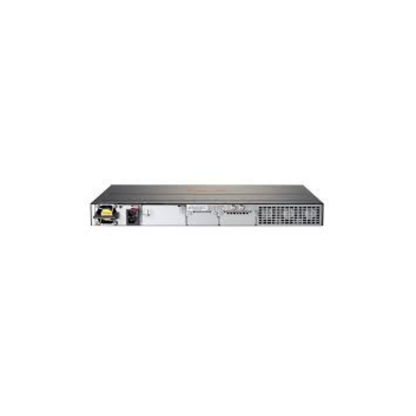

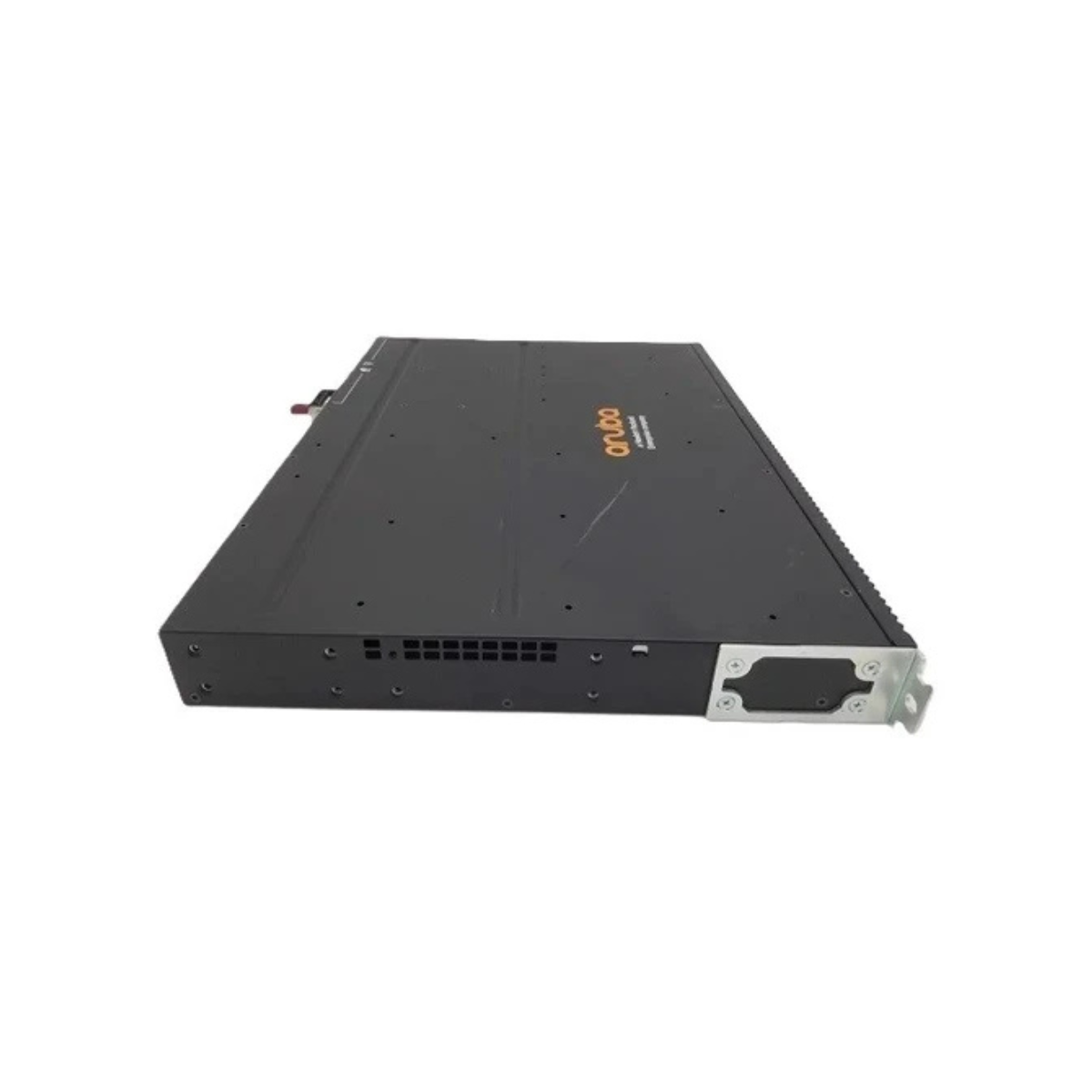

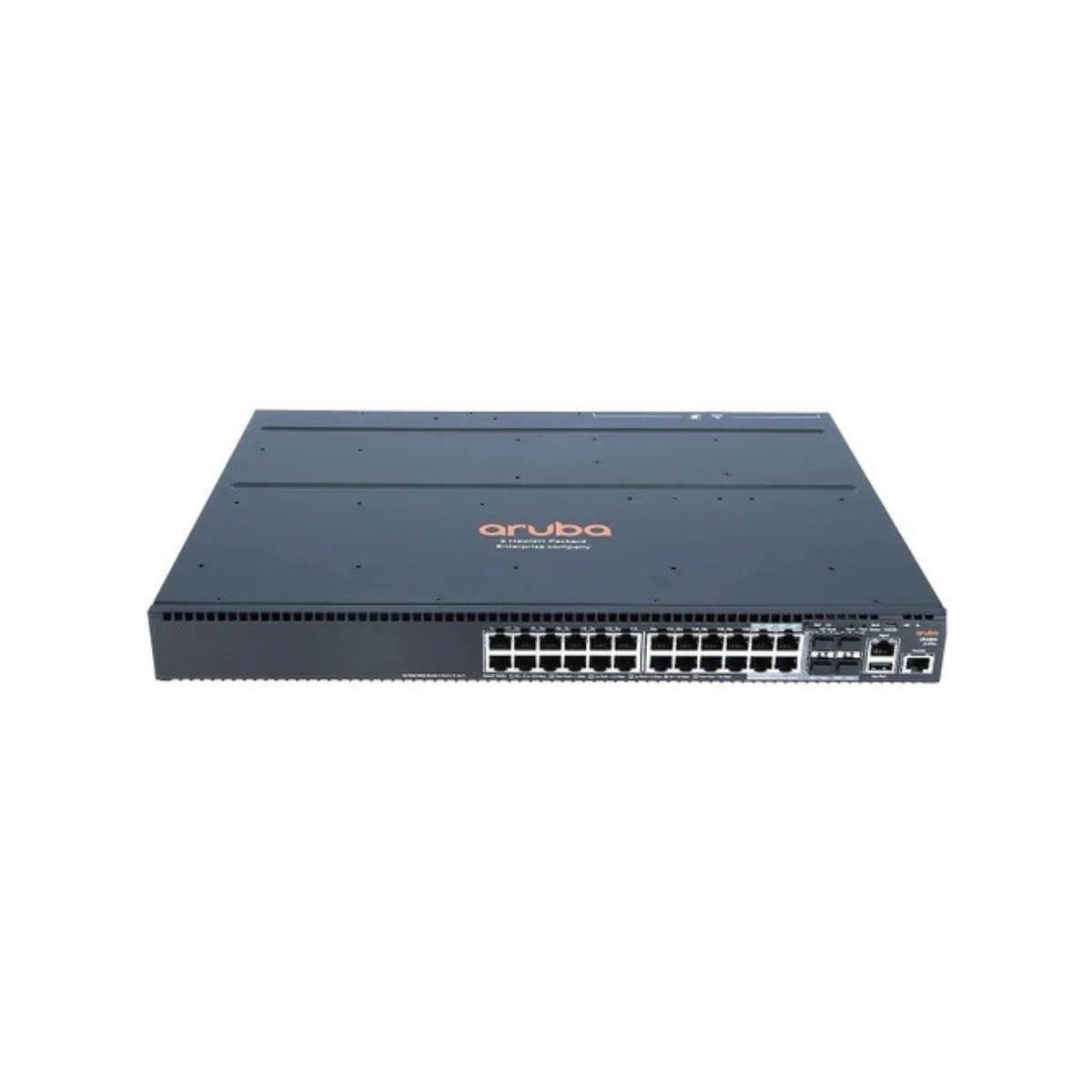

HPE Aruba 2930M 24G 1-Slot 24-Port Managed Switch Refurbished JL319A-RFB

REFURBISHED WITH 90-DAY CCS WARRANTY!!!

The HPE Aruba 2930M 24G 1-Slot 24-Port Managed Switch JL319A-RFB delivers reliable enterprise-class Gigabit switching for branch offices, enterprise wiring closets, and SMB networks. This refurbished configuration provides a cost-effective way to deploy proven Aruba networking technology while maintaining the core performance and Layer 3 capabilities of the 2930M platform.

Stable wired connectivity remains essential for modern networks, and the JL319A-RFB provides 24 Gigabit Ethernet access ports, modular uplink expansion, stacking capability, and Layer 3 routing features. Its 1U rack-mountable design makes it well suited for space-conscious network deployments where reliable switching and flexible expansion are priorities.

The JL319A-RFB is professionally refurbished and backed by a 90-day CCS warranty, giving organizations a budget-conscious option for extending or replacing existing network infrastructure.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet access ports
• Modular uplink slot supporting optional 10GbE or 40GbE uplink modules
• Stacking module slot for scalable switch deployments
• Layer 3 routing, including static routing, RIP, and Access OSPF
• Enterprise security features and VLAN segmentation
• Centralized and local management options through Aruba platforms
• Reliable switching architecture designed for enterprise edge networks
• No additional software licensing required for core functionality

Specifications

Brand: HPE Aruba
SKU / Part Number: JL319A-RFB
Product Series: Aruba 2930M
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable (1U)

Ports
Access Ports: 24 × RJ-45 10/100/1000 Gigabit Ethernet
Combo Ports: 4 × Gigabit SFP combo ports

Expansion Slots
1 × uplink expansion slot
1 × stacking module slot

Performance
MAC Address Table Size: 32,768 entries
Jumbo Frame Support: Up to 9220 bytes

Routing Capabilities
Static IPv4 routing
Static IPv6 routing
RIP / RIP-1 / RIP-2 / RIPng
OSPF / OSPFv2 / OSPFv3
IGMP / IGMPv2 / IGMPv3
MLD
ECMP

Memory and Processor
Processor: ARM Cortex-A9
Clock Speed: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Storage: 4 GB

Management and Monitoring
Management Interfaces: CLI, Web interface
Protocols: SNMP, SNMP v1/v2c/v3, RMON
Remote Access: SSH, Telnet, HTTP

Power
Power Supply Type: Internal power supply
Supported Quantity: Up to 2 power supplies
Voltage: AC 120/230 V
Frequency: 50/60 Hz
Power Consumption: 93 W operational
Certification: 80 PLUS Silver

Physical
Color: Black
Rack Height: 1U
Dimensions (W × D × H): 17.4 × 12.8 × 1.7 inches
Weight: 9.81 lbs

Use Cases

JL319A-RFB works well as an access switch in branch offices, enterprise wiring closets, and SMB environments that require stable Gigabit connectivity. It supports desktops, printers, and wired endpoints, with modular uplinks for fast aggregation to core switches. Organizations benefit from its Layer 3 routing features for network segmentation and traffic control. Because stacking and uplinks remain modular, the switch allows network expansion without replacing the entire infrastructure.

Why Choose HPE Aruba 2930M JL319A-RFB

• Reliable 24-port Gigabit Ethernet access for enterprise networks
• Modular uplink slot allowing upgrades to faster backbone connections
• Stacking module slot enabling scalable multi-switch deployments
• Layer 3 routing capabilities for branch and campus segmentation
• Enterprise-grade security, VLAN, and QoS support
• Flexible management through Aruba Central, AirWave, and CLI
• Compact rack-mountable design suitable for wiring closets
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQ

1.What is the HPE Aruba 2930M JL319A-RFB?
The HPE Aruba 2930M JL319A-RFB is a refurbished 24-port managed Layer 3 Gigabit Ethernet switch designed for enterprise networks, branch offices, and SMB environments.

2.How many Ethernet ports does the JL319A-RFB have?
The JL319A-RFB provides 24 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet access ports, along with modular expansion options for network uplinks.

3.Does the HPE Aruba 2930M JL319A-RFB support Layer 3 routing?
Yes. The switch supports Layer 3 features including static IPv4/IPv6 routing, RIP, OSPF, ECMP, IGMP, and MLD, making it suitable for network segmentation and traffic management.

4.Does the JL319A-RFB support stacking?
Yes. The Aruba 2930M JL319A-RFB includes a stacking module slot, allowing it to be integrated into scalable multi-switch deployments.

5.What type of management does the HPE Aruba 2930M JL319A-RFB support?
The switch supports management through a CLI and web interface, with protocols and remote-access options including SNMP, RMON, SSH, Telnet, and HTTP.

6.Is the HPE Aruba 2930M JL319A-RFB covered by a warranty?
Yes. This refurbished JL319A-RFB is backed by a 90-day CCS warranty, providing coverage for the refurbished hardware during the warranty period.
