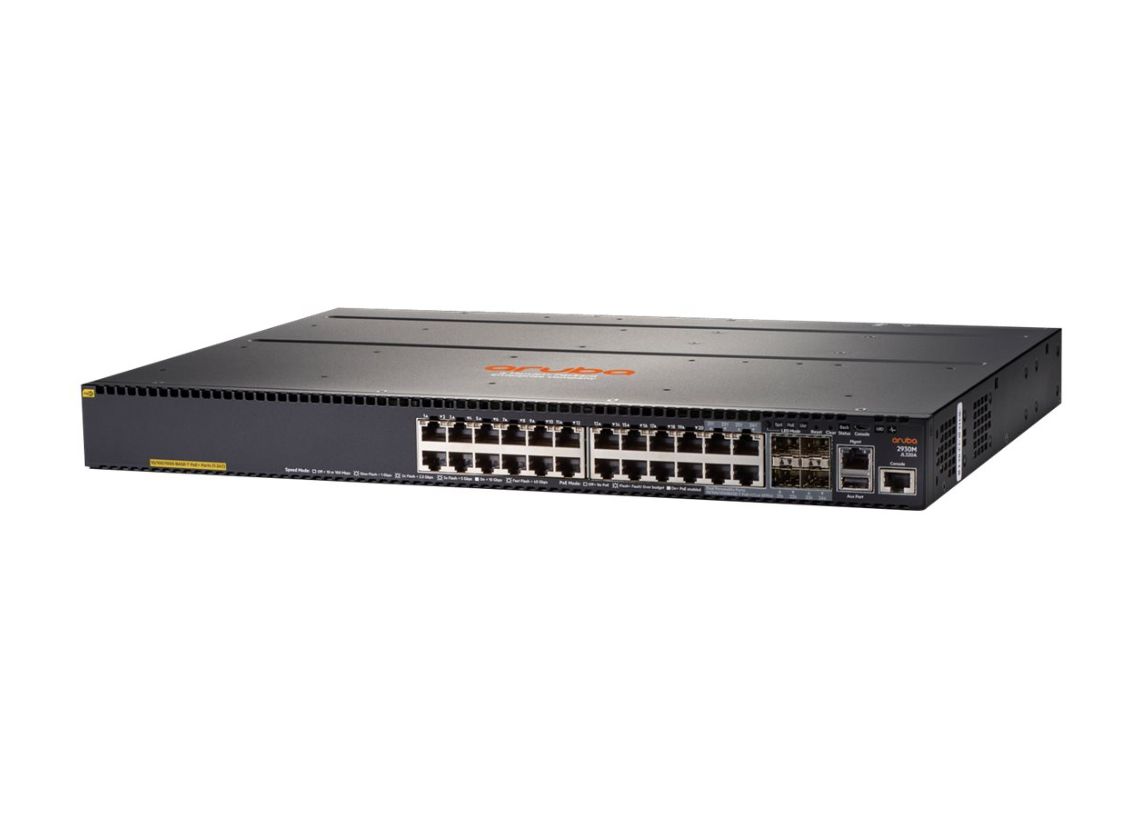

HPE Aruba 2930M 24G PoE+ 1-Slot 24-Port Switch JL320A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Modern workplaces depend on stable wired connectivity and reliable power delivery for edge devices. The HPE Aruba 2930M JL320A delivers both in a compact access switch built for enterprise edge networks. It provides twenty-four Gigabit Ethernet ports with PoE+ support, making it easy to power wireless access points, IP phones, and security cameras directly from the switch.

This model also supports modular expansion, so your network can evolve without replacing hardware. A modular uplink slot allows higher-speed connectivity when traffic grows. A dedicated stacking slot enables multiple switches to operate together as a single logical system. Combined with Layer 3 routing features and Aruba management tools, JL320A becomes a dependable solution for campus, branch, and SMB environments.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet PoE+ access ports
• Up to 720W PoE capacity, depending on installed power supplies
• Modular uplink slot supporting optional 10GbE or 40GbE uplink modules
• Stacking module slot for scalable switch deployments
• Layer 3 routing, including static routing, RIP, and Access OSPF
• Enterprise-grade security, VLAN segmentation, and QoS support
• Centralized and local management with Aruba network platforms
• Designed for enterprise edge, branch, and SMB network environments

Specifications

Brand: HPE Aruba
SKU / Part Number: JL320A
Product Series: Aruba 2930M
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable

Ports
Access Ports: 24 × RJ-45 10/100/1000 PoE+
Combo Ports: 4 × Gigabit SFP combo ports

Expansion Slots
1 × uplink expansion slot
1 × stacking module slot

Performance
Switching Capacity: 128 Gbps
Throughput: 95.2 Mpps
Latency: 10 Mbps – 98.5 µs
Latency: 100 Mbps – 11.8 µs
Latency: 1 Gbps – 3.1 µs
Latency: 10 Gbps – 3.4 µs

Routing Capabilities
Static IPv4 routing
Static IPv6 routing
RIP / RIP-1 / RIP-2 / RIPng
OSPF / OSPFv2 / OSPFv3
ECMP
IGMP / IGMPv2 / IGMPv3
MLD

Memory and Processor
Processor: ARM Cortex-A9
Clock Speed: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Storage: 4 GB

Management and Monitoring
Management Interfaces: CLI, Web interface
Protocols: SNMP, SNMP v1/v2c/v3, RMON1, XRMON
Remote Access: SSH, Telnet, HTTP

PoE
PoE Type: PoE+
Maximum PoE Budget: Up to 720W, depending on installed power supplies

Power
Power Supply Type: Internal power supply
Supported Quantity: Up to 2 power supplies
Voltage: AC 120/230 V
Frequency: 50/60 Hz
Certification: 80 PLUS Silver

Use Cases

JL320A is well-suited for enterprise access networks that need reliable PoE connectivity. It powers wireless access points, IP phones, and security cameras in office environments while providing stable Gigabit Ethernet access for wired devices. Branch offices benefit from its Layer 3 routing capabilities that simplify segmentation and traffic management. Because uplinks and stacking remain modular, organizations can expand network capacity without redesigning their infrastructure.

Why Choose HPE Aruba 2930M JL320A

• Compact 24-port Gigabit PoE+ access switch for enterprise edge networks
• Up to 720W PoE budget for powering wireless APs, phones, and cameras
• Modular uplink slot allowing upgrades to higher-speed backbone connectivity
• Dedicated stacking module slot for scalable switch deployments
• Layer 3 routing features for branch and campus network segmentation
• Flexible management through Aruba Central, AirWave, and CLI tools
• Reliable switching architecture designed for modern digital workplaces
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL320A?

It is a managed Layer 3 access switch designed for enterprise edge, campus, and branch networks.

How many Ethernet ports does JL320A provide?

It provides 24 Gigabit Ethernet PoE+ ports for wired devices and network-powered endpoints.

Does this switch support PoE+?

Yes. JL320A supports PoE+ with a total PoE budget of up to 720W, depending on the installed power supplies.

Can JL320A support high-speed uplinks?

Yes. The modular uplink slot allows optional modules that provide higher-speed uplink connectivity, such as 10GbE or 40GbE.

Does the switch support stacking?

Yes. It includes a stacking module slot that allows multiple switches to operate as a single logical switch.

Is the product new and covered by warranty?

Yes. The unit is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
