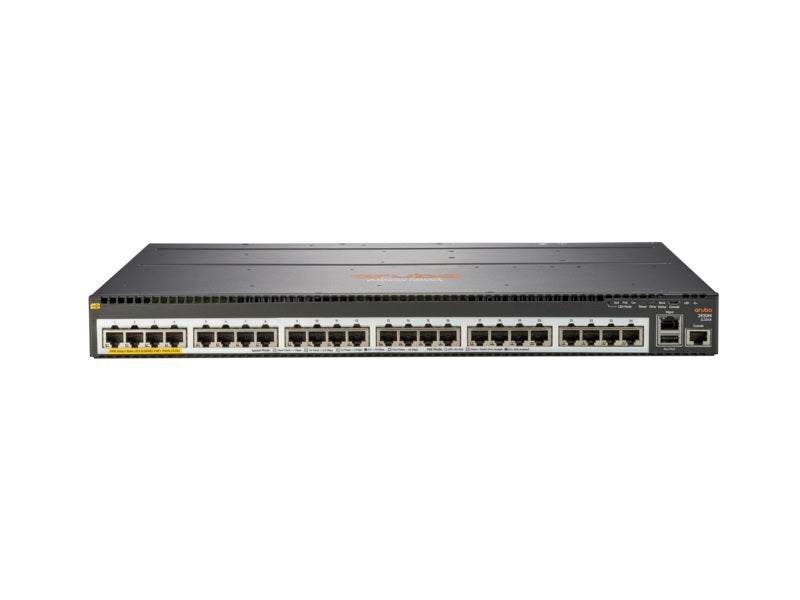

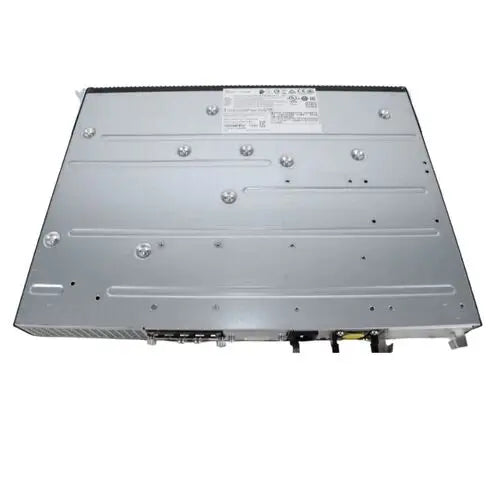

HPE Aruba 2930M 24 Smart Rate PoE+ 1-Slot Switch JL324A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Your access layer often carries the most pressure. It powers cameras, phones, and Wi-Fi access points. It also has to stay fast when users move, meetings start, and traffic spikes. The HPE Aruba 2930M JL324A is best for that exact edge workload. You get 24 Smart Rate 1/2.5/5GBASE-T copper ports with PoE+ and modular uplink and stacking options, so you can scale without replacing hardware.

This switch also brings enterprise Layer 3 features for real networks, not lab demos. It supports static routing, RIP, and Access OSPF. It also supports ACLs, IPv6, monitoring tools, and automation-friendly interfaces. So, it fits branch offices, SMB growth networks, and enterprise edge deployments where the wired layer must stay predictable.

Key Features

• Compatible digital workplace access switch with Smart Rate multi-gigabit for modern Wi-Fi
• 24 × 802.3bz 1/2.5/5GBASE-T copper PoE+ ports for high-speed APs and IoT
• Modular uplinks (10GbE SFP+ or 40GbE QSFP+ via optional modules)
• Pay-as-you-grow stacking with a stacking module slot for scalable deployments
• Layer 3 feature set for enterprise edge routing and segmentation
• Security and policy support via authentication controls and access policies
• Operational visibility through monitoring and telemetry tools
• Designed for scalable PoE with supported hot-swappable power supply options

Specifications

Brand: HPE Aruba
SKU / Part Number: JL324A
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable (1U)

Ports and Expansion
Access Ports: (24) RJ-45 autosensing 1/2.5/5GBASE-T PoE+ ports
Expansion Slots: (1) uplink module slot, (1) stacking module slot

Performance
Switching Capacity: 320 Gbps
Throughput: Up to 112 Mpps
Latency: 1GbE < 3.1 µs, 10GbE < 3.4 µs

Memory and Processor
CPU: Dual Core ARM Cortex-A9 @ 1016 MHz
RAM: 1 GB DDR3 SDRAM
Storage: 4 GB eMMC
Packet Buffer: 12.38 MB total (4.5 MB ingress / 7.785 MB egress)

PoE
PoE Type: PoE+
PoE Budget: Up to 860W (based on selected power supplies)

Management and Monitoring
Management Options: Aruba AirWave, Aruba Central, IMC, CLI, Web browser, configuration menu
Protocols and Tools: SNMP, Telnet, RMON1, FTP

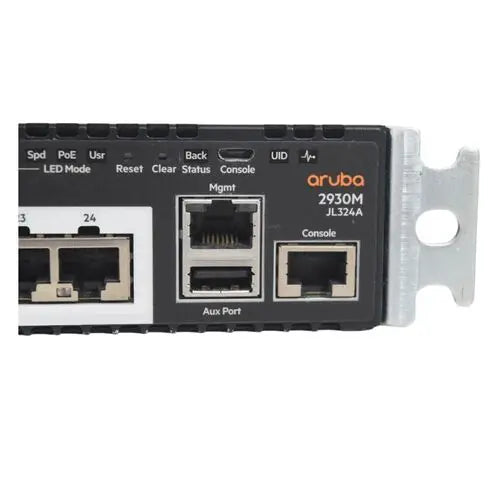

Out-of-Band Management: Serial RS-232C or micro USB

Power
Supported Power Supplies:

• JL086A Aruba X372 54VDC 680W 100–240VAC Power Supply
• JL087A Aruba X372 54VDC 1050W 110–240VAC Power Supply

Power Supplies Supported: Up to 2 (ordered separately)
Input Voltage: 100–127 / 200–240 VAC rated (depends on PSU)
Power Consumption (per PSU): JL086A 513W, JL087A 873W
Heat Dissipation: 150 BTU/hr (162 kJ/hr)

Use Cases

JL324A makes sense when you want multi-gig access ports for Wi-Fi upgrades, but you also need PoE+ to power edge devices. It works well in branch offices, enterprise edge closets, and SMB networks that expect growth. And because uplinks and stacking remain modular, you can scale bandwidth and resilience without re-architecting the whole access layer.

Why Choose HPE Aruba 2930M JL324A

• Smart Rate 1/2.5/5GbE access ports that match modern Wi-Fi speeds on existing copper runs.
• PoE+ support with up to 860W budget when paired with supported power supplies
• Modular uplink slot so you can adapt to 10GbE or 40GbE uplink needs over time.
• Stacking module slot for scale-out growth and simpler access-layer operations
• Layer 3 routing support for practical edge segmentation and branch deployments
• Multiple management paths, including Aruba Central and AirWave, for distributed visibility
• Built for busy edge closets where stable latency and predictable performance matter

FAQs

Is the Aruba JL324A a multi-gig switch?

Yes. It provides 24 Smart Rate autosensing 1/2.5/5GBASE-T copper ports that support IEEE 802.3bz speeds.

Does JL324A support PoE+, and how much PoE power can it deliver?

Yes. It supports PoE+. It can deliver up to 860W PoE budget based on the selected supported power supplies.

Can I add 10 GbE or 40 GbE uplinks later?

Yes. This model includes an uplink module slot, so you can expand uplink options using compatible modules as your bandwidth needs grow.

Is this a Layer 3 switch?

Yes. It is a managed Layer 3 access switch and supports routing features such as static routing, RIP, and Access OSPF.

Does it support stacking?

Yes. It includes a stacking module slot, designed for scalable deployments that require simplified management and growth.

Are power supplies included with this unit?

This listing states that the switch can take up to 2 supported power supplies, ordered separately.
