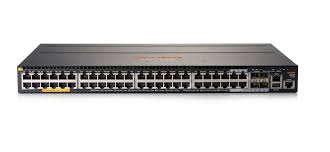

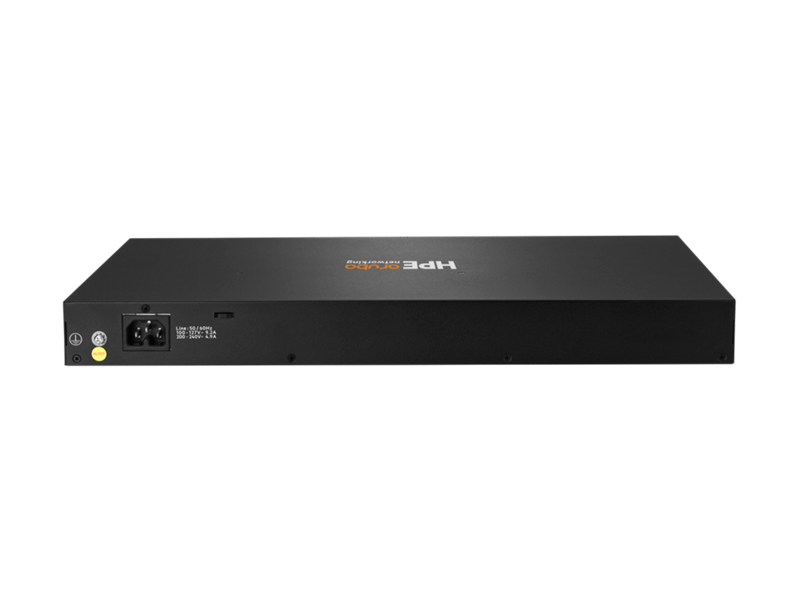

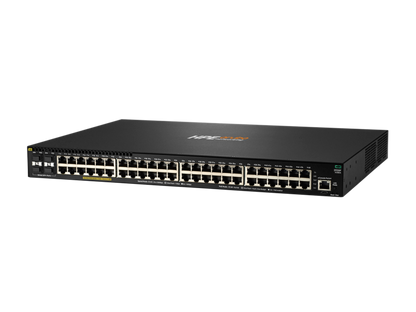

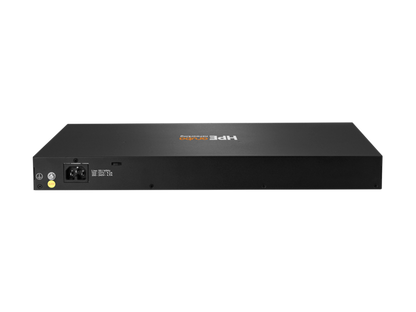

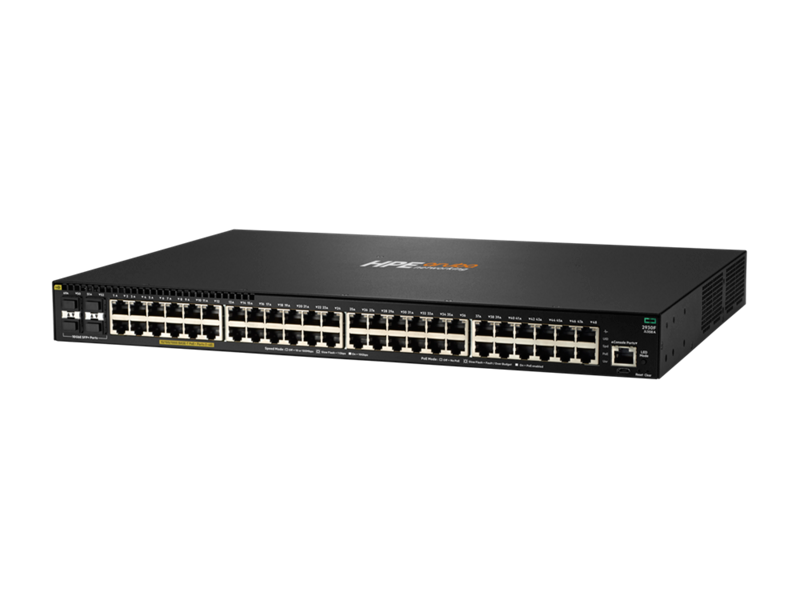

HPE Aruba 2930F 48G PoE+ 4SFP+ 48-Port Switch JL558A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba 2930F JL558A is best for organizations that want strong wired access with integrated PoE power and Layer 3 control. It delivers 48 Gigabit Ethernet PoE+ ports and four 10G SFP+ uplinks in a compact 1U chassis. With a generous 740W PoE budget, it supports dense deployments of wireless access points, IP cameras, and VoIP phones without the need for external power injectors.

Designed for enterprise edge, SMB, and branch environments, the 2930F series combines performance with operational simplicity. It supports Virtual Switching Framework stacking, so you can scale port count and manage multiple switches as one logical unit.

Key Features

• 48 × 10/100/1000 Gigabit Ethernet PoE+ ports
• 4 × 10G SFP+ uplink ports
• 740W PoE+ budget for high-density device support
• Layer 3 routing with RIP and OSPF support
• Stackable with Aruba Virtual Switching Framework
• No additional software licensing required

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL558A
Series: Aruba 2930F
Device Type: Layer 3 Managed Switch
Form Factor: 1U Rack-mountable
Ports: 48 × Gigabit Ethernet PoE+
Uplinks: 4 × 10 Gigabit SFP+
Switching Capacity: 176 Gbps
Throughput: 112 Mpps
Latency: 3.8 µs (1Gbps), 1.6 µs (10Gbps)
MAC Address Table: 32K entries
Routing Protocols: OSPFv2/OSPFv3, RIP, RIPng, Static IPv4/IPv6, BGP, IGMP, MLD
Remote Management: SNMP 1/2/3, SSH, CLI, RMON, Telnet
Processor: ARM Cortex-A9 @ 1.016 GHz
Memory: DDR3 SDRAM
PoE Budget: 740W
Power Supply: Internal
Voltage: AC 120/230 V (50/60 Hz)
Dimensions (W × D × H): 17.4 in × 12 in × 1.7 in
Weight: 9.83 lb

Use Cases

JL558A fits enterprise access layers that require reliable PoE+ power and stable Layer 3 routing. It supports large WiFi rollouts in office buildings, surveillance deployments in distributed sites, and voice networks in branch offices. The 10G SFP+ uplinks connect cleanly to aggregation or core switches, ensuring smooth data flow during peak hours. When growth becomes a priority, stacking simplifies expansion while keeping management centralized.

Why Choose HPE Aruba 2930F JL558A

• High PoE+ capacity for dense device environments
• 10G uplinks for strong aggregation performance
• Layer 3 features for routed access and segmentation
• Stackable design for scalable enterprise deployments
• Reliable Aruba platform backed by a full HPE warranty

FAQs

How many Ethernet ports does JL558A include?

It includes 48 Gigabit Ethernet PoE+ ports.

What is the total PoE budget?

The switch provides a total PoE+ budget of 740 watts.

Does it support 10G uplinks?

Yes. It includes four 10 Gigabit SFP+ uplink ports.

Is JL558A a Layer 3 switch?

Yes. It supports Layer 3 routing protocols, including OSPF and RIP.

Can this switch be stacked?

Yes. It supports Aruba Virtual Switching Framework for stacking and simplified management.
