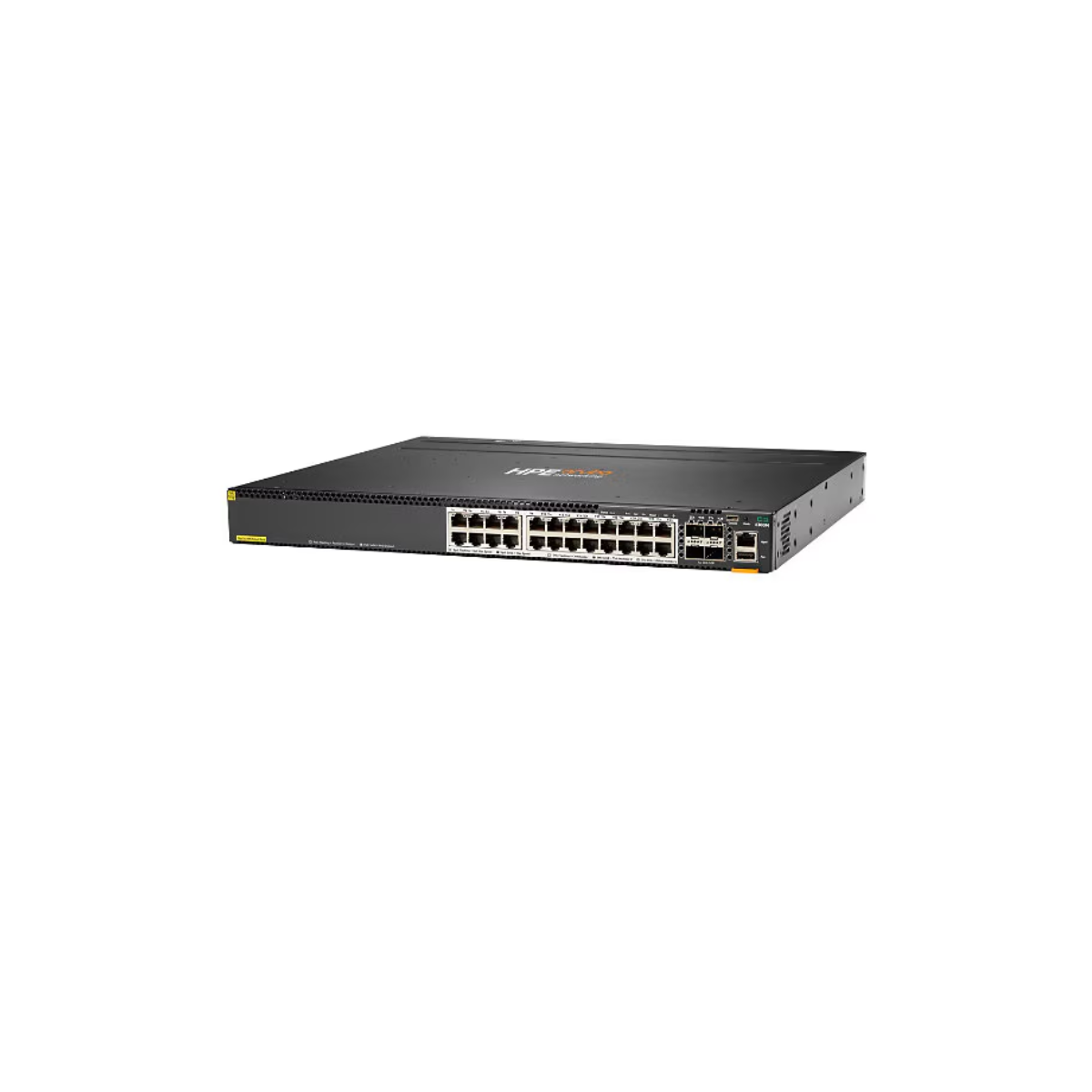

JL660A HPE Aruba Networking CX 6300M 24-Port Smart Rate Class 6 PoE Switch

BRAND NEW WITH FULL HPE WARRANTY!!!

Overview

The HPE Aruba Networking CX 6300M 24-Port Smart Rate Class 6 PoE and 4-Port SFP56 Switch (JL660A) is a managed enterprise network switch designed for high-performance access, aggregation, and data-center top-of-rack deployments. It features 24 multi-gigabit Smart Rate Ethernet ports supporting 100Mbps, 1Gbps, 2.5Gbps, and 5Gbps connections, together with four SFP56 uplink ports supporting speeds up to 50Gbps. This combination gives organizations the flexibility to connect high-performance wireless access points, business endpoints, and upstream network infrastructure.

Built on the Aruba CX 6300M platform and powered by the AOS-CX operating system, the JL660A supports advanced Layer 3 networking, traffic segmentation, and centralized network management. Its Class 6 PoE capability supports compatible powered devices requiring up to 60W per port, with a maximum platform PoE capacity of 1,440W when configured with the appropriate power supplies.

The modular power-supply and fan-tray design supports serviceability and flexible deployment planning. With Virtual Switching Framework (VSF) stacking support for up to 10 compatible switches, the CX 6300M helps organizations expand access-layer capacity while simplifying network operations across enterprise offices, campuses, and demanding edge environments.

Key Features – HPE Aruba Networking CX 6300M JL660A

• Processor: Quad-core ARM Cortex-A72 processor operating at 1.8GHz.
• Memory: 8GB DDR4 system memory.
• Storage: 32GB eMMC storage.
• Networking / Ports:24 × Smart Rate 100Mbps/1Gbps/2.5Gbps/5Gbps Ethernet Class 6 PoE ports.
  • 4 × SFP56 uplink ports supporting 1Gbps, 10Gbps, 25Gbps, or 50Gbps, subject to compatible transceivers and configuration.
• PoE Capability: Class 6 PoE supporting up to 60W per port.
• Power Budget: Up to 1,440W PoE capacity with the appropriate power-supply configuration.
• Management: AOS-CX, web-based GUI, CLI, Aruba Networking Central, and Multi-Edit Software.
• Security: Supports enterprise access controls, network segmentation, and MACsec capabilities where supported by the applicable configuration.
• Stacking: VSF stacking supports up to 10 compatible switches.
• Power & Cooling: Two field-replaceable power-supply slots and two fan-tray slots; one fan tray is installed.
• Form Factor: 1U rack-mountable switch.

Technical Specifications

• Product Type: Managed Layer 3 Ethernet switch.
• Manufacturer: Hewlett Packard Enterprise (HPE).
• Product Family: Aruba Networking CX 6300M.
• Model: CX 6300M 24-Port Smart Rate Class 6 PoE.
• Manufacturer Part Number: JL660A.
• Processor Type: Quad-core ARM Cortex-A72 at 1.8GHz.
• Memory Technology: 8GB DDR4.
• Storage: 32GB eMMC.
• Packet Buffer: 8MB.
• Switching Capacity: 640Gbps model switching capacity; the broader CX 6300 platform specifications also describe system switching capacity up to 880Gbps.
• Throughput: 476 million packets per second (Mpps).
• Ethernet Ports: 24 × Smart Rate 100Mbps/1Gbps/2.5Gbps/5Gbps Base-T Class 6 PoE.
• Uplink Ports: 4 × SFP56 supporting 1Gbps/10Gbps/25Gbps/50Gbps.
• PoE Standards: IEEE 802.3af, 802.3at, and 802.3bt, supporting up to 60W per port.
• Maximum PoE Power: 1,440W with the appropriate power-supply configuration.
• Management Interfaces: Out-of-band management Ethernet, USB-C console, and USB Type-A host port.
• Management Software: HPE Aruba Networking AOS-CX, Central, web GUI, CLI, and Multi-Edit Software.
• Stacking: Virtual Switching Framework (VSF), up to 10 compatible members.
• Power Supply Slots: Two field-replaceable, hot-swappable slots; at least one compatible power supply is required and must be ordered separately.
• Supported Power Supplies: JL086A, JL087A, and JL670A.
• Cooling: Two fan-tray slots; one fan tray supplied in the standard switch configuration.
• Operating Temperature: 0°C to 45°C under specified altitude conditions.
• Operating System: HPE Aruba Networking AOS-CX.
• Rack Height: 1U.

Physical Specifications

• Form Factor: 1U rack-mountable managed switch.
• Weight:
  • 6.06 kg
  • 13.36 lbs
• Dimensions (W × D × H):
  • 442 × 386 × 44 mm.
  • 17.4 × 15.2 × 1.73 inches.
• Rack Compatibility: EIA-standard 19-inch equipment rack or cabinet; horizontal surface mounting only.
• Mounting Hardware: Two-post rack kit included according to the HPE CX 6300 Series QuickSpecs.

Ideal For

• Enterprise Campus Networks: Providing high-speed access connectivity for users, endpoints, and network infrastructure.
• Wi-Fi 6/6E/7 Deployments: Connecting compatible multi-gigabit access points through Smart Rate ports.
• Power-Hungry Network Devices: Supplying PoE power to compatible wireless access points and other Class 6 powered devices.
• Network Aggregation: Using high-speed SFP56 uplinks to connect access switches with aggregation or core infrastructure.
• Large Office Environments: Supporting network segmentation, access controls, and centralized management.
• Scalable Enterprise Networks: Expanding switching capacity through supported VSF stacking configurations.
• Data-Center Edge Deployments: Delivering managed multi-gigabit access with high-speed uplink connectivity.

Warranty & Support

• Standard Manufacturer Warranty: HPE lists a limited lifetime warranty for this model, subject to the applicable warranty terms.
• Support Contract Compatibility: Contact HPE or an authorized reseller to confirm eligible HPE support services and coverage options.
• Management Support: HPE Aruba Networking Central and other supported AOS-CX management tools can assist with monitoring and administration, subject to licensing and subscription requirements.
• Technical Assistance: HPE provides product documentation and support resources for deployment, configuration, and troubleshooting.

FAQs – HPE Aruba Networking CX 6300M JL660A

1. What Ethernet speeds does the JL660A support?
Its 24 Smart Rate ports support 100Mbps, 1Gbps, 2.5Gbps, and 5Gbps Ethernet. The four SFP56 uplink ports support speeds up to 50Gbps with compatible optics and configuration.

2. Can this switch power wireless access points?
Yes. Its Class 6 PoE ports support compatible devices requiring up to 60W per port. The total PoE capacity depends on the installed power-supply configuration.

3. Are power supplies included with the switch?
HPE specifies two power-supply slots, with compatible power supplies ordered separately. Confirm the exact bundle contents with the seller before purchasing.

4. Does the JL660A support redundant power?
The chassis supports two field-replaceable, hot-swappable power supplies. Redundant power operation requires a suitable pair of compatible power supplies.

5. Can multiple JL660A switches be stacked?
Yes. The CX 6300M supports VSF stacking with up to 10 compatible switches, subject to supported software and configuration requirements.

6. What are the physical dimensions and weight?
HPE's CX 6300 Series QuickSpecs list the JL660A at approximately 442 × 386 × 44 mm (17.4 × 15.2 × 1.73 inches) and 6.06 kg (13.36 lbs).
