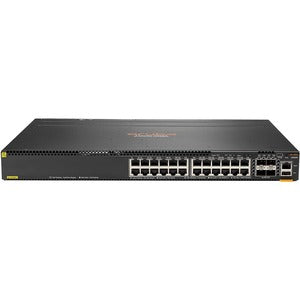

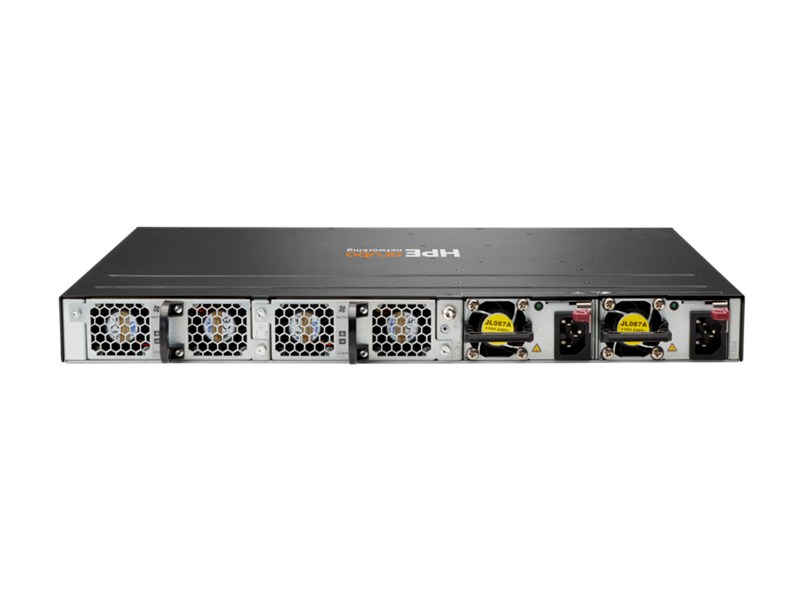

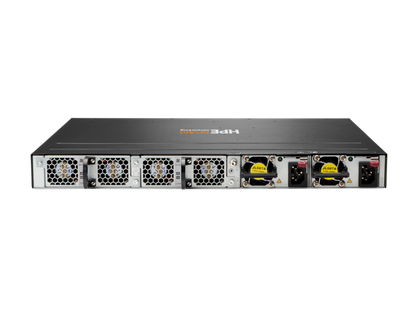

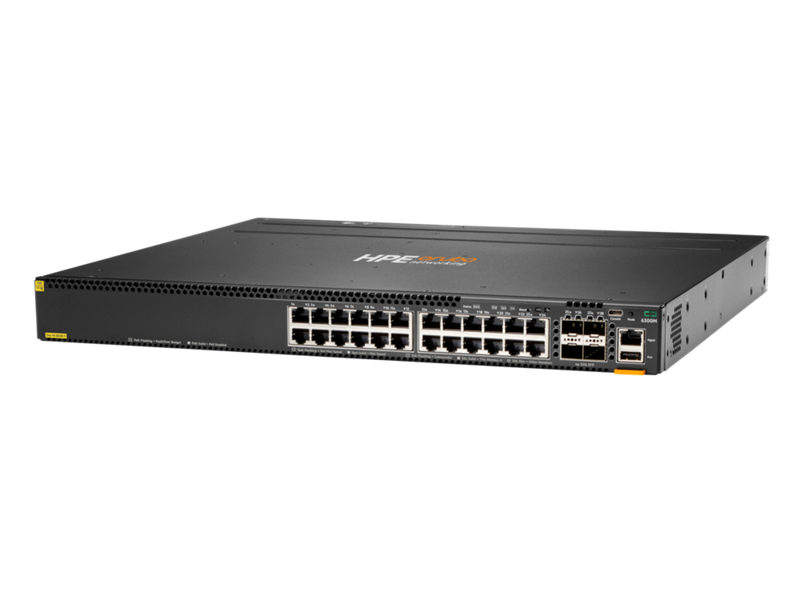

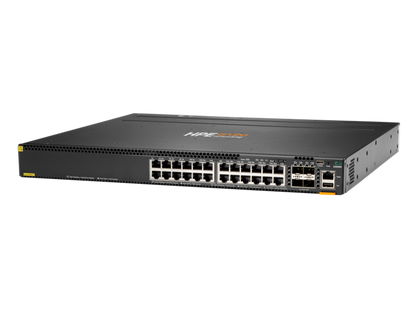

HPE Aruba CX 6300M 24-Port 1GbE PoE+ and 4-Port SFP56 Switch JL662A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba CX 6300M JL662A gives you a clean, scalable way to power and connect an enterprise edge. It offers 24 Gigabit PoE+ ports for access points, phones, and cameras, and adds four SFP56 uplinks that can scale from 1G to 50G as your backbone grows. So, you can modernize the access layer now and still keep headroom for what comes next.

Built on AOS-CX and designed for stacking, this switch fits branch closets, campus access blocks, and aggregation points, delivering consistent performance with simpler operations.

Key Features

• 24 × 1GbE RJ-45 ports with PoE+ for edge devices
• 4 × SFP56 uplinks for 1G/10G/25G/50G connectivity and stacking
• Layer 3 switching with enterprise routing and resiliency features
• Stackable design for scale with unified management
• Large MAC table and jumbo frame support for busy access layers
• Multiple management options for secure, day-to-day control

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL662A
Series: Aruba CX 6300M
Device Type: Layer 3 Managed Switch, Stackable
Form Factor: 1U Rack-mountable
Access Ports: 24 × 10/100/1000Base-T RJ-45 (PoE+)
Uplinks / Stacking: 4 × SFP56 (1G/10G/25G/50G)
Switching Capacity: 448 Gbps
Throughput: 334 Mpps
Stacking Bandwidth: 200 Gbps
Latency: 1Gbps: 2.28 µs, 10Gbps: 1.46 µs, 25Gbps: 1.9 µs, 50Gbps: 3.49 µs
MAC Address Table: 32,000 entries
Jumbo Frames: Up to 9198 bytes
PoE Budget: 720 W
PoE Per Port: Up to 30 W (PoE+)
Routing Protocols: OSPFv2/OSPFv3, BGP-4, VRRP, ECMP, MSDP, MLD, IGMP/IGMPv2/IGMPv3, EGP, Static IPv6 routing, BFD
Remote Management: SSH, CLI, HTTPS, SNMP 2c/3, SFTP, RMON, XRMON, Telnet, TFTP
Authentication: RADIUS, TACACS+
Processor: ARM Cortex-A72 @ 1.78 GHz
Memory: 8 GB DDR4
Storage: 32 GB
Compliant Standards: IEEE 802.1Q/802.1p/802.1x, 802.3af/at/bt, 802.3bz, LACP, and related switching standards
Airflow: Front and side to back
Included: Rack mounting kit
Color: Black
Dimensions (W × D × H): 17.4 in × 15.2 in × 1.7 in

Use Cases

JL662A is best when you need a powerful access switch that also serves as a growth platform. Use it to power Wi-Fi access points, VoIP phones, door controllers, and IP cameras with a strong 720W PoE budget, while keeping traffic smooth through high-capacity switching and large tables. It also fits branch aggregation and campus access blocks where you expect uplink upgrades later, because the SFP56 ports let you move from 10G to 25G or 50G without replacing the switch. And when you expand, stacking helps you scale port count while keeping management simple and consistent across the block.

Why Choose HPE Aruba CX 6300M JL662A

• 720W PoE budget supports dense PoE+ rollouts
• SFP56 uplinks keep your network ready for higher-speed cores
• Layer 3 capabilities support segmentation and scalable routing
• Stacking reduces operational overhead as you grow
• Built for enterprise access and aggregation deployments

FAQs

Does JL662A support PoE+ on all 24 access ports?

Yes. The 24 Gigabit RJ-45 ports support PoE+ for compatible devices.

What is the PoE budget on this model?

This switch provides a 720W PoE budget for powering connected PoE+ endpoints.

What speeds do the SFP56 uplinks support?

The four SFP56 ports support 1G, 10G, 25G, and 50G, based on the transceiver or cable type.

Is this switch managed and suitable for enterprise networks?

Yes. It is a managed Layer 3 switch designed for enterprise access and aggregation use.

Is this product new and covered by an HPE warranty?

Yes. It is brand new, factory-sealed, retail-boxed, and includes full HPE warranty coverage.
