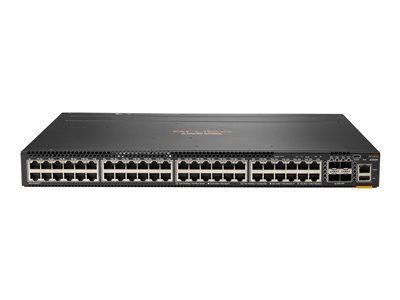

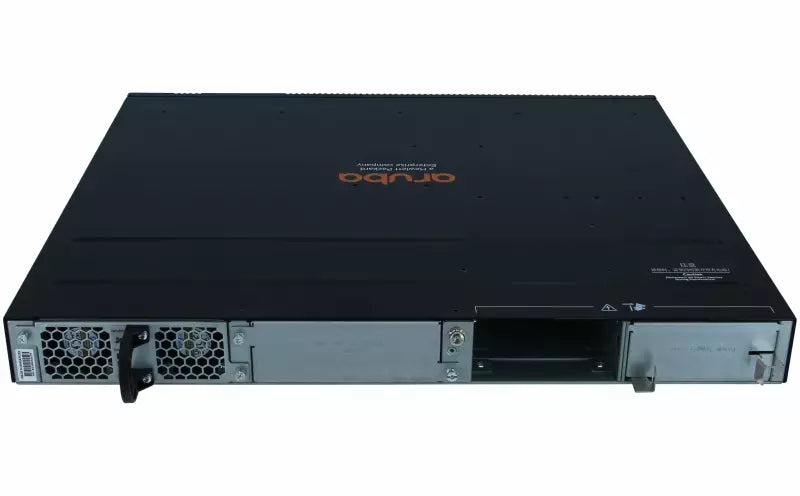

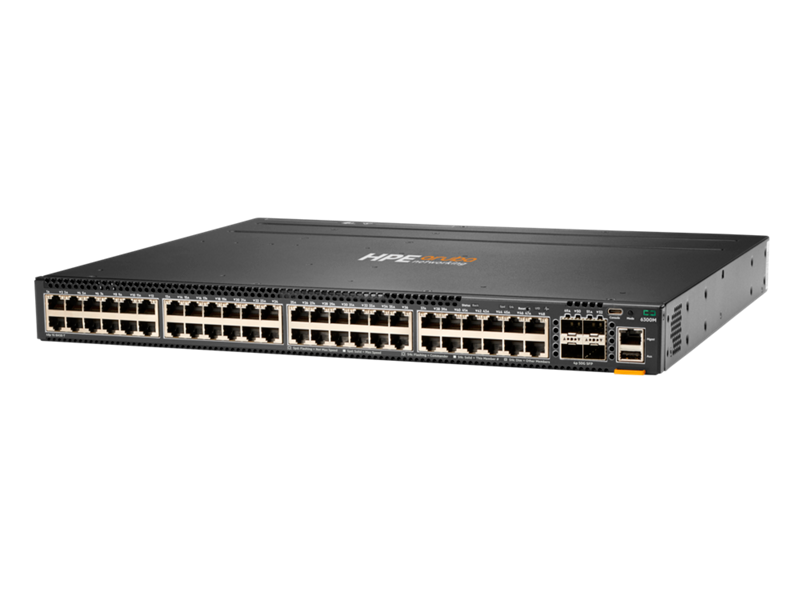

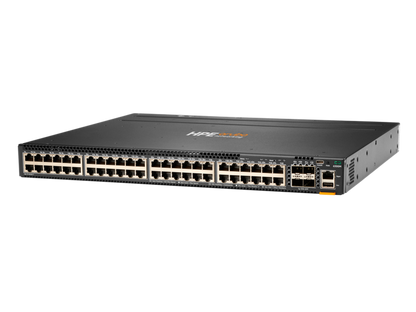

HPE Aruba CX 6300M 48-Port 1GbE PoE+ and 4-Port SFP56 Switch JL663A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba CX 6300M JL663A is a high-density access and aggregation switch built for enterprises that want clean scaling without jumping to a chassis. You get 48 Gigabit ports for edge connectivity and PoE+ power, plus four SFP56 uplinks that keep your backbone ready for higher speeds. So, your network stays stable today and still has room for tomorrow.

This AOS-CX switch also supports modern operations with flexible management and strong visibility. It fits busy wiring closets, branch distribution layers, and campus environments where performance and uptime matter every day.

Key Features

• 48 × 1GbE RJ-45 ports with PoE+ support
• 4 × SFP56 uplinks for 1G/10G/25G/50G connectivity
• Layer 3 switching with enterprise routing and resiliency features
• Stackable design for simplified growth and unified management
• Jumbo frames support for efficient large-packet forwarding
• Secure management with common enterprise authentication options

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL663A
Series: Aruba CX 6300M
Device Type: Layer 3 Managed Switch, Stackable
Form Factor: 1U Rack-mountable
Access Ports: 48 × 10/100/1000Base-T RJ-45 (PoE+)
Uplinks / Stacking: 4 × SFP56 (1G/10G/25G/50G)
Switching Capacity: 496 Gbps
Throughput: 369 Mpps
Stacking Bandwidth: 200 Gbps
Latency: 1Gbps: 2.28 µs, 10Gbps: 1.46 µs, 25Gbps: 1.9 µs, 50Gbps: 3.49 µs
MAC Address Table: 32,000 entries
Jumbo Frames: Up to 9198 bytes
Routing Protocols: OSPFv2/OSPFv3, BGP-4, VRRP, ECMP, MSDP, MLD, IGMP/IGMPv2/IGMPv3, EGP, Static IPv6 routing, BFD
Remote Management: SSH, CLI, HTTPS, SNMP 2c/3, SFTP, RMON, XRMON, Telnet, TFTP
Authentication: RADIUS, TACACS+, SSH
Processor: ARM Cortex-A72 @ 1.78 GHz
Memory: 8 GB DDR4
Storage: 32 GB
Airflow: Front and side to back
Included: Rack mounting kit
Color: Black
Dimensions (W × D × H): 17.4 in × 15.2 in × 1.7 in
Weight: 12.15 lb

Use Cases

This switch shines in enterprise access layers where you need lots of Gigabit ports, consistent throughput, and built-in PoE+ for phones, cameras, and access points. It also fits aggregation roles in branches and smaller campuses, thanks to the SFP56 uplinks that let you connect to faster cores as demand increases. When you plan for growth, stacking helps you expand port count while keeping operations simple, since teams manage a stack as one switch rather than many.

Why Choose HPE Aruba CX 6300M JL663A

• High port density with PoE+ support for modern edge devices
• SFP56 uplinks keep you ready for 10G to 50G upgrades
• Strong Layer 3 feature set for scalable enterprise networks
• Stackable architecture reduces complexity as you grow
• Built for performance, visibility, and long-term access design

FAQs

Does the JL663A support PoE+ on the RJ-45 ports?

Yes. The 48 Gigabit RJ-45 ports support PoE+ for powering compatible edge devices.

What speeds can I run on the SFP56 uplinks?

The four SFP56 ports support 1G, 10G, 25G, and 50G connectivity, based on the optics or cabling used.

Is this switch suitable for access and aggregation?

Yes. It is commonly deployed at the access layer and also works well for aggregation in branches and campus designs.

Can I stack the JL663A with other CX 6300 switches?

Yes. It supports stacking and high-bandwidth stacking links to scale cleanly.

Is this unit new and covered by an HPE warranty?

Yes. It is brand new, factory-sealed, retail-boxed, and includes full HPE warranty coverage.
