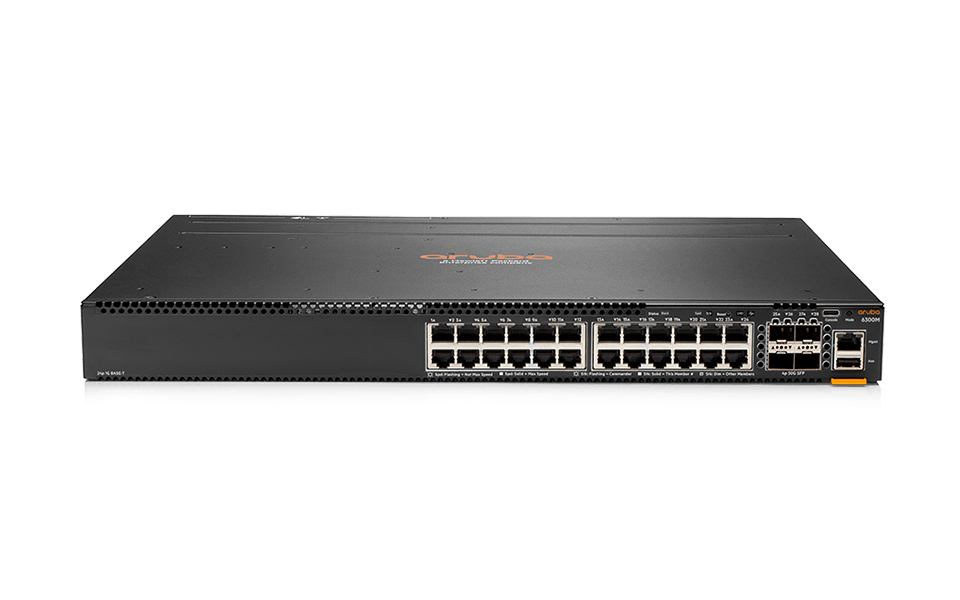

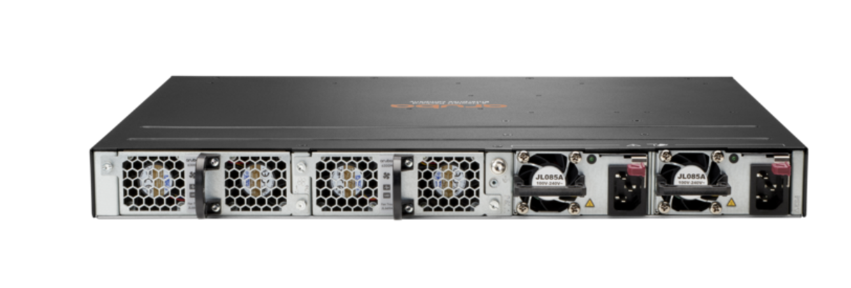

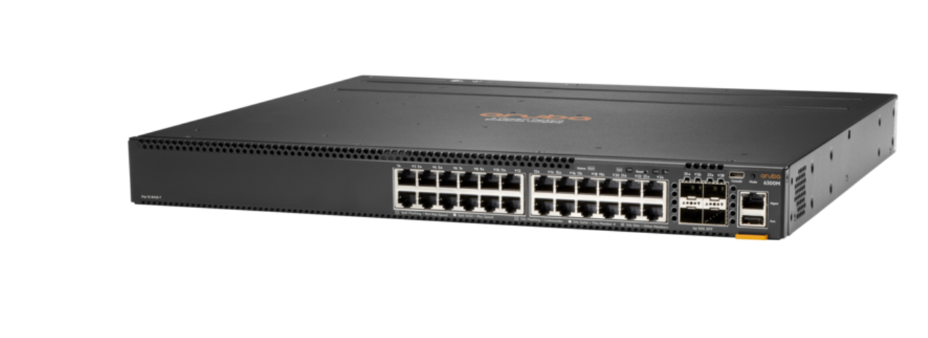

HPE Aruba CX 6300M 24-Port 1GbE and 4-Port SFP56 Switch JL664A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba CX 6300M JL664A is a modern Layer 3 stackable switch built for enterprise access and aggregation networks. It combines 24 Gigabit Ethernet ports for reliable edge connectivity with four versatile SFP56 uplink ports that support high-speed aggregation and stacking. As a result, you get a clean upgrade path as bandwidth needs grow.

Running on Aruba AOS-CX and designed for operational visibility, the CX 6300M series supports advanced telemetry, automation-friendly management, and consistent performance. It fits campus networks, branch distribution, and wiring closets that need strong routing features without moving to a chassis platform.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet ports
• 4 × SFP56 uplinks supporting 1G/10G/25G/50G connectivity
• Layer 3 switching with enterprise routing features
• Stackable design for simplified scaling and management
• High-performance switching with low-latency forwarding
• Secure management options with modern access controls

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL664A
Series: Aruba CX 6300M
Device Type: Layer 3 Managed Switch, Stackable
Form Factor: 1U Rack-mountable
Ports: 24 × 1GbE RJ-45
Uplinks / Stacking: 4 × SFP56 (1G/10G/25G/50G)
Switching Capacity: 448 Gbps
Throughput: 334 Mpps
Stacking Bandwidth: 200 Gbps
Latency: 1Gbps: 2.28 µs, 10Gbps: 1.46 µs, 25Gbps: 1.9 µs, 50Gbps: 3.49 µs
MAC Address Table: 32,000 entries
Jumbo Frames: Up to 9198 bytes
Routing Protocols: OSPFv2/OSPFv3, BGP-4, VRRP, ECMP, MSDP, MLD, IGMPv2/IGMPv3, EGP, Static IPv6 routing, BFD
Remote Management: SSH, CLI, HTTPS, SNMP 2c/3, SFTP, RMON, XRMON, Telnet, TFTP
Authentication: RADIUS, TACACS+, SSH
Processor: ARM Cortex-A72 @ 1.78 GHz
Memory: 8 GB DDR4
Storage: 32 GB
Airflow: Front and side to back
Included: Rack mounting kit
Color: Black
Dimensions (W × D × H): 17.4 in × 15.2 in × 1.7 in
Weight: 11.97 lb

Use Cases

The JL664A works well in enterprise access and aggregation layers where you need stable 1GbE connectivity at the edge while keeping uplinks ready for higher speeds. It supports branch networks that need Layer 3 routing, segmentation, and resilience without adding multiple devices. It also fits campus wiring closets that expect growth, since the SFP56 uplinks let you move from 10G to 25G or 50G as core bandwidth expands. When teams want simpler operations, stacking helps them manage multiple switches as one logical unit.

Why Choose HPE Aruba CX 6300M JL664A

• Balanced design for access and aggregation in one platform
• SFP56 uplinks provide a practical path to higher-speed cores
• Strong Layer 3 features for scalable enterprise routing
• Stackable architecture reduces management overhead
• Built for performance, visibility, and long-term network evolution

FAQs

Is the JL664A a managed Layer 3 switch?

Yes. It is a Layer 3 managed switch with routing features, including OSPF and BGP.

What speeds do the SFP56 uplinks support?

The four SFP56 ports support 1G, 10G, 25G, and 50G connectivity, depending on the transceiver or cable used.

Can I stack this switch with others?

Yes. It is stackable and supports high-bandwidth stacking for simplified expansion.

How many Ethernet ports does it have in total?

It provides 24 Gigabit Ethernet RJ-45 ports, plus 4 SFP56 uplink ports.

Is this unit new and covered by warranty?

Yes. It is brand new, factory-sealed, retail-boxed, and includes full HPE warranty coverage.
