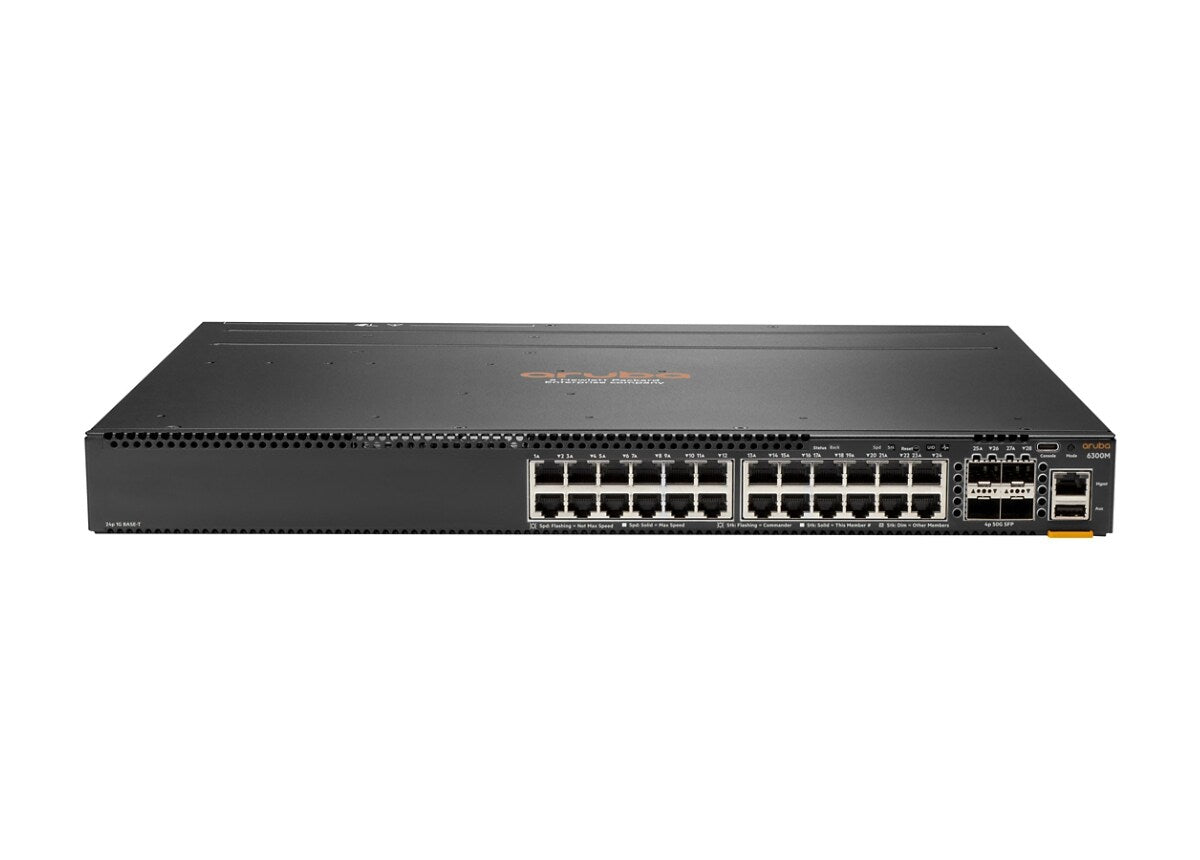

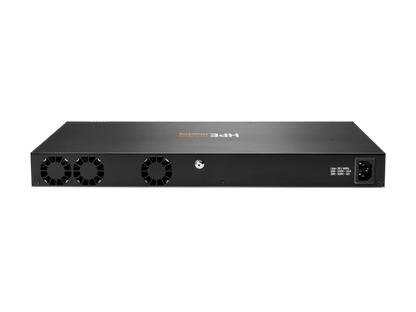

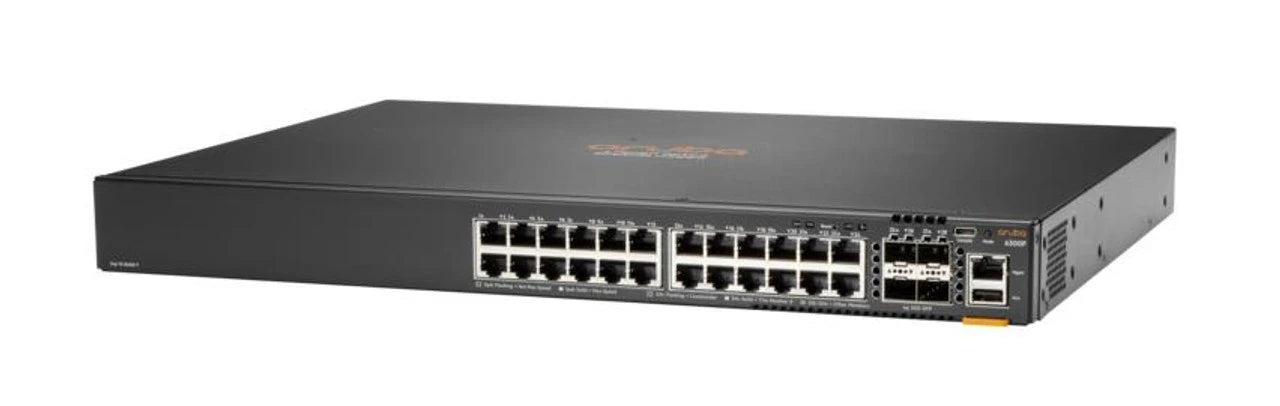

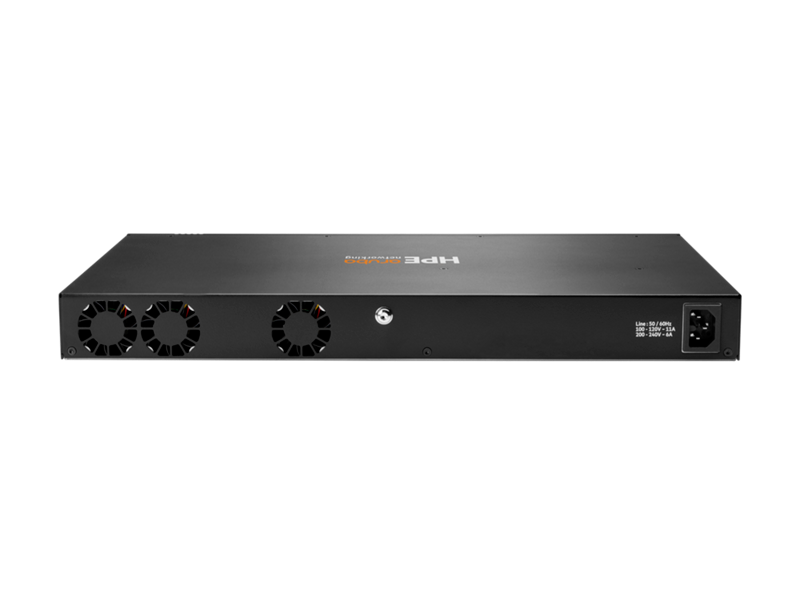

HPE Aruba CX 6300F 24-Port 1GbE and 4-Port SFP56 Switch JL668A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba CX 6300F JL668A is a modern, stackable Layer 3 managed switch built for access, aggregation, and top-of-rack deployments that demand predictable speed and clean operational control. It combines 24 Gigabit Ethernet ports for edge connectivity with four high-speed SFP56 uplink and stacking ports, so your network scales without redesigning the access layer.

Powered by the AOS-CX operating system and analytics-driven visibility, this switch helps teams spot performance issues early and maintain high uptime. Virtual Stacking Framework support lets you build larger switching domains with simpler management, while the Gen7 ASIC architecture keeps forwarding fast and latency low even as traffic grows.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet ports for access connectivity
• 4 × SFP56 uplink/stacking ports supporting 1G/10G/25G/50G
• Layer 3 managed switching for routed access and aggregation
• Virtual Stacking Framework supports scalable deployments
• High-performance switching with low latency characteristics
• Enterprise-ready management and security controls

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL668A
Device Type: Managed Switch (Layer 3), Stackable
Ports: 24 × 10/100/1000 Base-T
Uplinks / Stacking: 4 × SFP56 (1G/10G/25G/50G)
Switching Capacity: 448 Gbps
Throughput: 334 Mpps
Latency: 1GbE 2.28 µs, 10GbE 1.46 µs (25GbE supported)
MAC Address Table: 32,000 entries
Jumbo Frames: Up to 9198 bytes
Processor: ARM Cortex-A72 @ 1.78 GHz
Memory: 8 GB DDR4
Flash: 32 GB
Management Protocols: CLI, SSH, HTTPS, SNMP, SFTP, RMON, TFTP
Authentication: RADIUS, TACACS+, SSH
Form Factor: 1U rack-mountable (rack kit included)
Dimensions: 17.4 in × 15.2 in × 1.7 in
Weight: 11.97 lb
Warranty: Limited Lifetime Warranty

Use Cases

The Aruba CX 6300F JL668A fits teams that want a clean, scalable access layer today and faster uplinks tomorrow. It works well in enterprise branches, where 1GbE edge ports connect user devices, while SFP56 uplinks push high-bandwidth traffic back to the aggregation. It also suits campus networks that need Layer 3 at the edge for segmentation and streamlined routing. In data centre top-of-rack layouts, it supports predictable, low-latency switching with flexible uplink speeds, which helps as you grow from 10GbE to 25GbE or 50GbE over time.

Why Choose Aruba CX 6300F JL668A

• Balances 1GbE edge density with high-speed SFP56 uplinks
• Supports Layer 3 features for modern segmented networks
• Scales switching domains with VSF stacking
• Designed for consistent throughput and low latency under load
• Built for long-term operations with enterprise management tools

FAQs

What ports does the JL668A provide?

It includes 24 Gigabit Ethernet ports and 4 SFP56 uplink/stacking ports.

What uplink speeds do the SFP56 ports support?

They support 1G, 10G, 25G, and 50G connectivity, depending on optics and configuration.

Is the Aruba CX 6300F JL668A a Layer 3 switch?

Yes. It is a managed Layer 3 switch designed for routed access and aggregation use.

Can this switch be stacked?

Yes. It supports the Aruba Virtual Stacking Framework to simplify scaling and management.

What environments use this switch most often?

Common deployments include enterprise access, campus aggregation, and data center top-of-rack builds where flexible uplinks and reliable routing matter.
