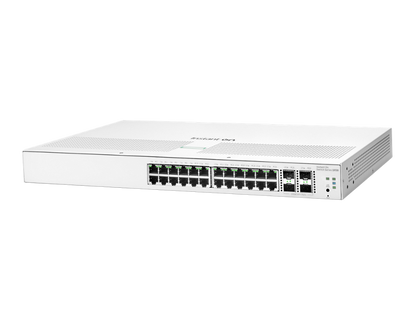

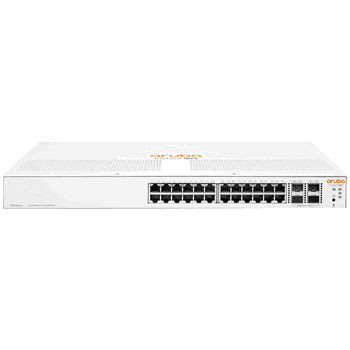

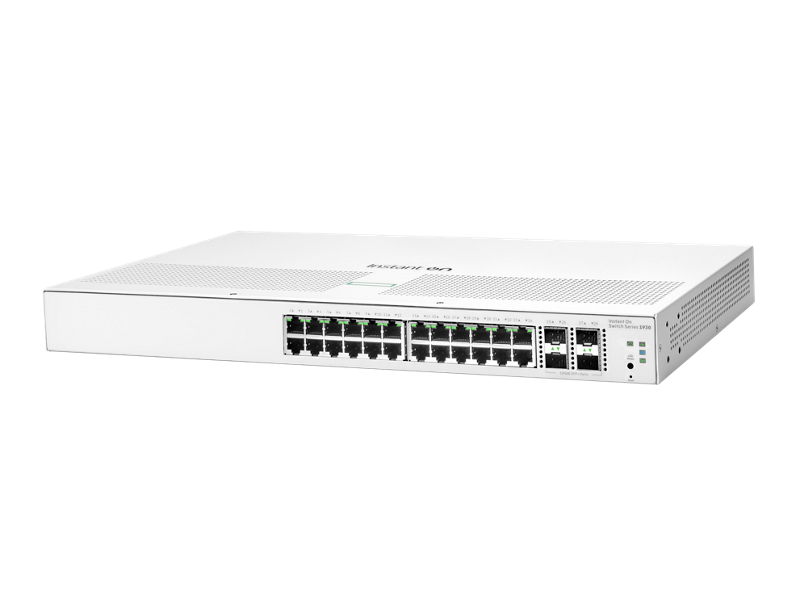

HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch JL682A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba Instant On 1930 JL682A is a smart-managed Gigabit switch designed for small and growing businesses that need reliable wired performance and simple network management. It features 24 Gigabit Ethernet ports and four SFP/SFP+ uplink ports, delivering stable connectivity and high-speed fiber integration for expanding networks.

Built to support bandwidth-intensive applications such as cloud collaboration and video conferencing, this Layer 2+ switch integrates seamlessly with Aruba Instant On access points. Centralized management through the mobile app or cloud portal makes deployment and monitoring straightforward, even for lean IT teams.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet ports
• 4 × 1G/10G SFP/SFP+ uplink ports
• 128 Gbps switching capacity
• Smart-managed Layer 2+ functionality with static routing
• Cloud portal, mobile app, and local web interface management
• Rack-mountable form factor for structured deployments

Technical Specifications

Brand: HPE Aruba
Model: Instant On 1930 24G 4SFP/SFP+
Part Number: JL682A#ABA
Ports: 24 × Gigabit RJ-45 ports
Uplinks: 4 × 1G/10G SFP/SFP+
Switching Capacity: 128 Gbps
Throughput: Up to 95.23 Mpps
Processor: ARM Cortex-A9 @ 800 MHz
Memory: 512 MB SDRAM
Flash: 256 MB
Packet Buffer: 1.5 MB
Power Consumption: 22.6W maximum
Input Voltage: 100–240 VAC
Form Factor: Rack-mountable
Weight: 5.32 lb
Management: Aruba Instant On Portal, Web GUI, SNMP

Use Cases

The Aruba JL682A switch is ideal for offices, retail stores, hospitality environments, and branch networks that require dependable Gigabit connectivity. It connects desktops, printers, and network devices while providing high-speed uplinks to servers or core switches. It integrates with Aruba wireless access points to create a unified wired and wireless infrastructure. Businesses use it to support cloud applications, file transfers, and collaboration tools without network bottlenecks.

Why Choose Aruba JL682A

• Delivers reliable Gigabit performance for daily business operations
• Supports fiber uplinks for scalable network expansion
• Simplifies management through cloud-based and mobile access
• Designed for small and mid-sized business networking
• Backed by a limited lifetime warranty

FAQs

How many Ethernet ports does the Aruba JL682A provide?

It includes 24 Gigabit Ethernet ports and 4 SFP/SFP+ uplink ports.

Is this switch a PoE model?

No. The JL682A is a non-PoE model designed for standard wired connectivity.

What is the switching capacity of this switch?

It offers a switching capacity of 128 Gbps for efficient data handling.

Can it be managed remotely?

Yes. It supports management via the Aruba Instant On cloud portal, mobile app, and local web interface.

Is it suitable for small and growing businesses?

Yes. It supports small and growing business networks with reliable, scalable performance.
