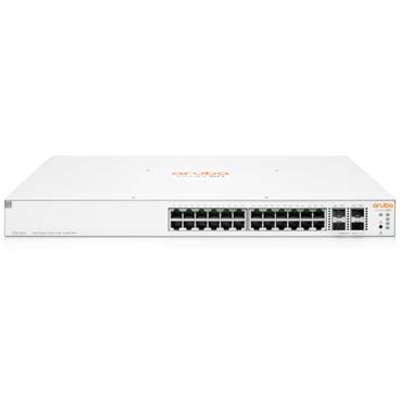

HPE Aruba Instant On 1930 24G Class 4 PoE+ 28-Port Switch JL684A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

Small and growing businesses need strong performance without complex management. The HPE Aruba Instant On 1930 JL684A delivers exactly that. It combines 24 Gigabit PoE+ ports with four 1G/10G SFP+ uplinks in a rack-mountable design. So you can power access points, IP cameras, and VoIP phones while keeping uplinks fast and flexible.

This smart-managed Layer 2+ switch integrates seamlessly with Aruba Instant On access points. You can configure and monitor the network through the Instant On mobile app, cloud portal, or local web interface. That flexibility keeps operations simple, whether you manage one site or several locations.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet PoE+ ports
• 4 × 1G/10G SFP+ uplink ports
• 370W Class 4 PoE budget
• Smart-managed Layer 2+ switching
• Cloud, app-based, or local web management
• Limited Lifetime Warranty

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL684A#ABA
Series: Aruba Instant On 1930
Device Type: Smart-Managed Layer 2+ Switch
Form Factor: Rack-mountable
Ports: 24 × Gigabit Ethernet RJ-45 (PoE+)
Uplinks: 4 × 1/10GbE SFP+
Switching Capacity: 128 Gbps
Throughput: 95.23 Mpps (maximum)
PoE Budget: 370W (Class 4)
Processor: ARM Cortex-A9 @ 800 MHz
Memory: 512 MB SDRAM
Flash: 256 MB
Packet Buffer: 1.5 MB
Power Consumption: 439W max, 20.9W idle
Input Voltage: 100–127 / 200–240 VAC
Management: Aruba Instant On Portal, Web Browser, SNMP

Use Cases

JL684A fits retail stores, offices, medical clinics, and multi-site SMBs that rely on powered network devices. It supports WiFi access points across open floors, surveillance cameras in security-focused environments, and VoIP endpoints in busy workplaces. The 10G SFP+ uplinks keep traffic flowing smoothly to aggregation switches or servers. If you expand later, centralized cloud management makes it easy to maintain a consistent configuration across locations.

Why Choose HPE Aruba Instant On 1930 JL684A

• Strong 370W PoE+ capacity for modern edge devices
• 10G-ready uplinks for faster aggregation
• Flexible management via app, cloud, or local GUI
• Designed for small and growing business networks
• Backed by Aruba Limited Lifetime Warranty

FAQs

How many PoE+ ports does JL684A provide?

It provides 24 Gigabit Ethernet PoE+ ports.

What is the total PoE budget?

The switch delivers a 370W Class 4 PoE budget.

Do the uplinks support 10G?

Yes. The four SFP+ uplink ports support both 1G and 10G connectivity.

Is this switch cloud-managed?

Yes. We can manage through the Aruba Instant On cloud portal or mobile app, as well as via a local web interface.

Is the product new and covered by warranty?

Yes. It is brand new, factory-sealed, retail-boxed, and includes Aruba’s Limited Lifetime Warranty.
