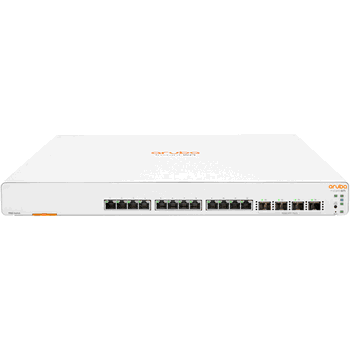

Aruba Instant On 1960 12XGT 12-Port 10G Managed Network Switch with SFP+ JL805A#ABA

BRAND NEW. FACTORY SEALED. FULL ARUBA WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The Aruba Instant On 1960 JL805A#ABA is a compact, high-throughput 10GbE switch made for teams that have outgrown 1Gb links. It delivers 12 10Gb Ethernet RJ-45 ports for servers, workstations, Wi-Fi 6/6E access points, and fast storage, plus 4 10Gb SFP+ uplinks for fibre or DAC connectivity to your core or aggregation layer.

This model fits modern SMB and branch environments where large file transfers, video meetings, and cloud apps run simultaneously. You can manage it your way using the Instant On mobile app, the cloud portal, or a local web GUI, so upgrades and day-to-day changes stay straightforward.

Key Features

• 12 × 10Gb Ethernet (RJ-45) ports for high-speed access connectivity
• 4 × 10Gb SFP+ uplink ports for flexible backbone connections
• Smart-managed platform with cloud, app, and local web GUI options
• Stackable design to expand capacity as your network grows
• Layer 2 feature set with advanced visibility options like port mirroring
• Strong security support, including DoS attack prevention and RADIUS
• Supports IPv4 and IPv6 with IGMP snooping and link aggregation

Technical Specifications

Brand: Aruba
Model / SKU: JL805A#ABA
Device Type: Smart-managed 10Gb Ethernet Switch
Ports (Access): 12 × 10Gb Ethernet (RJ-45)
Uplinks: 4 × 10Gb SFP+
Layer Services: Layer 2 support
Supported Protocols: Auto-MDIX/MDI, Auto-VoIP, IGMP Snooping, IPv4, IPv6, Link Aggregation, Port Mirroring, RADIUS, SNMPv1, SNMPv2c, SNMPv3
MAC Address Table: 16K
Static Routes: 512
Security: DoS attack prevention, RADIUS authentication
Supported IEEE Standards: 802.1p, 802.1q, 802.1q/p, 802.3ab, 802.3an, 802.3u, 802.3x
Latency: 1.1 to 7.4 µs
Forwarding Rate: 238 Mpps
Switching Bandwidth: 320 Gb/s
CPU: 2 GHz Cortex-A9 (single-core)
Power Draw: 160W max, 80W idle
AC Input: 100 to 240 VAC, 50/60 Hz
Power Supply: Internal
Cooling: Passive
Operating Temp: 32°F to 104°F (0°C to 40°C)
Operating Humidity: 15% to 95%
Dimensions (W × D × H): 17.42 × 13.8 × 1.7 in (44.25 × 35.05 × 4.4 cm)
Weight: 9.5 lb (4.3 kg)

Use Cases

The JL805A is a smart fit when you need true 10Gb speed at the access layer without moving to a large enterprise chassis. Teams use it to connect virtualization hosts, NAS and backup targets, editing workstations, and high-performance Wi-Fi access points, then push aggregated traffic over SFP+ uplinks to a core switch with minimal delay. It also works well for small data rooms where you want a compact 10Gb distribution switch for a lab, a SaaS-heavy office, or a growing branch that runs voice and video all day and cannot afford slowdowns during peak hours.

Why Choose Aruba Instant On 1960 JL805A#ABA

• Brings 10GbE to the edge with 12 RJ-45 10Gb ports
• Adds flexible backbone connectivity through 4 SFP+ uplinks
• Keeps management simple with cloud, app, or local web control
• Scales with stacking support as your environment expands
• Brand new, factory sealed hardware backed by an Aruba warranty

FAQs

Is the JL805A a full 10Gb switch or a mixed 1Gb/10Gb model?

It is a full 10Gb model with twelve 10GbE RJ-45 ports plus four 10Gb SFP+ uplinks.

Can I manage this switch without using the cloud?

Yes. You can manage it locally via the web GUI, or use the Instant On app or cloud portal if you prefer.

What are the SFP+ ports used for?

They work as 10Gb uplinks to your core switch, aggregation switch, or network storage backbone using fiber or DAC connectivity.

Does it support IPv6 networks and modern management protocols?

Yes. It supports IPv4 and IPv6, plus SNMP (v1, v2c, v3) and common enterprise management workflows.

Is this new, factory-sealed hardware with a warranty?

Yes. It ships brand-new, factory-sealed, and includes full Aruba warranty coverage.
