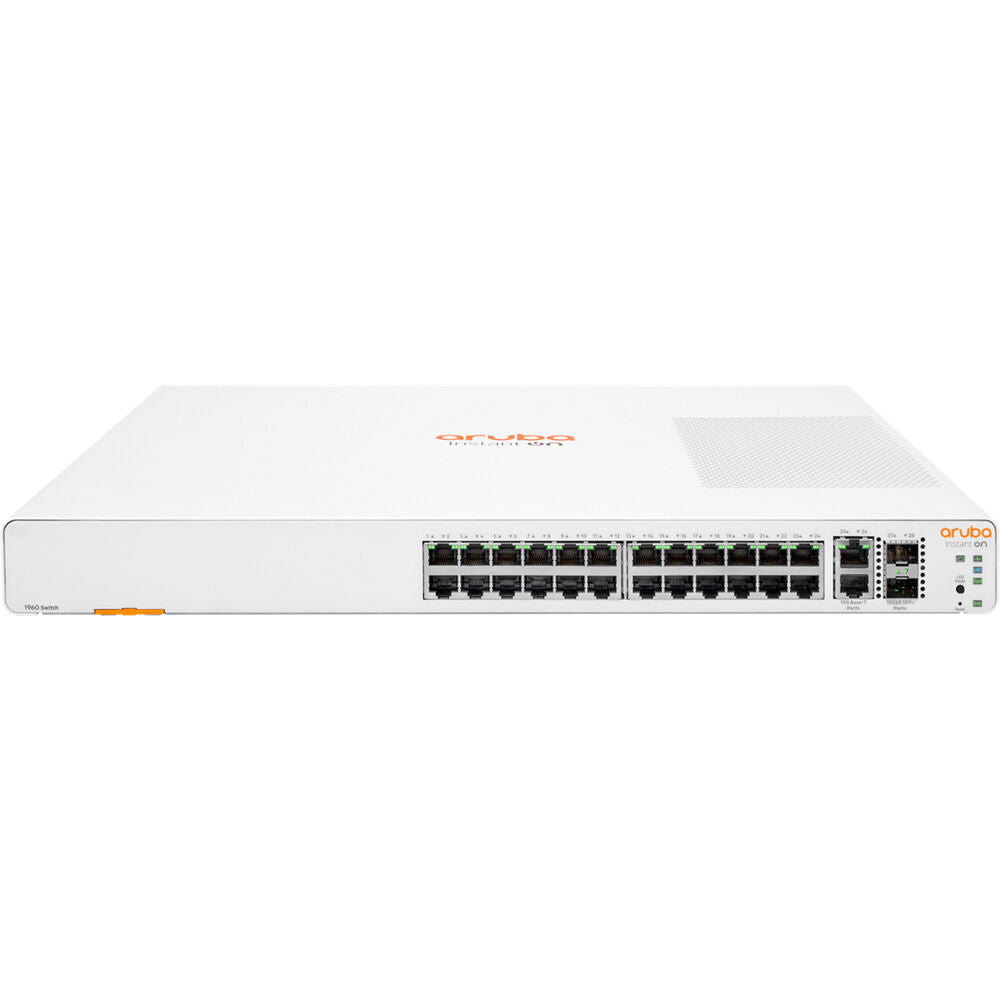

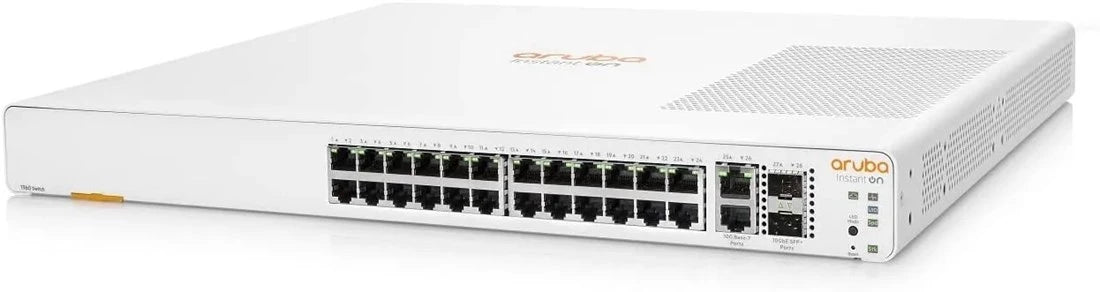

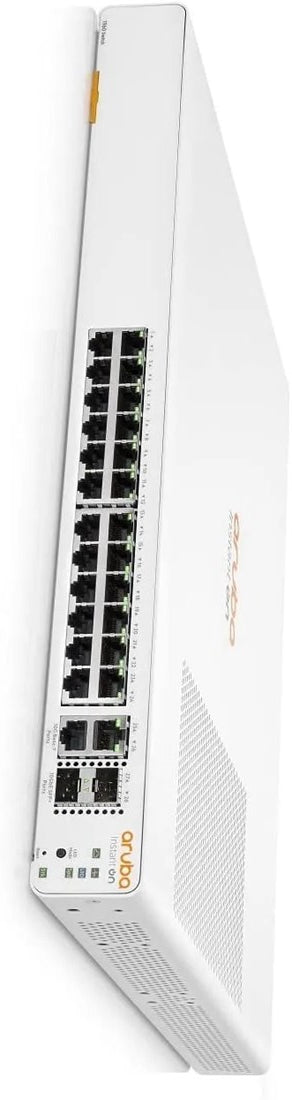

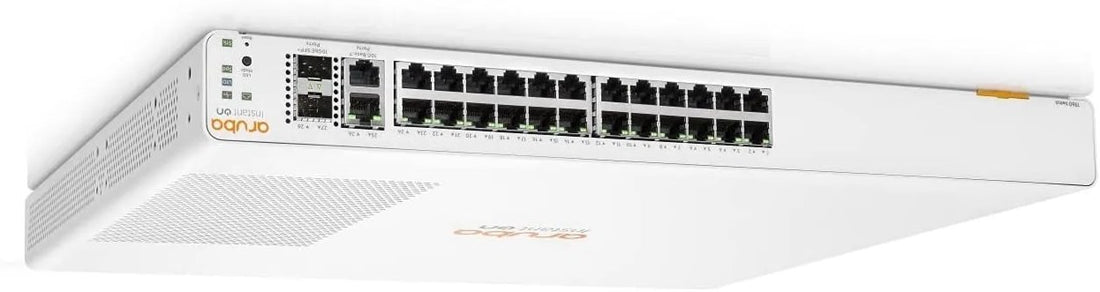

Aruba Instant On 1960 24G 2XGT 24-Port Gigabit Switch JL806A#ABA

BRAND NEW. FACTORY SEALED. FULL ARUBA WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The Aruba Instant On 1960 JL806A#ABA is a smart-managed 24-port Gigabit switch built for growing networks that need higher uplink speed without adding complexity. Along with 24 RJ-45 access ports, it includes two 10GBase-T uplinks and two 10G SFP+ uplinks so that you can connect to servers, NAS, or upstream switches with less congestion.

This switch fits offices, branches, and fast-moving teams that rely on voice, video meetings, cloud apps, and heavy file movement. You can manage it through the Instant On mobile app, a cloud portal, or the local web GUI, so day-to-day changes stay quick and controlled.

Key Features

• 24 × 10/100/1000 RJ-45 Gigabit Ethernet access ports
• 2 × 10GbE RJ-45 uplink ports for high-speed copper uplinks
• 2 × 10GbE SFP+ uplink ports for fiber or DAC uplinks
• Smart-managed platform with cloud, app, and local web GUI options
• Stackable design to scale as your network expands
• Layer 2 features plus support for static routes
• Security features, including DoS attack prevention and RADIUS
• Supports IPv4 and IPv6, IGMP snooping, and link aggregation

Technical Specifications

Brand: Aruba
Model / SKU: JL806A#ABA
Device Type: Smart-managed Gigabit Ethernet Switch
Ports (Access): 24 × 10/100/1000 Mb/s (RJ-45)
Uplinks: 2 × 10Gb Ethernet (RJ-45), 2 × 10Gb SFP+
Layer Services: Layer 2 support
Static Routes: 32
Supported Protocols: Auto-MDIX/MDI, Auto-VoIP, IGMP Snooping, IPv4, IPv6, Link Aggregation, RADIUS, SNMPv1, SNMPv2c, SNMPv3
MAC Address Table: 16K
Security: DoS attack prevention, RADIUS authentication
Supported IEEE Standards: 802.1Q/p, 802.3, 802.3ab, 802.3u
Forwarding Rate: 95 Mpps
Switching Bandwidth: 128 Gb/s
Latency: 1.1 to 4.4 µs
CPU: 800 MHz Cortex-A9 (single-core)
Power Draw: 80W max, 40W idle
AC Input: 100 to 240 VAC, 50/60 Hz
Power Supply: Internal
Cooling: Passive
Operating Temp: 32°F to 104°F (0°C to 40°C)
Operating Humidity: 15% to 95%
Dimensions (W × D × H): 17.4 × 13.8 × 1.7 in (442.5 × 350.5 × 43.9 mm)
Weight: 8.6 lb (3.9 kg)

Use Cases

The JL806A is a strong choice when you need clean Gigabit access at the edge and faster 10Gb uplinks to keep traffic flowing. Teams use it to connect workstations, printers, and IP endpoints while pushing high-volume traffic upstream to servers, storage, or core switches through 10GBase-T or SFP+ links. It also fits offices that run voice and video all day, because the switch supports features that help keep real-time traffic stable. When a business expands, stacking support makes it easier to grow port count while keeping management simple and consistent.

Why Choose Aruba Instant On 1960 JL806A#ABA

• Adds 10Gb uplinks without moving to a complex platform
• Helps reduce bottlenecks for cloud apps, voice, and video traffic
• Flexible management choices for onsite or remote administration
• Built for growth with stacking and scalable uplink options
• Brand new, factory sealed hardware backed by an Aruba warranty

FAQs

What makes the JL806A different from a standard 24-port Gigabit switch?

It adds four 10Gb uplinks, including 2× 10GBase-T and 2× 10G SFP+, which helps prevent uplink congestion.

Can I manage the switch without using the cloud?

Yes. You can manage it through the local web GUI, or use the mobile app or cloud portal if you prefer.

Does the JL806A support IPv6 networks?

Yes. It supports both IPv4 and IPv6 features for modern network environments.

Is this switch suitable for VoIP and video conferencing traffic?

Yes. It supports features such as Auto-VoIP and IGMP snooping, which help optimize real-time and multicast traffic.

Is this a new product with warranty coverage?

Yes. It is brand new, factory sealed, and includes full Aruba warranty coverage.
