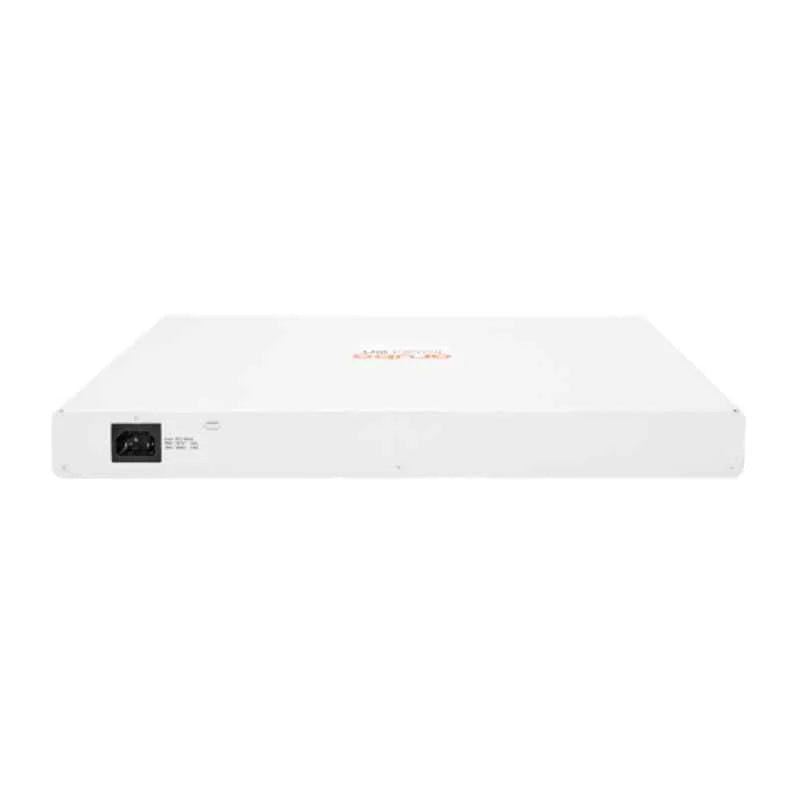

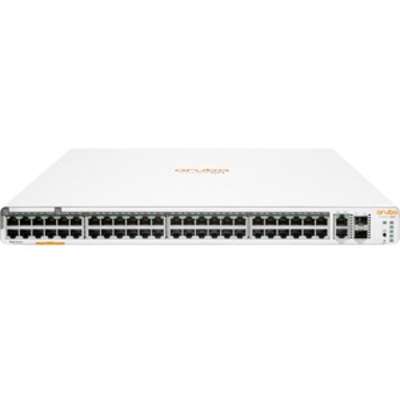

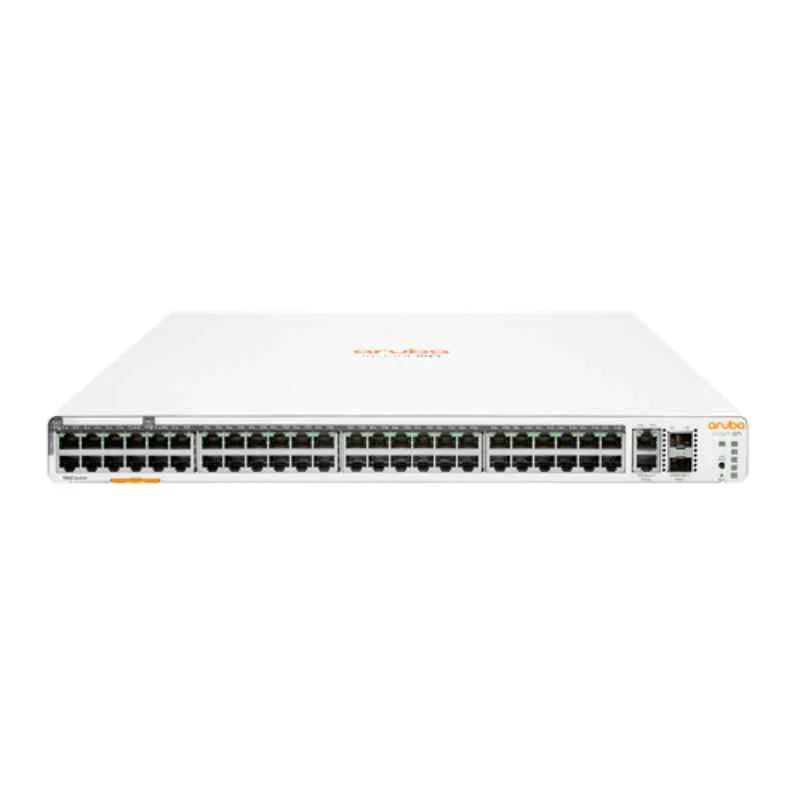

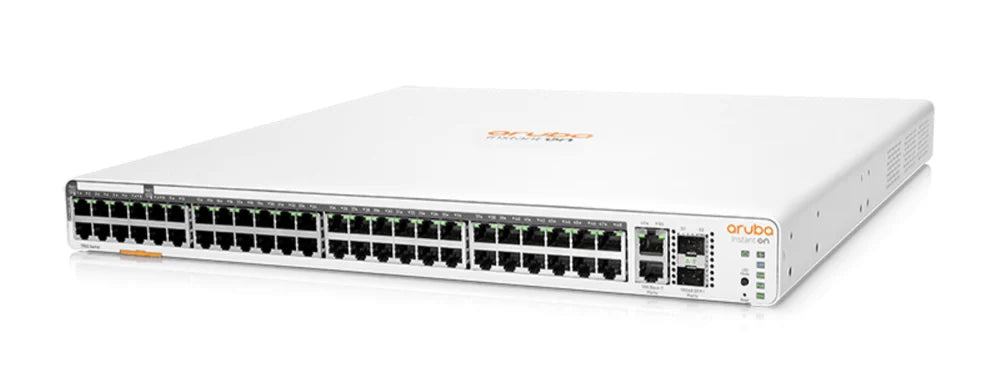

HPE Aruba Instant On 1960 48G Class 4 PoE 48-Port Switch JL809A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

As teams grow, network traffic grows even faster. The HPE Aruba Instant On 1960 JL809A helps small and expanding businesses stay ahead with 48 Gigabit PoE ports and high-speed 10G uplinks. It supports bandwidth-intensive applications such as video conferencing, large file transfers, and cloud services without slowing users down.

This smart-managed Layer 2+ switch is also stackable. You can stack up to four units and manage them under a single IP address. That keeps expansion simple while maintaining centralized visibility through the Aruba Instant On cloud portal, mobile app, or local web interface.

Key Features

• 48 × 10/100/1000 Gigabit Ethernet PoE ports
• 2 × 10G SFP+ uplinks and 2 × 10GBASE-T uplinks
• 600W total PoE budget (Class 4 and Class 6 support)
• Stack up to 4 switches for simplified scaling
• Smart-managed Layer 2+ switching
• Cloud, app-based, or local management options

Technical Specifications

Brand: HPE Aruba
Model / Part Number: JL809A#ABA
Series: Aruba Instant On 1960
Device Type: Smart-Managed Layer 2+ Stackable Switch
Form Factor: Rack-mountable
Ports: 48 × Gigabit Ethernet PoE (Class 4 and Class 6)
Uplinks: 2 × 10G SFP+, 2 × 10GBASE-T
Switching Capacity: 176 Gbps
Throughput: 131 Mpps
PoE Budget: 600W total (Up to 480W Class 6 or 600W Class 4)
Processor: ARMv7 Cortex-A9 @ 800 MHz
Stacking: Up to 4 units
Input Voltage: 100–240 VAC
Operating Temperature: 0–40°C (up to 10,000 ft)
Management: Aruba Instant On Cloud, Web Browser, SNMP

Use Cases

JL809A fits growing offices, retail chains, schools, and hospitality environments that depend on powered devices and reliable uplinks. It powers access points, security cameras, and VoIP phones with a strong 600W PoE budget. The built-in 10G uplinks connect cleanly to aggregation switches or servers, preventing congestion as device counts increase. When your business expands, stacking allows you to add capacity without redesigning the network.

Why Choose HPE Aruba Instant On 1960 JL809A

• High PoE capacity for dense device deployments
• 10G fiber and copper uplinks for flexible aggregation
• Stackable architecture for smooth scalability
• Smart-managed simplicity with cloud visibility
• Built for small and growing business networks

FAQs

How many PoE ports does JL809A provide?

It provides 48 Gigabit Ethernet PoE ports.

What is the total PoE budget?

The switch offers up to 600W total PoE power.

Does it support 10G uplinks?

Yes. It includes two 10G SFP+ ports and two 10GBASE-T uplink ports.

Can I stack multiple JL809A switches?

Yes. You can stack up to 4 switches and manage them under a single IP address.

Is this product new and covered by the HPE warranty?

Yes. It is brand new, factory-sealed, retail-boxed, and includes full HPE warranty coverage.
