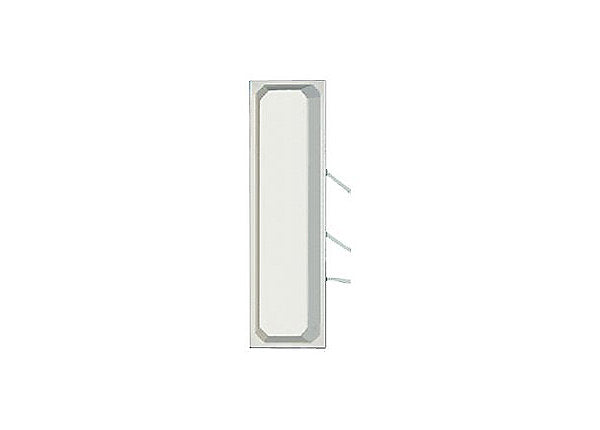

HPE Aruba AP-ANT-16 Indoor MIMO Antenna JW003A

AP-ANT-16 is a dual-band 3-element omni-directional antenna for use in 802.11n MIMO applications. Housed in a compact, low-profile PVC/Acrylic Radome, the antenna can be mounted to a variety of drop ceiling grids using the integrated spring clips. Each of the three MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum-rated coax pigtail. The radiation patterns are uniform and symmetrical, providing high-level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 and 4.9-5.9 GHz bands.

Specifications

• Brand: Aruba
• Manufacturer: Aruba
• Model: AP-ANT-16 Indoor MIMO Antenna
• Packaged Quantity: 1
• Product Line: HPE Aruba
• Antenna Placing Mounting: Ceiling mountable, Indoor
• Cable Length: 35.8 in
• Compatibility: 802.11 a/b/g/n
• Compatibility: 802.11 a/b/g/n (draft)
• Directivity: Omni-directional
• Frequency Range: 2.4 - 2.5 GHz, 4.9 - 5.9 GHz
• Gain: 3.9 dBi (for 2.4 - 2.5 GHz), 4.7 dBi (for 4.9 - 5.9 GHz)
• Impedance: 50 Ohm
• Intended For: Wi-Fi
• Vertical Beamwidth: 60°
• Voltage Standing Wave Ratio (VSWR): 2.0:1
• Connector Qty: 3
• Connector Type: RP-SMA
• Color Category: White
• Mounting Kit: Included
• Product Type: Antenna
• Depth: 0.9 in
• Height: 12.1 in
• Width: 3.6 in
