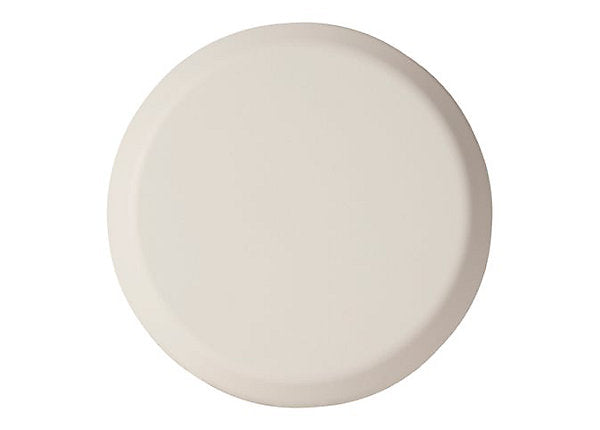

HPE Aruba AP-ANT-40 Indoor 4X4 MIMO Antenna JW017A

AP-ANT-40 is a dual band 4-element omni-directional antenna for use in Wi-Fi MIMO applications. Housed in a compact, low-profile and discrete plastic enclosure, the antenna can be mounted to a variety of ceilings. Each of the four MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum rated coaxial pigtail. The radiation patterns are uniform and symmetrical, providing high level signal density into defined coverage zones, and optimum coverage conditions for MIMO performance.

Specifications

• Connector Type: RP-SMA
• Product Type: Antenna
• Brand Name: Aruba
• Manufacturer: Hewlett Packard Enterprise
• Product Model: AP-ANT-40
• Manufacturer Part Number: JW017A
• Application/Usage: IndoorWireless Data Network
• Diameter: 7"
• Height: 1.3"
• Form Factor: Ceiling Mount
• Weight (Approximate): 14.46 oz
• Antenna Gain: 5 dBi
• Directivity: Omni-directional
• Frequency: 2.40 GHz to 2.50 GHz4.90 GHz to 6 GHz
