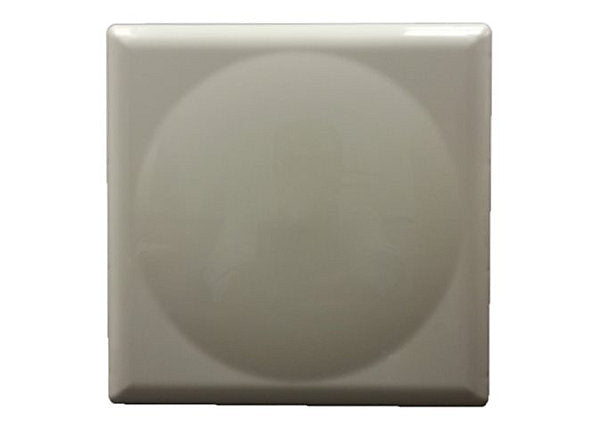

HPE Aruba ANT-2x2-2314 Outdoor Antenna Kit JW024A

The ANT-2x2-2314 is a dual-polarized antenna with 30° H x 30° V beam widths. This antenna is well suited for coverage along a street, spot coverage or for covering a seating section in stadiums and other large public venues.

Specifications

• Manufacturer: HPE
• Category of Accessory: Antennas
• Antenna Placing Mounting: Outdoor, Pole mount, Wall-mountable
• Directivity: Directional
• Frequency Range: 2.4 - 2.5 GHz
• Gain: 14 dBi (for 2.4 - 2.5 GHz)
• Horizontal Beamwidth: 30°
• Impedance: 50 Ohm
• Vertical Beamwidth: 30°
• Voltage Standing Wave Ratio (VSWR): 1.5:1
• Manufacturer: Aruba
• Model: ANT-2x2-2314
• Packaged Quantity: 1
• Product Line: HPE Aruba
• Color Category: Gray
• Features: Dual polarizing
• Mounting Kit: Included
• Product Material: Aluminum, Plastic
• Depth: 10.3 in
• Height: 1.2 in
• Weight: 2.2 lbs
• Width: 10.2 in
