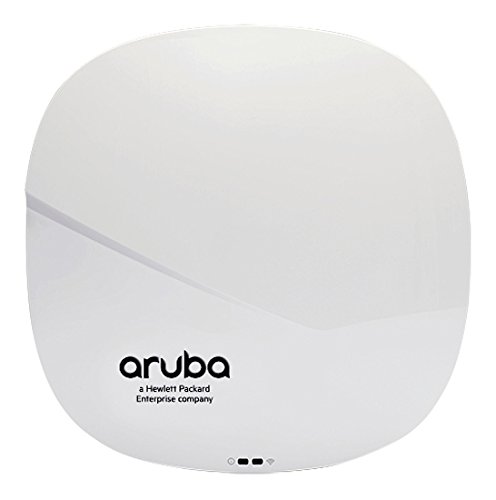

HPE Aruba AP-325 Wireless Access Point JW186A

Multifunctional Aruba 320 Series Access Points provide the best IEEE 802.11ac Wi-Fi connectivity and user experience. Featuring Aruba enhanced ClientMatch and Aruba Beacon technologies, the 320 series enables the highest capacity, performance, and efficiency in extremely high density environments. These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and a second 1GigE port provides network and power redundancy to enhance network reliability while also boosting uplink performance with link aggregation.

Specifications

• Manufacturer: HPE
• Color: White
• Connectivity Technology: Wireless
• Compliant Standards: CB, CTUVus, FCC
• Ports: Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
• Connectivity, standard: IEEE 802.11 a/b/g/n/ac
• Power Consumption: Maximum (worst-case) power consumption: 20W (802.3at PoE), 13.5W (802.3af PoE) or 18.5W (DC)
• Wi-Fi antenna: Eight integrated downtilt omni-directional antennas for 4x4 MIMO with maximum antenna gain of 3.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle for maximum gain is ~ 30 degrees.
• Radio coverage: 5 GHz (1,733 Mbps max rate) and 2.4 GHz (800 Mbps max rate) radios, each with 4x4 MIMO support and a total of eight integrated omni-directional downtilt antennas.
• Product dimensions (H x W x D): 8.0 x 8.0 x 2.2 in
• Weight: 2.1 lbs
