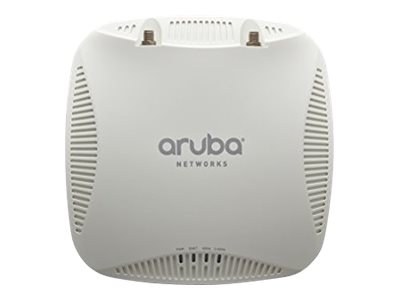

HPE Aruba IAP-204 IL Wireless Access Point JW204A

Affordable and multifunctional 200-series 802.11ac APs maximize mobile device performance in medium-density Wi-Fi environments. With support for two spatial streams, these compact dual-radio APs deliver wireless data rates up to 867 Mbps for 802.11ac and up to 300 Mbps for 802.11n-enabled mobile devices.

Specifications

• Device Type: Wireless access point
• Ruggedized Design: Indoor
• Width: 5.9 in
• Depth: 5.9 in
• Height: 1.6 in
• Weight: 13.4 oz
• Form Factor: In-ceiling
• Connectivity Technology: Wireless
• Data Transfer Rate: 867 Mbps
• Line Coding Format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM
• Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
• Spread Spectrum Method: OFDM, DSSS
• Frequency Band: 2.4 GHz, 5 GHz
• Status Indicators: Power, status, wireless, link/activity
• Features: Auto-sensing per device, auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD)
• Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac
• Power Over Ethernet (PoE) Supported: PoE
• Power Consumption Operational: 12.5 Watt
• OS Provided: InstantOS
• Interfaces: 1 x 1000Base-T (PoE) - RJ-45 1 x serial - RJ-45 2 x antenna - RP-SMA
