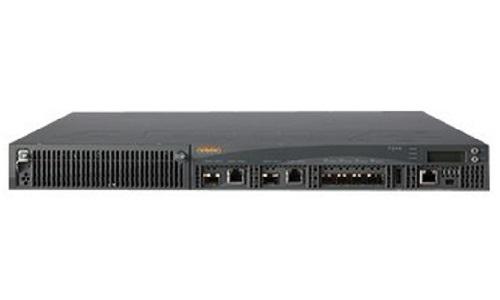

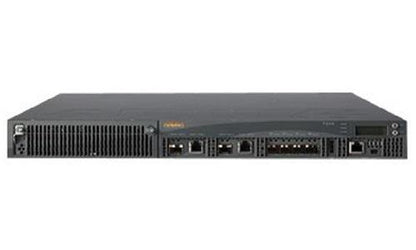

HPE Aruba 7240 (RW) Mobility Controller JW759A

BRAND NEW. FACTORY SEALED. FULL HPE WARRANTY INCLUDED. MANUFACTURED BY HPE ARUBA. FROM CHICAGO COMPUTER SUPPLY

Overview

The HPE Aruba 7240 (RW) Mobility Controller (JW759A) is best suited for large, high-density Wi-Fi environments that require strong security, centralized control, and predictable performance. It runs as a wired network management platform that handles authentication, encryption, VPN connectivity, and IPv4/IPv6 Layer 3 services from a single location.

This controller supports clustering and centralized management, so teams can scale to multiple controllers without scaling headcount. With up to 40 Gbps throughput and high session capacity, JW759A fits enterprise campuses, healthcare networks, large offices, and distributed organizations that depend on always-on wireless access.

Key Features

• Up to 40 Gbps throughput for high-demand WLAN networks
• Supports up to 2,048 access points, including remote Aps
• Handles up to 32,768 concurrent client devices
• Built-in IPSec support for secure connectivity
• Centralized management with clustering for large deployments
• High session scale for firewall, GRE, and tunneled traffic
• Hot-plug internal power supply with optional redundancy

Technical Specifications

Manufacturer: HPE Aruba
Model / Part Number: JW759A
Device Type: Network management device/mobility controller
Built-in Devices: Status LCD
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol: IPSec
Performance and Capacity

• Throughput: 40 Gbps
• Maximum Access Points: 2,048
• Maximum Remote Access Points: 2,048
• Concurrent Devices: 32,768
• Virtual Interfaces (VLANs): 4,094
• Concurrent GRE Tunnels: 32,768
• Concurrent Tunneled Ports: 16,384
• Concurrent IPSec Sessions: 32,768
• Concurrent SSL Fallback Sessions: 8,192
• Active Firewall Sessions: 2,015,291

Interfaces

• 4 × 10GBase-X (SFP+)
• 2 × 1000Base-T (RJ-45)
• 1 × 1000 Ethernet (SFP mini-GBIC)
• 1 × Management (RS-232) RJ-45
• 1 × Management (USB)
• 1 × USB 2.0

Expansion

• Slots: 1 total / 1 free expansion slot

Power

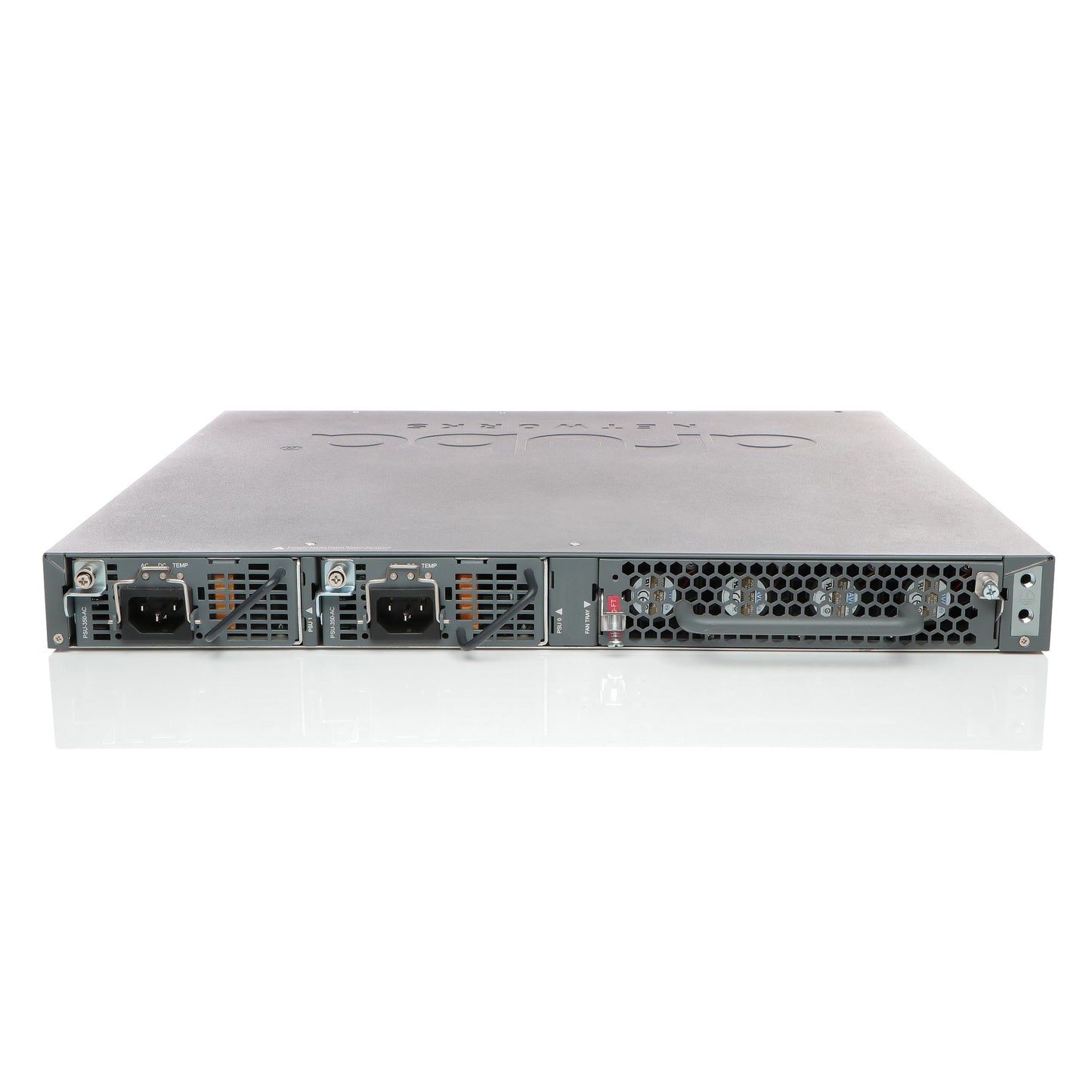

• Power Device: Internal hot-plug power supply
• Installed Power Supplies: 1
• Max Supported Power Supplies: 2
• Power Redundancy: Optional
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Consumption (Operational): 165 W

Physical

• Width: 44.5 cm
• Depth: 44.5 cm
• Height: 4.4 cm
• Weight: 7.45 kg

Use Cases

The Aruba 7240 (RW) Mobility Controller JW759A is a strong fit for enterprise WLAN deployments where thousands of users connect at once, and downtime is not an option. Teams use it to manage large access point fleets centrally, enforce authentication and encryption policies, and maintain application performance stability during peak hours. It also works well for organizations that need secure, tunnelled connectivity for remote sites, branch rollouts, and distributed wireless architectures, since it supports IPSec, large GRE tunnel counts, and high firewall session scale.

Why Choose Aruba 7240 (RW) Mobility Controller JW759A

• Built for high-density wireless at enterprise scale
• Centralizes security, VPN, and Layer 3 services in one platform
• Supports large AP counts with strong throughput headroom
• Scales cleanly with clustering and centralized management
• Ships brand new, factory sealed, with full HPE warranty

FAQs

What is the Aruba JW759A used for?

It helps manage enterprise wireless networks, enforce security, and deliver scalable mobility services across large deployments.

How many access points can it support?

It supports up to 2,048 access points, including up to 2,048 remote access points.

How many client devices can connect at once?

It supports up to 32,768 concurrent devices.

Does it support VPN connectivity?

Yes. It supports IPSec and large-scale secure sessions for tunneled deployments.

Does the JW759A include high availability options?

Yes. It supports clustering for large deployments and optional power redundancy with support for two power supplies.
