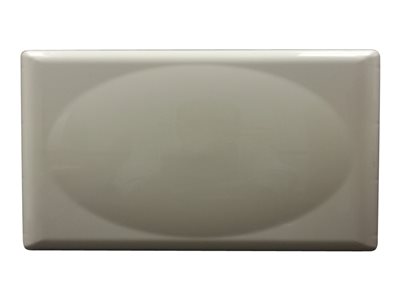

HPE Aruba ANT-4X4-5314 Outdoor MIMO Antenna JX988A

The ANT-4x4-5314 is a multi-polarized antenna with 30° H x 30° V beam widths. This antenna is well suited for coverage along a street, spot coverage or for covering a seating section in stadiums and other large public venues. It is also ideal for point-to-point connections. The narrower beam width reduces the zone where interference may be received.

Specifications

• Brand: Aruba
• Model: ANT-4X4-5314
• Packaged Quantity: 1
• Product Line: HPE Aruba
• Antenna Placing Mounting: Outdoor, Pole mount, Wall-mountable
• Directivity: Directional
• Frequency Range: 4.9 - 6.0 GHz
• Gain: 14 dBi
• Horizontal Beamwidth: 30°
• Impedance: 50 Ohm
• Vertical Beamwidth: 30°
• Voltage Standing Wave Ratio (VSWR): 2.0:1
• Max Operating Temperature: 149 °F
• Min Operating Temperature: -49 °F
• Connector Qty: 4
• Connector Type: N-Series connector
• Color Category: Gray
• Features: MIMO technology
• Product Material: Aluminum, Plastic
• Product Type: Antenna
• Depth: 1.2 in
• Height: 10.2 in
• Weight: 2.65 lbs
• Width: 10.2 in
