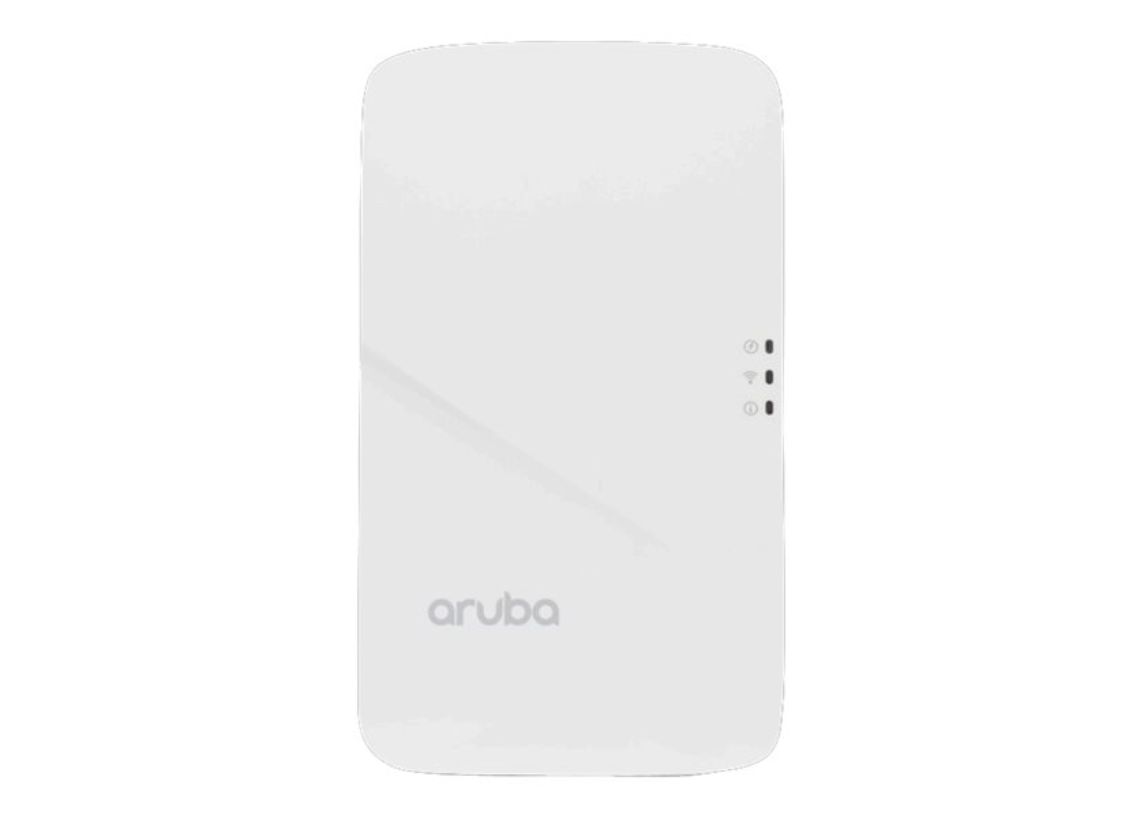

HPE Aruba AP-303H (US) Wireless Access Point JY680A

With a maximum concurrent data rate of 867Mbps in the 5GHz band and 400Mbps in the 2.4GHz band, Aruba 303H Unified Hospitality Access Points deliver high-performance Gigabit Wi-Fi for hospitality and branch environments at an attractive price point. It supports multi-user MIMO (MU-MIMO) and 2 spatial streams (2SS) to provide simultaneous data transmission for up to two devices, maximizing data throughput and improving network efficiency. The Aruba 303H AP combines wireless and wired access in a single compact device. Three local Gigabit Ethernet ports are available to securely attach wired devices to your network. One of these ports is also capable of supplying PoE power to the attached device. This multi-functional Wave 2 access point delivers best-in class Wi-Fi connectivity for hospitality and branch offices, enabling an always-on user experience with low total cost of ownership (TCO).

Specifications

• Manufacturer: Aruba
• Brand: Aruba
• Product Line: HPE Aruba
• Model: AP-303H (US) Unified Hospitality
• Localization: English
• Country Kits: United States
• Packaged Quantity: 1
• Antenna Form Factor: Internal
• Gain Level: 5.6 DBi
• Directivity: Directional
• Antenna Qty: 2
• Ruggedized Design: Indoor
• Line Coding Format: QPSK, 256 QAM, BPSK, 64 QAM, 16 QAM, CCK
• Performance: Concurrent data rate (2.4 GHz): 400 Mbps, Concurrent data rate (5 GHz): 867 Mbps
• Capacity: BSSIDs per radio: 16, Wireless clients per Wi-Fi radio: 255
• Type: Wireless access point
• Form Factor: External
• Connectivity Technology: Wireless
• Data Link Protocol: IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, IEEE 802.11a
• Wireless Protocol: 802.11a/b/g/n/ac
• Data Transfer Rate: 867 MBps
• Wi-Fi Bands: 5 GHz, 2.4 GHz
• Spread Spectrum Method: OFDM, DSSS
• Status Indicators: System, Power, Status
• Compliant Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.3af, IEEE 802.11n, IEEE 802.3az, IEEE 802.11a, IEEE 802.3at, Wi-Fi CERTIFIED, IEEE 802.11ac
• Width: 5.9 inch
• Depth: 3.4 inch
• Height: 1.6 inch
• Weight: 10.93 ounce
