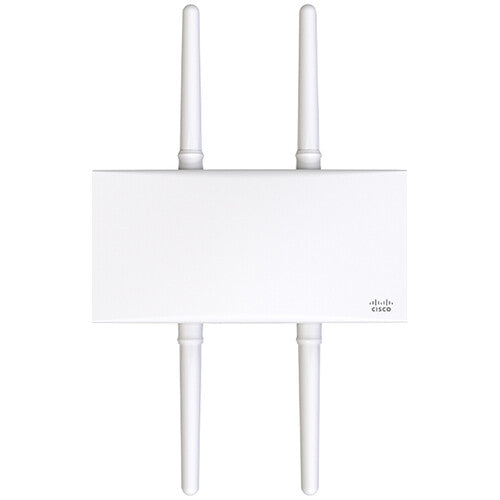

Cisco Meraki MR76 Cloud Managed Wireless Dual-Band Outdoor Access Point MR76-HW

The Cisco Meraki MR76 is a four-radio, cloud-managed 2x2 MU-MIMO Wi-Fi 6 access point. Designed for general purpose, next-generation deployments in harsh outdoor locations and industrial indoor conditions, the MR76 offers performance, enterprise-grade security, and intuitive management. The multigigabit uplink future-proofs MR76 networks with the latest multigigabit switching technology. Enhanced mesh rate selection algorithms boost bridging and connectivity performance between access points.

A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. The MR76 is 100% cloud-managed via the intuitive, browser-based Meraki Dashboard, and includes a rich, out-of-the-box feature set without additional cost or complexity.

• Brand: Cisco
• SKU: MR76-HW
• Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
• Sensitivity: -99 dBm
• Transmit Power: -92 dBm
• Supported Protocols: RADIUS
• Antenna Placement: External (Integrated)
• Bluetooth: Yes
• Throughput: 1700 Mb/s Total
• Inputs/Outputs: 1x RJ45/SFP Combo Gigabit Ethernet PoE (Unspecified), 4x N-Type Antenna
• USB Sharing Support: No
• Guest Network Support: Yes
• Wireless Security: AES, TKIP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise
• Lock Slot: No
• Operation Modes: Access Point, Mesh
• Mobile App Compatible: No
• Supported IEEE Standards: 802.11e, 802.3af (PoE 15.4 W)
• Power Consumption: 15 W
• Operating Temperature: -40 to 131°F / -40 to 55°C
• Storage Temperature: -40 to 131°F / -40 to 55°C
• Operating Humidity: 95%
• Storage Humidity: 95%
• Environmental Protection: Dust/Water-Resistant (IP67)
• Certifications: FCC, EN, CSA, UL, NOM
• Mount Options: Pole, Wall
• Dimensions: 11.8 x 6 x 2.2" / 30 x 15.3 x 5.5 cm
• Weight: 2.95 lb / 1.34 kg
