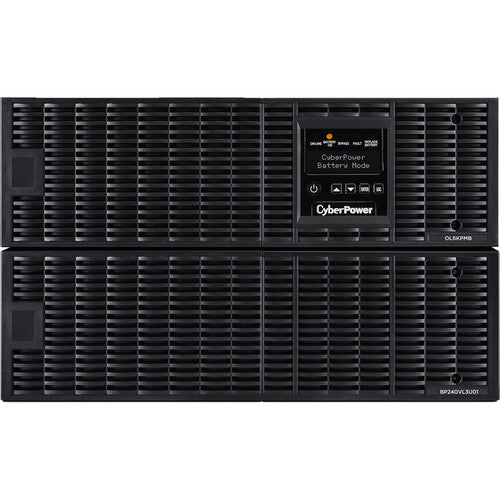

CyberPower Smart App Online Series 6000VA 6000W Sinewave UPS OL6KRTMB

The CyberPower Smart App Online OL6KRTMB is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in four hours.

The OL6KRTMB enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL6KRTMB simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

Specifications

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OL6KRTMB
• Brand Name: CyberPower
• Product Line: Smart App Online
• Product Model: OL6KRTMB
• Product Name: Smart App Online OL6KRTMB 6KVA Rack/Tower UPS
• Product Type: Dual Conversion Online UPS
• Plug/Connector Type: Hardwired
• Receptacles: 2 x NEMA L6-20R, 4 x NEMA L6-30R, 1 x Terminal Block
• Dataline Protection: RJ-11, RJ-45
• Overload Protection: Yes
• Transfer Time: 0 ns
• EMI/RFI Noise Filter: Yes
• Application/Usage: Server, Server Room, VoIP, Hyperconverged Infrastructure (HCI), Storage System, Lab Equipment, High-end System Component, Electronic Device, Network Device, Network Equipment
• Load Capacity: 6000 VA/6000 W
• Input Voltage: 230 V AC
• Input Voltage Range: 120 V AC - 139 V AC, 140 V AC - 159 V AC, 160 V AC - 179 V AC, 180 V AC - 280 V AC
• Output Voltage: 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
• Input Frequency: 40 Hz to 70 Hz
• Output Frequency: 50 Hz to 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 2430 J
• Network Management: SNMP Manageable
• Alarm: Battery Mode, Low Battery, Overload, UPS Fault
• Serial Port: Yes
• EPO Port: Yes
• USB (HID Compliant) Port: Yes
• DC System Voltage: 12 V DC
• Number of Batteries: 20
• Battery Characteristics: Sealed
• Battery Chemistry: Sealed Lead Acid (SLA)
• Battery Size: 12V
• Battery Capacity: 7000 mAh
• Backup/Run Time (Full Load): 4.40 Minute
• Backup/Run Time (Half Load): 13 Minute
• Typical Battery Recharge Time: 4 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 90%
• Storage Relative Humidity: 0% - 95%
• Sound Emission: 65 dB(A)
• Thermal Dissipation: 622.78 W
• Height: 10.4"
• Width: 17.1"
• Depth: 32.3"
• Rack Height: 6U
• Form Factor: Rack/Tower
• Software Included: PowerPanel® Business Edition
• Energy Star: Yes
• Environmentally Friendly: Yes
• Environmental Certification: RoHS, GreenPower UPS
• Country of Origin: China
