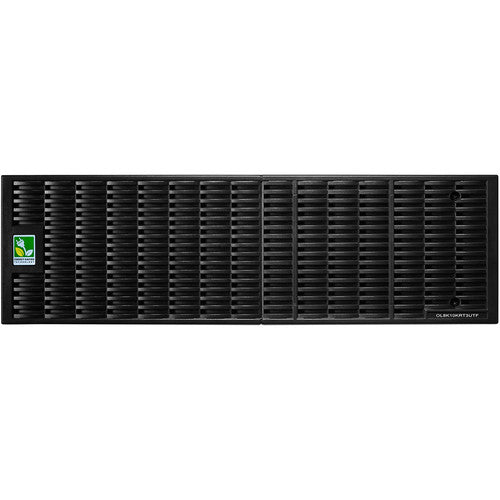

CyberPower 5000W 208/120V Step-Down Transformer OL8K10KRT3UTF

The CyberPower OL8K10KRT3UTF rack/tower step-down isolation transformer converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output. A 10-foot cord (NEMA L6-30P plug) connects the OL8K10KRT3UTF to input power. Over temperature protection safeguards the transformer from damage if the internal heat exceeds safe operating parameters. The OL8K10KRT3UTF has a capacity of 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. In addition it also has two (2) NEMA L6-20R and two (2) NEMA L6-30R outlets to power additional 208V equipment.

Specifications

• Product Name: 5KW Trnsfrmer 3U 3Y 208V In 208/120V Out
• Product Line: Smart App Online
• Product Model: OL8K10KRT3UTF
• Product Type: Step Down Transformer
• Power Rating: 5000 VA
• Input Receptacles: NEMA L6-30P
• Output Receptacles: 12 x NEMA 5-20R, 2 x NEMA L6-20R, 2 x NEMA L6-30R
• Input Voltage: 208 V AC
• Output Voltage: 120 V AC, 208 V AC
• Maximum Line Current: 24 A
• Height: 5.3"
• Width: 17"
• Depth: 26"
• Form Factor: Tower/Rack Mountable
• Rack Height: 3U
• Energy Star: No
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
• Country of Origin: China
