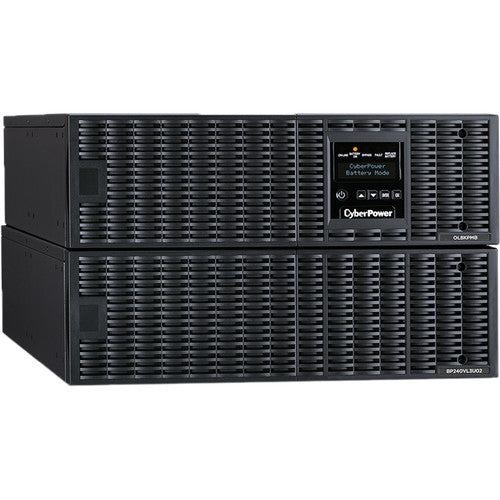

CyberPower Smart App Online Series Double-Conversion 8000VA - 8000W UPS OL8KRTHW

The CyberPower Smart App Online OL8KRTHW is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL8KRTHW enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Specifications

• Manufacturer: Cyber Power
• Brand: Cyberpower
• Product Line: Smart App Online
• Product Model: OL8KRTHW
• Product Type: Dual Conversion Online UPS
• Plug / Connector Type: Hardwired
• Receptacles: 1 x Terminal Block
• Transfer Time: 0 ns
• Backup / Run Time (Full Load): 4.70 Minute
• Typical Battery Recharge Time: 5 Hour
• Load Capacity: 8000 VA/8000 W
• Input Voltage: 230 V AC
• Height: 10.4"
• Width: 17.1"
• Depth: 32.3"
• Rack Height: 6U
• Form Factor: Rack/Tower
• Energy Star: Yes
• Environmentally Friendly: Yes
• Country of Origin: China
• Product Family: Smart App Online
• Backup / Run Time (Half Load): 12 Minute
• Load Capacity (VA): 8000 VA
• Load Capacity (Watt): 8000 W
• Waveform Type: Sine Wave
• Hot Swappable: Yes
• Input Frequency: 40 Hz to 70 Hz
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Maximum Operating Temperature: 104°F (40°C)
• Serial Port: Yes
• Number of Batteries: 20
• Battery Characteristics: Sealed
• EMI / RFI Noise Filter: Yes
• Replaceable Battery: Yes
• DC System Voltage: 12 V DC
• EPO Port: Yes
• USB (HID Compliant) Port: Yes
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 90%
• Storage Relative Humidity: 0% - 95%
• Storage Temperature: -4°F (-20°C) - 113°F (45°C)
• Output Frequency: 50 Hz to 60 Hz
• Network Management: SNMP/HTTP Remote Monitoring
• Overload Protection: Yes
• Surge Energy Rating: 2430 J
• Thermal Dissipation: 743.23 W
• Sound Emission: 65 dB(A)
• Battery Chemistry: Sealed Lead Acid (SLA)
• Software Included: PowerPanel® Business Edition
