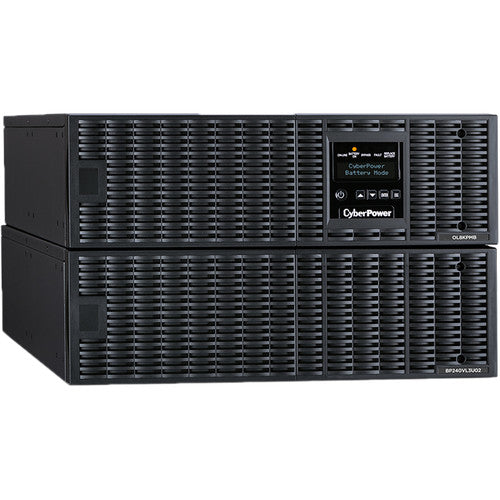

CyberPower Smart App Online Series Double-Conversion 8000VA - 8000W UPS OL8KRTMB

The CyberPower Smart App Online OL8KRTMB is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL8KRTMB enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Specifications

• Manufacturer: Cyber Power
• Brand: Cyberpower
• Energy Saving: Yes – ECO Mode Efficiency up to 96%
• Nominal Voltage: 200 V to 240 V
• UPS Topology: Double Conversion
• Battery Quantity: 20
• Battery Size: 12 V/9 Ah
• Battery Type: Sealed lead acid
• Extended Battery Module: Optional BP240VL3U01
• Hot Swappable: Yes
• Replacement Battery: (2) RB1290X10
• Replacement Battery Cartridge Quantity: 2
• Runtime at Full Load: 4.7 min
• Runtime at Half Load: 12 min
• Smart Battery Management (SBM) Mode: Yes
• Typical Recharge Time: 5 h (0% to 90%)
• User Replaceable: Yes
• Physical Dimensions – (WxHxD) (in): 17.05 x 10.4 x 32.3 (in)
• Rack Units: 6U
• Rail Depth – Max. Mounting (in): 36.02
• Battery Module – Dimensions (WxHxD, in): 17.05 x 5.2 x 26
• Battery Module – Rack Units: 3U
• Backfeed Protection: Yes
• Cold Start: Yes
• Frequency Range: 40 Hz to 70 Hz (auto-sensing)
• Input Power Factor: 0.99
• Plug Type: Hardwire
• EMI/RFI Filtration: Yes
• Phone / Network Surge Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Surge Protection: 2430 Joules, IEC 61000-4-5 Level 3
• Color: Black
• Enclosure Construction: Steel
• Form Factor: Rack / Tower convertible (rotatable LCD)
• Mounting Hardware Included: Yes
• Rack Mounting Hardware: Included
