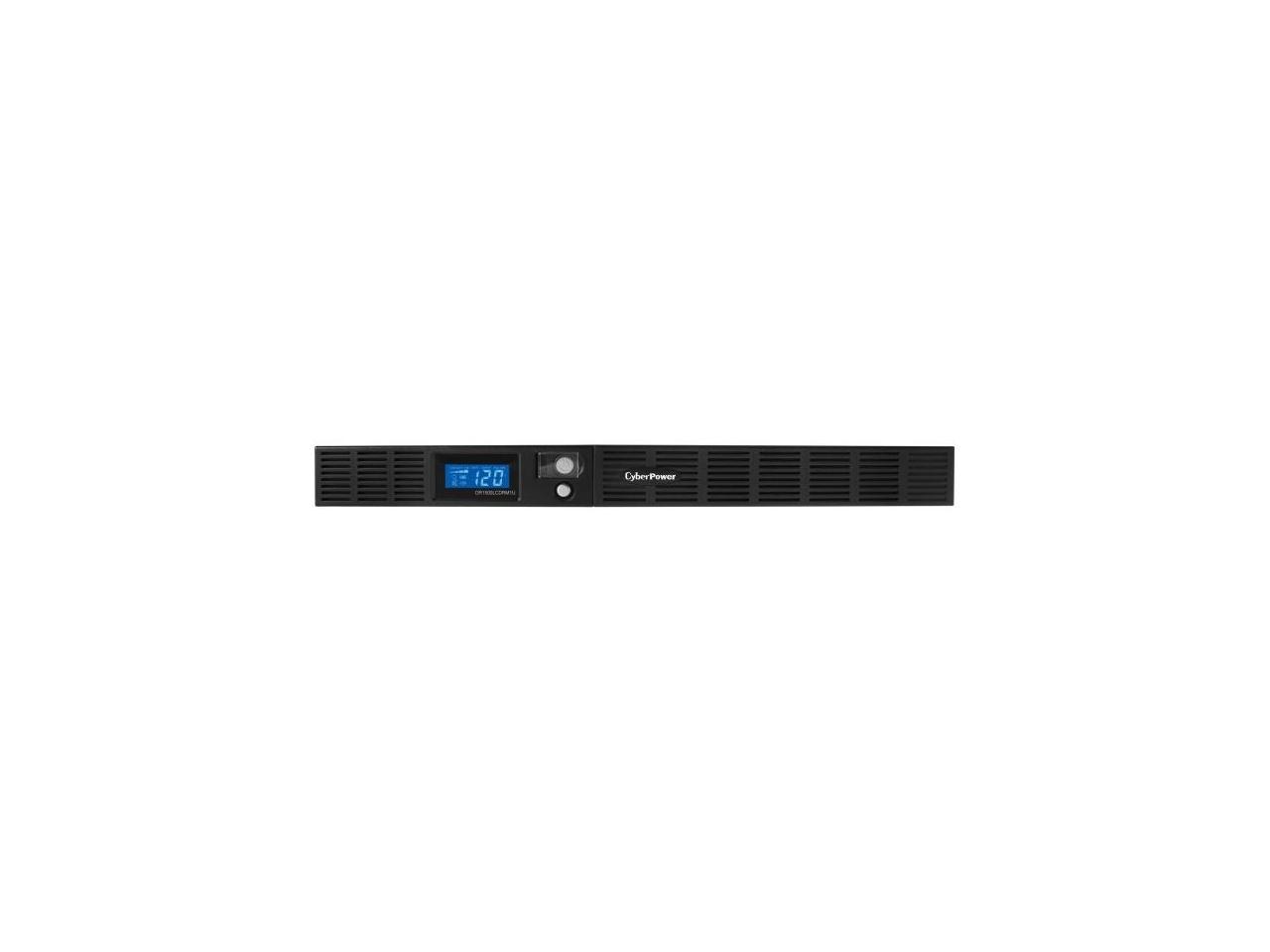

CyberPower Smart App Intelligent 1500VA 900W LCD UPS OR1500LCDRM1U

The Smart App Intelligent LCD series UPS is designed to protect office servers, corporate and departmental networks, and network-based appliances. The intelligent crystal-blue LCD diagnostic panel gives administrators immediate, real-time information of the UPS's vitals. LCD diagnostics include AVR status, estimated runtime, battery capacity, load level, input and output voltage level, output frequency, on-battery, overload, fault, and silent mode.

This product houses four batteries, 6 outlets, and USB and serial ports. It also is equipped with a RJ11/45 port for modem / network surge protection. Full Automatic Voltage Regulation (AVR) protection with both boost and buck ensures that your sensitive electronic equipment receives only clean, consistent, regulated power, without switching to battery-mode. The OR series are fully manageable with the addition of an SNMP / HTTP adapter, and have microprocessor-based, fully digital controlled circuitry. PowerPanel Business Edition software (included) automatically saves and closes open files and shutdowns the PC in an intelligent and orderly manner.

Specifications

• Manufacturer: Cyber Power
• Brand: Cyberpower
• Product Line: CyberPower Smart App Intelligent LCD/AVR, CyberPower Smart App Intelligent LCD
• Model: OR1500LCDRM1U, OR1500LCDRM1U
• Packaged Quantity: 1
• Subcategory: UPS
• Product Type: UPS
• Remote Management Interface: RS-232, USB
• Expansion Slots: 1 (total) / 1 (free) x expansion slot
• Interfaces: 1 x USB, 1 x RS-232, 1 x management (USB) - 4 pin USB Type B, 1 x management (RS-232) - 9 pin D-Sub (DB-9)
• Cables Included: Power cable 10 ft, Serial cable, USB adapter, Power cable - integrated - 10 ft
• Type: PowerPanel Business Edition
• Form Factor: External
• UPS Technology: Line interactive
• Load Rating: Small LAN / file server
• Voltage Provided: AC 120 volt
• Voltage Provided Margin: ± 5%
• Frequency Provided: 60 hertz
• UPS Output Waveform: Sinewave, Stepped approximation to a sinewave
• Power Provided: 900 watt
• Power Capacity (VA): 1500 volt ampere per kilogram
• Voltage Required: AC 90-140 volt
• Input Voltage Range: AC 90 - 140 V
• Frequency Required: 60 hertz
• Input Connector Type: Power NEMA 5-15
• Input Connector Qty: 1
• Output Connector Type: Power NEMA 5-15
• Output Connector Qty: 6
• Surge Suppression: Yes
• Surge Energy Rating: 1030 joules
• Circuit Protection: Circuit breaker
• Power Device Features: GreenPower UPS Technology, Voltage monitoring, Overload protection, Current meter, LCD display, Automatic Voltage Regulation (AVR), Audible alarm
• Voltage Provided: 6 volt
• Run Time (Up To): 2 minute (time unit)
• Load Type: At full load
• Recharge Time: 8 Hours
• Batteries Qty: 4
• Supported Batteries Qty: 4
• Battery Capacity: 9 additional minute
• Run Time (Up To): 11 min at half load, 2 min at full load
• Height (Rack Units): 1
• Equipment Protection Value: 300000 US Dollars, 200000 US Dollars
• Compliant Standards: RoHS, FCC Class B certified, UL 1778, cUL
• Width: 17.2 inch
• Depth: 19.5 inch
• Height: 1.7 inch
