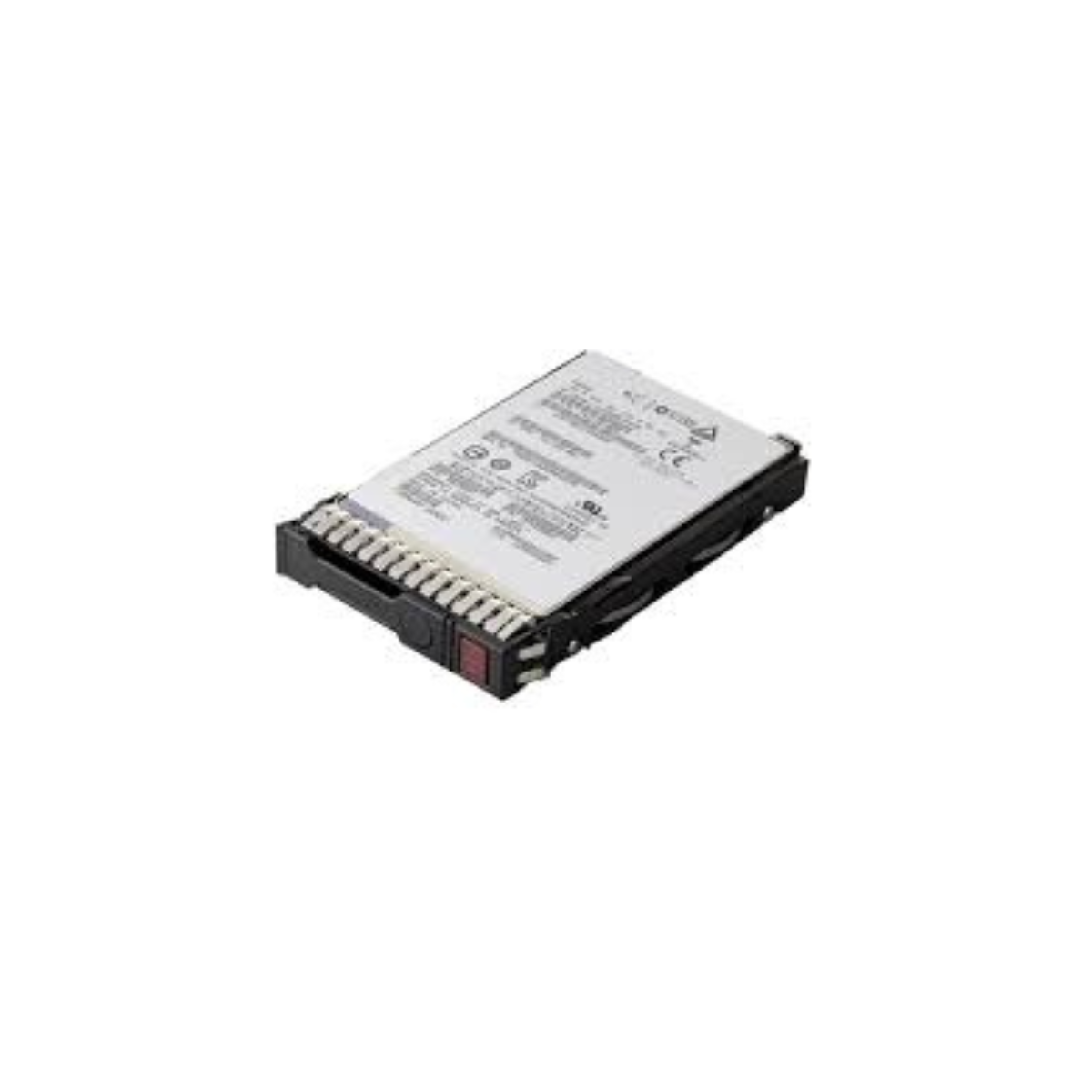

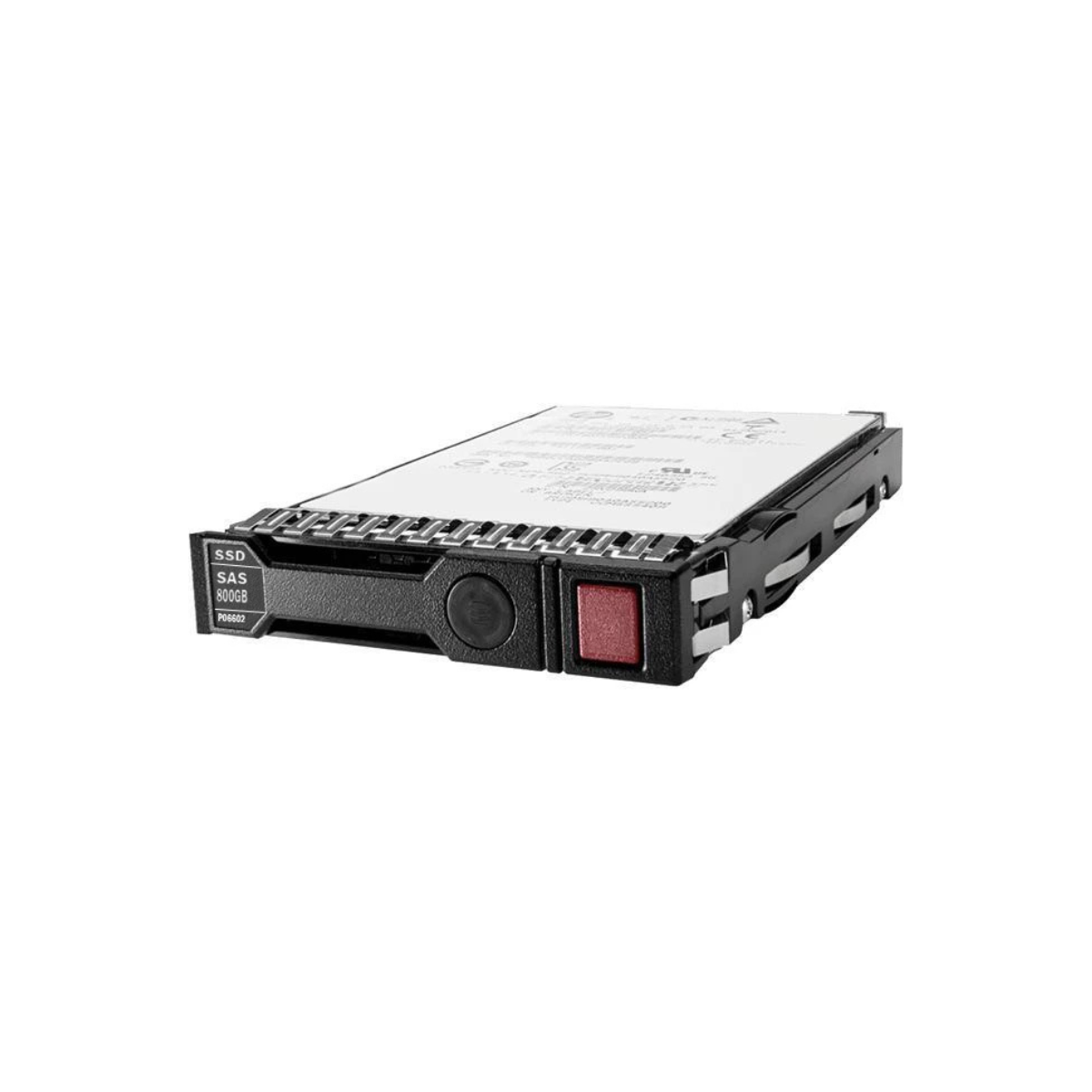

HPE 800GB SAS 12Gb/s Write Intensive SFF Solid State Drive P04543-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04543-B21 is an 800GB SAS 12Gb/s Write Intensive (WI) Solid State Drive designed for enterprise applications requiring high write performance, endurance, and reliable storage operation. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-swap capability make it suitable for supported HPE server configurations.

The drive features a 12Gb/s SAS interface with an external drive transfer rate of 1.2 GB/sec. With 10 DWPD endurance, the P04543-B21 is designed for write-intensive enterprise workloads that require frequent data writes and consistent storage performance.

Key Features

• 800GB storage capacity
• SAS 12Gb/s interface
• Write Intensive (WI) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 10 DWPD endurance
• 1.2 GB/sec external drive transfer rate
• Hot-plug capability
• Digitally Signed Firmware
• 0.6-inch height
• WEEE compliant
• Designed for supported HPE server configurations

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• MPN: P04543-B21
• Device Type: Solid State Drive - Hot-Swap
• Product Type: Solid State Drive
• Capacity: 800 GB
• NAND Flash Memory Type: Multi-level cell (MLC)
• Form Factor: 2.5-inch SFF
• Interface: SAS 12Gbps
• Drive Interface Standard: 12Gb/s SAS
• Plug Type: Hot Plug
• Carrier Type: Smart Carrier
• Workload Type: Write Intensive
• Bundled With: HPE Smart Carrier
• Drive Writes Per Day (DWPD): 10
• Drive Transfer Rate: 1.2 GB/sec external
• Interfaces: 1 x SAS 12Gbps
• Compatible Bay: 2.5-inch SFF
• Features: Digitally Signed Firmware
• Height: 0.6 inch
• Compliant Standards: WEEE

Performance Specifications

The HPE P04543-B21 uses a 12Gb/s SAS interface and provides an external transfer rate of 1.2 GB/sec. Its Write Intensive classification makes it intended for enterprise workloads where storage devices experience frequent write operations.

The drive offers 10 DWPD endurance, indicating that it is designed for workloads with substantial daily data-writing requirements. This makes the endurance specification an important consideration when deploying the SSD in write-heavy server environments.

Enterprise Features

The HPE Smart Carrier provides a carrier solution for compatible HPE server configurations and helps provide drive-status information during server operation.

The Digitally Signed Firmware feature helps provide assurance that the drive firmware originates from a trusted source. The SSD also supports hot-plug installation, allowing replacement or installation in compatible server configurations without requiring a traditional powered-down installation process.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Height: 0.6 inch
• Carrier Type: HPE Smart Carrier
• Compatible Bay: 2.5-inch SFF
• Installation: Hot Plug
• Drive Type: Internal Solid State Drive
• NAND Flash Type: Multi-level cell (MLC)
• Bundled With: HPE Smart Carrier

Power Consumption

The HPE P04543-B21 has the following specified power consumption:

• Maximum: 6.71 Watt
• Random Read: 4.97 Watt
• Random Write: 4.97 Watt
• Sequential Read: 6.71 Watt
• Sequential Write: 6.95 Watt

Compatibility

The HPE P04543-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SAS drive bay and 12Gb/s SAS connectivity.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P04543-B21 800GB Write Intensive SSD is suitable for:

• Write-intensive enterprise applications
• Database workloads
• Transactional applications
• Virtualization environments
• Cloud computing
• Enterprise application hosting
• Data-intensive workloads
• High-frequency write operations
• Server storage expansion
• Supported HPE server configurations

Why Choose HPE P04543-B21

The HPE P04543-B21 combines 800GB storage capacity, 12Gb/s SAS connectivity, and a compact 2.5-inch SFF form factor with high endurance for write-intensive workloads.

With 10 DWPD endurance, hot-plug capability, an HPE Smart Carrier, and Digitally Signed Firmware, the drive is designed for enterprise server environments where frequent writes and dependable storage operation are important.

Compatibility

• Storage Capacity: 800 GB
• Interface: SAS 12Gbps
• Interface Connection: 1 x SAS 12Gbps
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Workload Type: Write Intensive
• Endurance: 10 DWPD
• Installation: Hot Plug
• Drive Height: 0.6 inch
• NAND Flash: Multi-level cell (MLC)
• Firmware: Digitally Signed Firmware
• Supported Device: Server

FAQs

What is the storage capacity of the HPE P04543-B21?
The HPE P04543-B21 provides 800GB of storage capacity and is designed for enterprise Write Intensive applications.

What interface does the HPE P04543-B21 use?
The P04543-B21 uses a SAS 12Gbps interface with 1 x SAS 12Gbps connection.

What type of workload is the P04543-B21 designed for?
The P04543-B21 is classified as a Write Intensive (WI) SSD, making it suitable for enterprise workloads with significant write activity.

What is the endurance rating of the HPE P04543-B21?
The P04543-B21 has an endurance rating of 10 DWPD, meaning it is designed for substantial daily write workloads.

Does the HPE P04543-B21 include a Smart Carrier?
Yes. The P04543-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.

Is the HPE P04543-B21 hot-swappable?
Yes. The specifications identify the drive as Hot Plug, allowing installation or replacement in supported HPE server configurations.
