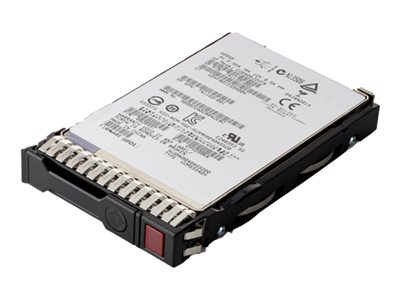

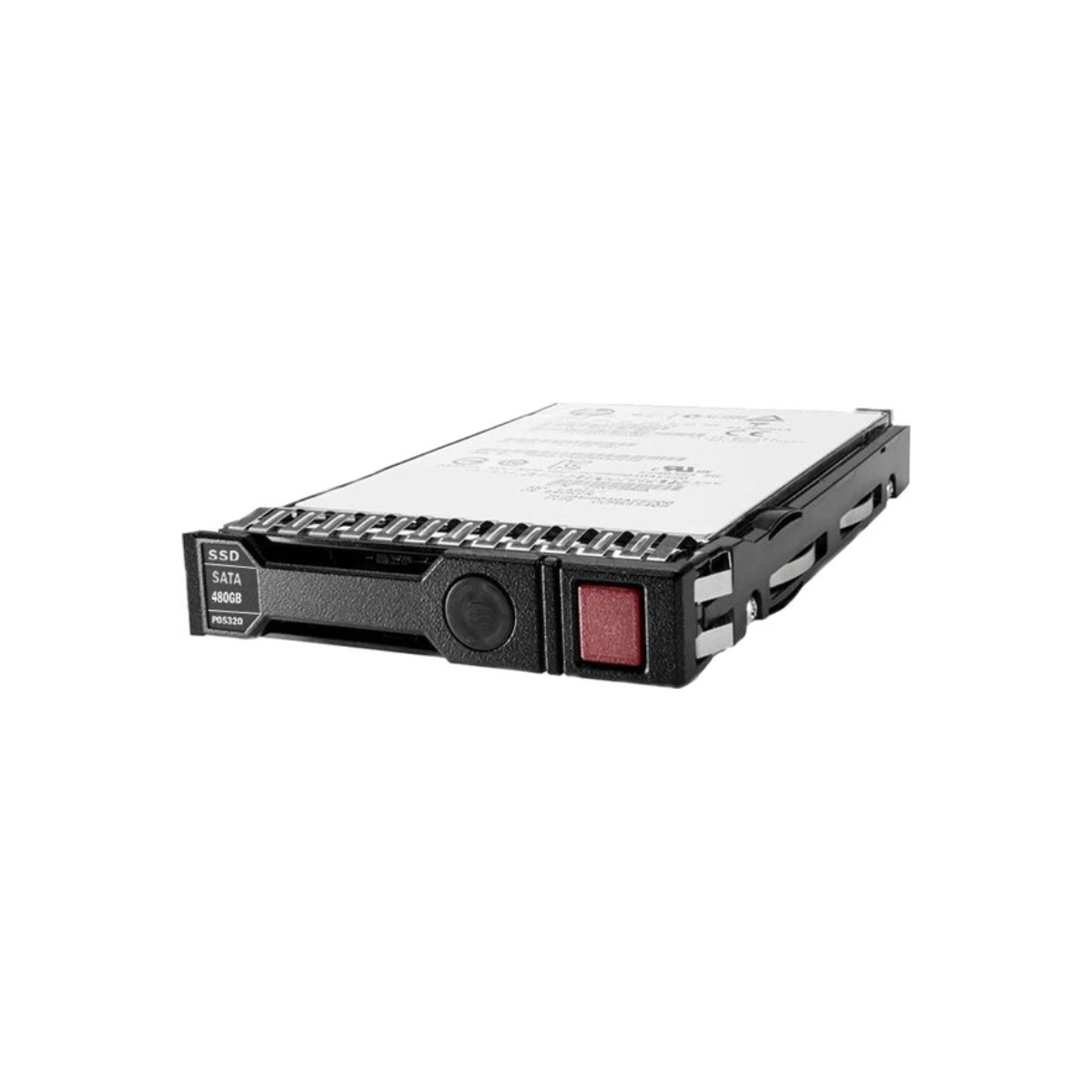

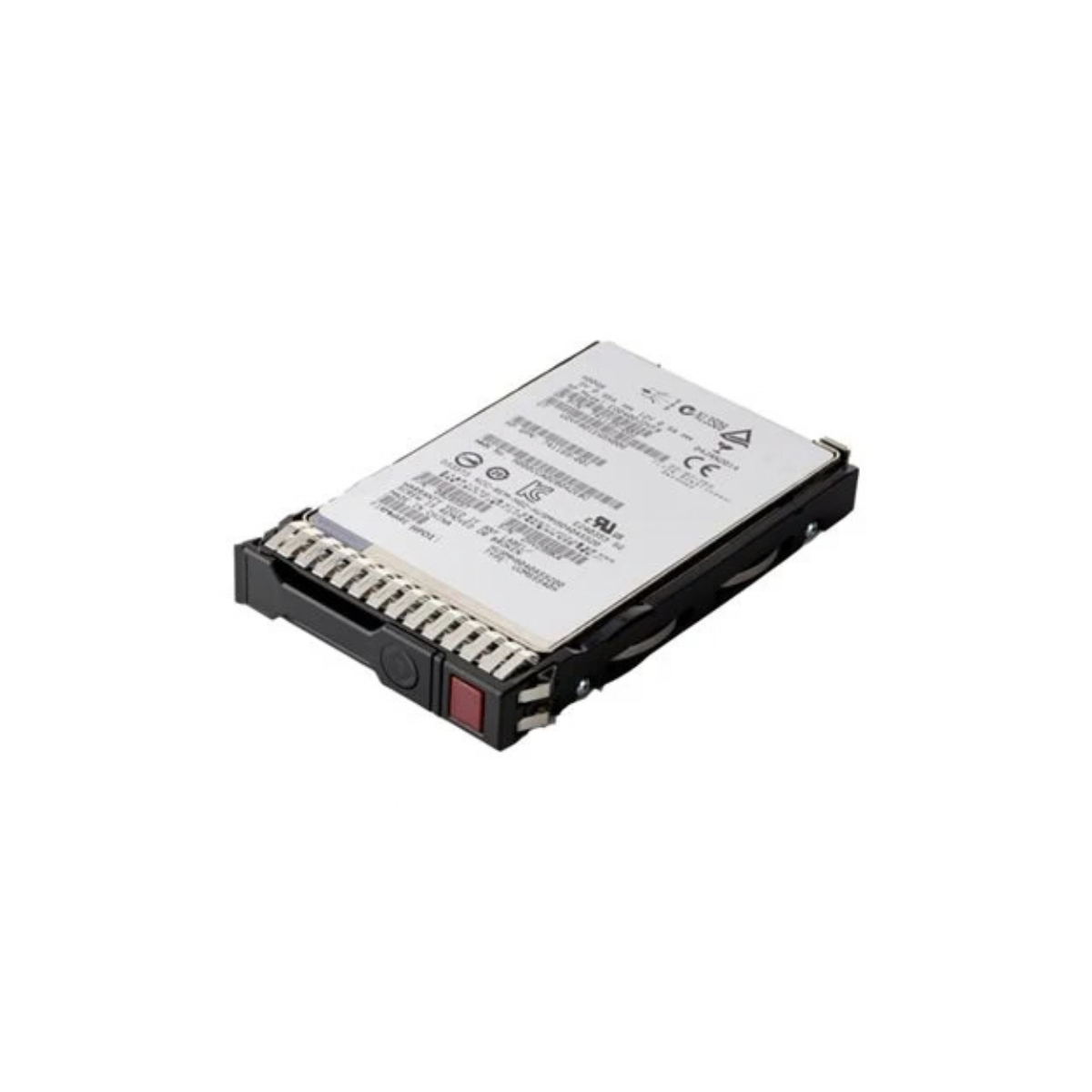

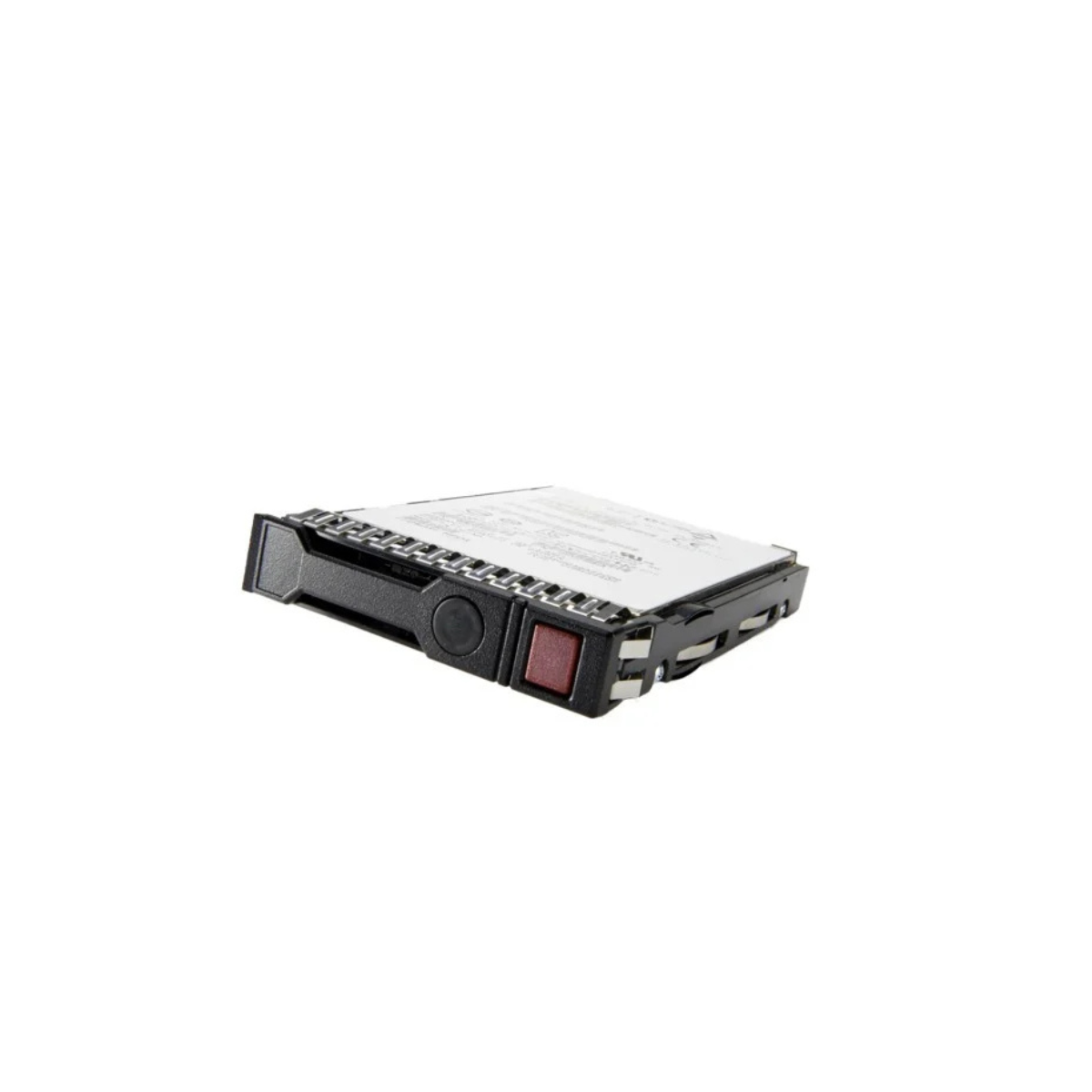

HPE Read Intensive 480GB SATA 6Gb/s Solid State Drive P04560-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04560-B21 is a 480GB SATA 6Gb/s Read Intensive (RI) Solid State Drive designed for enterprise applications that require high random read performance, reliable endurance, and efficient storage operation. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-swap capability make it suitable for supported HPE server configurations.

The drive provides a 600 MBps external transfer rate, with 68,000 IOPS 4KB random read and 25,000 IOPS 4KB random write performance. With 0.8 DWPD endurance, 700TB SSD endurance, and Digitally Signed Firmware, the P04560-B21 is designed for supported Read Intensive enterprise workloads.

Key Features

• 480GB storage capacity
• SATA 6Gb/s interface
• Read Intensive (RI) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 68,000 IOPS 4KB random read
• 25,000 IOPS 4KB random write
• 600 MBps external drive transfer rate
• 0.8 DWPD endurance
• 700TB SSD endurance
• Digitally Signed Firmware
• Hot-swap capability
• 0.3-inch height
• HPE SmartSSD Wear Gauge compatibility

Technical Specifications

• Device Type: Solid State Drive - Hot-swap
• Capacity: 480 GB
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Form Factor: 2.5" SFF
• Interface: SATA 6Gb/s
• Features: Digitally Signed Firmware
• Height: 0.3 inch
• Bundled With: HPE Smart Carrier
• Drive Writes Per Day (DWPD): 0.8
• SSD Endurance: 700 TB
• Drive Transfer Rate: 600 MBps (external)
• Internal Data Rate: 535 MBps (read) / 495 MBps (write)
• 4KB Random Read: 68,000 IOPS
• 4KB Random Write: 25,000 IOPS
• Maximum 4KB Random Read: 77,000 IOPS
• Maximum 4KB Random Write: 25,000 IOPS
• Interfaces: 1 x SATA 6 Gb/s - 7-pin Serial ATA
• Compatible Bay: 2.5" SFF
• Power Consumption: 1.12 Watt idle / 2.29 Watt random read / 2.29 Watt random write / 1.89 Watt sequential read / 2.5 Watt sequential write

Performance Specifications

The HPE P04560-B21 provides a 600 MBps external transfer rate along with 68,000 IOPS 4KB random read and 25,000 IOPS 4KB random write performance. Its performance profile is intended primarily for applications with a high proportion of read operations.

The SSD delivers an internal read rate of 535 MBps and an internal write rate of 495 MBps. With 0.8 DWPD endurance and 700TB SSD endurance, it is designed for supported enterprise Read Intensive workloads.

Enterprise Features

The HPE Smart Carrier provides a carrier solution for supported HPE server configurations and helps provide drive-status information. The Digitally Signed Firmware feature helps provide assurance that the drive firmware comes from a trusted source.

The P04560-B21 also supports HPE SmartSSD Wear Gauge compatibility, allowing supported management tools to monitor SSD lifespan and identify drives that may be approaching their endurance limits.

Physical Specifications

• Form Factor: 2.5" SFF
• Height: 0.3 inch
• Carrier Type: HPE Smart Carrier
• Installation: Hot-swap
• Compatible Bay: 2.5" SFF
• Drive Type: Internal Solid State Drive
• NAND Flash Type: MLC
• Interface: SATA 6Gb/s
• Packaged Carrier: HPE Smart Carrier

Power Consumption

The HPE P04560-B21 has different power consumption figures depending on the workload:

• Idle: 1.12 Watt
• Random Read: 2.29 Watt
• Random Write: 2.29 Watt
• Sequential Read: 1.89 Watt
• Sequential Write: 2.5 Watt

Compatibility

The HPE P04560-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SATA drive bay and SATA 6Gb/s connectivity.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SATA SSD configuration.

Ideal Applications

The HPE P04560-B21 480GB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Database workloads
• Data warehousing
• Big data analytics
• Cloud computing
• Active archiving
• Enterprise application hosting
• Server storage expansion
• Applications requiring high random read IOPS
• Supported HPE server configurations

Why Choose HPE P04560-B21

The HPE P04560-B21 combines 480GB storage capacity, SATA 6Gb/s connectivity, and a compact 2.5-inch SFF form factor with strong random read performance.

With 68,000 IOPS random read, 25,000 IOPS random write, 0.8 DWPD endurance, and 700TB SSD endurance, the drive is designed for enterprise Read Intensive workloads. The HPE Smart Carrier, Digitally Signed Firmware, and HPE SmartSSD Wear Gauge compatibility provide additional enterprise-focused storage management and monitoring capabilities.

Compatibility

• Storage Capacity: 480 GB
• Interface: SATA 6Gb/s
• Interface Connection: 1 x SATA 6 Gb/s - 7-pin Serial ATA
• Form Factor: 2.5" SFF
• Compatible Bay: 2.5" SFF
• Carrier: HPE Smart Carrier
• Workload Type: Read Intensive
• NAND Flash: MLC
• Endurance: 0.8 DWPD
• SSD Endurance: 700 TB
• Installation: Hot-swap
• Drive Height: 0.3 inch
• Firmware: Digitally Signed Firmware
• Supported Device: Server

FAQs

What is the storage capacity of the HPE P04560-B21?
The HPE P04560-B21 provides 480GB of storage capacity and is designed for enterprise Read Intensive applications.

What interface does the HPE P04560-B21 use?
The P04560-B21 uses a SATA 6Gb/s interface with 1 x SATA 6 Gb/s connection.

What type of workload is the P04560-B21 designed for?
The P04560-B21 is classified as a Read Intensive (RI) SSD, making it suitable for workloads with a high proportion of read operations.

What are the random read and write IOPS of this SSD?
The drive provides 68,000 IOPS 4KB random read and 25,000 IOPS 4KB random write.

What is the endurance rating of the HPE P04560-B21?
The P04560-B21 has an endurance rating of 0.8 DWPD and a specified SSD endurance of 700TB.

Does the HPE P04560-B21 include a Smart Carrier?
Yes. The P04560-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.
