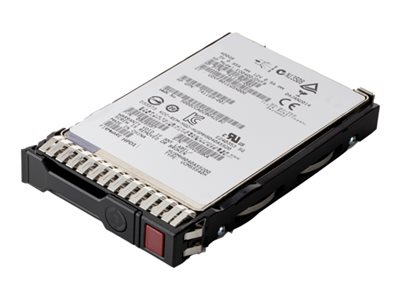

HPE Read Intensive 960GB SATA 6Gb/s SFF Solid State Drive P04564-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04564-B21 is a 960GB SATA 6Gb/s Read Intensive (RI) Solid State Drive designed for enterprise applications requiring high random read performance, dependable endurance, and efficient storage operation. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-swap capability make it suitable for supported HPE server configurations.

The drive provides a 600 MBps external data transfer rate, 65,000 IOPS 4KB random read, and 29,000 IOPS 4KB random write performance. With 0.8 DWPD endurance, MLC NAND Flash memory, and Digitally Signed Firmware, the P04564-B21 is designed for read-intensive enterprise workloads.

Key Features

• 960GB storage capacity
• SATA 6Gb/s interface
• Read Intensive (RI) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 65,000 IOPS 4KB random read
• 29,000 IOPS 4KB random write
• Up to 76,000 IOPS maximum 4KB random read
• 600 MBps external data transfer rate
• 0.8 DWPD endurance
• 1,400 TB SSD endurance
• MLC NAND Flash memory
• Digitally Signed Firmware
• Hot-swap capability

Technical Specifications

• Device Type: Solid State Drive - Hot-swap
• Brand: HPE
• Capacity: 960 GB
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Form Factor: 2.5" SFF
• Interface: SATA 6Gb/s
• Bundled With: HPE Smart Carrier
• Drive Writes Per Day (DWPD): 0.8
• SSD Endurance: 1,400 TB
• Drive Transfer Rate: 600 MBps (External)
• Internal Data Rate: 535 MBps (Read) / 495 MBps (Write)
• 4KB Random Read: 65,000 IOPS
• 4KB Random Write: 29,000 IOPS
• Maximum 4KB Random Read: 76,000 IOPS
• Maximum 4KB Random Write: 29,000 IOPS
• Features: Digitally Signed Firmware
• Interfaces: 1 x SATA 6 Gb/s - 7 pin Serial ATA
• Compatible Bay: 2.5" SFF
• Height: 0.3 inch

Performance Specifications

The HPE P04564-B21 delivers a 600 MBps external data transfer rate, with 65,000 IOPS 4KB random read and 29,000 IOPS 4KB random write performance. Its maximum 4KB random read performance is specified at 76,000 IOPS.

The SSD provides 535 MBps internal read performance and 495 MBps internal write performance, making it suitable for enterprise applications with a strong emphasis on random read activity.

With 0.8 DWPD endurance and 1,400 TB SSD endurance, the P04564-B21 is designed for supported Read Intensive workloads.

Enterprise Features

The HPE Smart Carrier provides a carrier solution for supported HPE server configurations and helps provide drive-status information. The Digitally Signed Firmware feature helps provide assurance that the drive firmware comes from a trusted source.

The P04564-B21 also supports HPE SmartSSD Wear Gauge compatibility, allowing supported management tools to monitor SSD lifespan and identify drives that may be approaching their endurance limits.

Physical Specifications

• Form Factor: 2.5" SFF
• Height: 0.3 inch
• Carrier Type: HPE Smart Carrier
• Installation: Hot-swap
• Compatible Bay: 2.5" SFF
• Drive Type: Internal Solid State Drive
• NAND Flash Type: MLC

Power Consumption

The HPE P04564-B21 has the following specified power consumption values:

• Idle: 1.12 Watt
• Random Read: 2.33 Watt
• Random Write: 2.33 Watt
• Sequential Read: 1.93 Watt
• Sequential Write: 2.63 Watt

Compatibility

The HPE P04564-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SATA drive bay and SATA 6Gb/s connectivity.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SATA SSD configuration.

Ideal Applications

The HPE P04564-B21 960GB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Database workloads
• Data warehousing
• Big data analytics
• Cloud computing
• Active archiving
• Enterprise application hosting
• Server storage expansion
• Applications requiring high random read IOPS
• Supported HPE server configurations

Why Choose HPE P04564-B21

The HPE P04564-B21 combines 960GB storage capacity, SATA 6Gb/s connectivity, and a compact 2.5-inch SFF form factor with enterprise-focused Read Intensive performance.

With 65,000 IOPS random read, 29,000 IOPS random write, 0.8 DWPD endurance, and 1,400 TB SSD endurance, the drive is designed for supported enterprise workloads where read performance and dependable storage operation are important.

Compatibility

• Storage Capacity: 960 GB
• Interface: SATA 6Gb/s
• Interface Connection: 1 x SATA 6 Gb/s
• Form Factor: 2.5" SFF
• Compatible Bay: 2.5" SFF
• Carrier: HPE Smart Carrier
• Workload Type: Read Intensive
• Endurance: 0.8 DWPD
• SSD Endurance: 1,400 TB
• Installation: Hot-swap
• NAND Flash: MLC
• Drive Height: 0.3 inch
• Firmware: Digitally Signed Firmware

FAQs

What is the storage capacity of the HPE P04564-B21?
The HPE P04564-B21 provides 960GB of storage capacity and is designed for enterprise Read Intensive applications.

What interface does the HPE P04564-B21 use?
The P04564-B21 uses a SATA 6Gb/s interface with 1 x SATA 6 Gb/s connection.

What type of workload is the P04564-B21 designed for?
The P04564-B21 is classified as a Read Intensive (RI) SSD, making it suitable for workloads with a high proportion of read operations.

What are the random read and write IOPS of this SSD?
The drive provides 65,000 IOPS 4KB random read and 29,000 IOPS 4KB random write. Maximum 4KB random read performance is specified at 76,000 IOPS.

What is the endurance rating of the HPE P04564-B21?
The P04564-B21 has an endurance rating of 0.8 DWPD and a specified SSD endurance of 1,400 TB.

Does the HPE P04564-B21 include a Smart Carrier?
Yes. The P04564-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.
