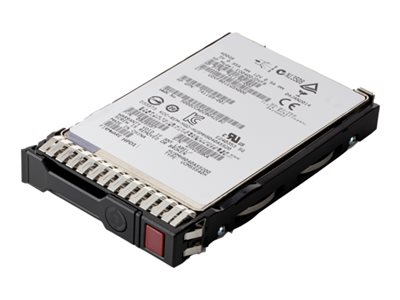

HPE 1.92TB SATA 6Gb/s Read Intensive SFF Solid State Drive P04566-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04566-B21 is a 1.92TB SATA 6Gb/s Read Intensive (RI) Solid State Drive designed for enterprise applications requiring high random read performance, dependable endurance, and efficient storage operation. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-swap capability make it suitable for supported HPE server configurations.

The drive provides a 600 MBps data transfer rate, 64,000 IOPS 4KB random read, and 30,000 IOPS 4KB random write performance. With 0.8 DWPD endurance, MLC NAND Flash memory, and Digitally Signed Firmware, the P04566-B21 is designed for read-intensive enterprise workloads.

Key Features

• 1.92TB storage capacity
• SATA 6Gb/s interface
• Read Intensive (RI) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 64,000 IOPS 4KB random read
• 30,000 IOPS 4KB random write
• Up to 72,000 IOPS maximum 4KB random read
• 600 MBps data transfer rate
• 0.8 DWPD endurance
• 2,800 TB SSD endurance
• MLC NAND Flash memory
• Digitally Signed Firmware
• Hot-swap capability

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Read Intensive
• Bundled With: HPE Smart Carrier
• Packaged Quantity: 1
• Type: Solid State Drive
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Form Factor (Short): 2.5"
• Form Factor (Short) (Metric): 6.4 cm
• Storage Interface: Serial ATA-600
• Interface: Serial ATA-600
• Capacity: 1.92 TB
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Data Transfer Rate: 600 MBps
• Internal Data Rate: 535 MBps
• Internal Data Rate (Write): 495 MBps
• 4KB Random Read: 64,000 IOPS
• 4KB Random Write: 30,000 IOPS
• Maximum 4KB Random Read: 72,000 IOPS
• Maximum 4KB Random Write: 30,000 IOPS
• Drive Writes Per Day (DWPD): 0.8
• SSD Endurance: 2,800 TB
• Features: Digitally Signed Firmware
• Interfaces: 1 x SATA 6 Gb/s - 7 pin Serial ATA
• Compatible Bay: 2.5" SFF

Performance Specifications

The HPE P04566-B21 provides a 600 MBps data transfer rate, with 64,000 IOPS 4KB random read and 30,000 IOPS 4KB random write performance. Its maximum 4KB random read performance is specified at 72,000 IOPS.

With 535 MBps internal read performance and 495 MBps internal write performance, the SSD is designed primarily for applications that generate a high volume of read operations while continuing to support write activity.

The 0.8 DWPD endurance rating and 2,800 TB SSD endurance make this drive suitable for supported enterprise Read Intensive workloads.

Enterprise Features

The HPE Smart Carrier provides a carrier solution for supported HPE server configurations and helps provide drive-status information. Its Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.

The P04566-B21 also supports HPE SmartSSD Wear Gauge compatibility, allowing supported management tools to monitor SSD lifespan and identify drives that may be approaching their endurance limits.

Physical Specifications

• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Height: Not specified in the provided specifications
• Carrier Type: HPE Smart Carrier
• Installation: Hot-swap
• Compatible Bay: 2.5" SFF
• Drive Type: Internal Solid State Drive
• Packaged Quantity: 1

Power Consumption

The provided specifications do not specify a power consumption value for the HPE P04566-B21.

Compatibility

The HPE P04566-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SATA drive bay and SATA 6Gb/s connectivity.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SATA SSD configuration.

Ideal Applications

The HPE P04566-B21 1.92TB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Database workloads
• Data warehousing
• Big data analytics
• Cloud computing
• Active archiving
• Enterprise application hosting
• Server storage expansion
• Applications requiring high random read IOPS
• Supported HPE server configurations

Why Choose HPE P04566-B21

The HPE P04566-B21 combines 1.92TB storage capacity, SATA 6Gb/s connectivity, and a compact 2.5-inch SFF form factor with enterprise-focused Read Intensive performance.

With 64,000 IOPS random read, 30,000 IOPS random write, 0.8 DWPD endurance, and 2,800 TB SSD endurance, the drive is designed for supported enterprise workloads where read performance and dependable storage operation are important.

Compatibility

• Storage Capacity: 1.92 TB
• Interface: SATA 6Gb/s
• Interface Connection: 1 x SATA 6 Gb/s
• Form Factor: 2.5" SFF
• Compatible Bay: 2.5" SFF
• Carrier: HPE Smart Carrier
• Workload Type: Read Intensive
• Endurance: 0.8 DWPD
• SSD Endurance: 2,800 TB
• Installation: Hot-swap
• NAND Flash: MLC
• Firmware: Digitally Signed Firmware

FAQs

What is the storage capacity of the HPE P04566-B21?
The HPE P04566-B21 provides 1.92TB of storage capacity and is designed for enterprise Read Intensive applications.

What interface does the HPE P04566-B21 use?
The P04566-B21 uses a SATA 6Gb/s interface with 1 x SATA 6 Gb/s connection.

What type of workload is the P04566-B21 designed for?
The P04566-B21 is classified as a Read Intensive (RI) SSD, making it suitable for workloads with a high proportion of read operations.

What are the random read and write IOPS of this SSD?
The drive provides 64,000 IOPS 4KB random read and 30,000 IOPS 4KB random write. Maximum 4KB random read performance is specified at 72,000 IOPS.

What is the endurance rating of the HPE P04566-B21?
The P04566-B21 has an endurance rating of 0.8 DWPD and a specified SSD endurance of 2,800 TB.

Does the HPE P04566-B21 include a Smart Carrier?
Yes. The P04566-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.
