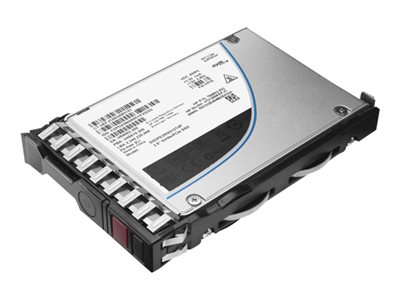

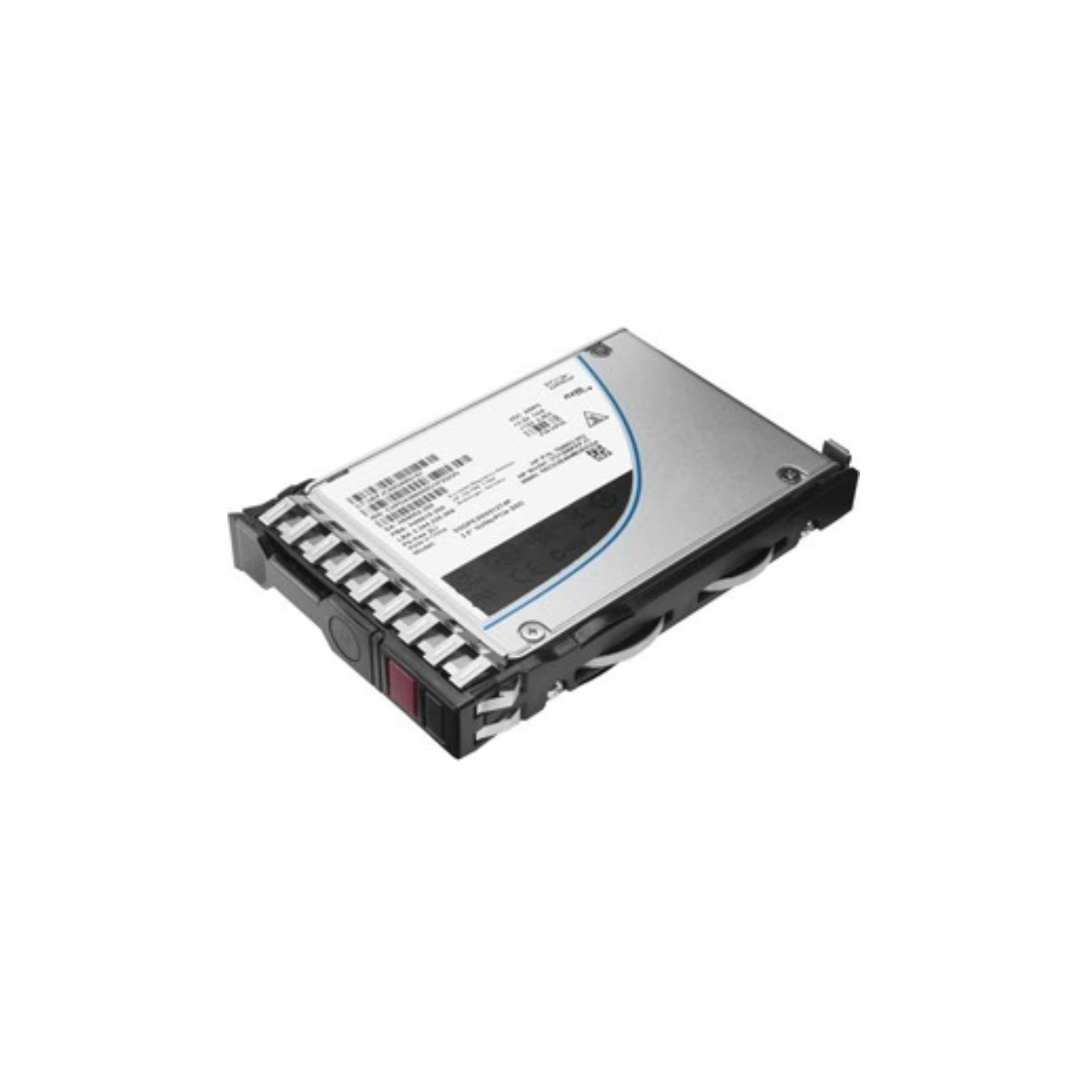

HPE 960GB NVMe x4 Lanes Read Intensive SFF (2.5in) Solid State Drive P07190-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 960GB NVMe x4 Lanes Read Intensive SFF Solid State Drive P07190-B21 is designed to provide high-performance enterprise storage for servers and platforms that require fast and responsive data access. With 960GB capacity and a PCI Express (NVMe) storage interface, this SSD is built for demanding read-intensive workloads.

As part of the HPE Read Intensive product line, the P07190-B21 delivers strong random I/O performance with 118,000 IOPS 4KB random read and 59,000 IOPS 4KB random write. Its maximum 4KB random read performance reaches 370,000 IOPS, supporting applications that require high levels of storage responsiveness.

The drive uses a 2.5-inch SFF form factor and includes an HPE Smart Carrier NVMe. It also features Digitally Signed Firmware, hot-swap capability, and a 1 DWPD endurance rating. With a rated power consumption of 8.72 watts, it is designed to provide enterprise NVMe performance while supporting efficient operation.

Key Features

• 960GB storage capacity for enterprise applications and data.
• PCI Express (NVMe) interface for high-speed storage connectivity.
• 118,000 IOPS 4KB random read performance.
• 59,000 IOPS 4KB random write performance.
• Up to 370,000 IOPS maximum 4KB random read performance.
• 1 DWPD endurance rating for read-intensive workloads.
• 2.5-inch SFF form factor for high-density server storage.
• Includes HPE Smart Carrier NVMe.
• Hot-swap design for supported HPE server configurations.
• Digitally Signed Firmware for enterprise firmware integrity.
• Rated 8.72W power consumption.

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Read Intensive
• Type: Solid state drive
• Hard Drive Type: Hot-swap hard drive
• Capacity: 960 GB
• Storage Interface: PCI Express (NVMe)
• Interfaces: 1 x PCI Express (NVMe)
• Workload Type: Read Intensive
• Drive Writes Per Day (DWPD): 1
• Features: Digitally Signed Firmware
• Bundled With: HPE Smart Carrier NVMe
• Compatible Bay: 2.5" SFF
• Packaged Quantity: 1

Performance Specifications

• 4KB Random Read: 118,000 IOPS
• 4KB Random Write: 59,000 IOPS
• Maximum 4KB Random Read: 370,000 IOPS
• Maximum 4KB Random Write: 59,000 IOPS
• Endurance: 1 DWPD
• Interface: PCI Express (NVMe)

Enterprise Features

• HPE Smart Carrier NVMe: The included carrier is designed for supported HPE enterprise server configurations.
• Hot-Swap Support: Enables drive replacement without requiring a complete system shutdown on compatible configurations.
• Digitally Signed Firmware: Helps maintain firmware integrity for enterprise storage deployments.
• Read Intensive Workload: Optimized for environments where read operations are a major component of the storage workload.
• NVMe Connectivity: PCI Express NVMe connectivity provides high-speed communication between the SSD and supported server platforms.
• Compact SFF Design: The 2.5-inch SFF format supports high-density enterprise storage configurations.

Physical Specifications

• Form Factor: 2.5" SFF
• Form Factor (Metric): 6.4 cm SFF
• Form Factor (Short): 2.5"
• Form Factor (Short) (Metric): 6.4 cm
• Height: 0.6 inch
• Color Category: Gray, Red, Black

Power Consumption

• Power Consumption: 8.72 Watt

The supplied specification lists a rated power consumption of 8.72 watts. Actual power usage can vary depending on workload, server configuration, operating conditions, and system settings.

Compatible Platforms

The HPE P07190-B21 is intended for supported HPE enterprise server and storage configurations that provide compatible 2.5-inch SFF NVMe drive bays and PCI Express NVMe connectivity.

Compatibility should be confirmed against the exact HPE server model, generation, NVMe backplane or drive cage, firmware, and system configuration before installation.

Ideal Applications

The HPE P07190-B21 is suitable for:

• Enterprise server storage
• Read-intensive workloads
• Application hosting
• Database environments
• Virtualized server environments
• Data-intensive applications
• High-density storage configurations
• Enterprise platforms requiring NVMe performance

Why Choose HPE P07190-B21

The HPE P07190-B21 combines 960GB capacity, NVMe connectivity, and strong random I/O performance in a compact 2.5-inch SFF enterprise design. With 118,000 4KB random read IOPS and up to 370,000 maximum 4KB random read IOPS, it is well suited for supported HPE platforms running demanding read-intensive workloads.

The inclusion of an HPE Smart Carrier NVMe, hot-swap capability, and Digitally Signed Firmware provides features designed for enterprise server environments. Its 8.72W rated power consumption also supports efficient storage operation.

Compatibility

• Drive Type: NVMe Solid State Drive
• Interface: PCI Express (NVMe)
• Form Factor: 2.5" SFF
• Compatible Bay: 2.5" SFF
• Carrier: HPE Smart Carrier NVMe
• Installation: Hot-swap on supported HPE platforms
• Workload: Read Intensive
• Compatibility Note: Verify the exact HPE server/platform, NVMe backplane or drive cage, firmware, and configuration requirements before purchase.

FAQs

What is the storage capacity of the HPE P07190-B21?
The HPE P07190-B21 provides 960GB of solid-state storage capacity.

What interface does the HPE P07190-B21 use?
The drive uses a PCI Express (NVMe) interface and has 1 x PCI Express NVMe interface.

What is the random read performance of this SSD?
The drive provides 118,000 IOPS for 4KB random read, with maximum 4KB random read performance of 370,000 IOPS.

What is the random write performance of the P07190-B21?
The SSD provides 59,000 IOPS for 4KB random write and a maximum 4KB random write specification of 59,000 IOPS.

Is the HPE P07190-B21 hot-swappable?
Yes. It is specified as a hot-swap hard drive and supports hot-swap operation on compatible HPE server configurations.

What is the endurance rating of the HPE P07190-B21?
The drive has an endurance rating of 1 DWPD (Drive Writes Per Day) and is classified as a Read Intensive SSD.
