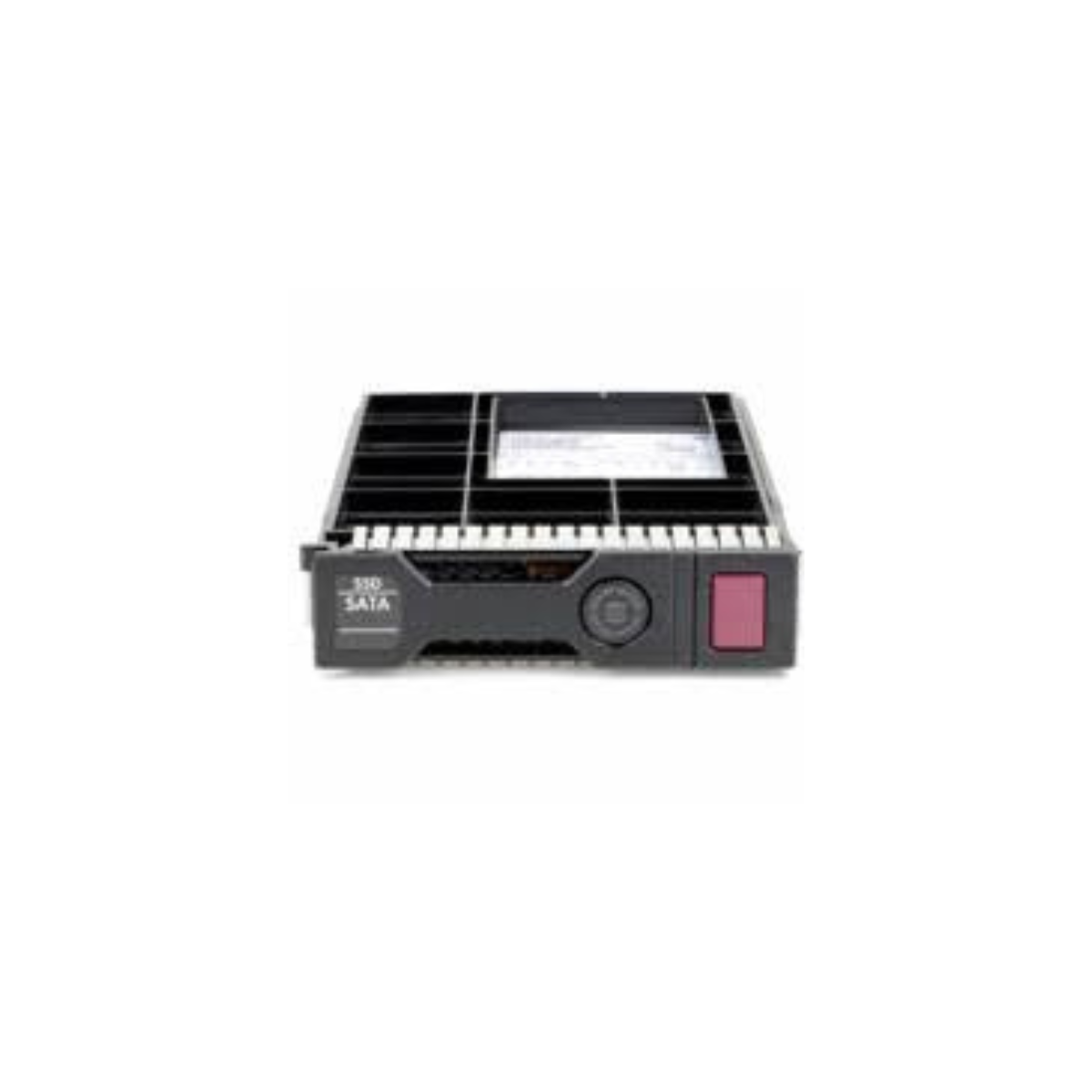

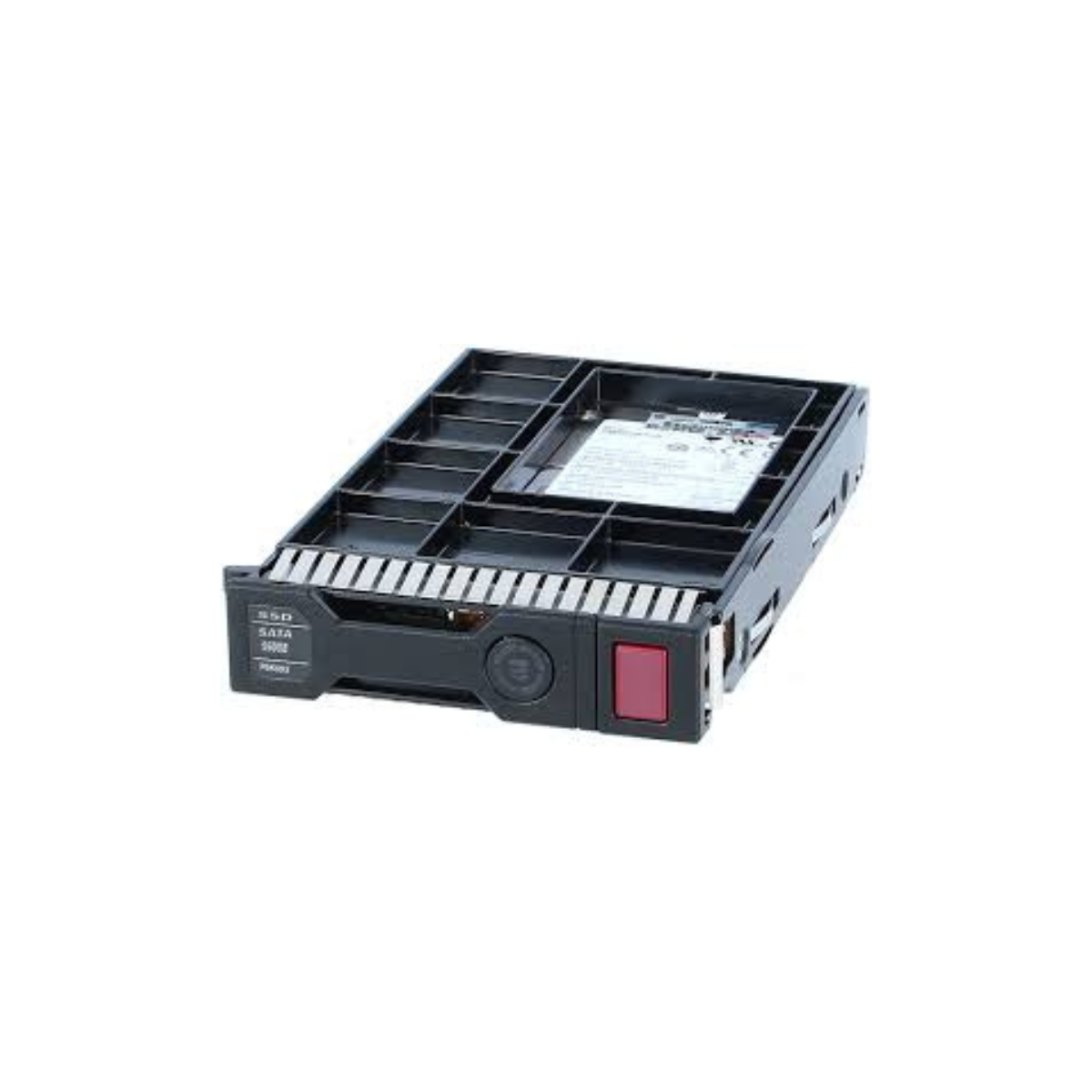

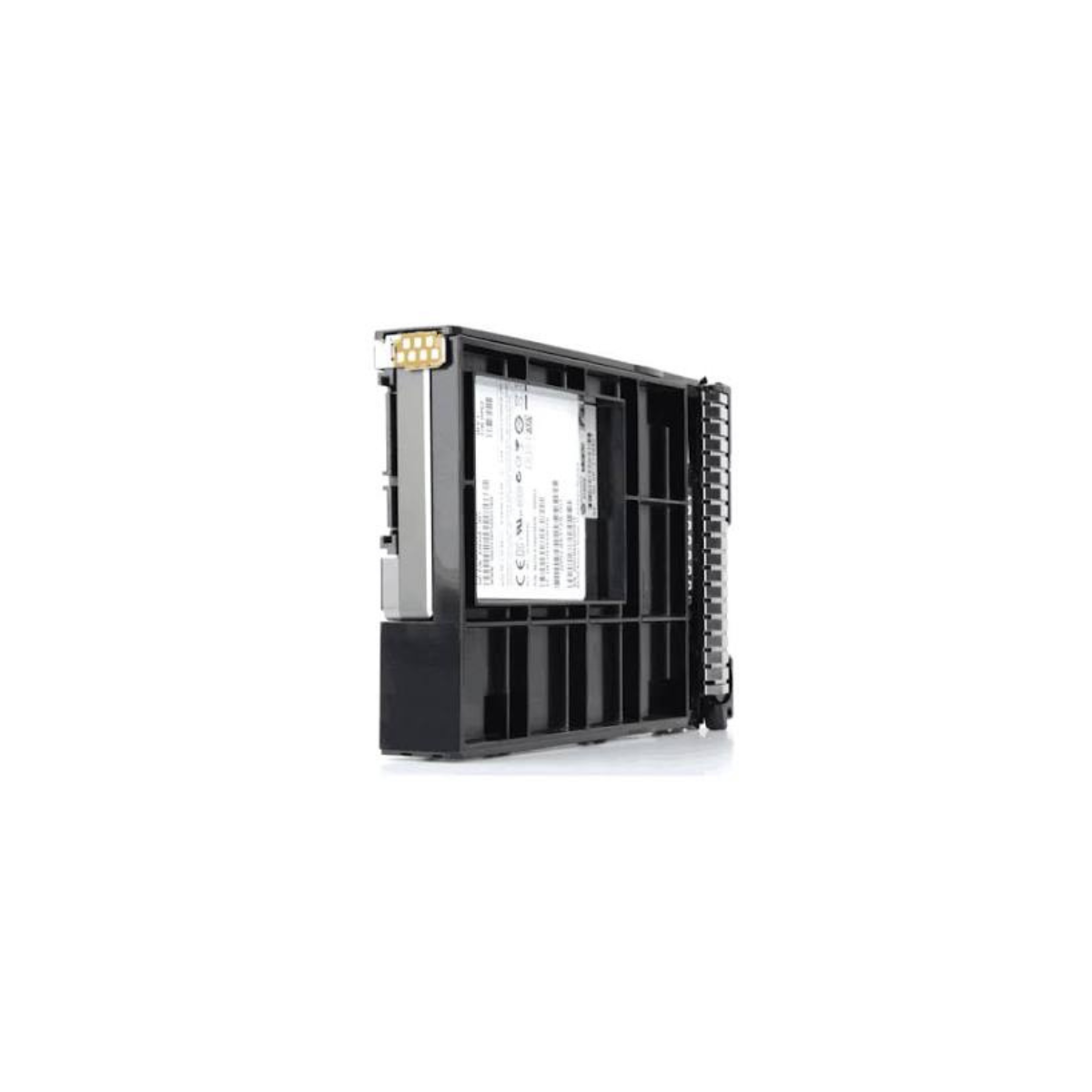

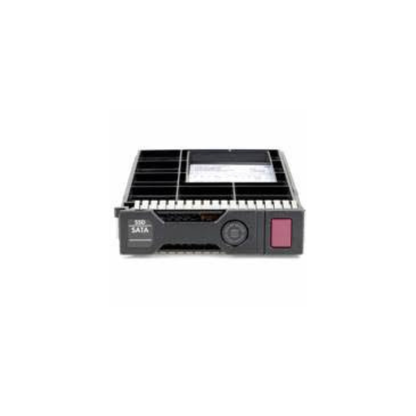

HPE 960GB SATA 6Gb/s Mixed Use SFF SCC Solid State Drive P07928-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 960GB SATA 6Gb/s Mixed Use LFF SCC Solid State Drive P07928-B21 is an enterprise SSD designed for applications requiring a balance of high random read and write IOPS performance. With 960GB storage capacity, SATA 6Gb/s connectivity, and a 3.5-inch LFF form factor, this SSD provides a flexible storage solution for supported HPE enterprise server environments.

The P07928-B21 provides a 600 MBps data transfer rate and delivers 63,000 IOPS 4KB random read and 52,500 IOPS 4KB random write. As an HPE Mixed Use (MU) SSD, it is designed for workloads involving both read and write activity, making it suitable for enterprise applications requiring consistent solid-state storage performance.

The drive is bundled with an HPE Smart Carrier Converter, supports hot-swap installation, and features Digitally Signed Firmware. With 5 DWPD endurance and HPE SmartSSD Wear Gauge compatibility, the P07928-B21 provides enterprise-focused storage management and lifecycle monitoring capabilities for supported HPE server configurations.

Key Features

• 960GB storage capacity
• SATA 6Gb/s / Serial ATA-600 interface
• Mixed Use (MU) workload classification
• 63,000 IOPS 4KB random read
• 52,500 IOPS 4KB random write
• 5 DWPD endurance
• 600 MBps data transfer rate
• HPE Smart Carrier Converter included
• Hot-swap capability
• 3.5-inch LFF form factor
• 0.3-inch drive height
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• NAND Flash technology
• 1 x SATA 6Gb/s interface connection
• Black and red color category

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Bundled With: HPE Smart Carrier Converter
• Packaged Quantity: 1
• Type: Solid State Drive
• Hard Drive Type: Hot-Swap Hard Drive
• Form Factor: 3.5-inch LFF
• Form Factor (Metric): 8.9 cm LFF
• Form Factor (Short): 3.5-inch
• Form Factor (Short) (Metric): 8.9 cm
• Storage Interface: Serial ATA-600
• Interface: Serial ATA-600
• Capacity: 960GB
• Data Transfer Rate: 600 MBps
• 4KB Random Read: 63,000 IOPS
• 4KB Random Write: 52,500 IOPS
• Drive Writes Per Day (DWPD): 5
• Features: Digitally Signed Firmware
• Interfaces: 1 x SATA 6Gb/s
• Compatible Bay: 3.5-inch LFF
• Color Category: Black, Red
• Height: 0.3 inch

Performance Specifications

• Data Transfer Rate: 600 MBps
• 4KB Random Read: 63,000 IOPS
• 4KB Random Write: 52,500 IOPS
• Drive Writes Per Day: 5 DWPD
• Storage Interface: Serial ATA-600
• Interface: SATA 6Gb/s
• Workload Type: Mixed Use

The P07928-B21 provides a balanced performance profile for Mixed Use workloads, supporting enterprise applications that perform both read and write operations.

Enterprise Features

• HPE Smart Carrier Converter provides the carrier solution for compatible HPE server configurations.
• Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan.
• 5 DWPD endurance supports workloads involving significant read and write activity.
• Hot-swap capability provides flexibility for drive installation and replacement in supported HPE server configurations.
• NAND Flash technology provides solid-state storage without the mechanical components used in traditional rotating media.
• HPE SSDs are designed to provide higher performance, better latency, and more power-efficient storage compared with traditional rotating media.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Form Factor (Metric): 8.9 cm LFF
• Form Factor (Short): 3.5-inch
• Form Factor (Short) (Metric): 8.9 cm
• Compatible Bay: 3.5-inch LFF
• Carrier/Converter: HPE Smart Carrier Converter
• Installation: Hot-Swap
• Height: 0.3 inch
• Color Category: Black, Red

No specific width, depth, or weight values were provided in the supplied specifications, so no unsupported physical measurements have been added.

Power Consumption

No specific power consumption value was provided in the supplied specifications for the P07928-B21, so no unsupported power figure has been added.

Compatible Platforms

The HPE P07928-B21 is designed for supported HPE ProLiant servers and server storage platforms with a compatible 3.5-inch LFF SATA drive bay.

The supplied information does not specify individual server model or generation compatibility. Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SATA SSD configuration.

Ideal Applications

The HPE P07928-B21 960GB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Enterprise application hosting
• Virtualized server environments
• Data-intensive applications
• Server storage expansion
• Workloads requiring random read and write IOPS
• Applications requiring higher endurance
• Frequently accessed business data
• Supported HPE enterprise storage configurations

Why Choose HPE P07928-B21

The HPE P07928-B21 combines 960GB storage capacity, SATA 6Gb/s connectivity, and strong random-access performance in a 3.5-inch LFF enterprise SSD.

With 63,000 IOPS 4KB random read, 52,500 IOPS 4KB random write, and 5 DWPD endurance, the drive is designed for Mixed Use workloads involving substantial read and write activity.

Its HPE Smart Carrier Converter, hot-swap design, Digitally Signed Firmware, and HPE SmartSSD Wear Gauge compatibility provide enterprise-focused installation, firmware assurance, and SSD lifecycle monitoring capabilities.

Compatibility

• Storage Capacity: 960GB
• Interface: SATA 6Gb/s / Serial ATA-600
• Interface Connection: 1 x SATA 6Gb/s
• Form Factor: 3.5-inch LFF
• Form Factor (Metric): 8.9 cm LFF
• Compatible Bay: 3.5-inch LFF
• Carrier/Converter: HPE Smart Carrier Converter
• Installation: Hot-Swap
• Workload Type: Mixed Use
• Data Transfer Rate: 600 MBps
• 4KB Random Read: 63,000 IOPS
• 4KB Random Write: 52,500 IOPS
• Endurance: 5 DWPD
• Drive Height: 0.3 inch
• Firmware: Digitally Signed Firmware
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 3.5-inch LFF SATA drive bays

FAQs

What is the storage capacity of the HPE P07928-B21?
The HPE P07928-B21 provides 960GB of storage capacity, making it suitable for enterprise applications requiring solid-state storage with a balance of read and write performance.

What interface does the HPE P07928-B21 use?
The P07928-B21 uses a Serial ATA-600 / SATA 6Gb/s interface with 1 x SATA 6Gb/s connection.

What type of workload is the P07928-B21 designed for?
The P07928-B21 belongs to the HPE Mixed Use (MU) product line and is designed for workloads involving both read and write operations.

What are the random read and write IOPS of this SSD?
The drive provides 63,000 IOPS 4KB random read and 52,500 IOPS 4KB random write.

What is the endurance rating of the HPE P07928-B21?
The P07928-B21 has an endurance rating of 5 DWPD, making it suitable for workloads involving significant read and write activity.

Does the HPE P07928-B21 include a Smart Carrier Converter?
Yes. The P07928-B21 is bundled with an HPE Smart Carrier Converter and is designed for a compatible 3.5-inch LFF bay with hot-swap support.
