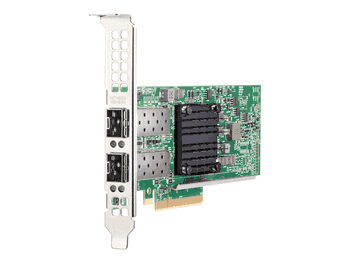

HPE Ethernet 10Gb 2 Port 537SFP+ Adapter P08421-B21

February 2020 · HP · Wired · PCI Express · PC · 10 Gbps BRAND NEW WITH THE FULL HPE WARRANTY!!! Do you need an adapter that is big on capability and small on CPU utilization? The HPE Ethernet 10Gb 2-port SFP+ BCM57414 Adapter has been designed to efficiently deliver high performance, low latency and minimal CPU utilization by offloading many I/O processing within the adapter. Low latency dramatically improves application performance and frees up CPU resources in the host allowing it to do more important tasks. The HPE Ethernet 10Gb 2-port SFP+ BCM57414 Adapter offloads packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center. Speed up packet processing to service more I/O requests by utilizing data plane development kit (DPDK) feature. Features

Improve Application Performance: HPE Ethernet 10Gb 2-port 537SFP+ Adapters offload packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center. Speed up packet processing to service more I/O requests by utilizing data plane development kit (DPDK) feature.

Increase I/O Bandwidth for Workload Intensive Applications

HPE Ethernet 10Gb 2-port 537SFP+ Adapters deliver single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.

Specification

• Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Data rate: 10 Gb
• Number of ports: 2
• Bus type: PCIe Gen3x8
• Connector type: SFP+
• Form factor: Standup
• Supported Cables: 10 Gb - Active Optical Cable (AOC), 10 Gb - Direct Attach Copper (DAC)
• Server type supported: Proliant Servers
• Compatible operating systems: Microsoft Windows Server 2012 R2 all editions, Microsoft Server Semi-Annual channel release, Microsoft Windows Server 2016 All editions (LTSC Release), Microsoft Windows Server 2019 (LTSC Release), RHEL (7.6, 7.7, 8.0, 8.1), SLES12 (SP3, SP4, SP5), SLES15 SP1, VMware vSphere 6.5 (U2, U3), VMware vSphere 6.5 (U2, U3), 6.7 (U2, U3) and 7.0
• Power: 9.084 Typical, 14W Maximum
• Network processor: Broadcom Whitney+
• Management features: HPE iLO 4 and HPE Advanced Power Manager
• IEEE compliance: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb,802.1Qbg, 802.1ax, 1588

Compatibility : HPE ProLiant DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice for CTERA UPC : 00190017312330
