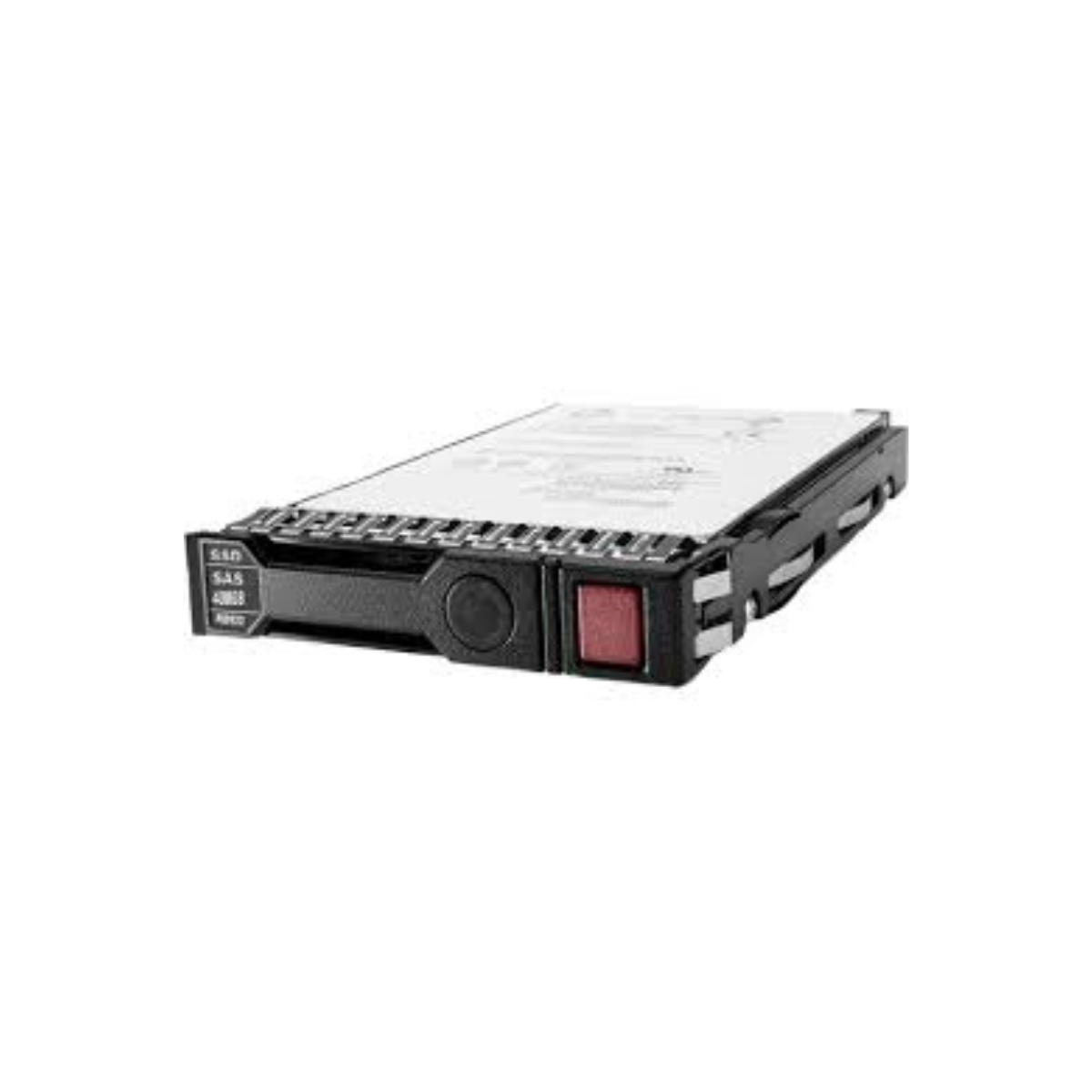

HPE 400GB SAS 12G Mixed Use SFF 2.5" Solid State Drive with SmartCarrier P09088-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 400GB SAS 12G Mixed Use SFF 2.5" Solid State Drive with SmartCarrier P09088-B21 is an enterprise SSD designed for applications requiring high random read and write IOPS performance. With 400GB storage capacity, SAS 12Gbps connectivity, and a Mixed Use workload classification, this SSD provides a balanced solution for demanding enterprise server environments.

The P09088-B21 provides a 12 Gb/sec external transfer rate and delivers 125,000 IOPS 4KiB random read and 100,000 IOPS 4KiB random write at Q=16. Maximum performance reaches 210,000 IOPS random read at Q64 and 104,000 IOPS random write at Q16, supporting applications with demanding random-access requirements.

The drive includes an HPE Smart Carrier, supports hot-plug installation, and features Digitally Signed Firmware. With 3 DWPD endurance and 2,000 lifetime writes, it is designed to support mixed-use workloads with substantial read and write activity. HPE SSDs are backed by more than 3.35 million hours of testing and qualification for reliable, high-performing enterprise operation.

Key Features

• 400GB storage capacity
• SAS 12Gbps interface
• Mixed Use (MU) workload classification
• 125,000 IOPS 4KiB random read at Q=16
• 100,000 IOPS 4KiB random write at Q=16
• Up to 210,000 IOPS maximum 4KiB random read at Q64
• Up to 104,000 IOPS maximum 4KiB random write at Q16
• 12 Gb/sec external transfer rate
• 3 DWPD endurance
• 2,000 lifetime writes
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-plug capability
• 2.5-inch SFF form factor
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09088-B21
• Device Type: Solid State Drive
• Capacity: 400GB
• Form Factor: 2.5-inch SFF
• Interface: SAS 12Gbps
• Features: Digitally Signed Firmware
• Carrier Type: Smart Carrier
• Workload Type: Mixed Use
• Bundled With: HPE Smart Carrier
• Drive Transfer Rate: 12 Gb/sec external
• Lifetime Writes: 2,000
• Endurance DWPD (Drive Writes Per Day): 3 DWPD
• Interfaces: 1 x SAS 12Gbps
• Compatible Bay: 2.5-inch SFF

Performance Specifications

• External Transfer Rate: 12 Gb/sec
• 4KiB Random Read: 125,000 IOPS at Q=16
• Maximum 4KiB Random Read: 210,000 IOPS at Q64
• 4KiB Random Write: 100,000 IOPS at Q=16
• Maximum 4KiB Random Write: 104,000 IOPS at Q16
• Endurance: 3 DWPD
• Lifetime Writes: 2,000
• Interface: SAS 12Gbps

The P09088-B21 provides a balanced performance profile for Mixed Use workloads, supporting applications that perform both read and write operations.

Enterprise Features

• HPE Smart Carrier provides self-describing status icons that help identify the drive's status in supported HPE server configurations.
• The Smart Carrier includes a “do not remove” button designed to help prevent data loss caused by accidental drive removal.
• Digitally Signed Firmware provides assurance that drive firmware comes from a trusted source and helps prevent unauthorized access through firmware.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan and identify drives that may be at risk of failure.
• 3 DWPD endurance supports workloads with substantial read and write activity.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier Type: Smart Carrier
• Bundled With: HPE Smart Carrier
• Installation: Hot Pluggable
• Drive Type: Solid State Drive

No specific dimensions or weight were provided in the supplied specifications, so no unsupported physical measurements have been added.

Power Consumption

No specific power consumption values were provided in the supplied specifications for the P09088-B21, so no unsupported power figures are added.

Compatible Platforms

The HPE P09088-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SAS drive bay and SAS 12Gbps connectivity.

The supplied information does not specify individual server model compatibility. Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P09088-B21 400GB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Data-intensive application workloads
• High-performance database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Applications requiring a balance of performance and endurance
• Server storage expansion
• Supported HPE enterprise storage configurations

Why Choose HPE P09088-B21

The HPE P09088-B21 combines 400GB storage capacity, SAS 12Gbps connectivity, and strong 125,000 IOPS random read and 100,000 IOPS random write performance in a compact 2.5-inch SFF enterprise SSD.

With up to 210,000 IOPS maximum random read, 104,000 IOPS maximum random write, 3 DWPD endurance, and 2,000 lifetime writes, the drive is designed for demanding Mixed Use workloads requiring a balance of read and write activity.

Its HPE Smart Carrier, Digitally Signed Firmware, and SmartSSD Wear Gauge compatibility provide enterprise-focused drive status, firmware assurance, and lifecycle monitoring capabilities.

Compatibility

• Storage Capacity: 400GB
• Interface: SAS 12Gbps
• Interface Connection: 1 x SAS 12Gbps
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Carrier Type: Smart Carrier
• Installation: Hot Pluggable
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• Lifetime Writes: 2,000
• Firmware: Digitally Signed Firmware
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 2.5-inch SFF SAS drive bays

FAQs

What is the storage capacity of the HPE P09088-B21?
The HPE P09088-B21 provides 400GB of storage capacity, making it suitable for enterprise applications requiring a balance of capacity, performance, and endurance.

What interface does the HPE P09088-B21 use?
The P09088-B21 uses a SAS 12Gbps interface with 1 x SAS 12Gbps connection.

What type of workload is the P09088-B21 designed for?
The P09088-B21 is an HPE Mixed Use (MU) SSD, designed for workloads requiring a combination of random read and write performance.

What are the random read and write IOPS of this SSD?
The drive provides 125,000 IOPS 4KiB random read and 100,000 IOPS 4KiB random write at Q=16. Maximum performance is specified at 210,000 IOPS random read at Q64 and 104,000 IOPS random write at Q16.

What is the endurance rating of the HPE P09088-B21?
The P09088-B21 has an endurance rating of 3 DWPD and a specified 2,000 lifetime writes rating.

Does the HPE P09088-B21 include a Smart Carrier?
Yes. The P09088-B21 is bundled with an HPE Smart Carrier and is designed for a compatible 2.5-inch SFF bay with hot-plug support.
