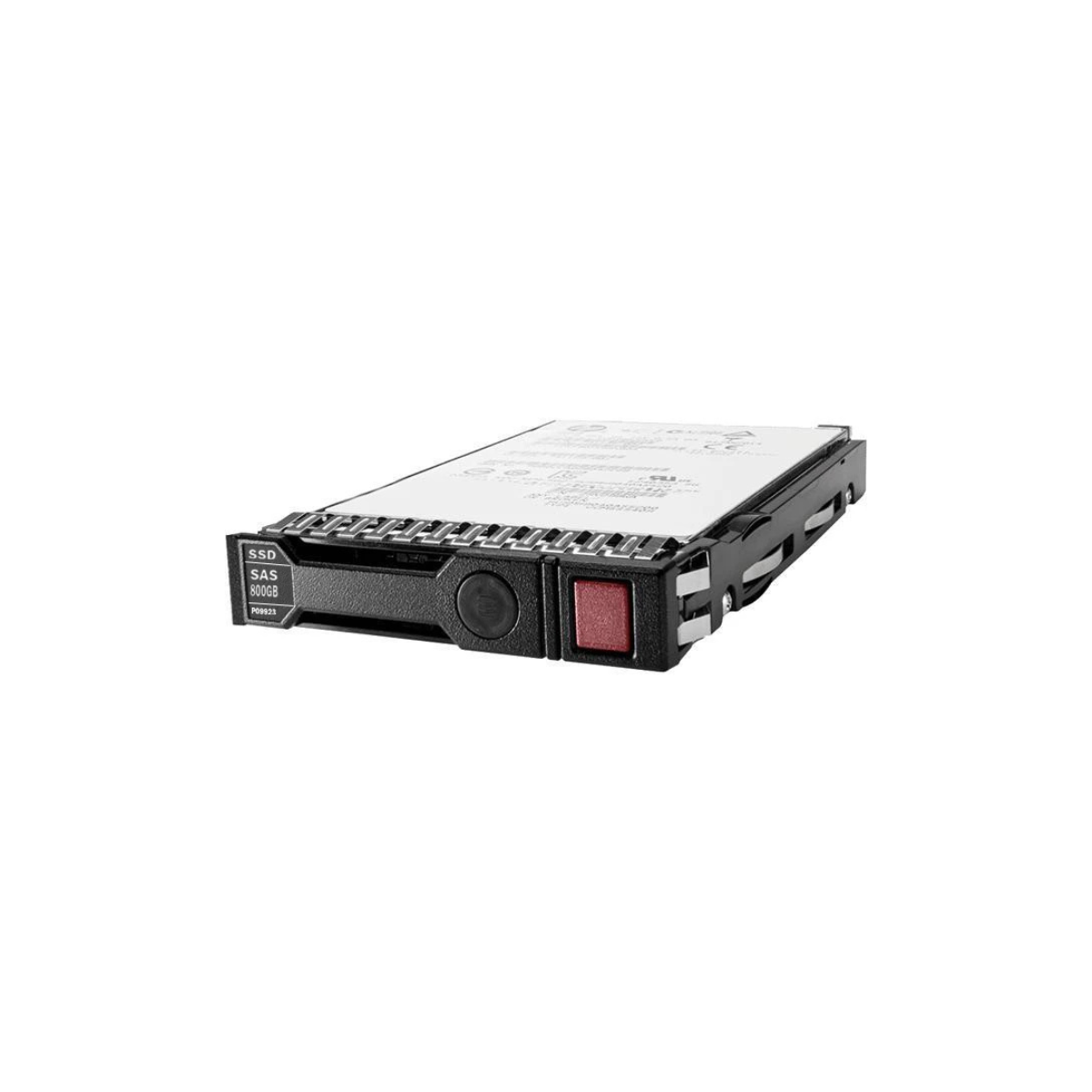

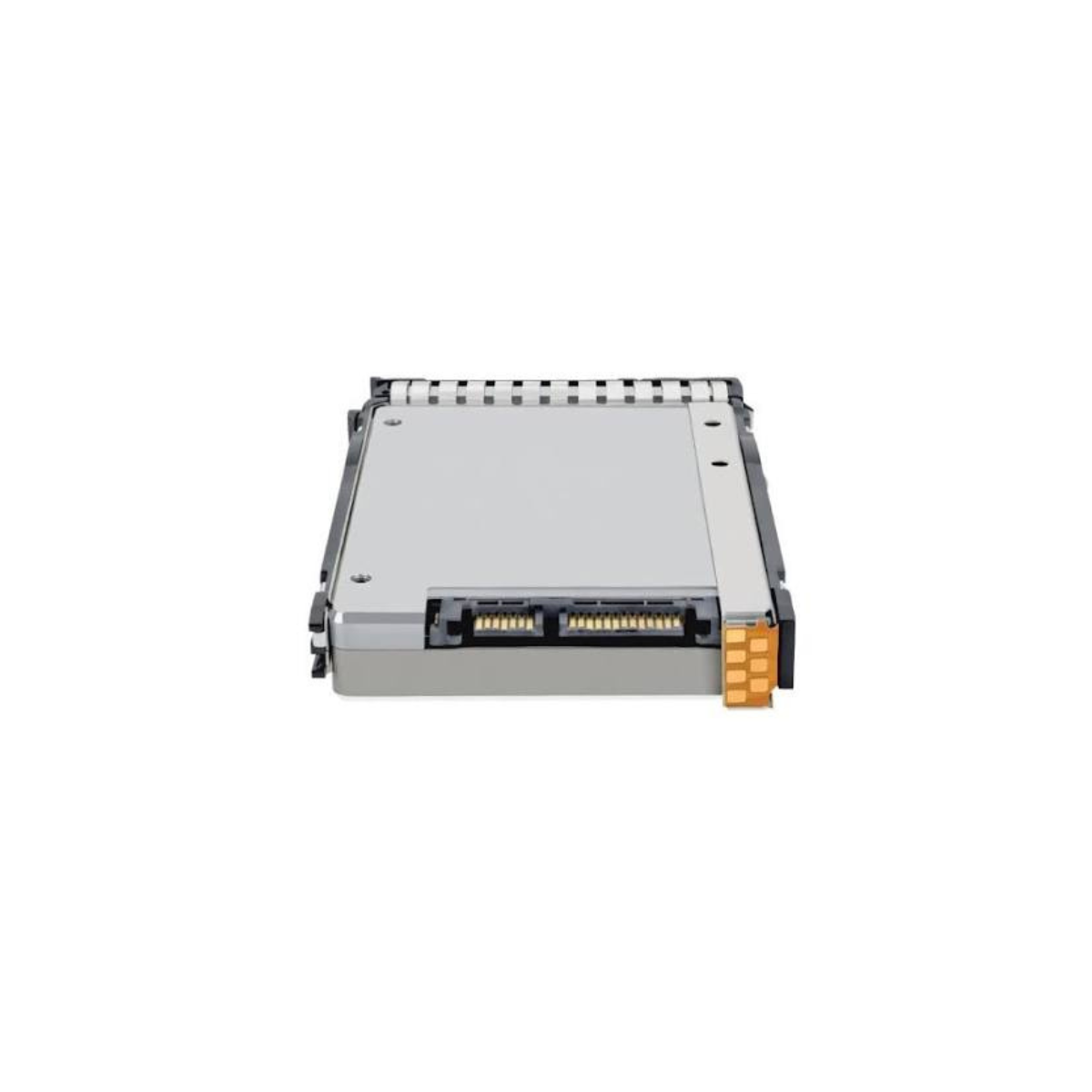

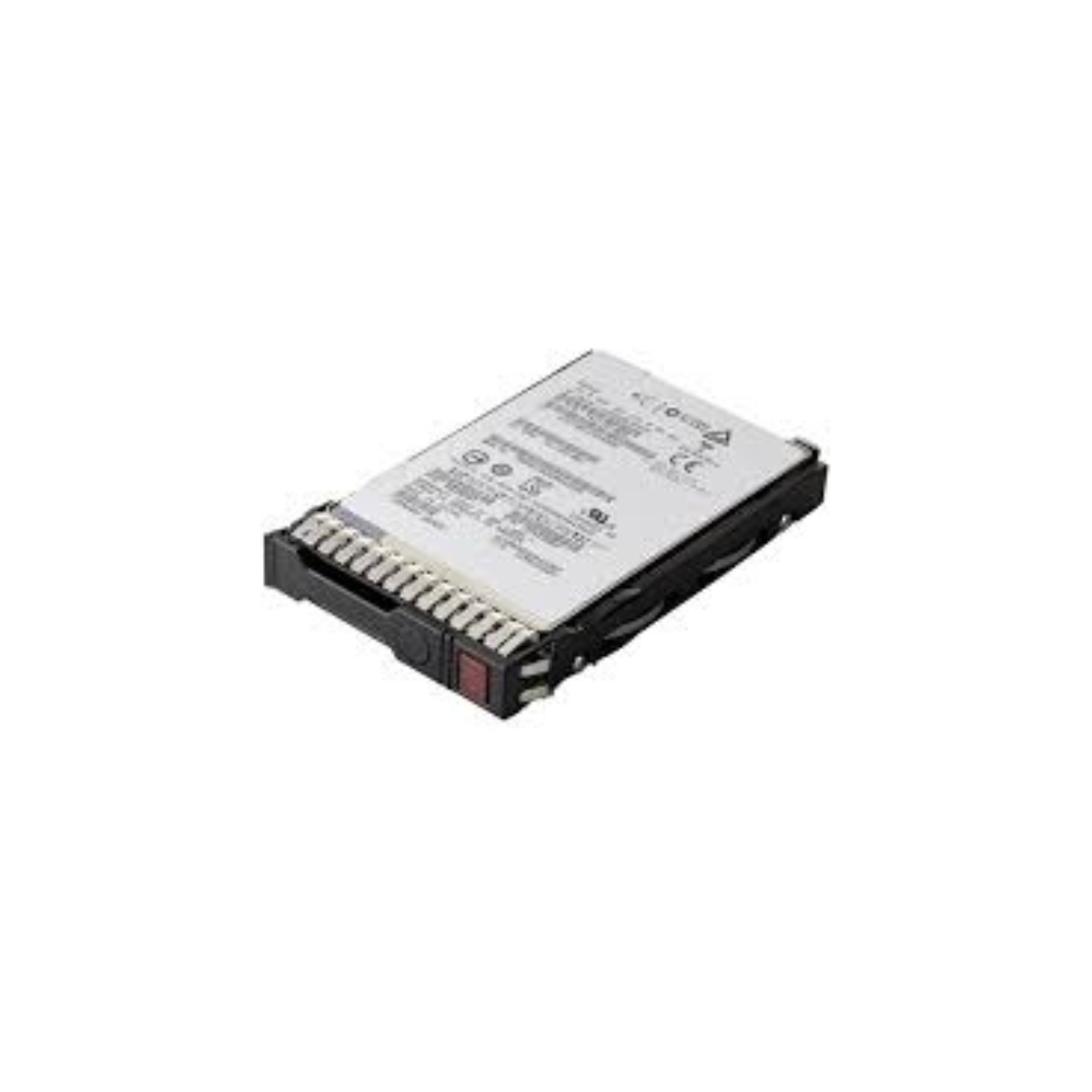

HPE 800GB SAS 12G Mixed Use SFF 2.5 Inch SC Solid State Drive P09090-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 800GB SAS 12G Mixed Use SFF 2.5 Inch SC Solid State Drive P09090-B21 is an enterprise SSD designed for applications requiring high random read and write IOPS performance. With 800GB storage capacity, SAS 12Gbps connectivity, and a Mixed Use workload classification, this SSD provides a balanced solution for demanding enterprise server environments.

The P09090-B21 uses MLC NAND Flash memory and delivers a 12 Gb/sec external transfer rate, with internal data rates of 1,095 MBps read and 1,010 MBps write. It provides 130,000 IOPS 4KB random read and 123,000 IOPS 4KB random write, with maximum performance reaching 210,000 IOPS random read and 124,000 IOPS random write at the specified queue depths.

The drive includes an HPE Smart Carrier, supports hot-plug installation, and features Digitally Signed Firmware. With 3 DWPD endurance and 4,500TB lifetime writes, it is designed to support mixed-use workloads with substantial read and write activity. HPE SSDs are backed by more than 3.35 million hours of testing and qualification for reliable enterprise operation.

Key Features

• 800GB storage capacity
• SAS 12Gbps interface
• Mixed Use (MU) workload classification
• 130,000 IOPS 4KB random read
• 123,000 IOPS 4KB random write
• Up to 210,000 IOPS maximum 4KB random read at Q32
• Up to 124,000 IOPS maximum 4KB random write at Q16
• 1,095 MBps internal read rate
• 1,010 MBps internal write rate
• 12 Gb/sec external transfer rate
• 3 DWPD endurance
• 4,500TB lifetime writes
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-plug capability
• 2.5-inch SFF form factor
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09090-B21
• Device Type: Solid State Drive - Hot-Swap
• Capacity: 800GB
• NAND Flash Memory Type: MLC
• Form Factor: 2.5-inch SFF
• Interface: SAS 12Gbps
• Plug Type: Hot Pluggable
• Carrier Type: Smart Carrier (SC)
• Workload Type: Mixed Use
• Features: Digitally Signed Firmware
• Bundled With: HPE Smart Carrier
• Height: 0.6 inch (15 mm)
• Lifetime Writes: 4,500TB
• Endurance DWPD: 3 DWPD
• Drive Transfer Rate: 12 Gb/sec external
• Internal Data Rate (Read): 1,095 MBps
• Internal Data Rate (Write): 1,010 MBps
• Interfaces: 1 x SAS 12Gb/s
• Compatible Bay: 2.5-inch SFF

Performance Specifications

• External Transfer Rate: 12 Gb/sec
• Internal Read Rate: 1,095 MBps
• Internal Write Rate: 1,010 MBps
• 4KB Random Read: 130,000 IOPS at Q=16
• 4KB Random Write: 123,000 IOPS at Q=16
• Maximum 4KB Random Read: 210,000 IOPS at Q32
• Maximum 4KB Random Write: 124,000 IOPS at Q16
• Endurance: 3 DWPD
• Lifetime Writes: 4,500TB
• Interface: SAS 12Gbps

The P09090-B21 provides a balanced performance profile for Mixed Use workloads, supporting applications that perform both read and write operations.

Enterprise Features

• HPE Smart Carrier provides a carrier solution for supported HPE server configurations and offers drive-status information.
• Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan.
• 3 DWPD endurance supports workloads with substantial read and write activity.
• MLC NAND Flash memory provides the storage media for this enterprise SSD.
• Hot-plug capability supports convenient drive installation and replacement in supported server configurations.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier Type: Smart Carrier (SC)
• Bundled With: HPE Smart Carrier
• Installation: Hot Pluggable
• Height: 0.6 inch (15 mm)
• Width: 18.41 cm
• Depth: 13.97 cm
• Weight: 0.50 kg

Power Consumption

No specific power consumption values were provided in the supplied specifications for the P09090-B21, so no unsupported power figures are added.

Compatible Platforms

The HPE P09090-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SAS drive bay and SAS 12Gbps connectivity.

The supplied information does not specify individual server model compatibility. Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P09090-B21 800GB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Data-intensive application workloads
• High-performance database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Applications requiring a balance of performance and endurance
• Server storage expansion
• Supported HPE enterprise storage configurations

Why Choose HPE P09090-B21

The HPE P09090-B21 combines 800GB storage capacity, SAS 12Gbps connectivity, and strong 130,000 IOPS random read and 123,000 IOPS random write performance in a compact 2.5-inch SFF enterprise SSD.

With up to 210,000 IOPS maximum random read, 124,000 IOPS maximum random write, 3 DWPD endurance, and 4,500TB lifetime writes, the drive is designed for demanding Mixed Use workloads. Its HPE Smart Carrier, Digitally Signed Firmware, and SmartSSD Wear Gauge compatibility add enterprise-focused management and monitoring capabilities.

Compatibility

• Storage Capacity: 800GB
• Interface: SAS 12Gbps
• Interface Connection: 1 x SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Carrier Type: Smart Carrier (SC)
• Installation: Hot Pluggable
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• Lifetime Writes: 4,500TB
• NAND Flash: MLC
• Drive Height: 0.6 inch (15 mm)
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 2.5-inch SFF SAS drive bays

FAQs

What is the storage capacity of the HPE P09090-B21?
The HPE P09090-B21 provides 800GB of storage capacity, making it suitable for enterprise applications requiring a balance of capacity and performance.

What interface does the HPE P09090-B21 use?
The P09090-B21 uses a SAS 12Gbps interface with 1 x SAS 12Gb/s connection.

What type of workload is the P09090-B21 designed for?
The P09090-B21 is an HPE Mixed Use (MU) SSD, designed for workloads requiring a combination of random read and write performance.

What are the random read and write IOPS of this SSD?
The drive provides 130,000 IOPS 4KB random read and 123,000 IOPS 4KB random write at Q=16. Maximum performance is specified at 210,000 IOPS random read at Q32 and 124,000 IOPS random write at Q16.

What is the endurance rating of the HPE P09090-B21?
The P09090-B21 has an endurance rating of 3 DWPD and a specified 4,500TB lifetime write rating.

Does the HPE P09090-B21 include a Smart Carrier?
Yes. The P09090-B21 is bundled with an HPE Smart Carrier and is designed for a compatible 2.5-inch SFF bay with hot-plug support.
