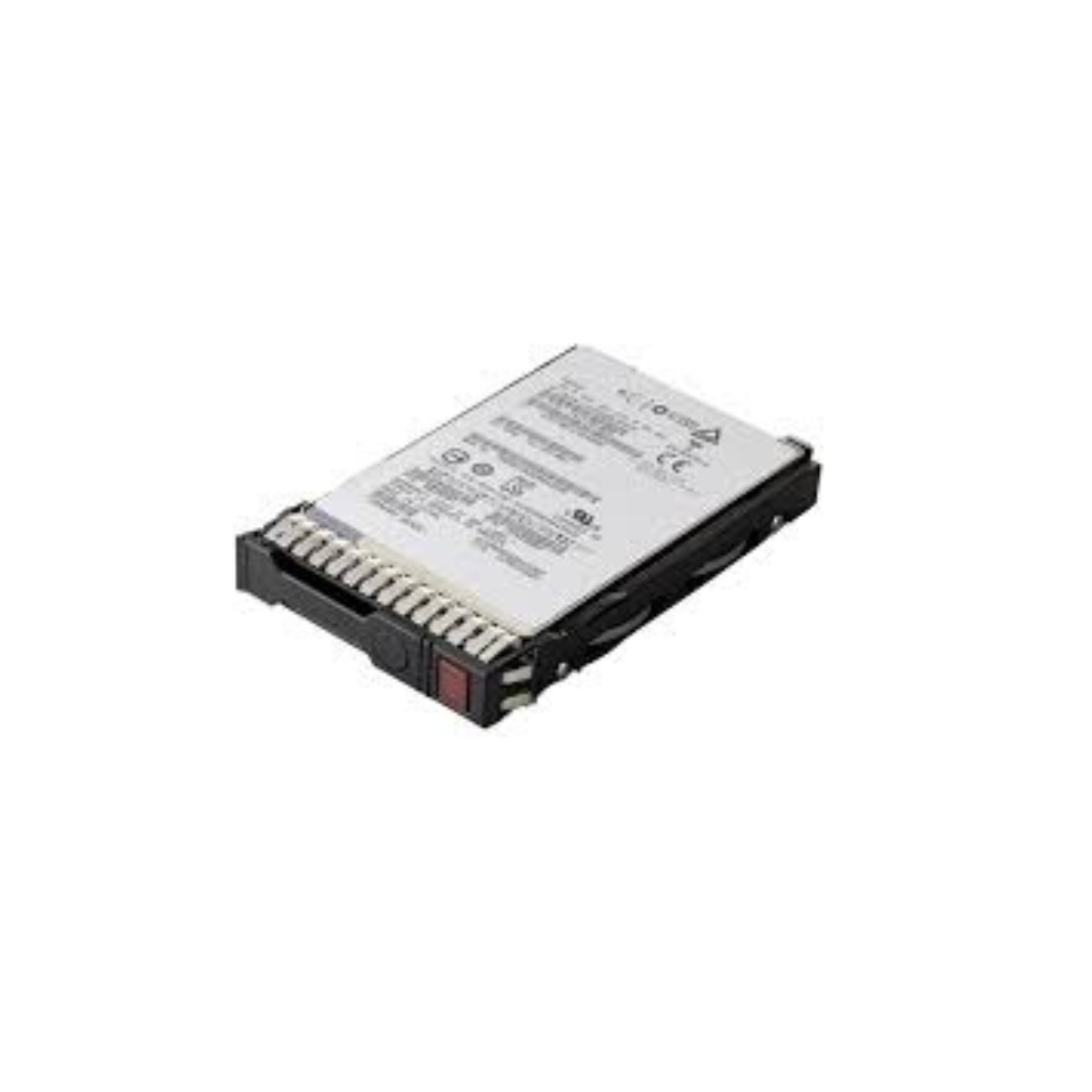

HPE 1.6TB SAS 12G Mixed Use SFF 2.5" Solid State Drive with SmartCarrier P09092-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 1.6TB SAS 12G Mixed Use SFF 2.5" Solid State Drive with SmartCarrier P09092-B21 is an enterprise SSD designed for applications requiring a balance of high random read and write IOPS performance. With 1.6TB storage capacity, SAS 12Gbps connectivity, and a Mixed Use (MU) workload profile, this SSD is suitable for demanding enterprise server environments.

The P09092-B21 uses MLC NAND Flash memory and provides strong sequential and random performance, with maximum sequential throughput of 1,095 MBps read and 1,045 MBps write. It delivers 130,000 IOPS random read and 123,000 IOPS random write, with maximum performance reaching 210,000 IOPS random read and 124,000 IOPS random write at the specified queue depths.

The drive includes an HPE SmartDrive Carrier, supports hot-plug installation, and features Digitally Signed Firmware. With 3 DWPD endurance and 8,500TB lifetime writes, it is designed to support mixed-use workloads with significant read and write activity. HPE SSDs are backed by over 3.35 million hours of testing and qualification for reliable enterprise operation.

Key Features

• 1.6TB storage capacity
• SAS 12Gbps interface
• Mixed Use (MU) workload classification
• 130,000 IOPS 4KB random read
• 123,000 IOPS 4KB random write
• Up to 210,000 IOPS maximum 4KB random read at Q32
• Up to 124,000 IOPS maximum 4KB random write at Q16
• 1,095 MBps maximum sequential read throughput
• 1,045 MBps maximum sequential write throughput
• 3 DWPD endurance
• 8,500TB lifetime writes
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-plug capability
• Digitally Signed Firmware
• 2.5-inch SFF form factor
• Designed for supported HPE server environments
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09092-B21
• Device Type: Solid State Drive - Hot-Swap
• Capacity: 1.6TB
• Interface Type: SAS 12Gbps
• Form Factor: 2.5-inch SFF
• Bytes per Sector: 512
• Workload Type: Mixed Use (MU)
• Flash Type: MLC
• Plug Type: Hot Plug
• Carrier Type: Smart Carrier (SC)
• Features: Digitally Signed Firmware (DS)
• Bundled With: HPE SmartDrive Carrier
• Drive Height: 15 mm
• Drive Transfer Rate: 12 Gb/sec external
• Lifetime Writes: 8,500TB
• Endurance DWPD: 3.0 DWPD
• Interfaces: 1 x SAS 12Gb/s
• Compatible Bay: 2.5-inch SFF

Performance Specifications

• Maximum Sequential Read Throughput: 1,095 MBps
• Maximum Sequential Write Throughput: 1,045 MBps
• Random Read Average Latency: 100 µs
• Random Write Average Latency: 33 µs
• 4KB Random Read: 130,000 IOPS at Q=16
• 4KB Random Write: 123,000 IOPS at Q=16
• Maximum 4KB Random Read: 210,000 IOPS at Q32
• Maximum 4KB Random Write: 124,000 IOPS at Q16
• Endurance: 3 DWPD
• Lifetime Writes: 8,500TB
• Interface: SAS 12Gbps

The P09092-B21 provides a balanced performance profile for Mixed Use workloads, supporting applications with both frequent read and write operations.

Enterprise Features

• HPE Smart Carrier provides carrier functionality for supported HPE server configurations and includes self-describing drive-status indicators.
• Digitally Signed Firmware helps provide assurance that the drive firmware originates from a trusted source.
• HPE SmartSSD Wear Gauge compatibility enables supported management tools to monitor SSD lifespan and identify drives that may be approaching their endurance limits.
• 3 DWPD endurance supports enterprise workloads involving substantial read and write activity.
• Hot-plug capability allows convenient drive installation and replacement in supported server configurations.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier Type: Smart Carrier (SC)
• Bundled With: HPE SmartDrive Carrier
• Drive Height: 15 mm
• Width: 7.25 inches (18.41 cm)
• Height: 8.75 inches (22.23 cm)
• Depth: 5.50 inches (13.97 cm)
• Weight: 1.10 lbs (0.50 kg)
• Installation: Hot Plug

Power Consumption

No specific power consumption values were provided in the supplied specifications for the P09092-B21, so no unsupported power figures are added.

Compatible Platforms

The HPE P09092-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SAS drive bay and SAS 12Gbps connectivity.

The supplied specifications do not identify individual compatible server models. Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware requirements, and supported SAS SSD configuration.

Ideal Applications

The HPE P09092-B21 1.6TB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Data-intensive application workloads
• High-performance database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Applications requiring a balance of performance and endurance
• Server storage expansion
• Supported HPE enterprise storage configurations

Why Choose HPE P09092-B21

The HPE P09092-B21 combines 1.6TB storage capacity, SAS 12Gbps connectivity, and strong random performance in a compact 2.5-inch SFF enterprise SSD.

With 130,000 IOPS random read, 123,000 IOPS random write, up to 210,000 IOPS maximum random read, and 124,000 IOPS maximum random write, the drive is designed for demanding Mixed Use workloads. Its 3 DWPD endurance and 8,500TB lifetime writes provide additional durability for workloads involving frequent data writes.

The combination of HPE Smart Carrier, Digitally Signed Firmware, SmartSSD Wear Gauge compatibility, and hot-plug support makes the P09092-B21 a practical enterprise storage solution for compatible HPE server environments.

Compatibility

• Storage Capacity: 1.6TB
• Interface: SAS 12Gbps
• Interface Connection: 1 x SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE SmartDrive Carrier
• Carrier Type: Smart Carrier (SC)
• Installation: Hot Plug
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• Lifetime Writes: 8,500TB
• Flash Type: MLC
• Drive Height: 15 mm
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 2.5-inch SFF SAS drive bays

FAQs

What is the storage capacity of the HPE P09092-B21?
The HPE P09092-B21 provides 1.6TB of storage capacity and is designed for demanding enterprise server workloads.

What interface does the HPE P09092-B21 use?
The P09092-B21 uses a SAS 12Gbps interface with 1 x SAS 12Gb/s connection.

What type of workload is the P09092-B21 designed for?
The P09092-B21 is an HPE Mixed Use (MU) SSD, designed for applications requiring a balance of random read and write performance.

What are the random read and write IOPS of this SSD?
The drive provides 130,000 IOPS 4KB random read and 123,000 IOPS 4KB random write at Q=16. Maximum performance is specified at 210,000 IOPS random read at Q32 and 124,000 IOPS random write at Q16.

What is the endurance rating of the HPE P09092-B21?
The P09092-B21 has an endurance rating of 3 DWPD and a specified 8,500TB lifetime write rating.

Does the HPE P09092-B21 include a Smart Carrier?
Yes. The P09092-B21 is bundled with an HPE SmartDrive Carrier and uses a Smart Carrier (SC) design for compatible 2.5-inch SFF server configurations.
