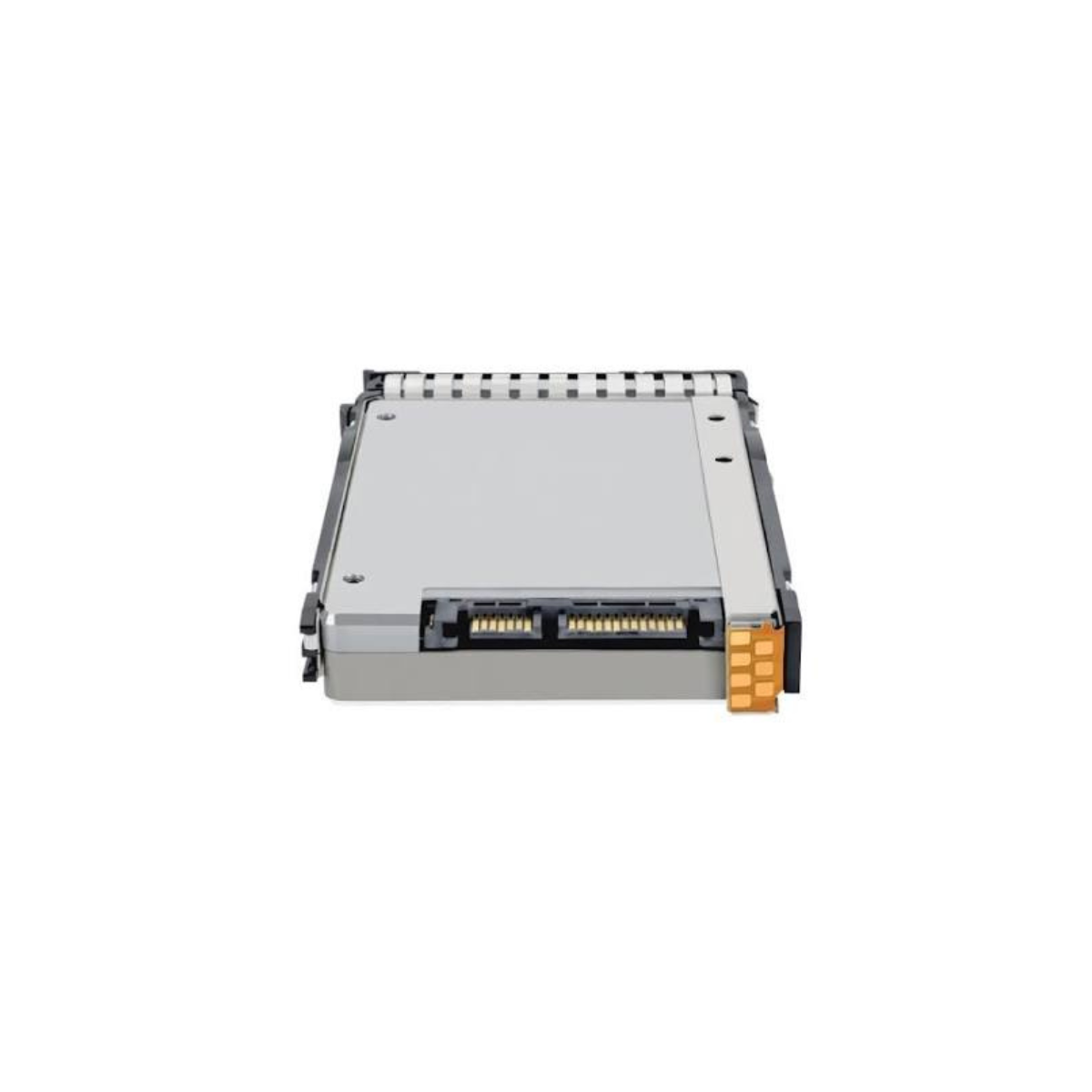

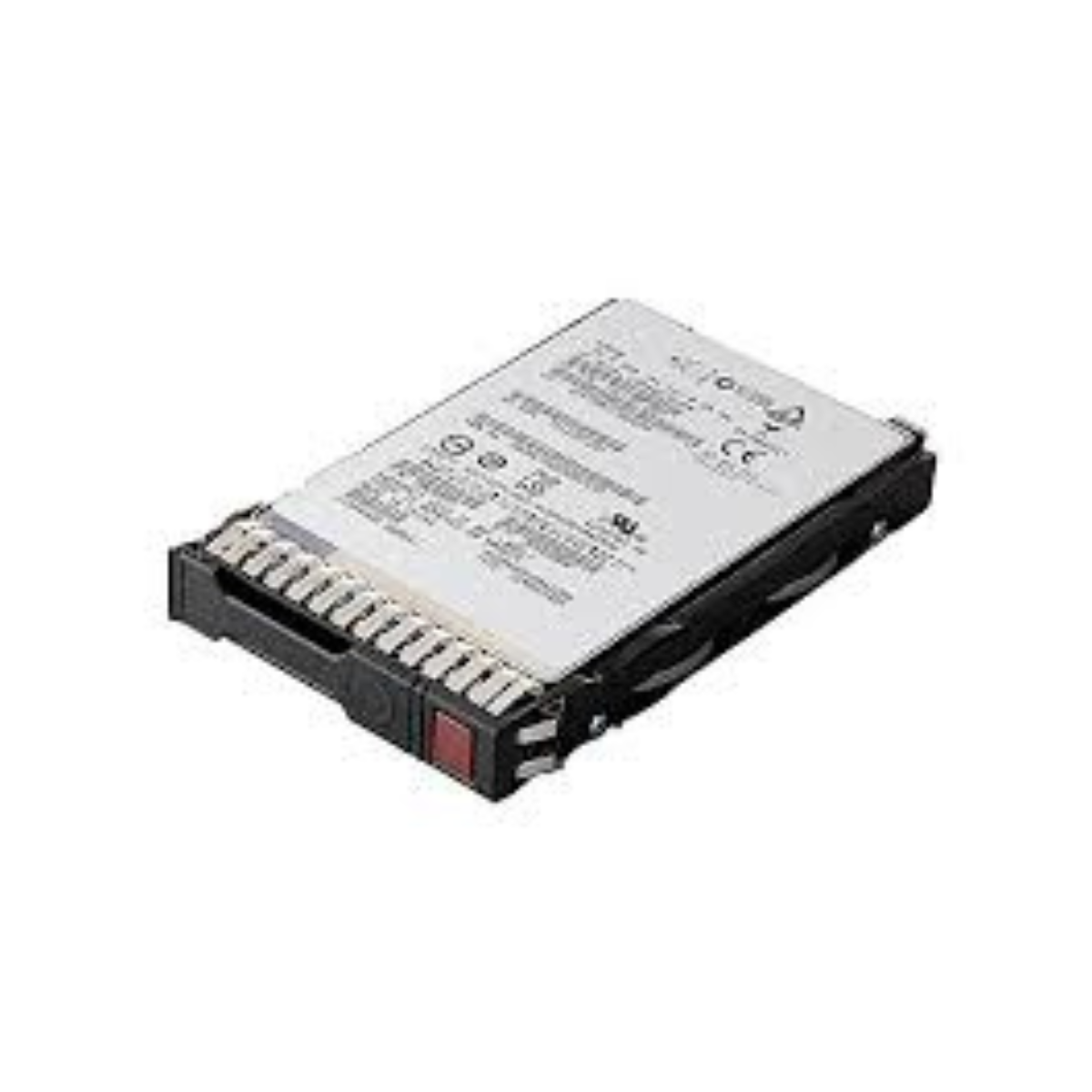

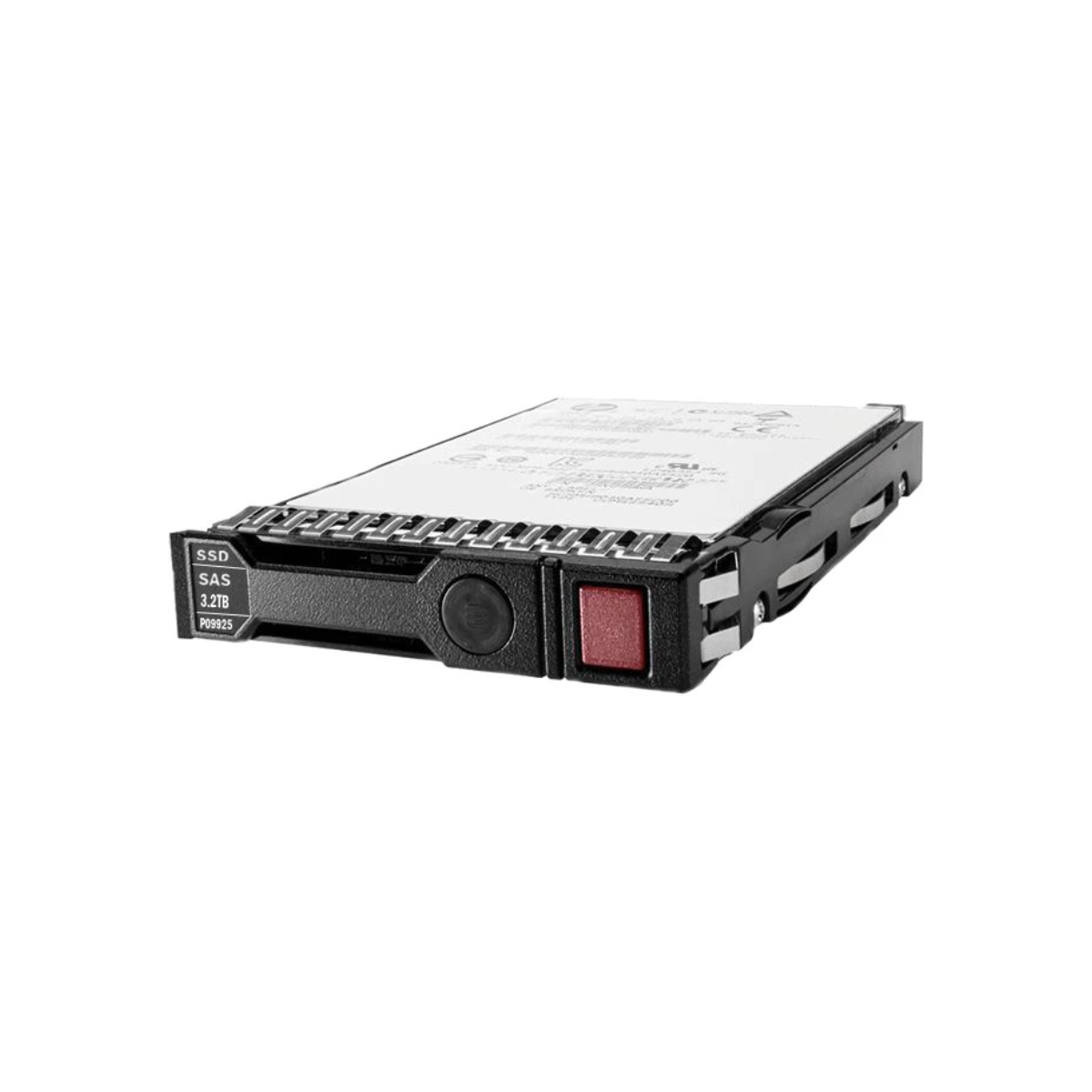

HPE 3.2TB SAS 12G Mixed Use SFF 2.5" Solid State Drive P09094-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 3.2TB SAS 12G Mixed Use SFF 2.5" Solid State Drive P09094-B21 is designed to deliver exceptional performance and endurance for demanding enterprise server workloads. With 3.2TB storage capacity, SAS 12Gb/s connectivity, and a Mixed Use workload classification, this SSD is suitable for applications requiring a balance of random read and write performance.

The P09094-B21 leverages NAND Flash technology and MLC memory to provide faster storage access, improved latency, and greater power efficiency compared with traditional rotating media. Its 2.5-inch SFF form factor, hot-swap capability, and included HPE Smart Carrier provide installation flexibility in supported HPE server environments.

With 210,000 IOPS 4KB random read and 124,000 IOPS 4KB random write performance, the P09094-B21 is well suited for applications with demanding storage requirements. The SSD also provides 3 DWPD endurance and features Digitally Signed Firmware for trusted firmware protection.

Key Features

• 3.2TB storage capacity
• SAS 12Gb/s interface
• Mixed Use (MU) workload classification
• 210,000 IOPS 4KB random read
• 124,000 IOPS 4KB random write
• 1,095 MBps internal read rate
• 1,045 MBps internal write rate
• 1.2 GBps data transfer rate
• 3 DWPD endurance
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-swap drive design
• 2.5-inch SFF form factor
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• Designed for supported HPE ProLiant and HPE Synergy platforms
• Backed by the full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Bundled With: HPE Smart Carrier
• Packaged Quantity: 1
• Type: Solid State Drive
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5-inch SFF
• Form Factor (Metric): 6.4 cm SFF
• Form Factor (Short): 2.5"
• Form Factor (Short) (Metric): 6.4 cm
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Capacity: 3.2TB
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 1,095 MBps
• Internal Data Rate (Write): 1,045 MBps
• 4KB Random Read: 210,000 IOPS
• 4KB Random Write: 124,000 IOPS
• Drive Writes Per Day (DWPD): 3 DWPD
• Features: Digitally Signed Firmware
• Interfaces: 1 x SAS 12Gb/s
• Compatible Bay: 2.5-inch SFF
• Height: 0.6 inch

Performance Specifications

• Data Transfer Rate: 1.2 GBps
• Internal Data Rate (Read): 1,095 MBps
• Internal Data Rate (Write): 1,045 MBps
• 4KB Random Read: 210,000 IOPS
• 4KB Random Write: 124,000 IOPS
• Endurance: 3 DWPD
• Interface: SAS 12Gb/s

The P09094-B21 provides a balanced performance profile for Mixed Use workloads, making it suitable for applications that perform both read and write operations.

Enterprise Features

• HPE Smart Carrier provides a carrier solution for supported HPE server configurations.
• Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan.
• 3 DWPD endurance supports workloads with substantial read and write activity.
• NAND Flash technology provides faster storage access, improved latency, and power-efficient storage compared with traditional rotating media.
• Hot-swap capability allows convenient drive installation and replacement in supported server configurations.
• HPE SSDs are designed and qualified through extensive testing to support reliable enterprise operation.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Installation: Hot Swap
• Height: 0.6 inch

Power Consumption

• Idle: 3.2W
• Sequential Read: 5.45W
• Random Read: 6.11W
• Random Write: 6.11W
• Random Read/Write: 6.11W
• Sequential Write: 9.31W
• Maximum: 9.31W

Compatible Platforms

The HPE P09094-B21 is designed for supported HPE ProLiant and HPE Synergy platforms with compatible 2.5-inch SFF SAS drive bays.

The supplied product information indicates support for HPE ProLiant servers including Gen9 and compatible server storage platforms. Exact compatibility should be verified against the specific server model, generation, drive cage, storage controller, and firmware requirements before installation.

Ideal Applications

The HPE P09094-B21 3.2TB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Data-intensive application workloads
• High-performance database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Server storage platforms
• Enterprise storage expansion
• Supported HPE ProLiant and HPE Synergy configurations

Why Choose HPE P09094-B21

The HPE P09094-B21 combines 3.2TB storage capacity, SAS 12Gb/s connectivity, and high-performance 210,000 IOPS random read and 124,000 IOPS random write capabilities in a compact 2.5-inch SFF enterprise SSD.

With 3 DWPD endurance, MLC NAND Flash, HPE Smart Carrier, and Digitally Signed Firmware, this SSD provides a reliable storage solution for demanding Mixed Use workloads. Its hot-swap design also provides flexibility for supported HPE server environments.

Compatibility

• Storage Capacity: 3.2TB
• Interface: SAS 12Gb/s
• Interface Connection: 1 x SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Installation: Hot Swap
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• NAND Flash: MLC
• Supported Platform: HPE ProLiant and HPE Synergy
• Compatibility: Supported HPE enterprise server configurations with compatible 2.5-inch SFF SAS drive bays

FAQs

What is the storage capacity of the HPE P09094-B21?
The HPE P09094-B21 provides 3.2TB of storage capacity, making it suitable for enterprise applications requiring substantial storage capacity and performance.

What interface does the HPE P09094-B21 use?
The P09094-B21 uses a SAS 12Gb/s interface with 1 x SAS 12Gb/s connection.

What type of workload is the P09094-B21 designed for?
The P09094-B21 is an HPE Mixed Use (MU) SSD, designed for workloads requiring a combination of random read and write performance.

What are the random read and write IOPS of this SSD?
The drive provides 210,000 IOPS 4KB random read and 124,000 IOPS 4KB random write performance.

What is the endurance rating of the HPE P09094-B21?
The P09094-B21 has an endurance rating of 3 DWPD (Drive Writes Per Day).

Is the HPE P09094-B21 hot-swappable?
Yes. The P09094-B21 is specified as a hot-swap hard drive and includes an HPE Smart Carrier for supported 2.5-inch SFF server configurations.
