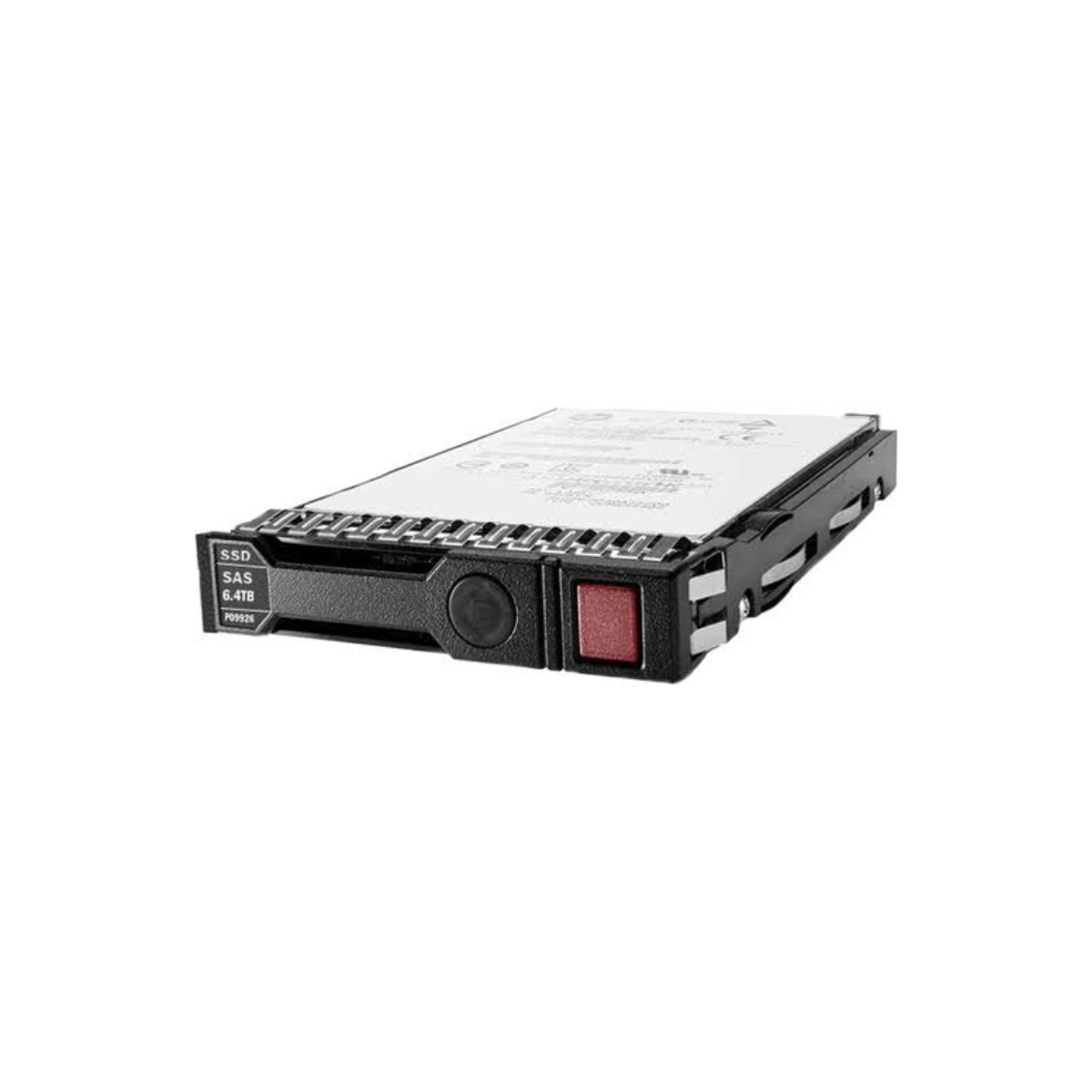

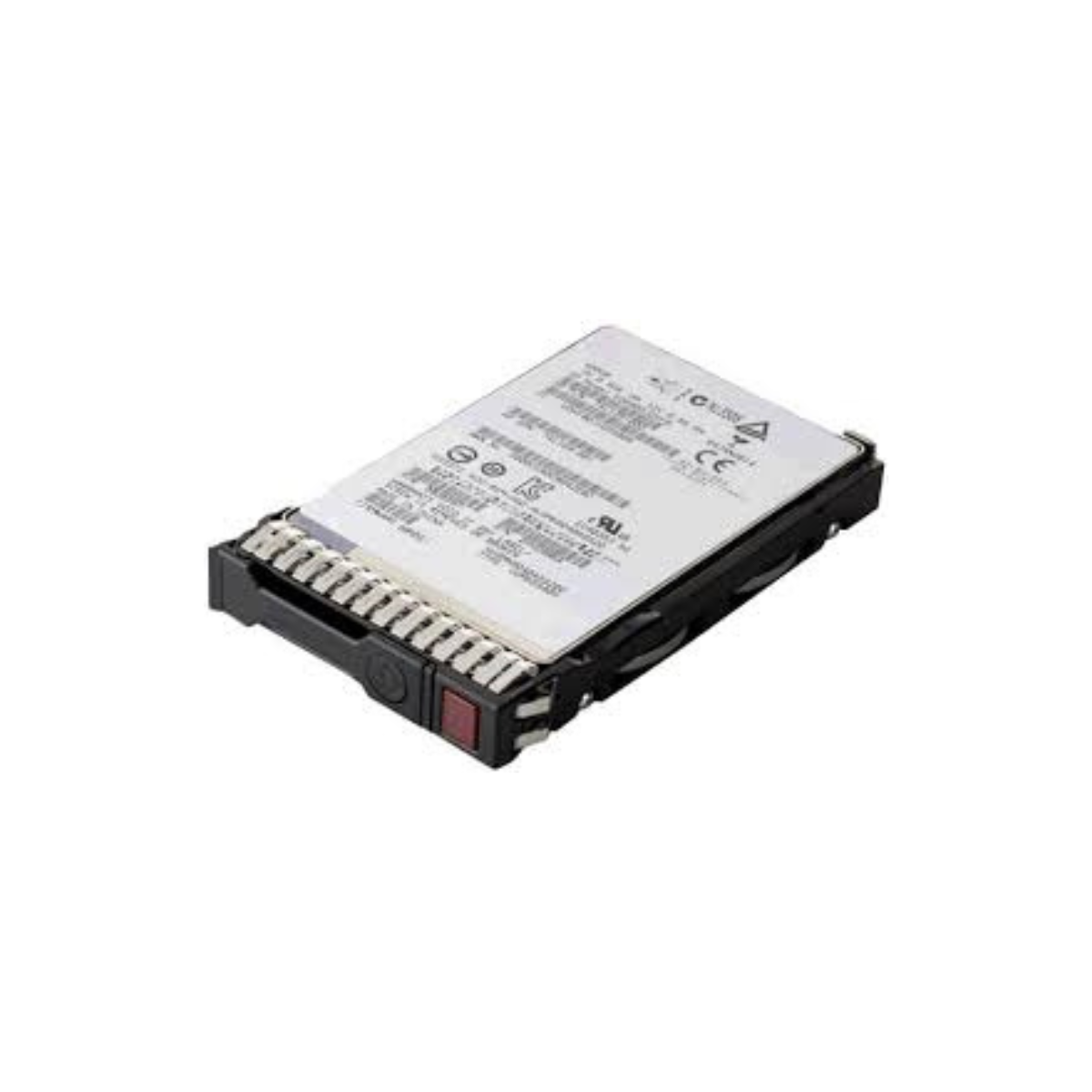

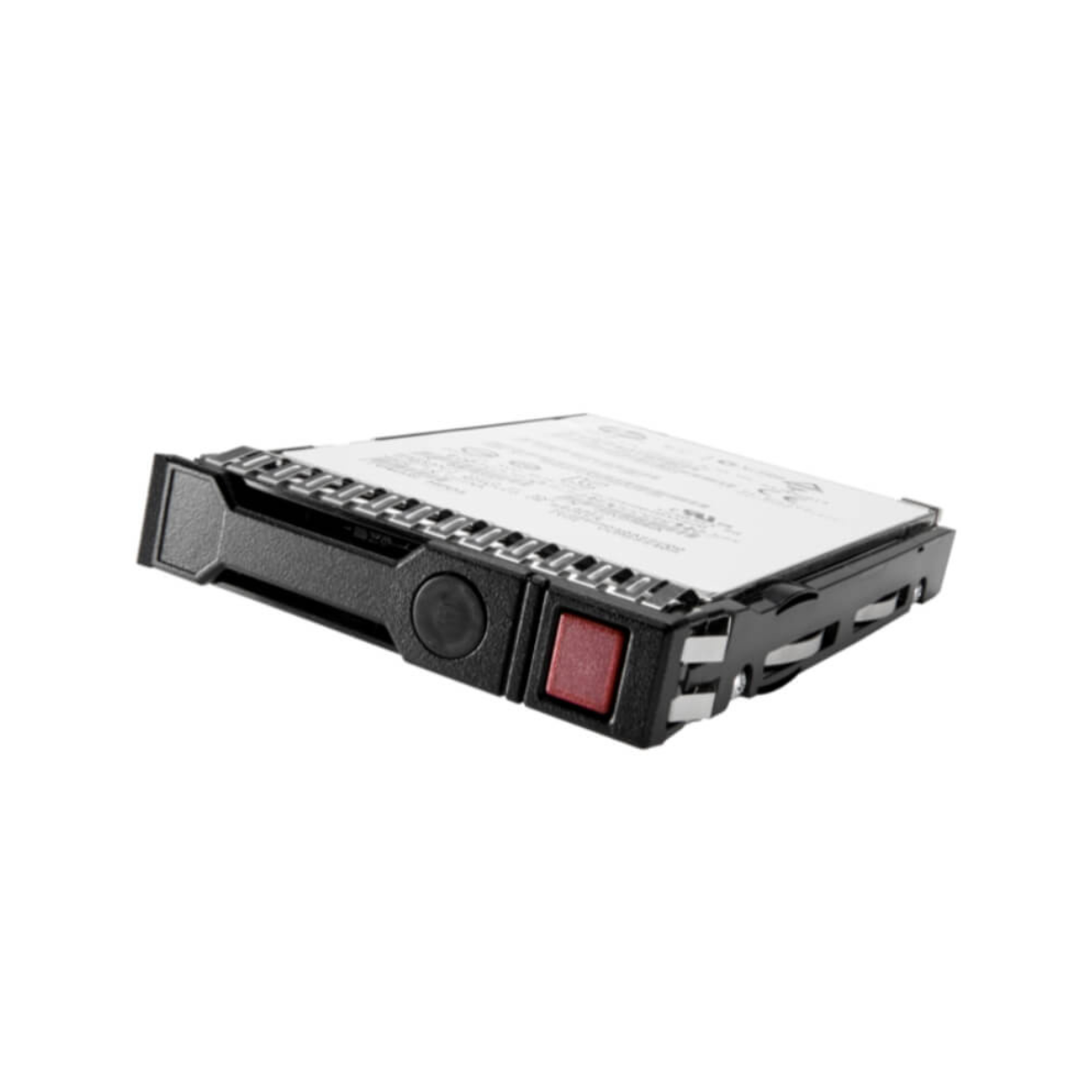

HPE 6.4TB SAS 12G Mixed Use SFF 2.5 Inch SC Solid State Drive P09096-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 6.4TB SAS 12G Mixed Use SFF 2.5 Inch SC Solid State Drive P09096-B21 is an enterprise-class SSD designed for mixed-use application workloads requiring high random read and write IOPS performance. With a large 6.4TB storage capacity, SAS 12Gb/s interface, and 3 DWPD endurance, this SSD provides a strong balance of performance, capacity, and endurance for demanding server environments.

The P09096-B21 uses MLC NAND Flash memory and delivers an external transfer rate of 12Gb/sec, with internal data rates of up to 1,095 MBps read and 1,045 MBps write. It provides 140,000 IOPS 4KB random read and 123,000 IOPS 4KB random write, with maximum performance reaching 210,000 IOPS random read and 124,000 IOPS random write under the specified queue depths.

The drive includes an HPE Smart Carrier, hot-plug capability, and Digitally Signed Firmware. It also supports HPE SmartSSD Wear Gauge for monitoring SSD lifespan through supported management tools. HPE SSDs are backed by more than 3.35 million hours of testing and qualification to support reliable, high-performing enterprise storage.

Key Features

• 6.4TB storage capacity
• SAS 12Gb/s interface
• Mixed Use (MU) workload classification
• 3 DWPD endurance
• 35,000TB lifetime writes
• 140,000 IOPS 4KB random read at Q=16
• 123,000 IOPS 4KB random write at Q=16
• Up to 210,000 IOPS maximum 4KB random read at Q32
• Up to 124,000 IOPS maximum 4KB random write at Q16
• 1,095 MBps internal read rate
• 1,045 MBps internal write rate
• 12 Gb/sec external transfer rate
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-pluggable design
• 2.5-inch SFF form factor
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09096-B21
• Device Type: Solid State Drive - Hot-Swap
• Storage Capacity: 6.4TB
• Interface Type: SAS 12Gbps
• Form Factor: 2.5-inch SFF
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Carrier Type: Smart Carrier (SC)
• Plug Type: Hot Pluggable
• Features: Digitally Signed Firmware
• Bundled With: HPE Smart Carrier
• Lifetime Writes: 35,000TB
• Endurance DWPD: 3 DWPD
• Drive Transfer Rate (External): 12 Gb/sec
• Internal Data Rate (Read): 1,095 MBps
• Internal Data Rate (Write): 1,045 MBps
• Interfaces: 1 x SAS 12Gb/s
• Compatible Bay: 2.5-inch SFF

Performance Specifications

• External Transfer Rate: 12 Gb/sec
• Internal Read Rate: 1,095 MBps
• Internal Write Rate: 1,045 MBps
• 4KB Random Read: 140,000 IOPS at Q=16
• 4KB Random Write: 123,000 IOPS at Q=16
• Maximum 4KB Random Read: 210,000 IOPS at Q32
• Maximum 4KB Random Write: 124,000 IOPS at Q16
• Endurance: 3 DWPD
• Lifetime Writes: 35,000TB
• Interface: SAS 12Gb/s

The P09096-B21 is designed for Mixed Use workloads, providing a balanced performance profile for applications with both read and write operations.

Enterprise Features

• HPE Smart Carrier provides a carrier solution for supported HPE server configurations and offers drive-status information.
• Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE SmartSSD Wear Gauge helps monitor SSD lifespan through supported management tools.
• 3 DWPD endurance supports workloads with substantial read and write activity.
• MLC NAND Flash memory provides the storage media for this enterprise SSD.
• Hot-plug capability supports convenient drive installation and replacement in supported server configurations.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier Type: Smart Carrier (SC)
• Bundled With: HPE Smart Carrier
• Installation: Hot Pluggable
• Height: 8.75 inches (22.23 cm)
• Width: 7.25 inches (18.41 cm)
• Depth: 5.50 inches (13.97 cm)
• Weight: 1.10 lbs (0.50 kg)

Power Consumption

No specific power consumption values were provided in the supplied specifications for the HPE P09096-B21, so no unsupported power figures are added.

Compatible Platforms

The HPE P09096-B21 is designed for supported HPE enterprise server configurations featuring a compatible 2.5-inch SFF SAS drive bay and SAS 12Gb/s connectivity.

The supplied information does not specify individual server model compatibility. Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P09096-B21 6.4TB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Transactional database workloads
• Data-intensive application workloads
• High-performance database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Applications requiring substantial storage capacity and endurance
• Server storage expansion
• Supported HPE enterprise storage configurations

Why Choose HPE P09096-B21

The HPE P09096-B21 combines a large 6.4TB storage capacity, SAS 12Gb/s connectivity, and strong 140,000 IOPS random read and 123,000 IOPS random write performance in a compact 2.5-inch SFF enterprise SSD.

With up to 210,000 IOPS maximum random read, 124,000 IOPS maximum random write, 3 DWPD endurance, and 35,000TB lifetime writes, the drive is designed to handle demanding Mixed Use workloads. Its HPE Smart Carrier, Digitally Signed Firmware, and SmartSSD Wear Gauge compatibility add enterprise-focused management and monitoring capabilities.

Compatibility

• Storage Capacity: 6.4TB
• Interface: SAS 12Gb/s
• Interface Connection: 1 x SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Carrier Type: Smart Carrier (SC)
• Installation: Hot Pluggable
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• Lifetime Writes: 35,000TB
• NAND Flash: MLC
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 2.5-inch SFF SAS drive bays

FAQs

What is the storage capacity of the HPE P09096-B21?
The HPE P09096-B21 provides 6.4TB of storage capacity, making it suitable for enterprise applications requiring both high capacity and performance.

What interface does the HPE P09096-B21 use?
The P09096-B21 uses a SAS 12Gb/s interface with 1 x SAS 12Gb/s connection.

What type of workload is the P09096-B21 designed for?
The P09096-B21 is an HPE Mixed Use (MU) SSD, designed for workloads that require a combination of random read and write performance.

What are the random read and write IOPS of this SSD?
The drive provides 140,000 IOPS 4KB random read and 123,000 IOPS 4KB random write at Q=16. Maximum performance is specified at 210,000 IOPS random read at Q32 and 124,000 IOPS random write at Q16.

What is the endurance rating of the HPE P09096-B21?
The P09096-B21 has an endurance rating of 3 DWPD and a specified 35,000TB lifetime write rating.

Does the HPE P09096-B21 include a Smart Carrier?
Yes. The P09096-B21 is bundled with an HPE Smart Carrier and is designed for a compatible 2.5-inch SFF bay with hot-plug support.
