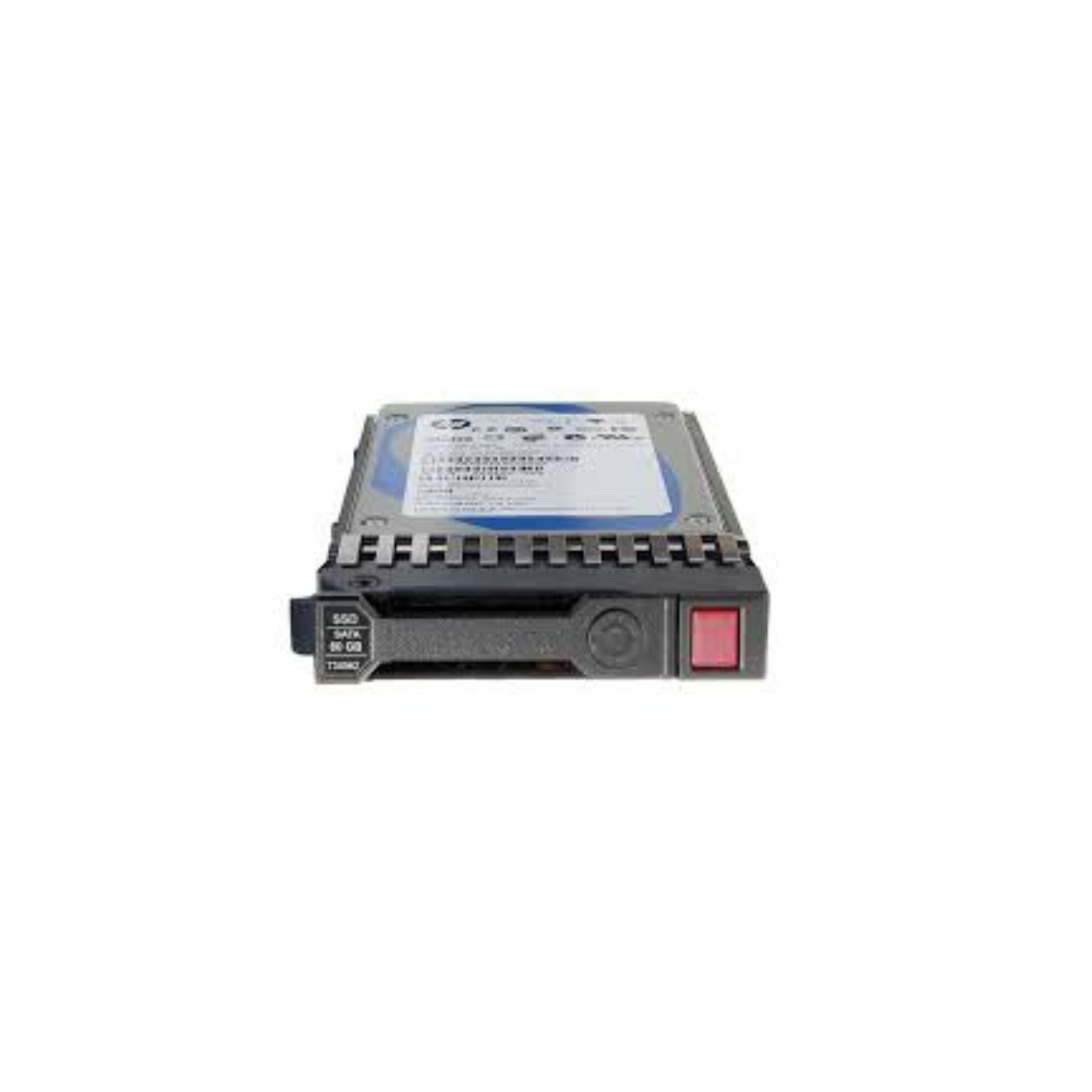

HPE 800GB SAS 12G Write Intensive SFF 2.5 Inch SC Solid State Drive P09100-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 800GB SAS 12G Write Intensive SFF 2.5 Inch SC Solid State Drive P09100-B21 is an enterprise-class SSD designed to deliver high performance and endurance for data-intensive application workloads requiring high random read and write IOPS. With 800GB storage capacity, a 12Gb/s SAS interface, and a Write Intensive workload profile, this SSD is designed for demanding server environments.

The P09100-B21 uses NAND Flash technology and MLC memory to provide faster access, improved latency, and greater power efficiency compared with traditional rotating hard drives. Its 2.5-inch SFF form factor, hot-swap capability, and included HPE Smart Carrier provide flexibility for supported HPE server installations.

With 130,000 IOPS 4KB random read and 120,000 IOPS 4KB random write performance, the P09100-B21 is well suited to applications requiring consistently high read and write performance. It also provides 10 DWPD endurance and 15,000TB SSD endurance, making it suitable for demanding write-intensive workloads.

Key Features

• 800GB storage capacity
• 12Gb/s SAS interface
• Write Intensive workload classification
• 130,000 IOPS 4KB random read
• 120,000 IOPS 4KB random write
• 1,095 MBps internal read rate
• 1,015 MBps internal write rate
• 1.2 GBps data transfer rate
• 10 DWPD endurance
• 15,000TB SSD endurance
• MLC NAND Flash memory
• HPE Smart Carrier included
• Hot-swap drive design
• 2.5-inch SFF form factor
• Digitally Signed Firmware
• 1 x SAS 12Gb/s interface
• Designed for supported HPE ProLiant server environments
• Backed by the full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Write Intensive
• Bundled With: HPE Smart Carrier
• Packaged Quantity: 1
• Product Type: Solid State Drive
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 2.5-inch SFF
• Form Factor (Metric): 6.4 cm SFF
• Form Factor (Short): 2.5 inches
• Form Factor (Short) (Metric): 6.4 cm
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Capacity: 800GB
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 1,095 MBps
• Internal Data Rate (Write): 1,015 MBps
• Drive Writes Per Day (DWPD): 10 DWPD
• SSD Endurance: 15,000TB
• Features: Digitally Signed Firmware
• Interfaces: 1 x SAS 12Gb/s
• Compatible Bay: 2.5-inch SFF
• Height: 0.6 inch

Performance Specifications

• Data Transfer Rate: 1.2 GBps
• Internal Read Rate: 1,095 MBps
• Internal Write Rate: 1,015 MBps
• 4KB Random Read: 130,000 IOPS
• 4KB Random Write: 120,000 IOPS
• Maximum 4KB Random Read: 130,000 IOPS
• Maximum 4KB Random Write: 120,000 IOPS
• Endurance: 10 DWPD
• SSD Endurance: 15,000TB
• Interface: SAS 12Gb/s

The P09100-B21 is optimized for Write Intensive workloads, providing strong random read and write performance for demanding enterprise applications.

Enterprise Features

• HPE Smart Carrier provides a flexible carrier solution for supported HPE server configurations.
• Digitally Signed Firmware helps provide assurance that the drive firmware originates from a trusted source.
• HPE SmartSSD Wear Gauge compatibility in supported management tools helps monitor SSD lifespan and identify potential drive-life concerns.
• NAND Flash technology provides faster storage access, improved latency, and greater power efficiency compared with traditional rotating media.
• 10 DWPD endurance supports demanding applications with frequent write operations.
• Hot-swap capability allows convenient drive installation and replacement in supported server configurations.
• Supports compatible HPE ProLiant servers and server storage platforms, including supported Gen9 environments.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5-inch SFF
• Height: 0.6 inch
• Drive Type: Hot-swap hard drive
• Carrier: HPE Smart Carrier

Power Consumption

• Random Read: 5.55W
• Random Read/Write: 5.55W
• Random Write: 5.55W
• Sequential Read: 4.52W
• Sequential Write: 6.92W
• Maximum: 6.92W

Compatible Platforms

The HPE P09100-B21 is designed for supported HPE ProLiant servers and server storage platforms with a compatible 2.5-inch SFF SAS drive bay.

The supplied product information specifically indicates support for HP ProLiant servers including Gen9 and compatible server storage platforms. Exact compatibility should be verified against the specific server model, generation, drive cage, storage controller, and firmware requirements before installation.

Ideal Applications

The HPE P09100-B21 800GB Write Intensive SSD is suitable for:

• Write-intensive enterprise applications
• Data-intensive application workloads
• High-transaction database environments
• Virtualized server environments
• Enterprise application hosting
• Workloads requiring high random read and write IOPS
• Applications requiring high SSD endurance
• Server storage platforms
• Supported HPE ProLiant server configurations

Why Choose HPE P09100-B21

The HPE P09100-B21 combines 800GB capacity, SAS 12Gb/s connectivity, and high-performance 130,000 IOPS random read and 120,000 IOPS random write capabilities in a compact 2.5-inch SFF enterprise SSD.

Its 10 DWPD endurance and 15,000TB SSD endurance make it particularly suitable for workloads with frequent and intensive write operations. Combined with HPE Smart Carrier, Digitally Signed Firmware, HPE SmartSSD Wear Gauge compatibility, and efficient power consumption, the P09100-B21 provides a robust storage solution for supported HPE server environments.

Compatibility

• Storage Capacity: 800GB
• Storage Interface: Serial Attached SCSI 3
• Interface: SAS 12Gb/s
• Interface Connection: 1 x SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• Form Factor (Metric): 6.4 cm SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Installation: Hot Swap
• Workload Type: Write Intensive
• Endurance: 10 DWPD
• SSD Endurance: 15,000TB
• Supported Platform: Compatible HPE ProLiant servers and server storage platforms
• Compatibility: Verify the exact HPE server model and configuration before installation

FAQs

What is the storage capacity of the HPE P09100-B21?
The HPE P09100-B21 provides 800GB of storage capacity and is designed for demanding enterprise server workloads.

What interface does the HPE P09100-B21 use?
The P09100-B21 uses a SAS 12Gb/s interface, with 1 x SAS 12Gb/s connection.

What type of workload is the P09100-B21 designed for?
The P09100-B21 is an HPE Write Intensive SSD, designed for applications requiring high levels of random read and write IOPS and increased write endurance.

What are the random read and write IOPS of this SSD?
The P09100-B21 provides 130,000 IOPS 4KB random read and 120,000 IOPS 4KB random write performance.

What is the endurance rating of the HPE P09100-B21?
The SSD has an endurance rating of 10 DWPD and a specified 15,000TB SSD endurance rating.

Is the HPE P09100-B21 hot-swappable?
Yes. The P09100-B21 is specified as a hot-swap hard drive and is designed with an HPE Smart Carrier for supported 2.5-inch SFF server configurations.
