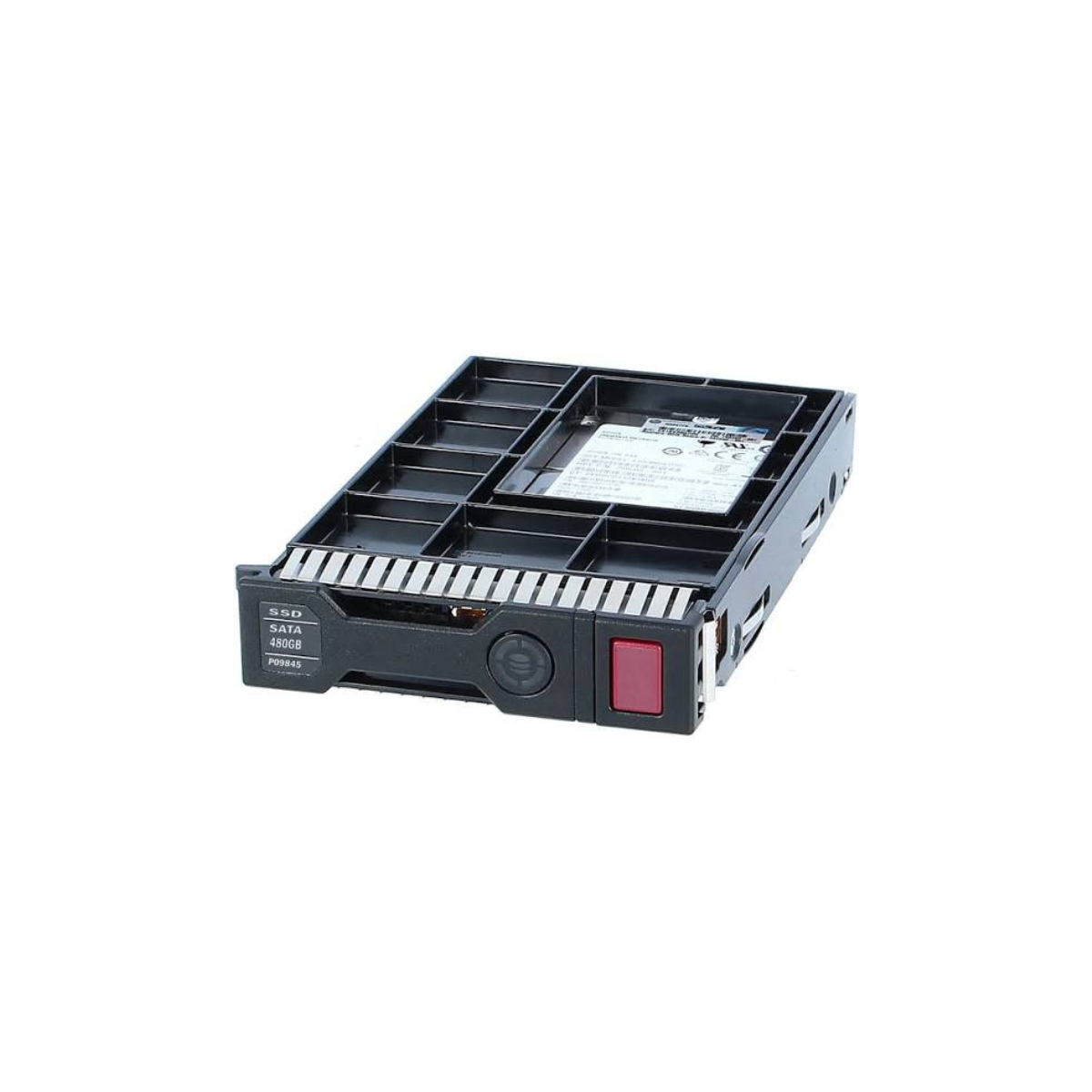

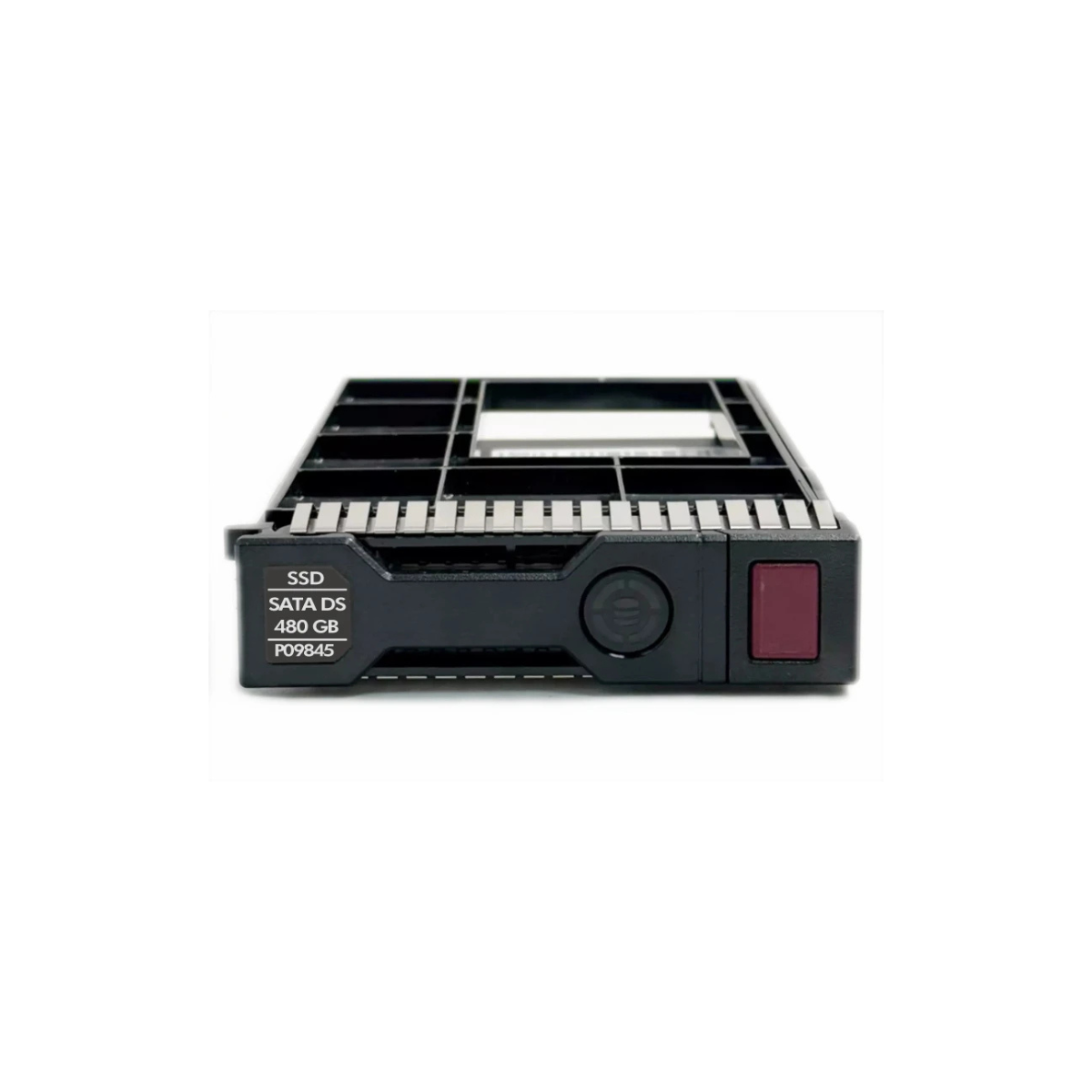

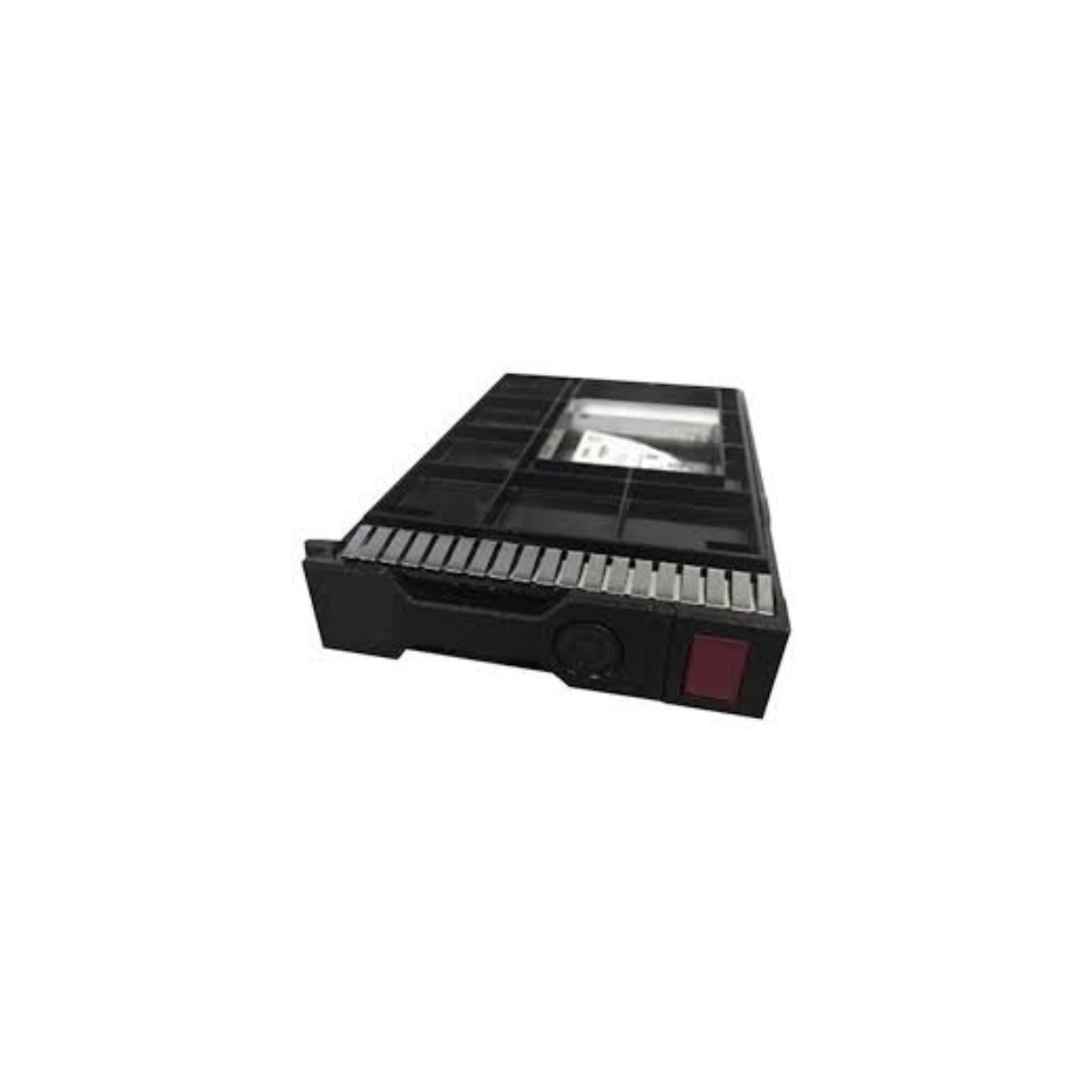

HPE 480GB SATA 6G Read Intensive LFF 3.5 Inch SCC Solid State Drive P09687-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 480GB SATA 6G Read Intensive LFF 3.5 Inch SCC Solid State Drive P09687-B21 is an enterprise SSD designed for read-intensive server workloads that require reliable storage and strong random read performance. With 480GB storage capacity, a SATA 6Gbps interface, and 0.8 DWPD endurance, this SSD is suitable for supported HPE server environments and data-intensive applications.

The P09687-B21 features a 3.5-inch LFF form factor and includes an HPE Smart Carrier Converter, making it suitable for compatible 3.5-inch LFF server bays. Its hot-plug capability supports convenient installation and replacement in supported HPE server configurations.

HPE SSDs are backed by more than 3.35 million hours of testing and qualification to help deliver reliable enterprise performance. The drive also features HPE Digitally Signed Firmware, Smart Carrier status indicators, a do-not-remove button, and HPE SmartSSD Wear Gauge compatibility to help administrators monitor SSD lifespan through supported management tools.

Key Features

• 480GB storage capacity for enterprise server workloads
• SATA 6Gbps interface
• Read Intensive (RI) workload classification
• 0.8 DWPD endurance
• 700TB lifetime writes
• 68,000 IOPS 4KB random read
• Up to 77,000 IOPS maximum 4KB random read
• 25,000 IOPS 4KB random write
• 535 MBps internal read rate
• 495 MBps internal write rate
• HPE Smart Carrier Converter included
• Hot-plug capability
• 3.5-inch LFF form factor
• Digitally Signed Firmware
• HPE SmartSSD Wear Gauge compatibility
• Smart Carrier status indicators
• Do-not-remove button to help prevent accidental drive removal
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09687-B21
• Device Type: Solid State Drive - Hot-Swap
• Storage Capacity: 480GB
• Form Factor: 3.5-inch LFF
• Interface: SATA 6Gbps
• Interfaces: 1 x SATA 6Gbps
• Drive Transfer Rate: 6 Gb/sec external
• Workload Type: Read Intensive
• Features: Digitally Signed Firmware
• Carrier Type: Smart Carrier Converter
• Bundled With: HPE Smart Carrier Converter
• Plug Type: Hot Plug
• Compatible Bay: 3.5-inch LFF
• Endurance: 0.8 DWPD
• Lifetime Writes: 700TB

Performance Specifications

• Internal Data Rate: 535 MBps read / 495 MBps write
• 4KB Random Read: 68,000 IOPS
• Maximum 4KB Random Read: 77,000 IOPS
• 4KB Random Write: 25,000 IOPS
• Maximum 4KB Random Write: 25,000 IOPS
• Drive Transfer Rate: 6 Gb/sec external
• Endurance: 0.8 DWPD
• Lifetime Writes: 700TB

The P09687-B21 is optimized for read-intensive workloads, providing strong random read performance for applications where read operations are a primary performance requirement.

Enterprise Features

• HPE Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE Smart Carrier Converter provides the carrier solution for supported 3.5-inch LFF configurations.
• Smart Carrier self-describing icons make drive status easier to identify.
• A do-not-remove button helps reduce accidental drive removal and potential data loss.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Carrier Type: Smart Carrier Converter
• Bundled With: HPE Smart Carrier Converter
• Hot Plug: Yes
• Width: 5.75 inches (14.61 cm)
• Depth: 10 inches (25.4 cm)
• Height: 8.63 inches (21.92 cm)
• Weight: 3 lbs (1.36 kg)

Power Consumption

No specific power consumption values were provided in the supplied specifications for the HPE P09687-B21, so no unsupported power figures are added.

Compatible Platforms

The HPE P09687-B21 is designed for supported HPE enterprise server configurations featuring a compatible 3.5-inch LFF SATA drive bay and Smart Carrier Converter requirements.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, and supported SSD configuration to ensure compatibility.

Ideal Applications

The HPE P09687-B21 480GB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Data-intensive server workloads
• Database applications
• Virtualized server environments
• Application hosting
• Enterprise file and data storage
• Server storage expansion
• Workloads requiring strong random read IOPS
• Supported HPE server storage configurations

Why Choose HPE P09687-B21

The HPE P09687-B21 combines 480GB storage capacity, SATA 6Gbps connectivity, 68,000 IOPS random read performance, and up to 77,000 IOPS maximum random read performance in a 3.5-inch LFF enterprise SSD.

With 0.8 DWPD endurance, 700TB lifetime writes, 535 MBps read speed, 495 MBps write speed, Digitally Signed Firmware, and an included HPE Smart Carrier Converter, the P09687-B21 provides a reliable storage solution for supported HPE servers and read-intensive workloads.

Compatibility

• Storage Capacity: 480GB
• Interface: SATA 6Gbps
• Interface Connection: 1 x SATA 6Gbps
• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Carrier: HPE Smart Carrier Converter
• Installation: Hot Plug
• Workload: Read Intensive
• Endurance: 0.8 DWPD
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 3.5-inch LFF SATA bays

FAQs

What is the storage capacity of the HPE P09687-B21?
The HPE P09687-B21 provides 480GB of storage capacity and is designed for supported HPE enterprise server environments.

What interface does the HPE P09687-B21 use?
The P09687-B21 uses a SATA 6Gbps interface and features 1 x SATA 6Gbps connection.

What type of workload is the P09687-B21 designed for?
The P09687-B21 is a Read Intensive (RI) SSD, designed for server applications that prioritize random read performance.

What is the random read performance of this SSD?
The drive provides 68,000 IOPS for 4KB random read and up to 77,000 IOPS maximum 4KB random read.

What is the endurance rating of the HPE P09687-B21?
The P09687-B21 has an endurance rating of 0.8 DWPD and a specified 700TB lifetime write rating.

Does the P09687-B21 include an HPE Smart Carrier Converter?
Yes. The P09687-B21 is bundled with an HPE Smart Carrier Converter and is designed for a compatible 3.5-inch LFF server bay.
