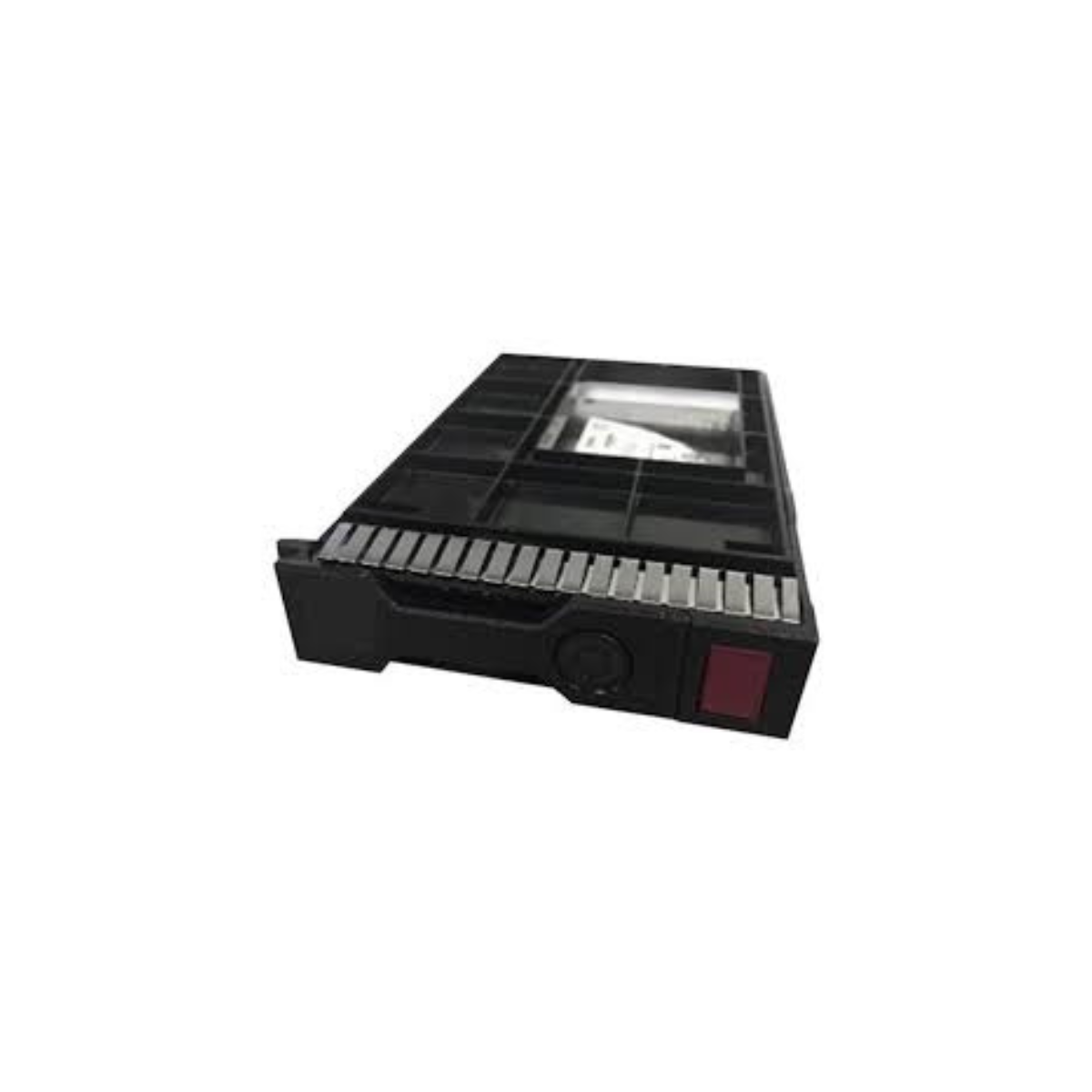

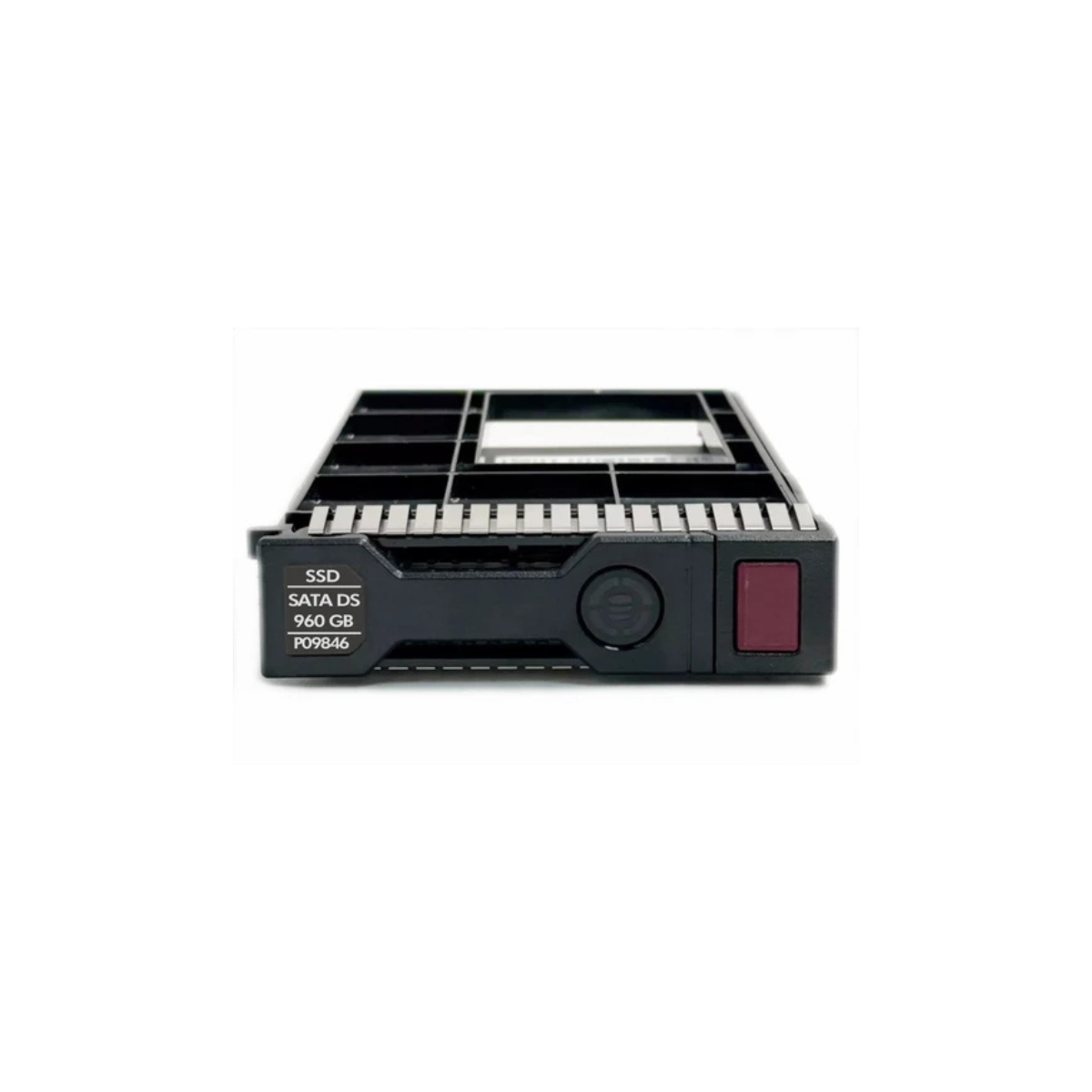

HPE 960GB SATA 6Gb/s Read Intensive LFF 3.5" SCC Solid State Drive P09689-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 960GB SATA 6Gb/s Read Intensive LFF 3.5" SCC Solid State Drive P09689-B21 is an enterprise-class SSD designed for read-intensive server workloads that require dependable storage performance and high random read IOPS. With 960GB capacity, a SATA 6Gb/s interface, and 0.8 DWPD endurance, this SSD is well suited for data-intensive applications in supported HPE server environments.

The P09689-B21 features a 3.5-inch LFF form factor and is bundled with an HPE Smart Carrier Converter, providing compatibility with supported 3.5-inch LFF server bays. Its hot-plug design allows the drive to be installed or replaced in supported server configurations without requiring the entire system to be powered down.

HPE SSDs undergo more than 3.35 million hours of testing and qualification to help ensure reliable enterprise operation. The drive also features HPE Digitally Signed Firmware, Smart Carrier status indicators, a do-not-remove button, and HPE SmartSSD Wear Gauge compatibility for monitoring SSD lifespan through supported management tools.

Key Features

• 960GB storage capacity for enterprise server workloads
• SATA 6Gb/s interface for supported HPE server platforms
• Read Intensive (RI) workload classification
• 0.8 DWPD endurance rating
• 65,000 IOPS 4KB random read performance
• Up to 76,000 IOPS maximum 4KB random read
• 29,000 IOPS 4KB random write
• 1,400TB lifetime writes
• HPE Smart Carrier Converter bundled
• Hot-plug capability
• 3.5-inch LFF form factor
• Digitally Signed Firmware for trusted firmware protection
• Data monitoring support through HPE SmartSSD Wear Gauge compatibility
• Smart Carrier status indicators
• Do-not-remove button to help prevent accidental drive removal
• Backed by the full HPE warranty

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09689-B21
• Device Type: Solid State Drive - Hot-Swap
• Storage Capacity: 960GB
• Form Factor: 3.5-inch LFF
• Interface: SATA 6Gbps
• Interfaces: 1 x SATA 6Gbps
• Drive Transfer Rate: 6Gb/sec external
• Workload Type: Read Intensive
• Features: Digitally Signed Firmware
• Carrier Type: Smart Carrier Converter
• Bundled With: HPE Smart Carrier Converter
• Plug Type: Hot Plug
• Compatible Bay: 3.5-inch LFF
• Endurance: 0.8 DWPD
• Lifetime Writes: 1,400TB

Performance Specifications

• 4KB Random Read: 65,000 IOPS
• Maximum 4KB Random Read: 76,000 IOPS
• 4KB Random Write: 29,000 IOPS
• Maximum 4KB Random Write: 29,000 IOPS
• Drive Transfer Rate: 6 Gb/sec external
• Endurance: 0.8 DWPD
• Lifetime Writes: 1,400TB
• Interface: SATA 6Gbps

The P09689-B21 is optimized for read-intensive workloads, making it suitable for applications where random read performance is more important than sustained write-intensive operation.

Enterprise Features

• HPE Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source.
• HPE Smart Carrier Converter provides the required carrier solution for supported 3.5-inch LFF configurations.
• Smart Carrier self-describing icons make drive status easier to identify.
• A do-not-remove button helps reduce accidental drive removal and potential data loss.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification for enterprise reliability.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Carrier Type: Smart Carrier Converter
• Bundled With: HPE Smart Carrier Converter
• Hot Plug: Yes
• Width: 5.75 inches (14.61 cm)
• Depth: 10 inches (25.4 cm)
• Height: 8.63 inches (21.92 cm)
• Weight: 3 lbs (1.36 kg)

Power Consumption

• Maximum: 2.63W
• Random Read: 2.33W
• Random Write: 2.33W
• Sequential Read: 1.93W
• Sequential Write: 2.63W

Compatible Platforms

The HPE P09689-B21 is designed for supported HPE enterprise server configurations featuring a 3.5-inch LFF SATA drive bay and compatible Smart Carrier Converter requirements.

Compatibility should be verified against the specific HPE server model, generation, drive cage, and storage controller configuration before installation.

Ideal Applications

The HPE P09689-B21 960GB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Data-intensive server workloads
• Database applications
• Virtualized server environments
• Application hosting
• Enterprise file and data storage
• Server storage expansion
• Workloads requiring strong random read IOPS

Why Choose HPE P09689-B21

The HPE P09689-B21 combines 960GB capacity, SATA 6Gbps connectivity, 65,000 IOPS random read performance, and up to 76,000 IOPS maximum random read performance in a 3.5-inch LFF enterprise SSD.

With 0.8 DWPD endurance, 1,400TB lifetime writes, HPE Digitally Signed Firmware, and an included Smart Carrier Converter, this SSD provides an enterprise-focused storage solution for supported HPE servers and read-intensive workloads.

Compatibility

• Storage Capacity: 960GB
• Interface: SATA 6Gbps
• Interface: 1 x SATA 6Gbps
• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Carrier: HPE Smart Carrier Converter
• Installation: Hot Plug
• Workload: Read Intensive
• Supported Device: Server
• Compatibility: Supported HPE enterprise server configurations with compatible 3.5-inch LFF SATA bays

FAQs

What is the storage capacity of the HPE P09689-B21?
The HPE P09689-B21 provides 960GB of storage capacity and is designed for supported HPE enterprise server environments.

What interface does the HPE P09689-B21 use?
The drive uses a SATA 6Gbps interface, with 1 x SATA 6Gbps connection.

What type of workload is the P09689-B21 designed for?
The P09689-B21 is a Read Intensive (RI) SSD, designed for workloads that prioritize random read performance.

What is the random read performance of this SSD?
The drive provides 65,000 IOPS for 4KB random read and up to 76,000 IOPS maximum 4KB random read.

What is the endurance rating of the HPE P09689-B21?
The SSD has an endurance rating of 0.8 DWPD and a specified 1,400TB lifetime write rating.

Does the P09689-B21 include an HPE Smart Carrier Converter?
Yes. The P09689-B21 is bundled with an HPE Smart Carrier Converter and is designed for a compatible 3.5-inch LFF bay.
