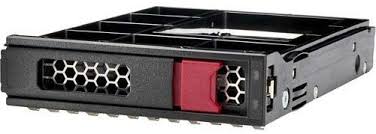

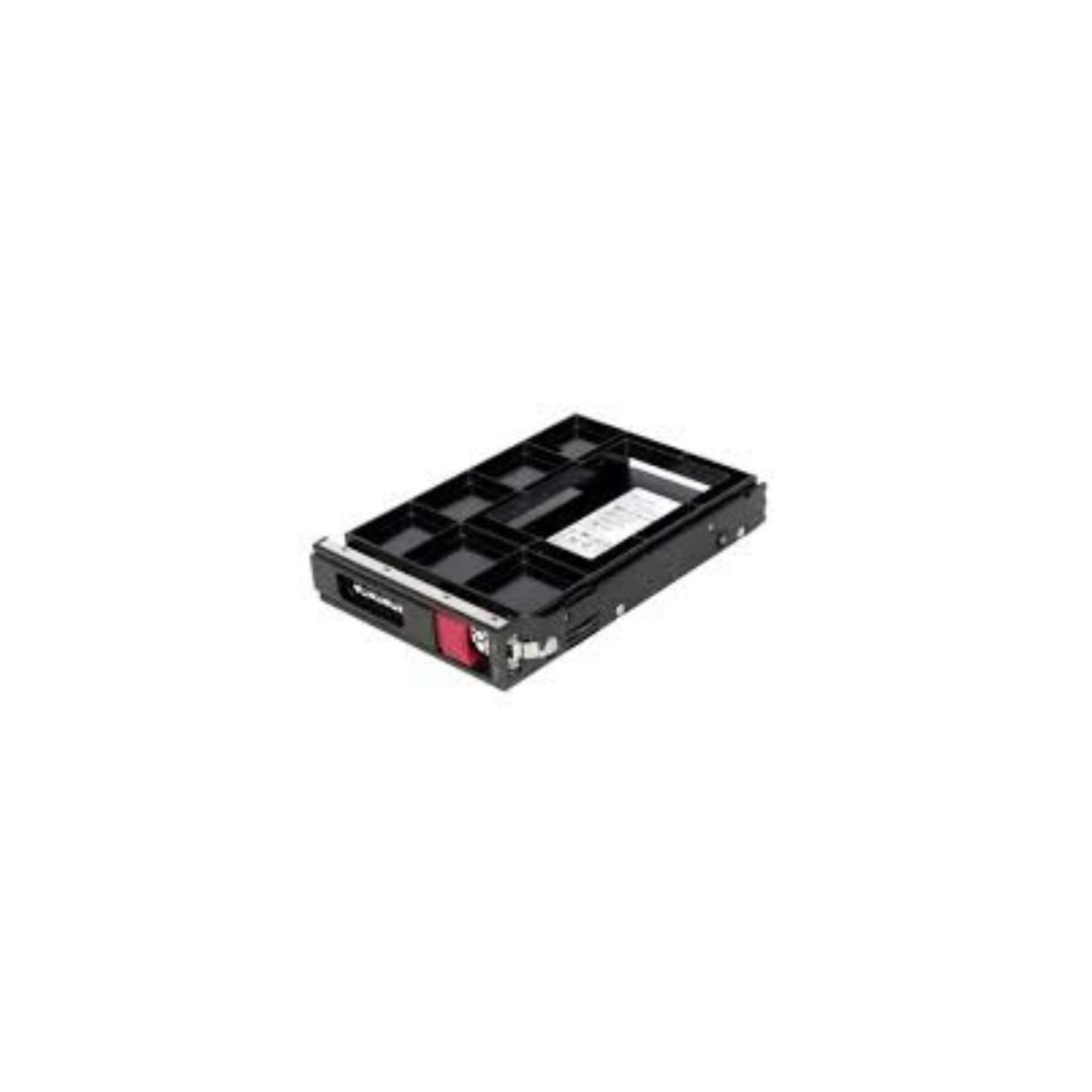

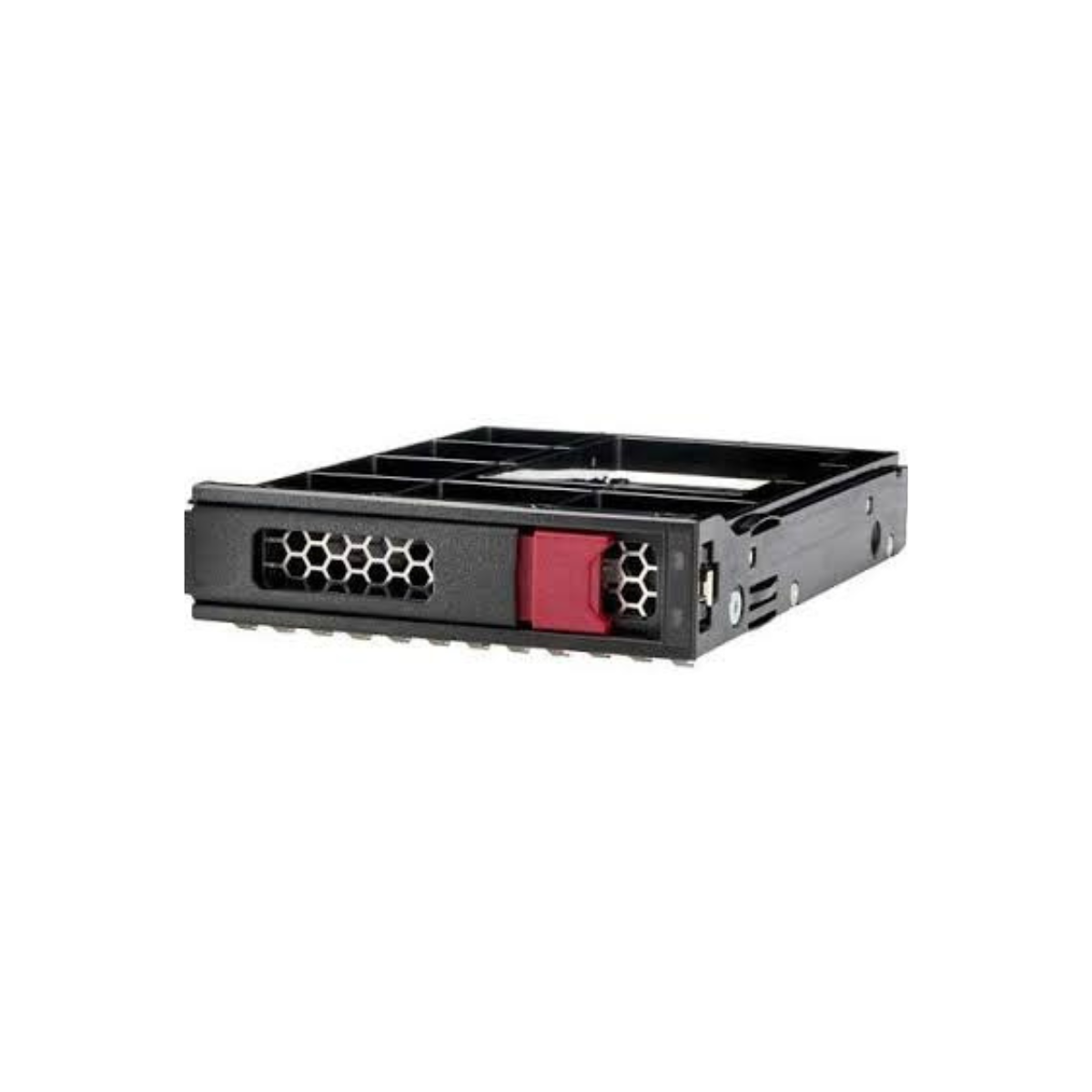

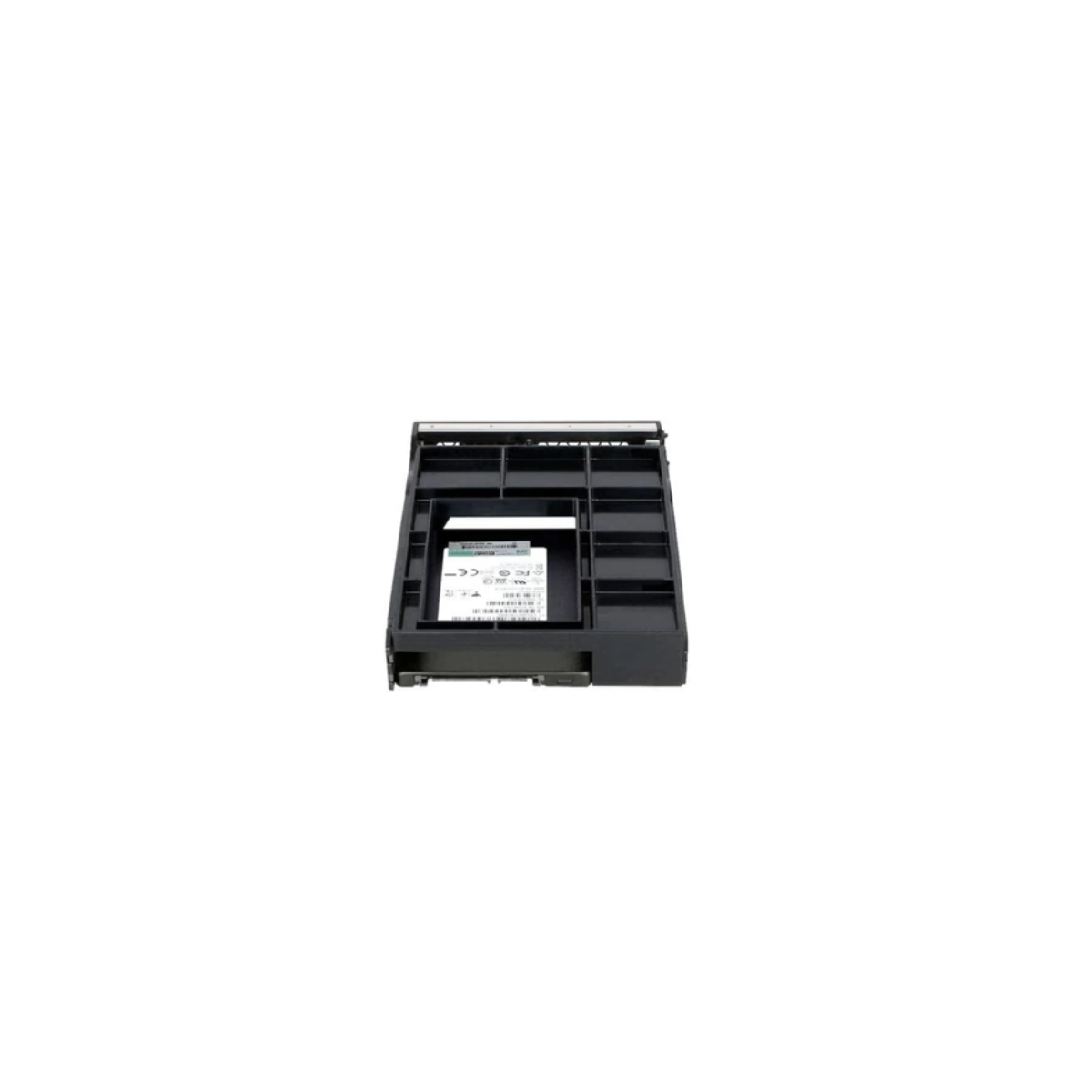

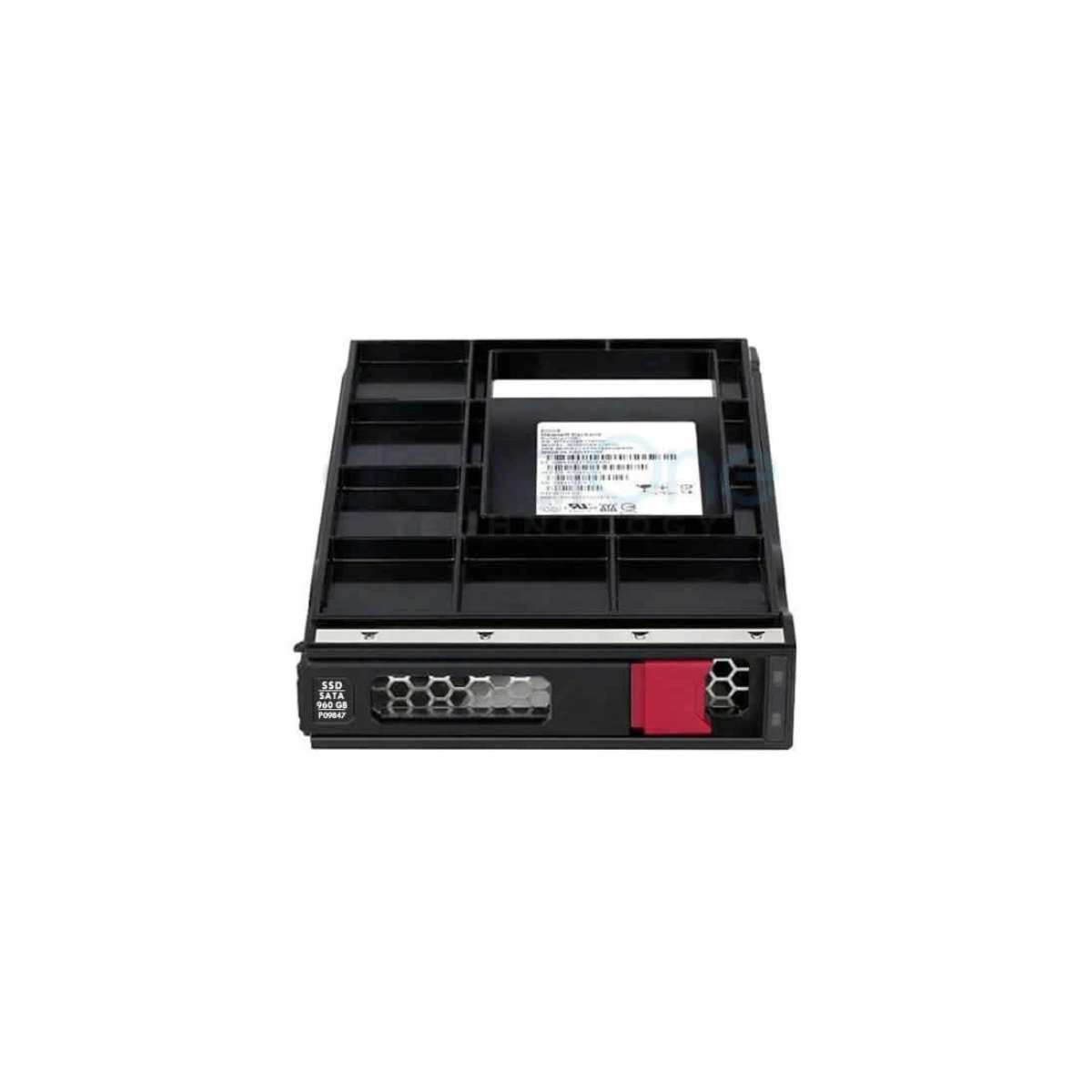

HPE 960GB SATA 6Gb/s Read Intensive LFF 3.5" Solid State Drive P09691-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 960GB SATA 6Gb/s Read Intensive LFF 3.5" Solid State Drive P09691-B21 is designed to deliver reliable storage performance for data-intensive server applications that require strong random read performance. With a 960GB storage capacity, SATA 6Gb/s interface, and Read Intensive endurance profile, this SSD is well suited for workloads where read performance and dependable operation are important.

The P09691-B21 features Data Path Protection, 0.8 DWPD endurance, and a 3.5-inch LFF form factor for compatibility with supported HPE server configurations. Its hot-pluggable design and integrated drive carrier make installation and replacement convenient in supported server environments.

HPE SSDs undergo extensive testing and qualification, with over 3.35 million hours of testing, helping provide reliable operation in enterprise environments. HPE Digitally Signed Firmware helps protect against unauthorized firmware access, while HPE Smart Carrier features provide clear drive-status information and a do-not-remove indicator. Compatibility with HPE SmartSSD Wear Gauge also helps administrators monitor SSD lifespan through supported management tools.

Key Features

• 960GB storage capacity for enterprise server workloads
• SATA 6Gb/s (SATA/600) drive interface
• Read Intensive (RI) workload classification
• 0.8 DWPD endurance rating
• Data Path Protection for improved data integrity
• 3.5-inch LFF form factor
• Hot-pluggable design for supported HPE servers
• HPE Digitally Signed Firmware for trusted firmware protection
• HPE Smart Carrier with self-describing drive-status icons
• Do-not-remove button helps reduce accidental drive removal
• HPE SmartSSD Wear Gauge compatibility for SSD lifespan monitoring
• Backed by the full HPE warranty

Technical Specifications

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number (MPN): P09691-B21
• Brand Name: HPE
• Product Name: Solid State Drive
• Product Type: Solid State Drive
• Storage Capacity: 960 GB
• Drive Interface: SATA
• Drive Interface Standard: SATA/600
• Endurance Type: Read Intensive
• Endurance (DWPD): 0.8 DWPD
• Features: Data Path Protection
• Drive Type: Internal
• Device Supported: Server
• Wireless LAN: No
• Drive Carrier: Yes
• Hot Pluggable: Yes

Performance Specifications

• Storage Capacity: 960GB
• Interface Speed: SATA 6Gb/s
• Interface Standard: SATA/600
• Workload Type: Read Intensive
• Endurance: 0.8 DWPD
• Data Protection: Data Path Protection
• Operating Power Consumption: 1.23W

The supplied specifications do not include specific random read IOPS, random write IOPS, sequential read speed, or sequential write speed figures, so no unsupported performance values are added.

Enterprise Features

• HPE Digitally Signed Firmware helps ensure that SSD firmware originates from a trusted source and helps prevent unauthorized firmware access.
• HPE Smart Carrier provides self-describing icons to make drive status easier to identify.
• A do-not-remove button helps reduce the risk of accidental drive removal and potential data loss.
• HPE SmartSSD Wear Gauge compatibility allows supported management tools to monitor SSD lifespan and identify drives that may be approaching their endurance limits.
• HPE SSDs are backed by more than 3.35 million hours of testing and qualification to support enterprise reliability.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Drive Type: Internal
• Drive Carrier: Yes
• Hot Pluggable: Yes
• Device Supported: Server

Power Consumption

• Operating Power Consumption: 1.23W

Compatible Platforms

The P09691-B21 is designed for use in supported HPE enterprise server configurations with a compatible 3.5-inch LFF SATA drive bay.

Before purchasing, verify the specific HPE server model, generation, drive bay configuration, and supported SATA SSD options to ensure compatibility.

Ideal Applications

The HPE P09691-B21 960GB Read Intensive SSD is suitable for:

• Data-intensive server applications
• Read-heavy enterprise workloads
• Database and application workloads
• Virtualized server environments
• Enterprise file and data storage
• Server applications requiring high random-read performance
• HPE enterprise server storage expansion and replacement

Why Choose HPE P09691-B21

The HPE P09691-B21 combines 960GB capacity, SATA 6Gb/s connectivity, Read Intensive endurance, and 0.8 DWPD endurance in a 3.5-inch LFF enterprise SSD design. Its hot-pluggable form factor, Data Path Protection, Digitally Signed Firmware, and Smart Carrier features make it a practical choice for supported HPE server environments.

For organizations looking for a reliable SSD for read-intensive workloads, the P09691-B21 provides enterprise-focused features backed by HPE testing and warranty support.

Compatibility

• Interface: SATA/600
• Drive Size: 3.5-inch LFF
• Installation: Hot Pluggable
• Drive Carrier: Included
• Supported Device: Server
• Platform: Compatible HPE enterprise server configurations with supported 3.5-inch LFF SATA drive bays
• Compatibility verification: Confirm the exact HPE server model and generation before installation

FAQs

What is the storage capacity of the HPE P09691-B21?
The HPE P09691-B21 has a 960GB storage capacity, making it suitable for enterprise server storage and read-intensive workloads.

What interface does the HPE P09691-B21 use?
The P09691-B21 uses a SATA/600 interface, supporting SATA 6Gb/s connectivity.

What type of workload is the P09691-B21 designed for?
It is classified as a Read Intensive (RI) SSD and is designed for applications that require reliable storage with a strong focus on random read performance.

What is the endurance rating of this HPE SSD?
The P09691-B21 has an endurance rating of 0.8 DWPD (Drive Writes Per Day).

Is the HPE P09691-B21 hot-pluggable?
Yes. The P09691-B21 is specified as hot pluggable and includes a drive carrier, making it suitable for supported HPE server configurations designed for hot-swappable drives.

What security and monitoring features does this SSD provide?
The P09691-B21 supports HPE Digitally Signed Firmware, HPE Smart Carrier status indicators, a do-not-remove button, and HPE SmartSSD Wear Gauge compatibility for monitoring SSD lifespan through supported management tools.
