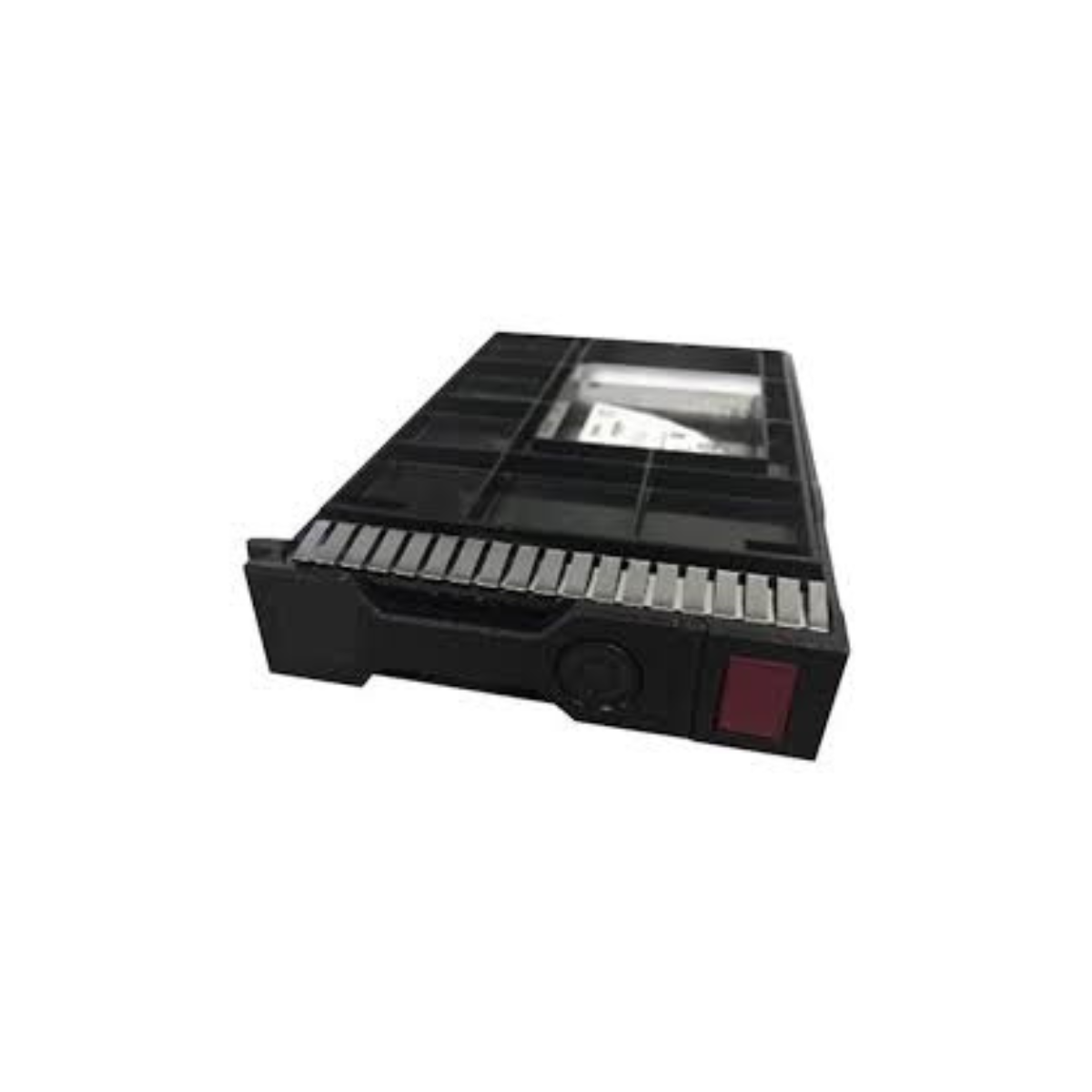

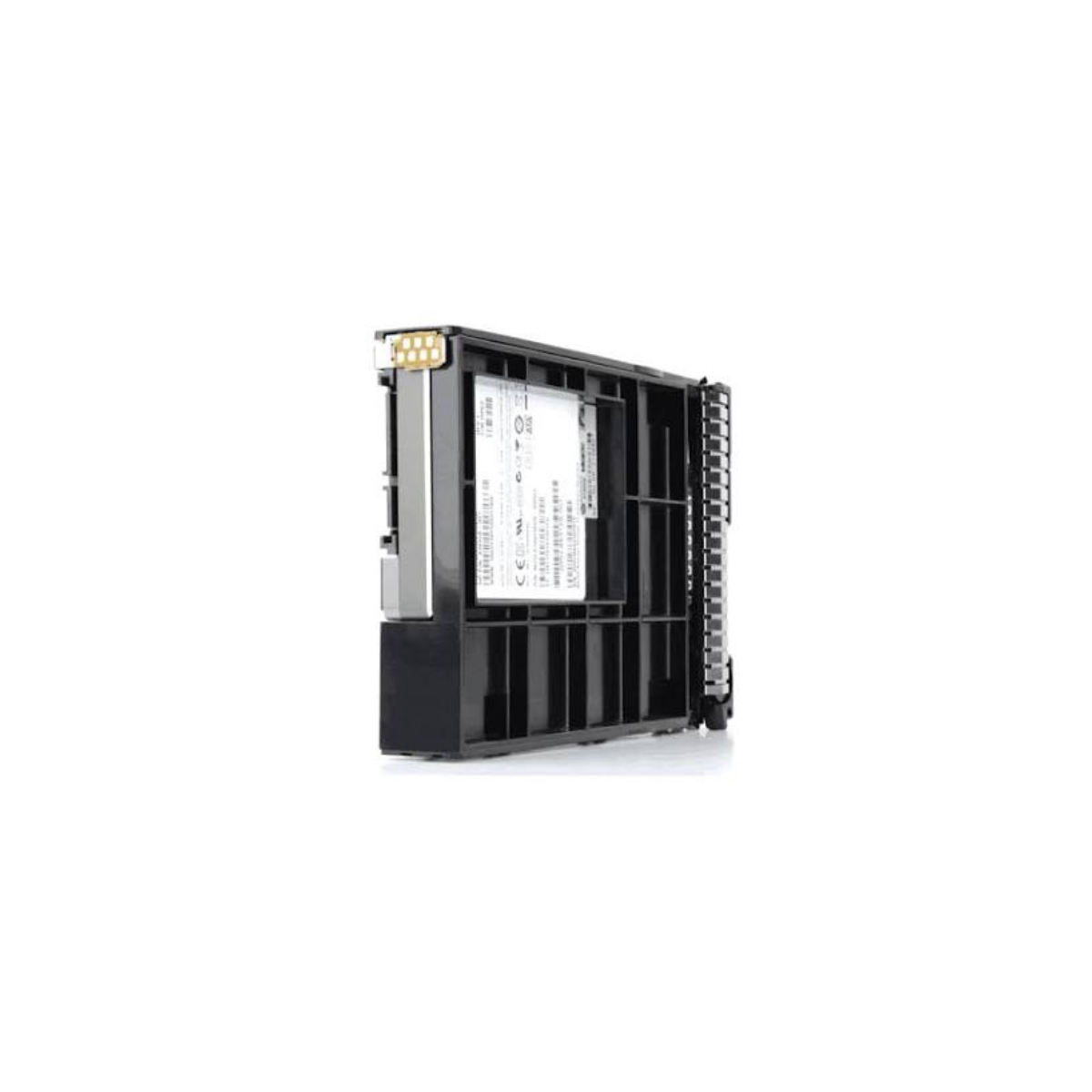

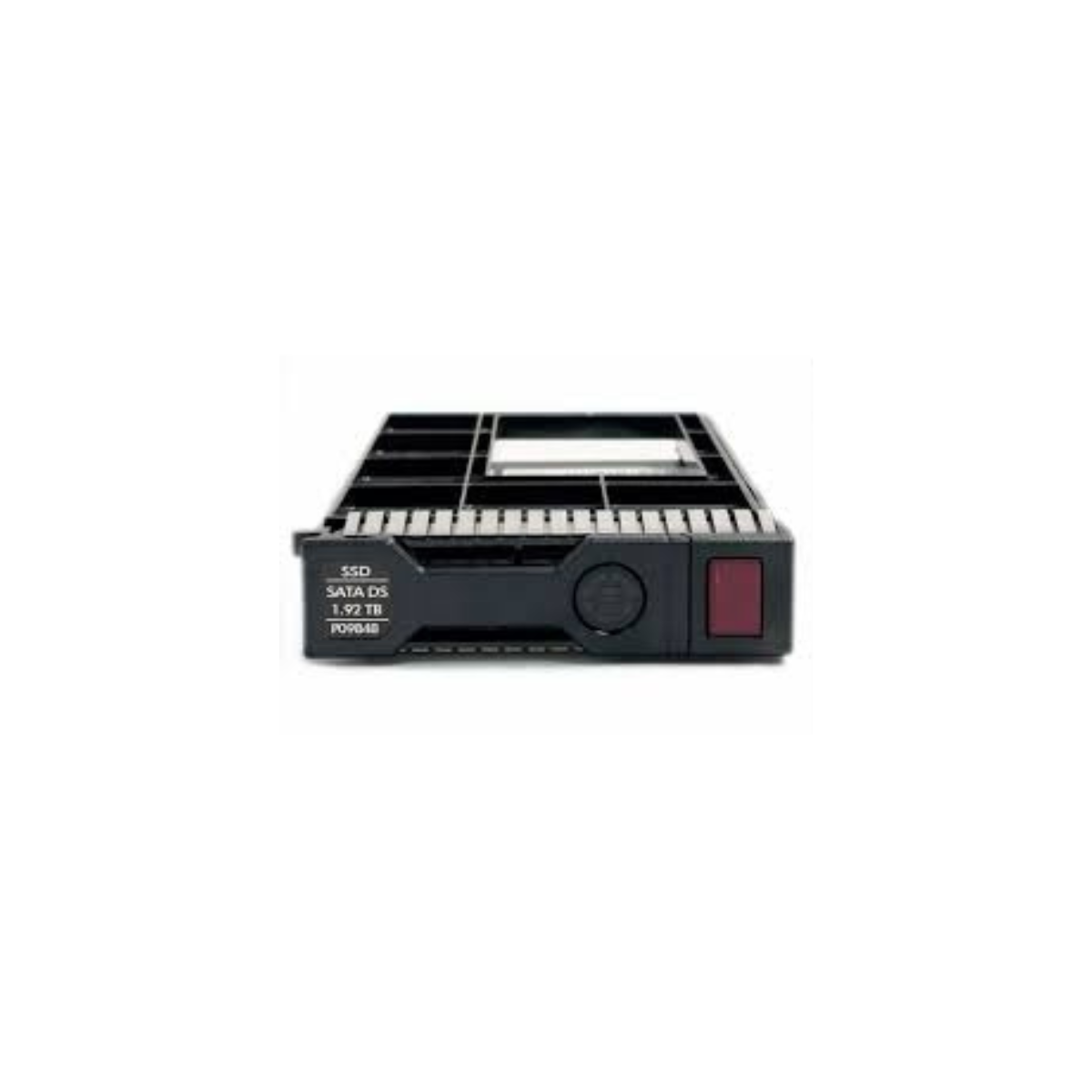

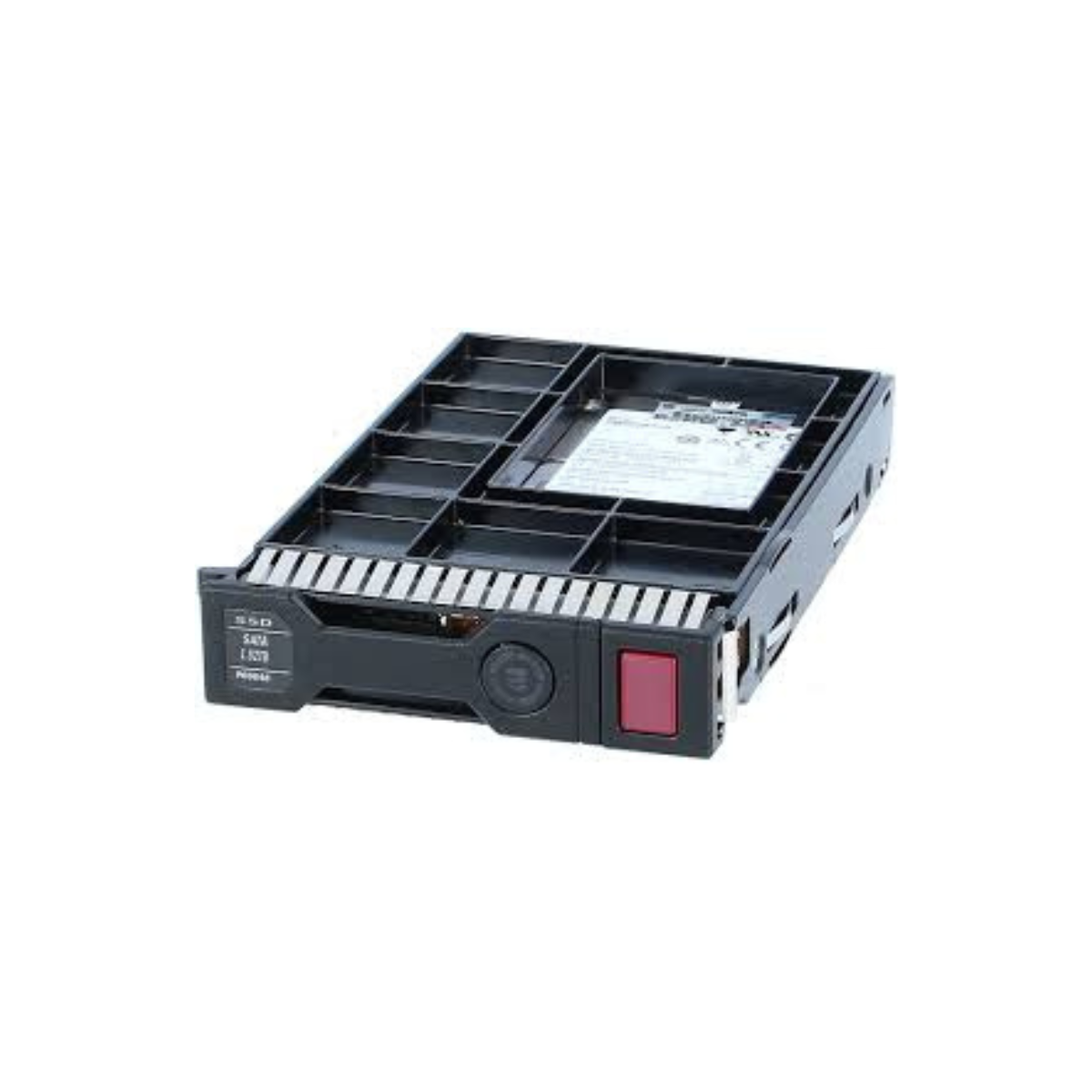

HPE 1.92TB SATA 6G Read Intensive LFF 3.5 Inch SCC Solid State Drive P09693-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 1.92TB SATA 6G Read Intensive LFF 3.5 Inch SCC Solid State Drive P09693-B21 is an enterprise Read Intensive (RI) SSD designed for applications requiring high random read IOPS performance. With 1.92TB storage capacity and a SATA 6Gbps interface, this SSD provides reliable solid-state storage for compatible HPE server environments and workloads that are predominantly read-oriented.

The P09693-B21 delivers up to 73,000 IOPS maximum 4KB random read and 64,000 IOPS 4KB random read, providing responsive access to frequently accessed data. It also supports up to 30,000 IOPS 4KB random write, making it suitable for applications where read performance is the primary requirement with some write activity.

Designed in a 3.5-inch LFF form factor, the drive uses a Smart Carrier Converter and supports Hot Plug installation. Digitally Signed Firmware helps provide assurance that the drive firmware originates from a trusted source, while HPE SmartSSD Wear Gauge compatibility supports monitoring of SSD lifespan through compatible management tools.

Key Features

• 1.92TB enterprise SSD capacity
• Read Intensive (RI) workload classification
• SATA 6Gbps interface
• Up to 73,000 IOPS maximum 4KB random read
• 64,000 IOPS 4KB random read
• Up to 30,000 IOPS 4KB random write
• 0.8 DWPD endurance
• 2,400TB lifetime writes
• Smart Carrier Converter
• HPE Smart Carrier Converter included
• Digitally Signed Firmware
• Hot Plug / Hot-Swap support
• 3.5-inch LFF form factor
• Designed for compatible HPE server platforms
• HPE SmartSSD Wear Gauge compatibility

Technical Specifications

• Brand: HPE
• MPN / Product ID: P09693-B21
• Device Type: Solid State Drive - Hot-Swap
• Storage Capacity: 1.92TB
• Form Factor: 3.5-inch LFF
• Interface: SATA 6Gbps
• Features: Digitally Signed Firmware
• Carrier Type: Smart Carrier Converter
• Plug Type: Hot Plug
• Workload Type: Read Intensive
• Bundled With: HPE Smart Carrier Converter
• Drive Transfer Rate: 6Gb/sec external
• Lifetime Writes: 2,400TB
• Endurance: 0.8 DWPD
• Interfaces: 1 x SATA 6Gbps
• Compatible Bay: 3.5-inch LFF

Performance Specifications

The HPE P09693-B21 is optimized for Read Intensive workloads, providing high random read performance for applications that frequently access stored data.

• 4KB Random Read: 64,000 IOPS
• Maximum 4KB Random Read: 73,000 IOPS
• 4KB Random Write: 30,000 IOPS
• Maximum 4KB Random Write: 30,000 IOPS
• External Drive Transfer Rate: 6Gb/sec
• Endurance: 0.8 DWPD
• Lifetime Writes: 2,400TB

Enterprise Features

Read Intensive Workload Design

The Read Intensive (RI) classification is designed for applications where random read performance is a primary requirement. The P09693-B21 is suitable for workloads that frequently access stored data while maintaining a lower write workload.

Digitally Signed Firmware

Digitally Signed Firmware provides assurance that the drive firmware comes from a trusted source and helps protect against unauthorized firmware access.

Smart Carrier Converter

The Smart Carrier Converter provides the physical carrier configuration required for the 3.5-inch LFF drive and supports integration into compatible HPE server storage environments.

HPE Smart Carrier Indicators

The HPE Smart Carrier uses self-describing status icons to help administrators identify drive status. A "do not remove" button helps reduce the risk of accidental drive removal and potential data loss.

SmartSSD Wear Gauge

HPE SmartSSD Wear Gauge compatibility through supported management tools enables administrators to monitor SSD lifespan and identify drives that may be approaching their endurance limits.

Enterprise Testing and Qualification

HPE SSDs are backed by extensive testing and qualification to support reliable and high-performing storage deployment in compatible enterprise environments.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Carrier Type: Smart Carrier Converter
• Hot Plug: Supported
• Width: 5.75 inch (14.61cm)
• Depth: 10 inch (25.4cm)
• Height: 8.63 inch (21.92cm)
• Weight: 3 lbs (1.36kg)

Power Consumption

No specific power consumption values were provided in the supplied specifications for the HPE P09693-B21.

Compatible Platforms

The HPE P09693-B21 is designed for compatible HPE server platforms supporting 3.5-inch LFF SATA SSDs and the required Smart Carrier Converter configuration.

Before installation, verify compatibility with the specific HPE server model, generation, storage controller, firmware, drive bay, and carrier configuration.

Ideal Applications

The HPE 1.92TB SATA 6G Read Intensive LFF SSD P09693-B21 is suitable for:

• Read-intensive enterprise applications
• Enterprise server storage
• Database applications
• Virtualization environments
• Data repositories
• File and content storage
• Application hosting
• Workloads requiring high random read IOPS
• Frequently accessed data workloads
• Compatible HPE server deployments

Why Choose HPE P09693-B21

The HPE P09693-B21 combines 1.92TB capacity, SATA 6Gbps connectivity, and a Read Intensive workload profile for applications that prioritize fast random data access.

With up to 73,000 maximum 4KB random read IOPS, 64,000 4KB random read IOPS, and 30,000 random write IOPS, the drive provides responsive performance for read-focused enterprise workloads.

The 3.5-inch LFF form factor, Smart Carrier Converter, Digitally Signed Firmware, and Hot Plug capability support integration into compatible HPE server environments, while SmartSSD Wear Gauge compatibility supports SSD lifecycle monitoring.

Compatibility

• Product: HPE P09693-B21
• Interface: SATA 6Gbps
• Form Factor: 3.5-inch LFF
• Compatible Bay: 3.5-inch LFF
• Installation: Hot Plug / Hot-Swap
• Carrier: Smart Carrier Converter
• Workload: Read Intensive
• Platform: Compatible HPE server platforms
• Compatibility Note: Verify the exact HPE server model, generation, storage controller, firmware requirements, supported LFF bay, and carrier configuration before installation.

FAQs

What is the capacity of the HPE P09693-B21?
The HPE P09693-B21 provides 1.92TB of enterprise SSD storage.

What interface does the HPE P09693-B21 use?
The drive uses a SATA 6Gbps interface with an external transfer rate of 6Gb/sec.

Is the HPE P09693-B21 a Read Intensive SSD?
Yes. The P09693-B21 is an HPE Read Intensive (RI) SSD, designed primarily for workloads requiring high random read IOPS performance.

What is the endurance rating of the P09693-B21?
The drive has an endurance rating of 0.8 DWPD (Drive Writes Per Day) and a supplied lifetime writes rating of 2,400TB.

What is the form factor of the HPE P09693-B21?
The P09693-B21 uses a 3.5-inch Large Form Factor (LFF) design and is compatible with a 3.5-inch LFF bay.

Does the HPE P09693-B21 include a Smart Carrier Converter?
Yes. The P09693-B21 has a Smart Carrier Converter carrier type and is bundled with an HPE Smart Carrier Converter.
