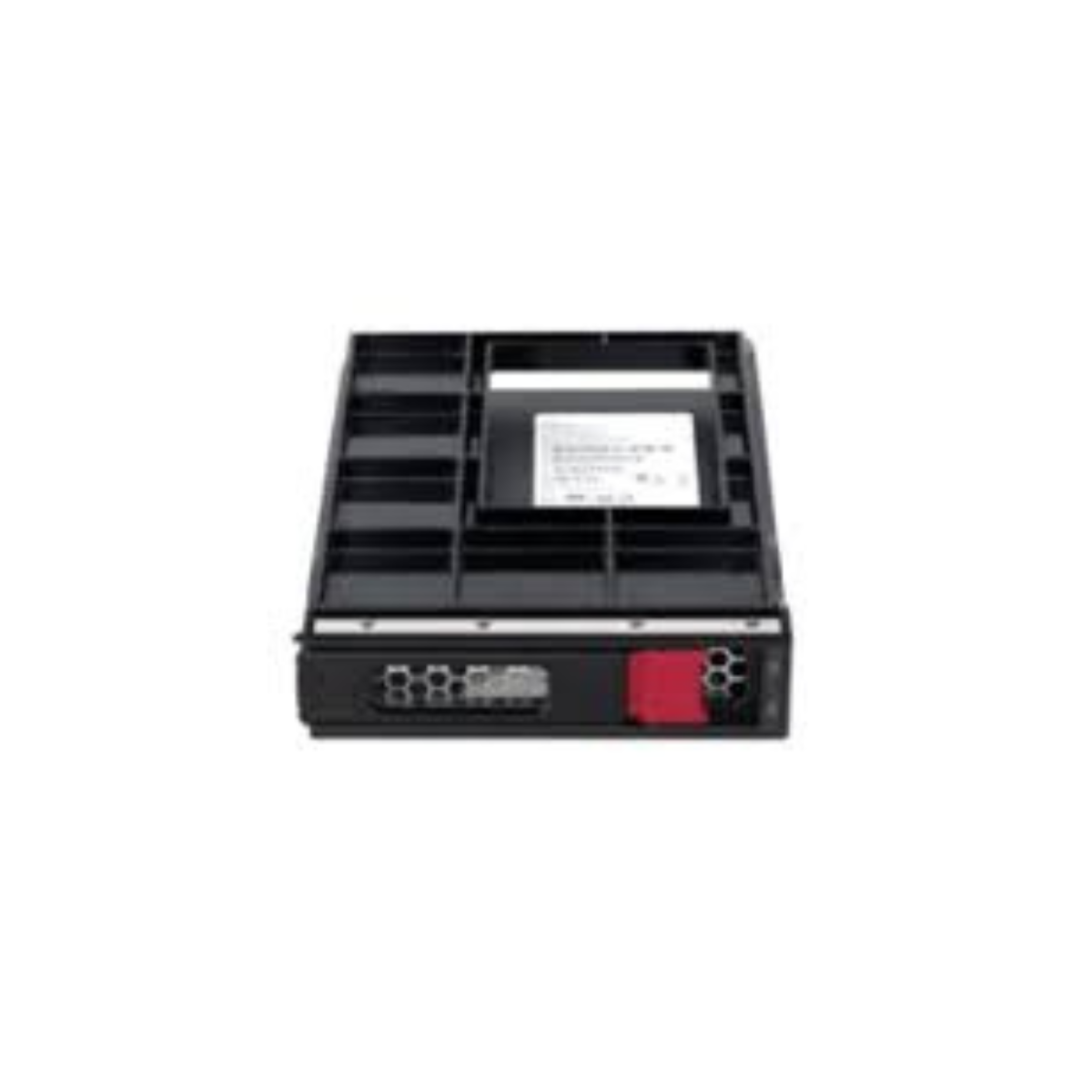

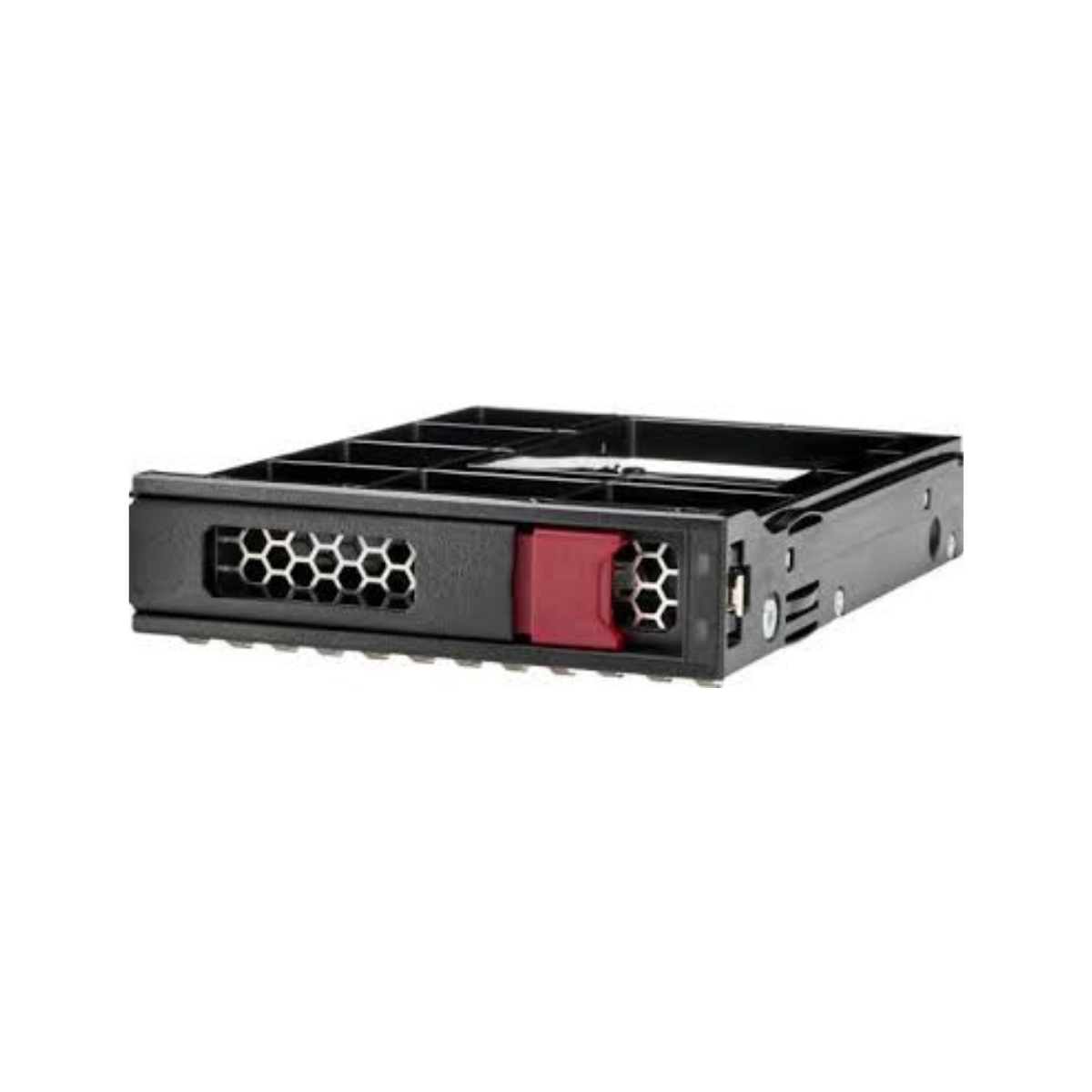

HPE 1.92TB SATA 6Gb/s Mixed Use LFF 3.5" LPC Solid State Drive P09726-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE 1.92TB SATA 6Gb/s Mixed Use LFF 3.5" LPC Solid State Drive P09726-B21 is an enterprise-grade SATA SSD designed to deliver high performance and endurance for applications requiring strong random read and write IOPS performance. With 1.92TB of storage capacity, MLC NAND flash memory, and a SATA 6Gbps interface, this SSD is built for demanding enterprise storage workloads.

Designed for Mixed Use (MU) workloads, the HPE P09726-B21 provides a balance of read and write performance with 3.5 DWPD endurance and 12,100 lifetime writes. It delivers up to 80,000 4KiB random read IOPS and 31,000 4KiB random write IOPS, making it suitable for transactional databases, virtualization, cloud computing, and other read/write-intensive applications.

The drive features an HPE Low Profile Converter (LPC) and is designed for 3.5-inch LFF drive bays. It also includes Digitally Signed Firmware and HPE SmartSSD Wear Gauge compatibility, providing enterprise-oriented security and SSD lifecycle monitoring capabilities.

Key Features

• 1.92TB enterprise SSD storage capacity
• SATA 6Gbps interface
• Mixed Use (MU) workload
• MLC NAND flash memory
• 3.5-inch LFF form factor
• Low Profile Converter (LPC) carrier
• 3.5 DWPD endurance rating
• 12,100 lifetime writes
• Up to 80,000 4KiB random read IOPS
• Up to 31,000 4KiB random write IOPS
• 535MBps internal read data rate
• 495MBps internal write data rate
• Digitally Signed Firmware
• Hot-swappable / hot-pluggable design
• HPE Low Profile Converter included
• HPE SmartSSD Wear Gauge compatibility
• Designed for enterprise servers and storage environments

Technical Specifications

• Brand: HPE
• Manufacturer Part Number (MPN): P09726-B21
• Device Type: Solid State Drive - Hot-Swap
• Capacity: 1.92TB
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Form Factor: 3.5-inch LFF
• Interface: SATA 6Gbps
• Plug Type: Hot Pluggable
• Carrier Type: Low Profile Converter (LPC)
• Workload Type: Mixed Use
• Features: Digitally Signed Firmware
• Bundled With: HPE Low Profile Converter
• Height: 7mm (0.3 inch)
• Lifetime Writes: 12,100
• Endurance DWPD: 3.5
• Drive Transfer Rate: 6Gb/sec external
• Internal Data Rate (Read): 535MBps
• Internal Data Rate (Write): 495MBps
• Random Read IOPS (4KiB, Q=16): 70,000
• Max Random Read IOPS (4KiB): 80,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 31,000
• Max Random Write IOPS (4KiB): 31,000 @ Q4
• Interfaces: 1 x SATA 6Gb/s
• Compatible Bay: 3.5-inch LFF
• Height: 14.61cm (5.75 inch)
• Width: 25.40cm (10.00 inch)
• Depth: 21.92cm (8.63 inch)
• Weight: 1.36kg (3.00 lbs)

Performance Specifications

• Storage Capacity: 1.92TB
• Interface: SATA 6Gbps
• Workload Classification: Mixed Use
• NAND Type: MLC
• Internal Read Data Rate: 535MBps
• Internal Write Data Rate: 495MBps
• Random Read IOPS (4KiB, Q=16): 70,000
• Maximum Random Read IOPS: 80,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 31,000
• Maximum Random Write IOPS: 31,000 @ Q4
• Endurance: 3.5 DWPD
• Lifetime Writes: 12,100
• Designed for high random read and write IOPS workloads

Enterprise Features

• Mixed Use Workload: Designed to support applications with a combination of read and write operations.
• HPE Digitally Signed Firmware: Helps provide assurance that the SSD firmware comes from a trusted source.
• HPE Low Profile Converter (LPC): Provides the required carrier configuration for supported 3.5-inch LFF server installations.
• Hot-Swap Design: Allows the SSD to be installed or replaced in supported server configurations without powering down the entire system.
• HPE SmartSSD Wear Gauge Compatibility: Helps monitor SSD lifespan through supported management tools.
• MLC NAND Flash: Provides enterprise solid state storage for demanding read/write workloads.
• Enterprise SATA Connectivity: The SATA 6Gbps interface provides compatibility with supported SATA server storage backplanes.

Physical Specifications

• Form Factor: 3.5-inch LFF
• Carrier Type: Low Profile Converter (LPC)
• Bundled With: HPE Low Profile Converter
• Compatible Bay: 3.5-inch LFF
• Hot Pluggable: Yes
• Height: 7mm (0.3 inch)
• Overall Height: 14.61cm (5.75 inch)
• Width: 25.40cm (10.00 inch)
• Depth: 21.92cm (8.63 inch)
• Weight: 1.36kg (3.00 lbs)

Power Consumption

A specific operating power consumption value was not provided in the supplied specifications.

Compatible Platforms

The HPE P09726-B21 is designed for compatible HPE enterprise servers with 3.5-inch LFF SATA drive bays and supported hot-swap configurations.

The supplied compatibility details identify the following HPE ProLiant platforms:

• HPE ProLiant DL325
• HPE ProLiant DL360
• HPE ProLiant DL380
• HPE ProLiant ML30
• HPE ProLiant ML350

The drive uses an HPE Low Profile Converter (LPC) and SATA 6Gbps interface. Compatibility with a specific server should be verified based on the exact generation, drive cage, backplane, controller, and carrier configuration.

The supplied information also indicates that the SSD may be deployed in certain Gen8 and Gen9 environments when the server uses compatible 3.5-inch drive caddies, although exact platform support should be confirmed before installation.

Ideal Applications

The HPE P09726-B21 is suitable for enterprise workloads requiring a balance of read and write performance, including:

• Transactional database workloads
• Cloud computing
• Virtualization
• Enterprise database management
• Read/write-intensive applications
• Data-intensive enterprise applications
• Server storage workloads
• Enterprise file and data services
• HPE ProLiant server deployments

Why Choose HPE P09726-B21

The HPE P09726-B21 combines 1.92TB of enterprise SATA SSD storage, MLC NAND flash, and a SATA 6Gbps interface in a 3.5-inch LFF form factor.

With 3.5 DWPD endurance, 12,100 lifetime writes, up to 80,000 4KiB random read IOPS, and 31,000 4KiB random write IOPS, the drive is designed for Mixed Use workloads that require consistent read and write activity.

Its HPE Low Profile Converter, hot-swap capability, Digitally Signed Firmware, and SmartSSD Wear Gauge compatibility make it a practical enterprise storage solution for supported HPE server configurations.

Compatibility

The HPE P09726-B21 uses a SATA 6Gbps interface and is designed for a 3.5-inch LFF compatible bay with an HPE Low Profile Converter (LPC).

Before installation, verify that the target server supports:

• 3.5-inch LFF SATA SSDs
• SATA 6Gbps connectivity
• Hot-swap drive support
• The required LPC carrier configuration
• Compatible server backplane and storage controller

For specific HPE ProLiant systems, verify compatibility with the exact server generation and configuration before purchase or installation.

Frequently Asked Questions

What is the storage capacity of the HPE P09726-B21?
The HPE P09726-B21 provides 1.92TB of enterprise solid state storage capacity.

What interface does the HPE P09726-B21 use?
The SSD uses a SATA 6Gbps interface with 1 x SATA 6Gb/s connectivity.

Is the HPE P09726-B21 designed for Mixed Use workloads?
Yes. The P09726-B21 is an HPE Mixed Use (MU) SSD with a 3.5 DWPD endurance rating, making it suitable for workloads involving both read and write operations.

What are the random IOPS of the HPE P09726-B21?
The drive provides 70,000 4KiB random read IOPS and 31,000 4KiB random write IOPS at the specified queue depths. Maximum random read performance is listed at 80,000 IOPS @ Q32.

What is the form factor of the HPE P09726-B21?
The SSD uses a 3.5-inch LFF form factor and includes an HPE Low Profile Converter (LPC).

Which HPE servers are compatible with the P09726-B21?
The supplied compatibility information lists HPE ProLiant DL325, DL360, DL380, ML30, and ML350 platforms with compatible 3.5-inch LFF configurations. Exact compatibility should be verified for the specific server generation and storage configuration.
