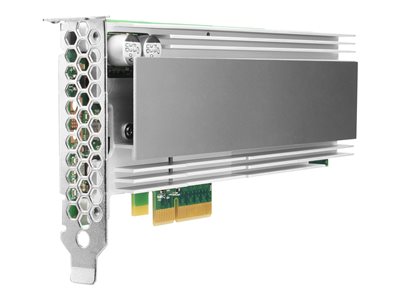

HPE 1.6TB NVMe x8 Lanes Mixed Use HHHL Solid State Drive Card P10264-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10264-B21 is a 1.6TB NVMe x8 Lanes Mixed Use Solid State Drive Card designed for enterprise applications that require high random read and write IOPS performance. Built for high-performance storage environments, this SSD uses a PCI Express x8 (NVMe) interface to provide fast data access and efficient storage performance.

HPE Mixed Use SSDs are designed to deliver a combination of high performance and endurance for workloads involving frequent random read and write operations. The P10264-B21 provides up to 130,000 4KB random read IOPS and 135,000 4KB random write IOPS, making it suitable for demanding transactional and enterprise applications.

With an internal data rate of up to 5200 MBps and an internal write data rate of up to 1900 MBps, the P10264-B21 provides fast storage performance for compatible enterprise server environments. Its 5 DWPD rating and 1460 TB SSD endurance support workloads with regular write activity.

Key Features

• 1.6TB storage capacity for enterprise workloads
• PCI Express x8 (NVMe) interface
• HHHL PCIe card form factor
• Up to 5200 MBps internal data rate
• Up to 1900 MBps internal write data rate
• Up to 130,000 IOPS 4KB random read
• Up to 135,000 IOPS 4KB random write
• 5 DWPD endurance rating
• 1460 TB SSD endurance
• Digitally Signed Firmware
• Half-height half-length form factor
• Designed for Mixed Use enterprise workloads
• WEEE compliant

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Packaged Quantity: 1
• Type: Solid state drive
• Hard Drive Type: Internal hard drive
• Storage Interface: PCI Express x8 (NVMe)
• Interface: PCI Express x8 (NVMe)
• Capacity: 1.6 TB
• Internal Data Rate: 5200 MBps
• Internal Data Rate (Write): 1900 MBps
• 4KB Random Read: 130000 IOPS
• 4KB Random Write: 135000 IOPS
• Drive Writes Per Day (DWPD): 5
• SSD Endurance: 1460 TB
• Features: Digitally Signed Firmware, Half-height half-length form-factor
• Power Consumption: 18 Watt (maximum), 12.22 Watt (random read/write), 12.22 Watt (random write), 17.49 Watt (sequential read), 15.24 Watt (sequential write), 7.18 Watt (idle), 12.22 Watt (random read)
• Compliant Standards: WEEE

Performance Specifications

The HPE P10264-B21 delivers high-speed NVMe storage performance for demanding Mixed Use enterprise applications. Its 5200 MBps internal data rate and 1900 MBps internal write data rate provide fast data transfer for performance-intensive workloads.

The SSD supports up to 130,000 4KB random read IOPS and 135,000 4KB random write IOPS, helping applications handle frequent random storage operations efficiently. With a 5 DWPD endurance rating, it is designed for environments with significant daily write activity.

Enterprise Features

Mixed Use Performance

HPE Mixed Use SSDs are designed for enterprise applications that require a balance of random read and write performance. The P10264-B21 provides high IOPS capability for demanding workloads.

High Endurance

The P10264-B21 provides 5 DWPD and an SSD endurance rating of 1460 TB, supporting enterprise environments with frequent read and write operations.

Digitally Signed Firmware

HPE Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source and helps prevent unauthorized firmware access.

Enterprise Reliability

HPE Mixed Use SSDs are backed by extensive testing and qualification designed to support reliable, high-performing operation in enterprise environments.

Physical Specifications

• Form Factor: PCIe card (HHHL)
• Form Factor Type: Half-height half-length
• Compatible Bay: PCIe card (HHHL)
• Drive Type: Internal hard drive
• Interface: PCI Express x8 (NVMe)
• Storage Interface: PCI Express x8 (NVMe)

The Half-Height Half-Length (HHHL) PCIe card design provides a compact enterprise storage solution for compatible server configurations supporting PCIe x8 NVMe storage.

Power Consumption

The HPE P10264-B21 has the following specified power consumption:

• Maximum: 18 Watt
• Random Read/Write: 12.22 Watt
• Random Write: 12.22 Watt
• Sequential Read: 17.49 Watt
• Sequential Write: 15.24 Watt
• Idle: 7.18 Watt
• Random Read: 12.22 Watt

Compatible Platforms

The HPE P10264-B21 is designed for compatible HPE enterprise server configurations that support PCI Express x8 NVMe HHHL PCIe cards.

The server should provide a compatible PCIe x8 slot, NVMe support, and sufficient physical clearance for the Half-Height Half-Length card. Specific server compatibility should be verified before installation.

Ideal Applications

The HPE P10264-B21 is suitable for:

• Transactional databases
• Enterprise applications
• Virtualization environments
• Data analytics
• High-performance computing
• High-IOPS workloads
• Mixed read/write workloads
• Data center applications
• Cloud infrastructure
• Performance-intensive storage environments

Why Choose HPE P10264-B21

The HPE P10264-B21 1.6TB NVMe Mixed Use SSD combines high-speed NVMe connectivity, strong IOPS performance, and enterprise endurance in an HHHL PCIe card design. With up to 130,000 random read IOPS, 135,000 random write IOPS, and 5 DWPD endurance, it is designed for demanding workloads that require consistent random read and write performance.

Its PCI Express x8 NVMe interface provides high-speed storage connectivity, while Digitally Signed Firmware supports firmware integrity. The 1.6TB capacity provides substantial storage for enterprise applications while maintaining the performance required for Mixed Use environments.

Compatibility

The HPE P10264-B21 is compatible with server configurations that support:

• PCI Express x8 NVMe storage
• HHHL PCIe expansion cards
• NVMe SSD technology
• Compatible PCIe expansion slots
• Required physical clearance for an HHHL card

Always verify the specific HPE server model and configuration before purchasing or installing the drive.

FAQs

What is the storage capacity of the HPE P10264-B21?
The HPE P10264-B21 provides 1.6TB of storage capacity and is designed for Mixed Use enterprise workloads.

What interface does the HPE P10264-B21 use?
The SSD uses a PCI Express x8 (NVMe) storage interface.

What is the form factor of the HPE P10264-B21?
The P10264-B21 uses a Half-Height Half-Length (HHHL) PCIe card form factor.

What are the random read and write IOPS?
The HPE P10264-B21 provides up to 130,000 4KB random read IOPS and 135,000 4KB random write IOPS.

What is the endurance rating of the HPE P10264-B21?
The SSD has a 5 DWPD rating and an SSD endurance of 1460 TB.

Is the HPE P10264-B21 suitable for enterprise workloads?
Yes. The P10264-B21 is designed for demanding Mixed Use enterprise workloads requiring high random read/write IOPS, high-speed NVMe connectivity, and strong endurance. Compatibility should be verified with the specific server configuration before installation.
