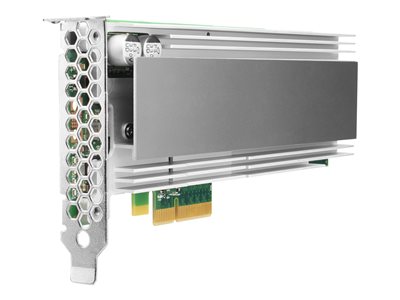

HPE 3.2TB NVMe x8 Lanes Mixed Use HHHL Solid State Drive Card P10266-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10266-B21 is a 3.2TB NVMe x8 Lanes Mixed Use Solid State Drive Card designed for enterprise applications that require high random read and write IOPS performance. Built in a Half-Height Half-Length (HHHL) PCIe card form factor, this SSD provides high-speed NVMe storage through a PCI Express x8 interface.

HPE Mixed Use SSDs are designed to provide a strong combination of performance and endurance for workloads involving frequent read and write operations. The P10266-B21 delivers up to 175,000 4KB random read IOPS and 150,000 4KB random write IOPS, making it suitable for demanding enterprise applications and transactional workloads.

With an internal data rate of 6.2 GBps, write data rate of 2.9 GBps, and an average latency of just 0.025 millisecond, the HPE P10266-B21 provides responsive storage performance. Its 5 DWPD rating and 29,200 TB SSD endurance further support high-write enterprise environments.

Key Features

• 3.2TB storage capacity
• PCI Express x8 (NVMe) interface
• Half-Height Half-Length (HHHL) PCIe card form factor
• 6.2 GBps internal data rate
• 2.9 GBps internal write data rate
• 175,000 IOPS 4KB random read performance
• 150,000 IOPS 4KB random write performance
• 5 Drive Writes Per Day (DWPD)
• 29,200 TB SSD endurance
• 0.025 millisecond average latency
• Digitally Signed Firmware
• Designed for Mixed Use enterprise workloads
• WEEE compliant

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Packaged Quantity: 1
• Type: Solid state drive
• Hard Drive Type: Internal hard drive
• Form Factor: PCIe card (HHHL)
• Form Factor (metric): PCIe card (HHHL)
• Form Factor (Short): PCIe card
• Form Factor (Short) (metric): PCIe card
• Storage Interface: PCI Express x8 (NVMe)
• Interface: PCI Express x8 (NVMe)
• Capacity: 3.2 TB
• Average Latency: 0.025 millisecond
• Internal Data Rate: 6.2 GBps
• Internal Data Rate (Write): 2.9 GBps
• 4KB Random Read: 175000 IOPS
• 4KB Random Write: 150000 IOPS
• Drive Writes Per Day (DWPD): 5
• SSD Endurance: 29200 TB
• Features: Digitally Signed Firmware
• Interfaces: 1 x PCI Express x8 (NVMe)
• Compatible Bay: PCIe card (HHHL)
• Compliant Standards: WEEE

Performance Specifications

The HPE P10266-B21 is built for high-performance Mixed Use workloads where both read and write operations are important. Its 6.2 GBps internal data rate and 2.9 GBps write rate provide high-speed data processing, while the 175,000 IOPS random read and 150,000 IOPS random write performance supports demanding applications.

With an average latency of only 0.025 millisecond, the SSD can provide fast response times for applications requiring rapid access to stored data. The 5 DWPD endurance rating makes it suitable for environments with frequent write activity.

Enterprise Features

Mixed Use Performance

HPE Mixed Use SSDs are designed for enterprise workloads requiring a balance of random read and write performance. The P10266-B21 provides high IOPS performance for demanding transactional and data-intensive applications.

High Endurance

The P10266-B21 offers 5 DWPD with an SSD endurance rating of 29,200 TB, providing the durability required for write-intensive enterprise workloads.

Digitally Signed Firmware

HPE Digitally Signed Firmware helps provide assurance that the drive firmware comes from a trusted source and helps prevent unauthorized firmware access.

Enterprise Reliability

HPE Mixed Use SSDs are backed by extensive testing and qualification to support reliable, high-performing operation in enterprise environments.

Physical Specifications

• Form Factor: PCIe card (HHHL)
• Form Factor (metric): PCIe card (HHHL)
• Form Factor (Short): PCIe card
• Form Factor (Short) (metric): PCIe card
• Compatible Bay: PCIe card (HHHL)
• Drive Type: Internal hard drive
• Interface: PCI Express x8 (NVMe)

The HHHL PCIe card design allows the P10266-B21 to be installed in a compatible PCIe expansion slot within supported enterprise server configurations.

Power Consumption

The HPE P10266-B21 has the following specified power consumption:

• Sequential Read: 17.97 Watt
• Maximum: 19 Watt
• Random Read: 13.24 Watt
• Sequential Write: 18.85 Watt
• Idle: 7.3 Watt
• Random Read/Write: 13.24 Watt
• Random Write: 13.24 Watt

Compatible Platforms

The HPE P10266-B21 is designed for compatible HPE enterprise server configurations that support PCI Express x8 NVMe HHHL PCIe cards.

The server should provide a compatible PCIe x8 slot, NVMe support, and sufficient physical clearance for the HHHL card form factor. Specific server compatibility should be verified before installation.

Ideal Applications

The HPE P10266-B21 is suitable for:

• Transactional databases
• Enterprise applications
• Virtualization environments
• Data analytics
• High-performance computing
• High-IOPS workloads
• Mixed read/write workloads
• Data center applications
• Cloud infrastructure
• Performance-intensive storage environments

Why Choose HPE P10266-B21

The HPE P10266-B21 3.2TB NVMe Mixed Use SSD combines high capacity, high IOPS performance, low latency, and strong endurance in a compact HHHL PCIe card. With up to 175,000 random read IOPS, 150,000 random write IOPS, and 5 DWPD, it is designed for demanding enterprise workloads requiring consistent storage performance.

Its PCI Express x8 NVMe interface provides high-speed connectivity, while Digitally Signed Firmware supports firmware integrity. The 3.2TB capacity provides substantial storage for enterprise applications while maintaining the performance required for demanding mixed-use environments.

Compatibility

The HPE P10266-B21 is compatible with server configurations that support:

• PCI Express x8 NVMe storage
• HHHL PCIe expansion cards
• NVMe SSD technology
• Compatible PCIe expansion slots
• Required physical clearance for an HHHL card

Always verify the specific HPE server model and configuration before purchasing or installing the drive.

FAQs

What is the capacity of the HPE P10266-B21?
The HPE P10266-B21 provides 3.2TB of storage capacity and is designed for Mixed Use enterprise workloads.

What interface does the HPE P10266-B21 use?
It uses a PCI Express x8 (NVMe) storage interface.

What is the form factor of the HPE P10266-B21?
The drive uses a PCIe card (HHHL) form factor, meaning Half-Height Half-Length.

What are the random read and write IOPS?
The P10266-B21 provides up to 175,000 4KB random read IOPS and 150,000 4KB random write IOPS.

What is the endurance rating of the HPE P10266-B21?
The SSD has a 5 DWPD rating and an SSD endurance of 29,200 TB.

Is the HPE P10266-B21 suitable for enterprise workloads?
Yes. The P10266-B21 is designed for demanding Mixed Use enterprise workloads requiring high random read/write IOPS, high-speed NVMe connectivity, and strong endurance.
