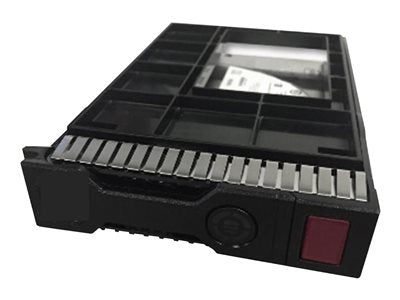

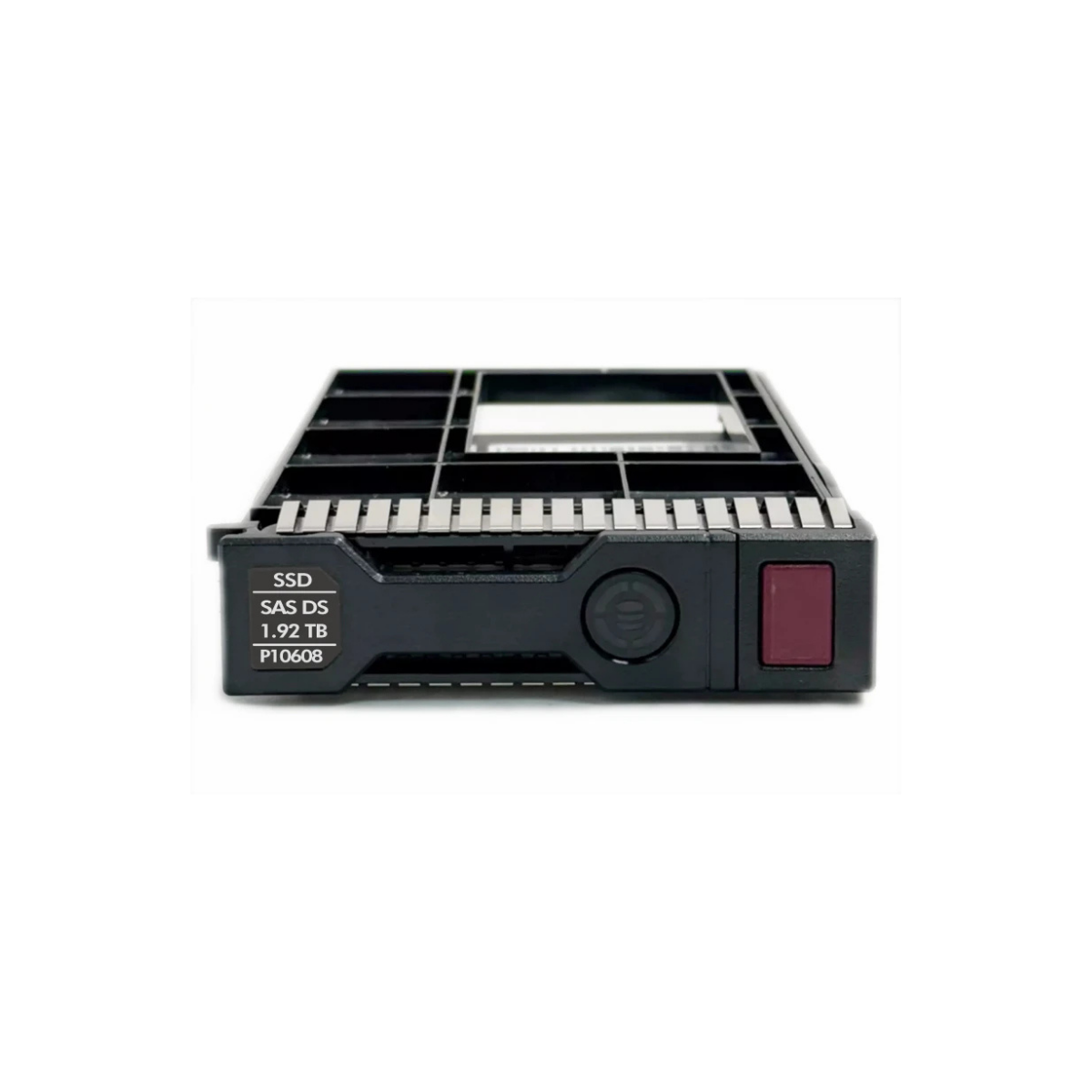

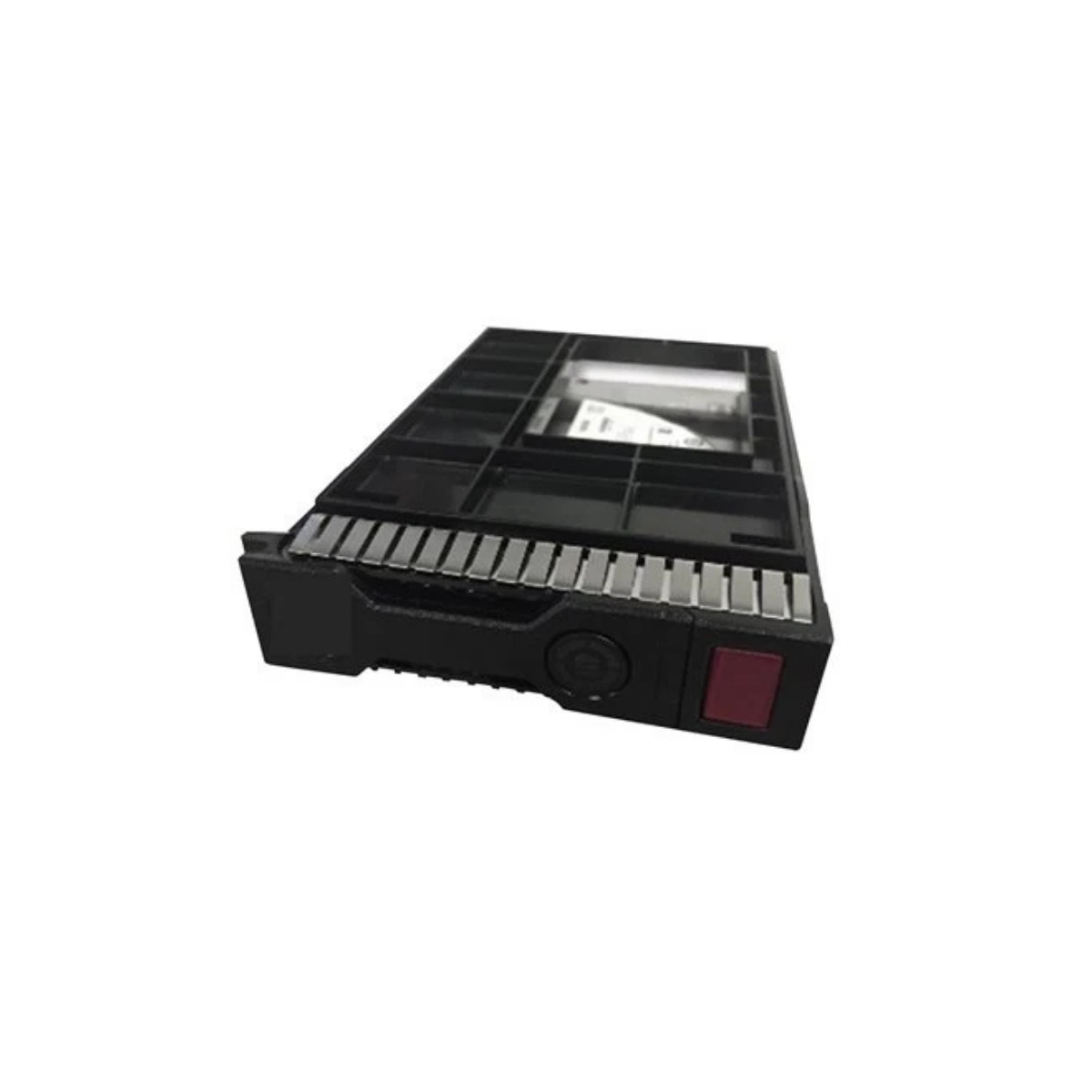

HPE 1.92TB SAS 12G Mixed Use LFF Solid State Drive P10456-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10456-B21 1.92TB SAS 12G Mixed Use SSD is an enterprise-grade solid state drive designed for demanding server workloads that require a balanced combination of read and write performance. With a 12Gbps SAS interface, the drive provides high-speed data transfer and reliable storage performance for compatible HPE server environments.

Designed for Mixed Use (MU) workloads, the P10456-B21 is suitable for applications that require frequent read and write operations. It provides 1.92TB of storage capacity, a 3.5-inch Large Form Factor (LFF) design, and an HPE Smart Carrier Converter for compatible server configurations.

The SSD delivers up to 98,000 4KB random read IOPS and 52,000 4KB random write IOPS, with a 3 DWPD endurance rating and 10,500 TB SSD endurance. It also features Digitally Signed Firmware to help maintain firmware integrity in supported enterprise environments.

Key Features

• Genuine HPE enterprise solid state drive
• 1.92TB storage capacity
• 12Gbps SAS interface
• Mixed Use (MU) workload design
• 3.5-inch Large Form Factor (LFF)
• Hot-swap drive design
• HPE Smart Carrier Converter included
• Triple-Level Cell (TLC) NAND flash memory
• Digitally Signed Firmware
• Up to 98,000 4KB random read IOPS
• Up to 52,000 4KB random write IOPS
• 3 DWPD endurance rating
• 10,500 TB SSD endurance
• 1.2 GBps data transfer rate
• 810 MBps internal data rate
• 635 MBps internal write data rate
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Model: Value
• Part Number: P10456-B21
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 1.92 TB
• NAND Flash Memory Type: Triple-Level Cell (TLC)
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Interfaces: 1 x SAS 12 Gb/s
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• Average Latency: 0.035 millisecond
• Bundled With: HPE Smart Carrier Converter
• Packaged Quantity: 1
• Compatible Bay: 3.5" LFF
• Drive Writes Per Day (DWPD): 3
• SSD Endurance: 10,500 TB
• Features: Digitally Signed Firmware
• Compliant Standards: WEEE

Performance Specifications

The HPE P10456-B21 is designed to deliver consistent storage performance for enterprise applications requiring both read and write operations.

• 4KB Random Read: 98,000 IOPS
• 4KB Random Write: 52,000 IOPS
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• Average Latency: 0.035 millisecond
• DWPD: 3
• SSD Endurance: 10,500 TB

The 12Gbps SAS interface provides high-speed storage connectivity and bidirectional data transfer for compatible enterprise server environments.

Physical Specifications

The P10456-B21 uses a 3.5-inch Large Form Factor (LFF) design and is supplied with an HPE Smart Carrier Converter. The drive has a 0.6-inch height and is designed for compatible 3.5-inch LFF server bays.

• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Height: 0.6 inch
• Compatible Bay: 3.5" LFF
• Bundled Carrier: HPE Smart Carrier Converter
• Color Category: Black, Red

Enterprise Features

The P10456-B21 is built for enterprise server environments where performance, endurance, and reliable storage operation are important. Its Mixed Use workload classification allows it to handle applications involving substantial read and write activity.

The drive features Digitally Signed Firmware, helping ensure firmware integrity by providing a trusted firmware source. Its 3 DWPD endurance rating makes it appropriate for workloads with significant daily write requirements.

Installation & Compatibility

The SSD features a 3.5-inch LFF form factor and 12Gbps SAS connectivity. It is intended for compatible HPE server configurations that support SAS storage and 3.5-inch LFF drive bays.

Before installation, verify compatibility with your specific HPE server model, SAS controller, backplane, firmware, and storage configuration.

Ideal Applications

The HPE P10456-B21 is suitable for:

• Enterprise server storage
• Virtualization environments
• Database applications
• Big data workloads
• High-performance computing
• Mixed read/write workloads
• Enterprise application servers
• Data center infrastructure
• Server storage upgrades
• Mission-critical applications
• HPE server deployments

Why Choose HPE P10456-B21

The HPE P10456-B21 combines 1.92TB capacity, 12Gbps SAS connectivity, Mixed Use endurance, and strong random I/O performance in a 3.5-inch LFF enterprise SSD.

With 98,000 random read IOPS, 52,000 random write IOPS, 3 DWPD endurance, and 10,500 TB SSD endurance, this drive is designed for enterprise environments that need dependable performance across both read and write workloads.

FAQs

What is the storage capacity of the HPE P10456-B21?
The HPE P10456-B21 provides 1.92TB of solid-state storage capacity.

What interface does the HPE P10456-B21 use?
The drive uses a 12Gbps SAS interface with one SAS 12 Gb/s connection.

What type of workload is the P10456-B21 designed for?
The P10456-B21 is a Mixed Use (MU) SSD, designed for enterprise workloads involving both read and write operations.

What is the form factor of the HPE P10456-B21?
It uses a 3.5-inch Large Form Factor (LFF) and includes an HPE Smart Carrier Converter.

What are the random read and write IOPS?
The drive provides up to 98,000 4KB random read IOPS and 52,000 4KB random write IOPS.

What is the endurance rating of the HPE P10456-B21?
The SSD has a 3 DWPD (Drive Writes Per Day) rating and an SSD endurance specification of 10,500 TB.
