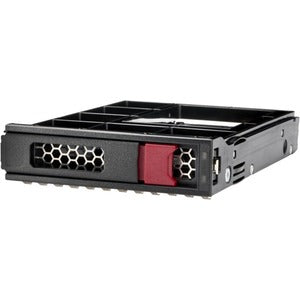

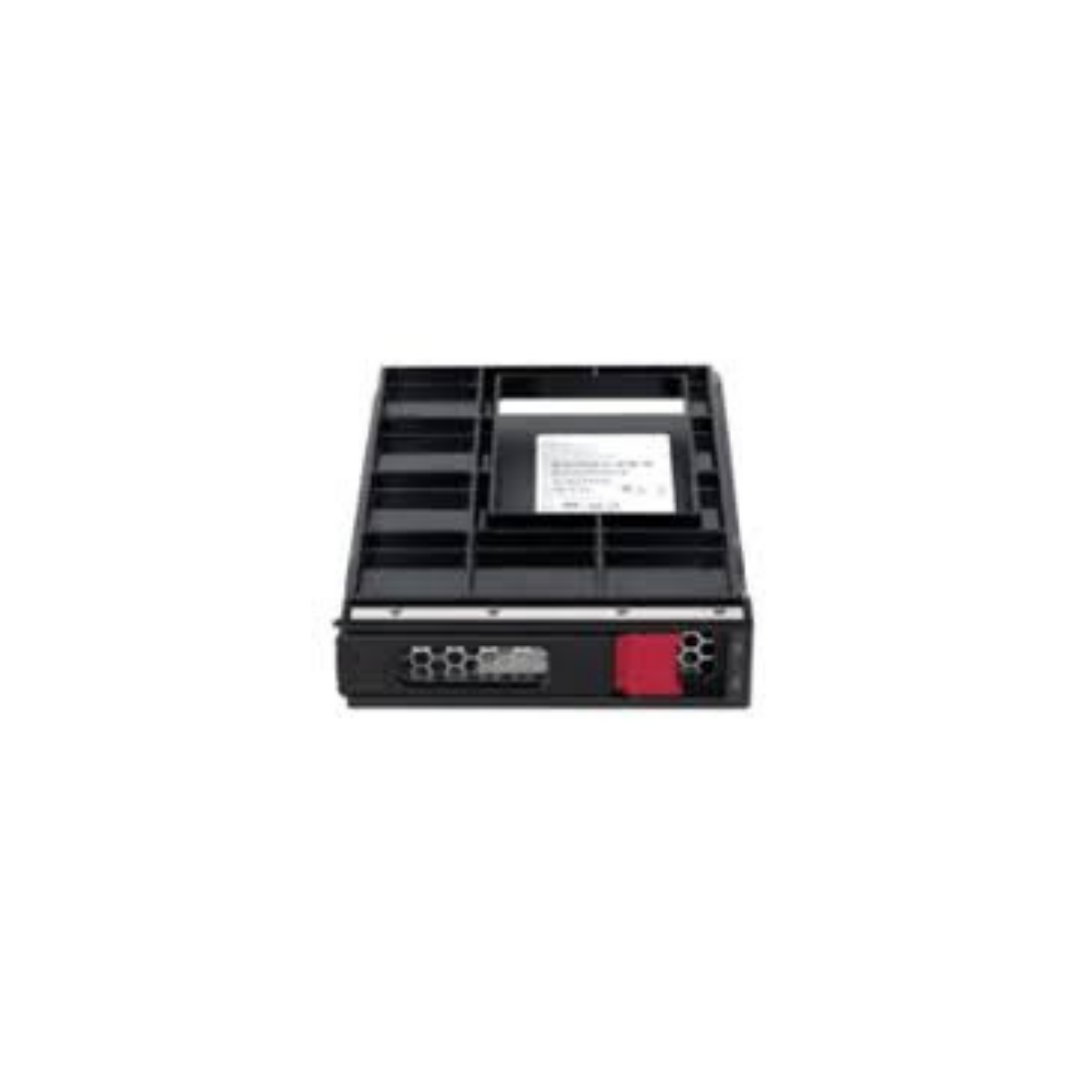

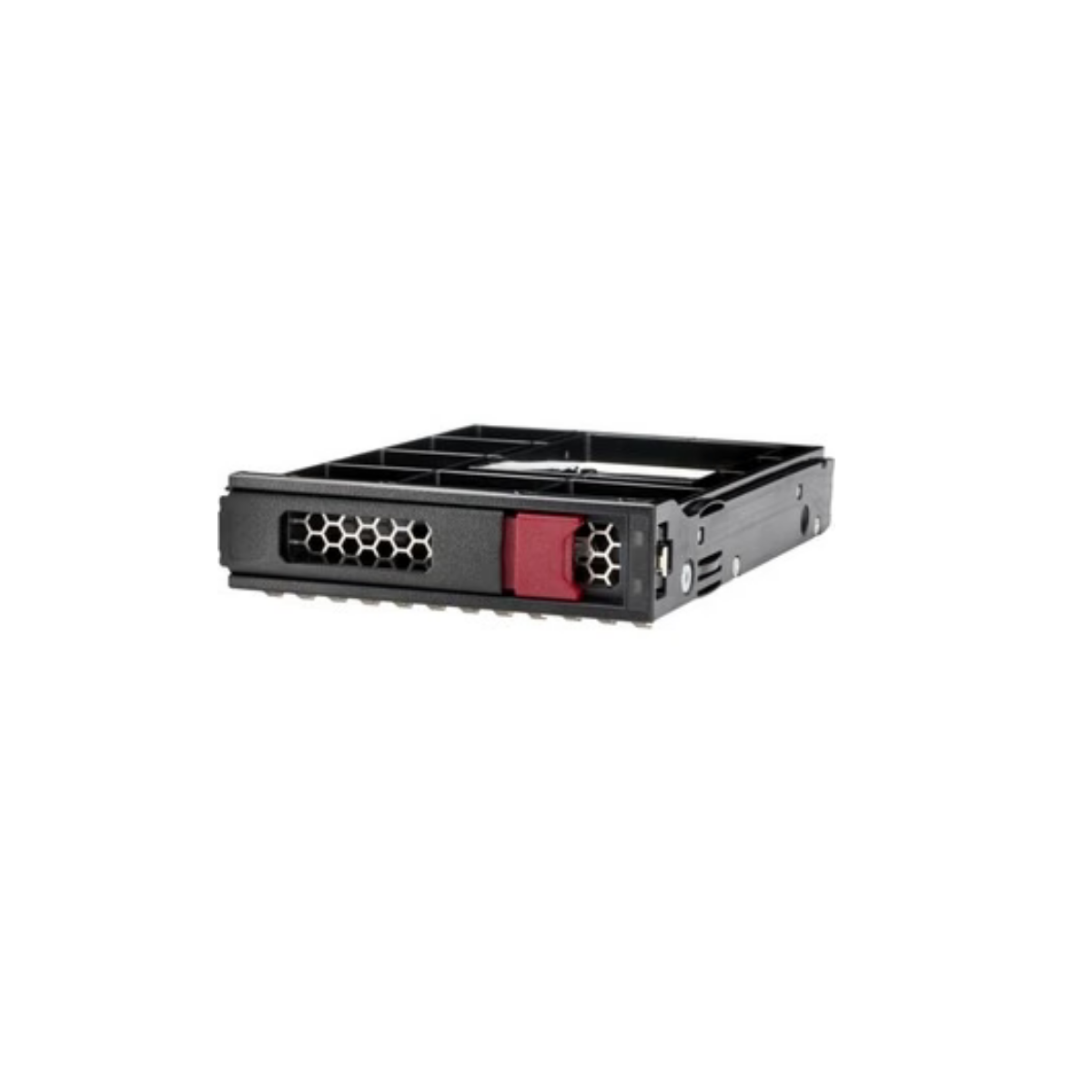

HPE 1.92TB SAS 12Gb Mixed Use LFF Solid State Drive P10458-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P10458-B21 1.92TB SAS 12Gb Mixed Use SSD is an enterprise solid state drive designed for workloads requiring a balanced combination of read and write performance. With a 12Gbps SAS interface, this SSD provides high-speed data transfer and reliable performance for demanding server environments.

Designed for Mixed Use (MU) workloads, the P10458-B21 is suitable for applications that perform both read and write operations. It features a 1.92TB capacity, 3.5-inch Large Form Factor (LFF) design, and an HPE Low Profile Converter for compatible server configurations.

The drive delivers up to 98,000 4KB random read IOPS and 52,000 4KB random write IOPS, with a 3 DWPD endurance rating. It also includes Digitally Signed Firmware to help maintain firmware integrity and support secure enterprise storage environments.

Key Features

• Genuine HPE enterprise solid state drive
• 1.92TB storage capacity
• 12Gbps SAS interface
• Mixed Use (MU) workload design
• 3.5-inch Large Form Factor (LFF)
• Hot-swap drive design
• HPE Low Profile Converter included
• Triple-Level Cell (TLC) NAND flash memory
• Digitally Signed Firmware
• Up to 98,000 4KB random read IOPS
• Up to 52,000 4KB random write IOPS
• 3 DWPD endurance rating
• Up to 10,500 TB SSD endurance
• 1.2 GBps data transfer rate
• Factory sealed and retail boxed
• Full HPE warranty

Technical Specifications

• Manufacturer: Hewlett-Packard
• Brand: HPE
• Product Line: HPE Mixed Use
• Model: Value
• Part Number: P10458-B21
• Product Type: Solid State Drive
• Workload Type: Mixed Use
• Capacity: 1.92 TB
• NAND Flash Memory Type: Triple-Level Cell (TLC)
• Hard Drive Type: Hot-swap hard drive
• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Storage Interface: Serial Attached SCSI 3
• Interface: Serial Attached SCSI 3
• Interfaces: 1 x SAS 12 Gb/s
• Data Transfer Rate: 1.2 GBps
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• Bundled With: HPE Low Profile Converter
• Packaged Quantity: 1
• Compatible Bay: 3.5" LFF
• Drive Writes Per Day (DWPD): 3
• SSD Endurance: 10,500 TB
• Features: Digitally Signed Firmware
• Compliant Standards: WEEE

Performance Specifications

The HPE P10458-B21 provides balanced performance for enterprise applications with mixed read and write workloads.

• 4KB Random Read: 98,000 IOPS
• 4KB Random Write: 52,000 IOPS
• Internal Data Rate: 810 MBps
• Internal Data Rate (Write): 635 MBps
• Data Transfer Rate: 1.2 GBps
• DWPD: 3
• SSD Endurance: 10,500 TB

The 12Gbps SAS interface provides high-speed connectivity and bidirectional data transfer, making the drive suitable for server environments requiring dependable storage performance.

Physical Specifications

The P10458-B21 uses a 3.5-inch Large Form Factor (LFF) design with an 8.9 cm metric form factor. The drive has a 0.6-inch height and is supplied with an HPE Low Profile Converter for supported configurations.

• Form Factor: 3.5" LFF
• Form Factor (Metric): 8.9 cm LFF
• Height: 0.6 inch
• Bundled Carrier: HPE Low Profile Converter
• Compatible Bay: 3.5" LFF
• Color Category: Black, Red

Enterprise Features

The P10458-B21 is designed for enterprise server environments where storage performance and endurance are important. Its Mixed Use classification makes it appropriate for workloads that require frequent read and write operations.

The drive also features Digitally Signed Firmware, helping ensure that the firmware comes from a trusted source. The 3 DWPD endurance rating makes it suitable for applications with substantial daily write activity.

Installation & Compatibility

The SSD uses a 3.5-inch LFF form factor and a 12Gbps SAS interface. It is designed for compatible HPE server configurations supporting SAS storage and the required LFF drive bay.

Before installation, verify compatibility with your exact HPE server model, SAS controller, backplane, firmware, and drive configuration.

Ideal Applications

The HPE P10458-B21 is suitable for:

• Enterprise server storage
• Virtualization environments
• Database applications
• Big data workloads
• High-performance computing
• Mixed read/write workloads
• Enterprise application servers
• Data center infrastructure
• Server storage upgrades
• Mission-critical applications
• HPE server deployments

Why Choose HPE P10458-B21

The HPE P10458-B21 combines 1.92TB capacity, 12Gbps SAS connectivity, Mixed Use endurance, and strong random I/O performance in a 3.5-inch LFF enterprise SSD.

With 98,000 random read IOPS, 52,000 random write IOPS, and a 3 DWPD endurance rating, it is designed for enterprise workloads that require consistent performance across both read and write operations.

FAQs

What is the storage capacity of the HPE P10458-B21?
The HPE P10458-B21 provides 1.92TB of solid-state storage capacity.

What interface does the HPE P10458-B21 use?
The drive uses a 12Gbps SAS interface with one SAS 12 Gb/s interface connection.

What type of workload is the P10458-B21 designed for?
The P10458-B21 is a Mixed Use (MU) SSD, designed for workloads involving both read and write operations.

What is the form factor of the HPE P10458-B21?
It uses a 3.5-inch Large Form Factor (LFF) and is bundled with an HPE Low Profile Converter.

What are the random read and write IOPS?
The drive provides up to 98,000 4KB random read IOPS and 52,000 4KB random write IOPS.

What is the endurance rating of the HPE P10458-B21?
The SSD has a 3 DWPD (Drive Writes Per Day) endurance rating and an SSD endurance specification of 10,500 TB.
